Basic filter PFN5-1200 – 10 bar, DN150, 224,000 l/min 5 micron stainless steel mesh · 10 bar
Code: PFN5-1200
Related products
Product detailed description
The PFN5-1200 basic mesh process filter traps solid contaminants larger than 5 µm. It has a DN150 flange, a flow of 224,000 l/min at 7 bar and a working pressure of up to 10 bar. It contains 6 PFN5-200V elements.

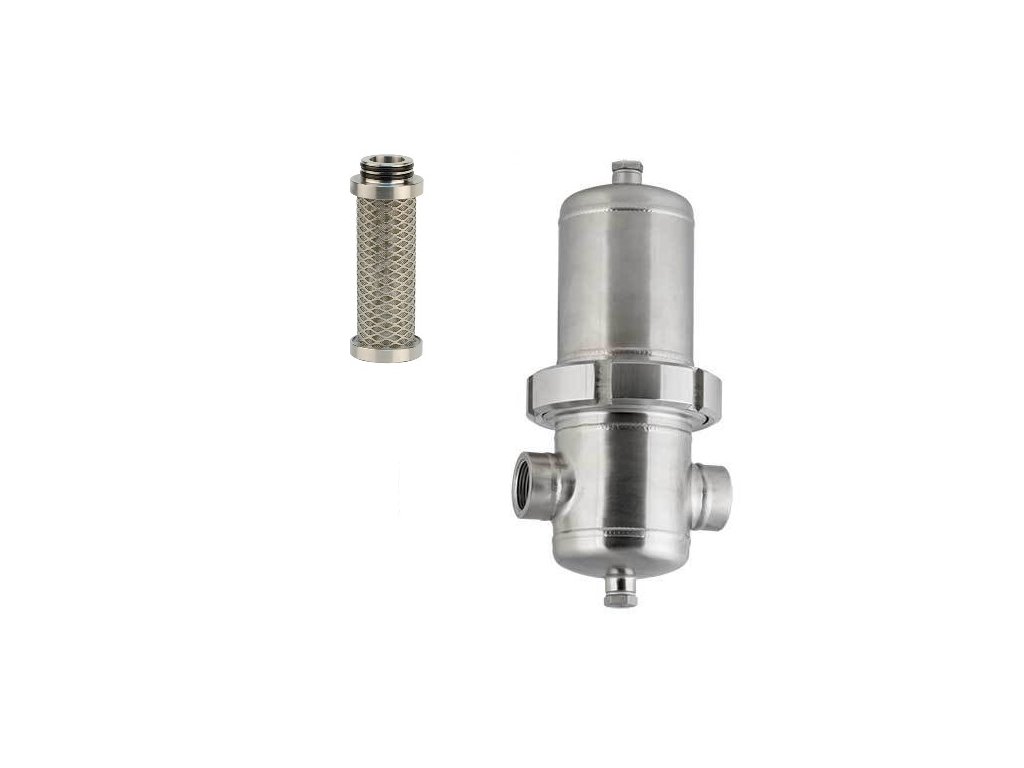

It belongs to the PF process filters, among the PFN5 basic filters: the housing is the same for all stages, only the element differs. The photo shows a PF range filter with a threaded connection.
Specifications
| Parameter | Value |
|---|---|
| Connection | DN150 flange |
| Flow at 7 bar | 224,000 l/min (13,440 Nm³/h) |
| Working pressure | 10 bar |
| Element temperature | +1.5 to +150 °C |
| Filtration rating | 5 µm |
| Element replacement | at least once every 12 months |
| Element | 6× PFN5-200V |
| Element material | stainless steel mesh 1.4301 |
| Element design | wrapped |
| Housing | stainless steel 1.4404 |
| Height A | 1,330 mm |
| Length across the flanges B | 540 mm |
| Housing diameter C | 323.9 mm |
| Weight | 112 kg |
| Condensate drain outlet E | G 1" thread in the bottom |
| Condensate drain | ordered separately |
Housing and dimensions
The housing is made of stainless steel 1.4404, or 1.4301 on request, with the outer surface polished to Ra 1.6 and EPDM seals (FKM or silicone on request). It withstands −20 to +150 °C; the actual limit depends on the seals and the element.
According to the manufacturer: height A 1,330 mm, length across the flanges B 540 mm, housing diameter C 323.9 mm. Weight 112 kg.
Flow by pressure
The flow applies to a pressure of 7 bar and a temperature of +20 °C. At a different pressure, it is multiplied by the correction factor; at 14 bar it is 1.88:
| Pressure (bar) | 4 | 7 | 10 |
|---|---|---|---|
| Flow (l/min) | 141,120 | 224,000 | 309,120 |
Element and accessories
Where to place it
It goes after the coarse mesh or at the start of the filtration, before the PFI1 sintered pre-filter or the PFM fine pre-filter.
You will find other sizes among the filters of the same stage.
Additional parameters
| Category: | PFN5 stainless steel basic mesh filters up to 14 bar |
|---|---|
| Version: | Basic filter |
| Pressure: | 10 bars |
| Connecting: | flange DN150 |
| Dimensions: | 1,330 × 540 × 323.9 mm |
| Filtration: | 5 µm |
| Filter insert: | PFN5-200V |
| Material: | Stainless steel |
| Condensate discharge: | Without drain |
| Number of inserts: | 6 |
| Working temperature: | +1.5 / +150 °C |
| Flow: | 224,000 l/min |
