M-VAC medical vacuum filters for medical vacuum systems

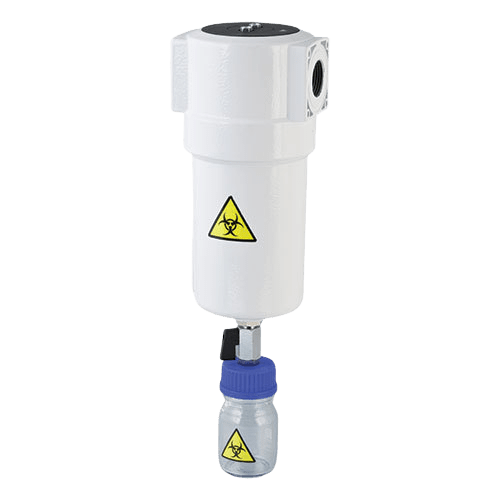

M-VAC medical vacuum filters are designed for medical vacuum systems. They trap bacteria and other solid and liquid contaminants on the suction side of the vacuum pump, protect the pump and prevent infection from spreading into the surroundings.
The collected liquid gathers in a transparent bowl that can be removed and sterilised. The range has 21 sizes with a G 1/8" to 3" thread or DN80 to DN150 flanges, a flow of 1.25 to 787 Nm³/h at atmospheric pressure and a 0.1 µm element.
M-VAC sizes
| M-VAC sizes | ||||||
|---|---|---|---|---|---|---|
| Filter | Connection | Flow | Dimensions A × B × D | Weight | Element | Bowl |
| MVAC-0006 | 1/8" | 1.25 Nm³/h (21 l/min) | 105 × 55 × 50 mm | 0.23 kg | MVAC-0006V | MVAC-N1 |
| MVAC-0016 | 1/4" | 2.25 Nm³/h (38 l/min) | 125 × 55 × 70 mm | 0.24 kg | MVAC-0016V | MVAC-N1 |
| MVAC-0026 | 1/4" | 3.13 Nm³/h (52 l/min) | 145 × 73 × 50 mm | 0.42 kg | MVAC-0026V | MVAC-N1 |
| MVAC-0036 | 3/8" | 3.75 Nm³/h (63 l/min) | 145 × 73 × 50 mm | 0.42 kg | MVAC-0026V | MVAC-N1 |
| MVAC-0046 | 1/4" | 4.37 Nm³/h (73 l/min) | 189 × 88 × 60 mm | 0.7 kg | MVAC-0046V | MVAC-N1 |
| MVAC-0056 | 3/8" | 7.5 Nm³/h (125 l/min) | 192 × 88 × 60 mm | 0.7 kg | MVAC-0046V | MVAC-N1 |
| MVAC-0076 | 1/2" | 9.8 Nm³/h (163 l/min) | 192 × 88 × 60 mm | 0.7 kg | MVAC-0076V | MVAC-N1 |
| MVAC-0106 | 3/4" | 15 Nm³/h (250 l/min) | 262 × 88 × 80 mm | 0.8 kg | MVAC-0106V | MVAC-N1 |
| MVAC-0186 | 1" | 24.8 Nm³/h (413 l/min) | 264 × 125 × 100 mm | 1.8 kg | MVAC-0186V | MVAC-N1 |
| MVAC-0306 | 1" | 41.9 Nm³/h (698 l/min) | 364 × 125 × 120 mm | 2.5 kg | MVAC-0306V | MVAC-N1 |
| MVAC-0476 | 1 1/2" | 63.8 Nm³/h (1,063 l/min) | 464 × 125 × 140 mm | 2.5 kg | MVAC-0476V | MVAC-N1 |
| MVAC-0706 | 1 1/2" | 97.5 Nm³/h (1,625 l/min) | 644 × 125 × 160 mm | 3.2 kg | MVAC-0706V | MVAC-N1 |
| MVAC-0946 | 2" | 125 Nm³/h (2,083 l/min) | 696 × 164 × 520 mm | 5.1 kg | MVAC-0946V | MVAC-N2 |
| MVAC-1506 | 2" | 187.5 Nm³/h (3,125 l/min) | 943 × 164 × 770 mm | 7.1 kg | MVAC-1506V | MVAC-N2 |
| MVAC-1756 | 2 1/2" | 210 Nm³/h (3,500 l/min) | 943 × 164 × 770 mm | 6.9 kg | MVAC-1506V | MVAC-N2 |
| MVAC-2006 | 3" | 270 Nm³/h (4,500 l/min) | 801 × 242 × 630 mm | 12.9 kg | MVAC-2006V | MVAC-N2 |
| MVAC-2406 | 3" | 345 Nm³/h (5,750 l/min) | 998 × 242 × 780 mm | 14 kg | MVAC-2406V | MVAC-N2 |
| MVAC-B240 | DN80 | 275 Nm³/h (4,583 l/min) | 1,170 × 450 × 650 mm | 61 kg | MVAC-1506V | MVAC-N3 |
| MVAC-B300 | DN100 | 394 Nm³/h (6,567 l/min) | 1,340 × 560 × 650 mm | 115 kg | 2 × MVAC-1506V | MVAC-N3 |
| MVAC-B450 | DN125 | 587 Nm³/h (9,783 l/min) | 1,340 × 560 × 650 mm | 123 kg | 3 × MVAC-1506V | MVAC-N3 |
| MVAC-B600 | DN150 | 787 Nm³/h (13,117 l/min) | 1,425 × 620 × 650 mm | 178 kg | 4 × MVAC-1506V | MVAC-N3 |
Flow at atmospheric pressure. The flanged sizes B240 to B600 have 1 to 4 MVAC-1506V elements. Dimensions according to the manufacturer’s technical data sheet.
#showmore#

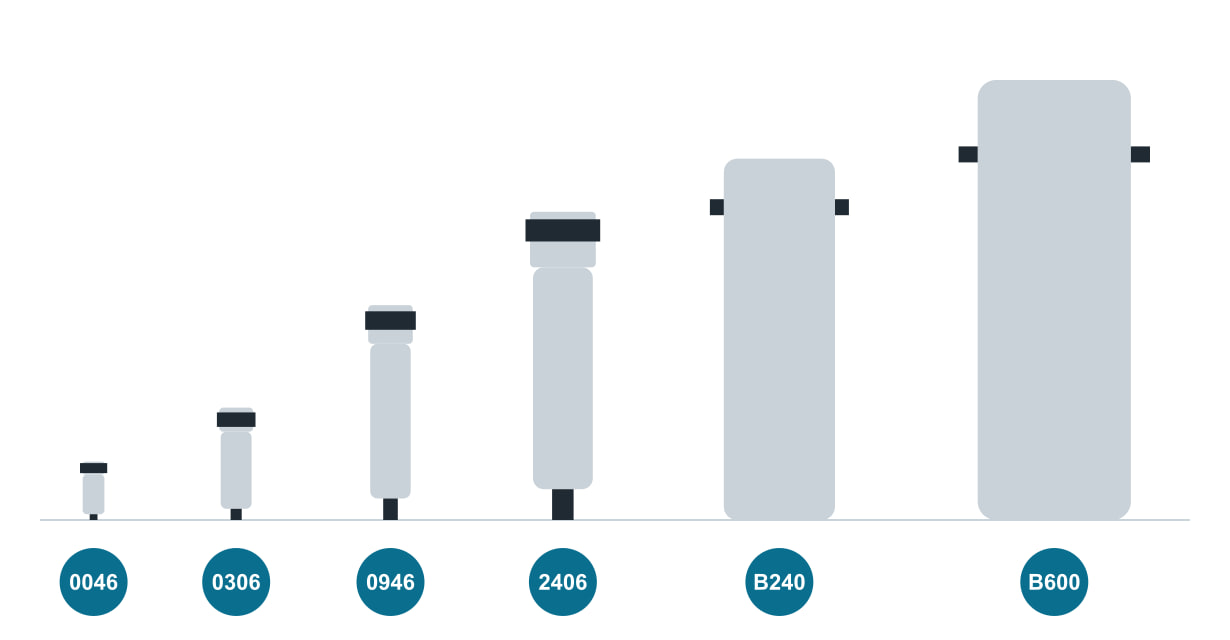

Sizes
The threaded sizes 0006 to 2406 have one element. The flanged sizes for large flows have 1 to 4 identical elements in the housing.

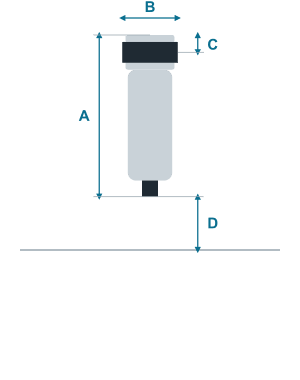

Dimensions and space for element replacement
Leave free space D below the filter for replacing the element and the bowl.
Bowls
Flow under vacuum
The flows apply at atmospheric pressure. When selecting, multiply the system flow by the factor C2 for the absolute pressure in the pipeline.
| Flow correction by the vacuum level in the pipeline | |||
|---|---|---|---|
| Absolute pressure | Vacuum relative to atmosphere | Actual filter flow (× C1) | System flow for selection (× C2) |
| 1,000 mbar | 0 mbar | 1 | 1 |
| 900 mbar | 100 mbar | 0.9 | 1.1 |
| 800 mbar | 200 mbar | 0.8 | 1.25 |
| 700 mbar | 300 mbar | 0.7 | 1.43 |
| 600 mbar | 400 mbar | 0.6 | 1.67 |
| 500 mbar | 500 mbar | 0.5 | 2 |
| 400 mbar | 600 mbar | 0.4 | 2.5 |
| 300 mbar | 700 mbar | 0.3 | 3.33 |
| 200 mbar | 800 mbar | 0.2 | 5 |
| 100 mbar | 900 mbar | 0.1 | 10 |
| 50 mbar | 950 mbar | 0.05 | 20 |
| 20 mbar | 980 mbar | 0.02 | 50 |
Where M-VAC filters are used
The manufacturer designs them for operating theatres, maternity hospitals, dental practices, pathology laboratories, pharmaceuticals and autopsy rooms.
Ventilek’s tip
Empty the bowl in good time. The collected liquid may be infectious — remove, empty and sterilise the bowl according to the operating rules of your facility.

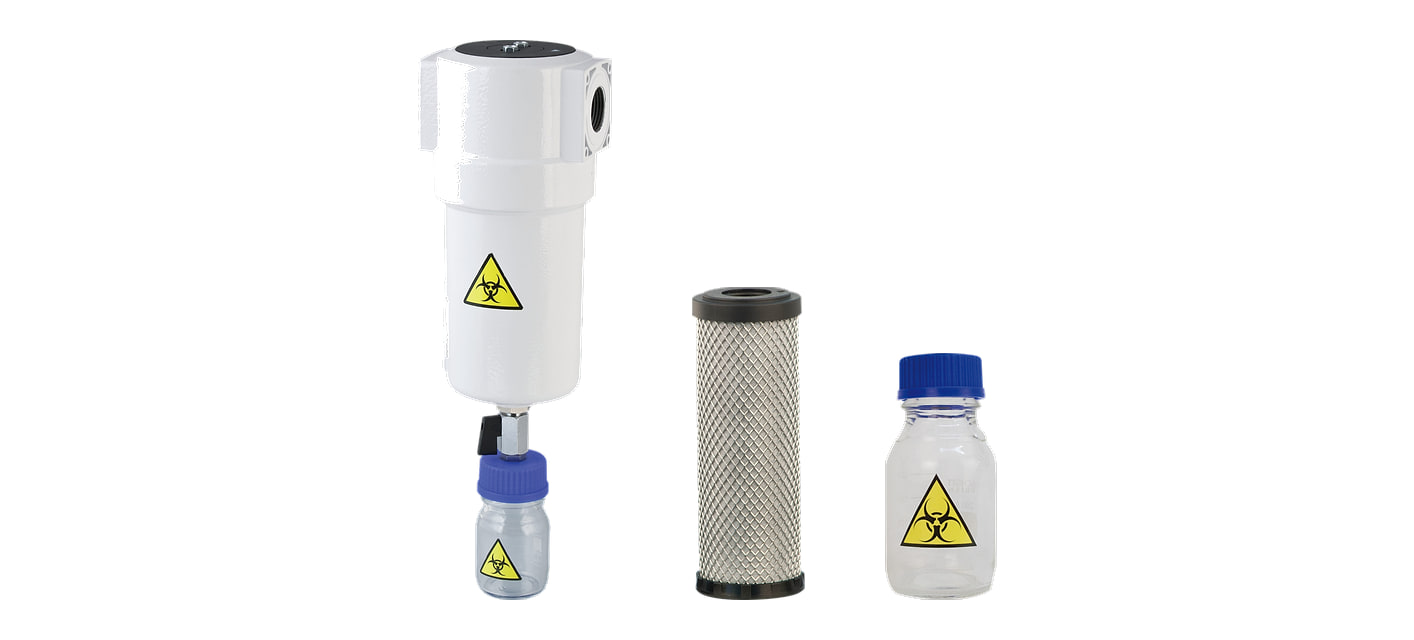

- What does the M-VAC filter include?
- The housing, the element, a drain cock and a transparent bowl for the collected liquid.
- How do I know when to replace the element?
- The VPG 40 differential pressure gauge shows it by measuring the pressure drop across the element.
- Which bowl do I need?
- N1 for sizes 0006 to 0706, N2 for 0946 to 2406 and N3 for the flanged B240 to B600.
