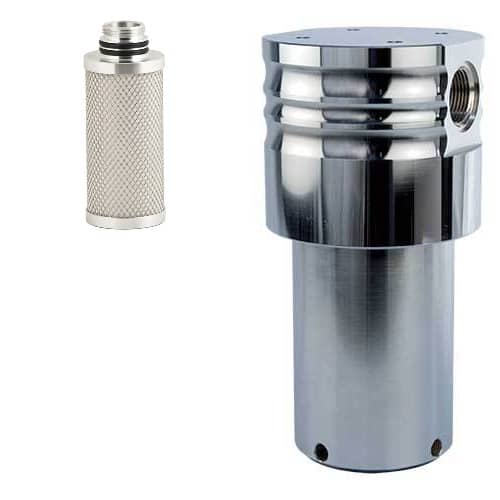

IHP4M stainless high-pressure fine pre-filters up to 420 bar
The IHP4M fine pre-filter traps fine solid particles larger than 0.1 µm, water and oil aerosol. The pleated element is made of borosilicate microfibres; residual oil is below 0.1 mg/m³.
The IHP4M filter comes in 8 sizes with G 1/4" to G 2" threads and flows of 667 to 11,917 l/min at 7 bar; working pressure up to 420 bar. It is one of the stages of the IHP4 stainless steel filters — the housing is the same for all stages, only the element differs.
IHP4M filters by size
The size determines the thread and the flow. Each size has its own spare element.
| IHP4M filters and spare elements by size | ||||||
|---|---|---|---|---|---|---|
| Filter | Thread | l/min at 7 bar | Nm³/h at 7 bar | Height A × width C | Weight | Spare element |
| IHP4M-003 | G 1/4" | 667 | 40 | 182 × 104 mm | 7.9 kg | IHPM-003V |
| IHP4M-005 | G 3/8" | 1,167 | 70 | 182 × 104 mm | 7.9 kg | IHPM-005V |
| IHP4M-007 | G 1/2" | 2,167 | 130 | 230 × 129 mm | 15.7 kg | IHPM-007V |
| IHP4M-010 | G 3/4" | 3,250 | 195 | 254 × 129 mm | 16.6 kg | IHPM-010V |
| IHP4M-018 | G 1" | 4,583 | 275 | 276 × 158 mm | 27.3 kg | IHPM-018V |
| IHP4M-030 | G 1 1/4" | 6,333 | 380 | 328 × 158 mm | 29.6 kg | IHPM-030V |
| IHP4M-047 | G 1 1/2" | 8,250 | 495 | 385 × 216 mm | 67.8 kg | IHPM-047V |
| IHP4M-094 | G 2" | 11,917 | 715 | 460 × 216 mm | 73.5 kg | IHPM-094V |
The flows apply to a pressure of 7 bar and a temperature of +20 °C. Dimensions and weights according to the manufacturer; you will find further data on the product page of each filter.
#showmore#
When to use it
The fine pre-filter M suits applications where oil in the air is a problem and class 2 for particles and oil is enough.
For the highest purity, 1-x-1, there is the microfilter S, and the fine pre-filter M goes before it: it traps most of the particles and oil, and the microfilter element then lasts longer.
Where to place it
After the IHP4R dust filter or IHP4N5 basic filter, before the IHP4S microfilter.
Flow by pressure
The catalogue flows apply to a pressure of 7 bar and a temperature of +20 °C. At a higher pressure the filter passes more air: from 100 bar, 12 times as much as at 7 bar.
| IHP4M filter flow in l/min by pressure | |||||||
|---|---|---|---|---|---|---|---|
| Size (thread) | 7 bar | 25 bar | 40 bar | 64 bar | 100 bar | 250 bar | 420 bar |
| 003 (G 1/4") | 667 | 2,001 | 3,335 | 5,336 | 8,004 | 8,004 | 8,004 |
| 005 (G 3/8") | 1,167 | 3,501 | 5,835 | 9,336 | 14,004 | 14,004 | 14,004 |
| 007 (G 1/2") | 2,167 | 6,501 | 10,835 | 17,336 | 26,004 | 26,004 | 26,004 |
| 010 (G 3/4") | 3,250 | 9,750 | 16,250 | 26,000 | 39,000 | 39,000 | 39,000 |
| 018 (G 1") | 4,583 | 13,749 | 22,915 | 36,664 | 54,996 | 54,996 | 54,996 |
| 030 (G 1 1/4") | 6,333 | 18,999 | 31,665 | 50,664 | 75,996 | 75,996 | 75,996 |
| 047 (G 1 1/2") | 8,250 | 24,750 | 41,250 | 66,000 | 99,000 | 99,000 | 99,000 |
| 094 (G 2") | 11,917 | 35,751 | 59,585 | 95,336 | 143,004 | 143,004 | 143,004 |
Element, drain and maintenance
The housing holds a single element, a different one for each size — for example IHPM-007V for the IHP4M-007. The same element also fits IHPM filters for a different pressure. Working temperature +1.5 to +65 °C.
The filter is supplied without a condensate drain. The TD420M timed drain up to 420 bar is suitable; it is connected to the G 1/4" opening in the bottom.
Replace the element at a pressure drop of 350 mbar, at least once every 12 months.
Accessories for IHP4M filters
The same stage for a different pressure
Stage M also comes in the IHP1M filters up to 100 bar and IHP2M filters up to 250 bar; in the nickel-plated carbon steel version, there are the CHP4M filters.
Ventilek’s tip
A fine pre-filter protects the microfilter. The element of the microfilter S after it then only deals with the finest particles. A coarser stage should come before the fine pre-filter itself so that dust does not clog it.
- What purity does the IHP4M fine pre-filter provide?
- Particles down to 0.1 µm and residual oil below 0.1 mg/m³, class 2-x-2 according to ISO 8573-1.
- Why is it a pre-filter and not a microfilter?
- It is installed before the microfilter S and protects its element. Only stage S, with a rating of 0.01 µm, is a microfilter.
- When should the element be replaced?
- At a pressure drop of 350 mbar, at least once every 12 months.
