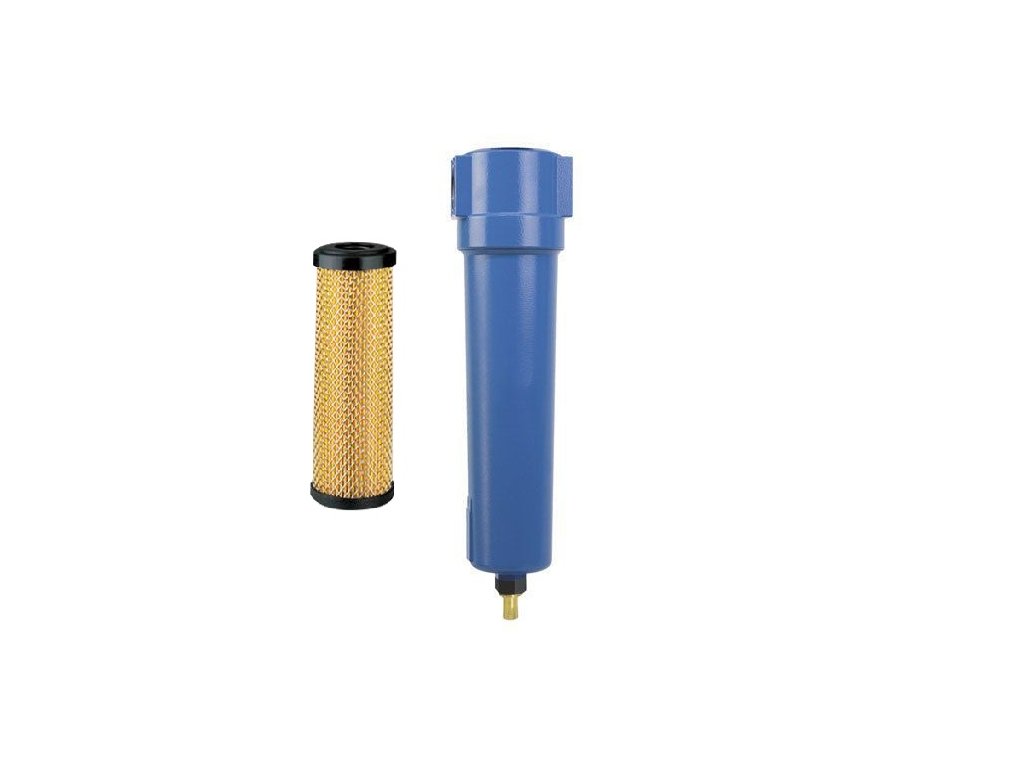

Basic filter AFP 2" - 16,667 l/min
Code: AFP-170
Related products
Product detailed description
Industrial compressed air filtration ISO 8573-1 - AF
Omega Air can do what you needOur filter range offers a solution both for small tradesmen and for large industrial plants with continuous operation. Omega Air can provide a solution that ensures the reliability, cost efficiency and high-quality compressed air required by most operations. More than a set of partsWhether you need a filter element, a pressure indicator, a condensate drain or a fully equipped filter, take advantage of working with us, because we are fully familiar with the requirements for compressed air products and offer a wide range of optional accessories. We are experts in product optimisation systems, thanks to which our products contribute to a significant reduction in the operating costs of the air system, increase the quality of the final products and reduce the risk of breakdowns. Omega Air...Better airOur technology, expertise and experience are applied in the AF series filters, which makes this filter series the best solution for achieving the best possible compressed air quality, regardless of the size of the installation. Quality firstThe quality of the installed products plays a key role in ensuring smooth, trouble-free operation and the correct functioning of production processes. Constant supervision by a notified body, strict production control and 100% final inspection of our products are the key to achieving high quality in all the products we supply. |
 |
Features of AF filtration |
Applications |
| Working pressure : 16 bar |
|
| Flow rate at 7 bar : 60 - 2 760 m3/h | |
| Connection : 3/8" - 3 " | |
| Standard colour : RAL 5012 | |
| Body material : aluminium | |
| Air quality : ISO 8573-1 |
 |
Compressed air connectionInternal pipe threads are provided on the filter body for connection to the compressed air piping. For installing further equipment or connecting several filters of the same size, holes are prepared in the body that allow the filter to be mounted on a wall or on the compressor cabinet. |
 |
Surface treatment of the filter bodyThe main purpose of the surface treatment is to protect the surface of the filter body against corrosion. The anodising technique makes it possible to protect the surface in places that are difficult to reach with conventional painting. The anodised surface can be supplied as an optional version, and cataphoretic painting can be offered on request. |
 |
Sight glass into the bowlThe sight glass into the bowl allows easy inspection of the condensate accumulated in the lower part of the filter body. An area for fitting the sight glass is prepared in advance on every filter body casting. |
 |
WS/WM - wall mounting kitThe mounting kits have been developed for easy installation of the filter on a wall or another surface. The kit contains 2 stainless steel brackets (which are mirror images of each other) and 6 self-tapping screws. |
 |
AK - connecting kitsThe AK mounting kit is designed for connecting two or more filters together. The design of the mounting kit is universal and can be used for any type of filter, including filters from some other global manufacturers, with pressures up to 20 bar. The connecting part is fitted with a mounting bracket for fastening to a wall or another surface. |
Filtration grades according to ISO 8573-1
 |
 |
 |
 |
 |
|
Layers
|
Layers
|
Layers
|
Layers
|
Layers
|
|
|
|
|
|
 |
|
Layers
|
Layers
|
Layers
|
Layers
|
Optional accessories for AF filtration
 |
 |
 |
Additional parameters
| Category: | Industrial compressed air filters ISO 8573.1 |
|---|---|
| Version: | Basic filter |
| Pressure: | 16 bar |
| Connecting: | 2" |
| Dimensions: | 695 × 163 × 48 × 520 mm |
| Certification: | CE-PED-H, ISO 8573-1 (IUTA) |
| Filtration: | 3 um |
| Filter insert: | AFP-170V |
| Material: | Aluminium |
| Vessel volume: | 6,0 l |
| Condensate discharge: | Automatic |
| Working temperature: | +1.5 / +65 °C |
| Flow: | 16,667 l/min |
| Quality class - solid impurities: | 6 |
| The item has been sold out… | |
