Aluminium Profile AC 30-6, 13x22.5
Code: 084.100.001
Product detailed description
A small aluminium profile designed primarily for creating windows and doors in machine and production line guards.
Made from EN AW 6060 T5 aluminium alloy, anodised layer of more than 12 microns, tolerance according to EN 12020-2.
Available in large packs - small bundle of 5 bars, large bundle of 150 bars.
Compatibility
This product can replace the following products on the market:
| Code | Ord. C. | Note |
|---|---|---|
| ALU | 101321 | weight 0.48 kg/m |
Warning: the alternative product we offer may have technical deviations from the original product. Please contact us to explain the differences.
Joining profiles
The choice of fixings between different profiles is very important in any assembly structure. The customer can choose from various solutions depending on the required implementation time or the nature of the load or load-bearing capacity.
1. Joining with screws in the groove
This is the simplest and fastest way to assemble. This connection system guarantees good perpendicularity between the two surfaces and good resistance of the mutual connection in the direction transverse to the groove.
2. Joining with a continuous screw from the outside of the profile
This is the strongest method of joining, resistant to mutual movement between two profiles. This system does not allow movement of parts in the event of screw loss.
3. Joining with joints or angles
This method of joining is usually used where the greatest possibilities of adjustment and easy installation are required.
Profile threads
It is recommended to respect the depth indicated in the table when creating a thread:
| Profile | Screw diameter | Recommended depth (mm) |
|---|---|---|
| slot 6 | M6 | 15 |
| slot 8 | M8 | 25 |
Maximum tightening torques recommended for screws used in the ALUSIC system:
| Profile | Screw diameter | Max. torque (Nm) |
|---|---|---|
| slot 6 | M6 | 10 |
| slot 8 | M8 | 20 |
Compatible accessories can be found on the related products tab.
Additional parameters
| Category: | Aluminium profiles AC 13x22.5 |
|---|---|
| Warranty: | 2 years |
| In stock: | External warehouse |

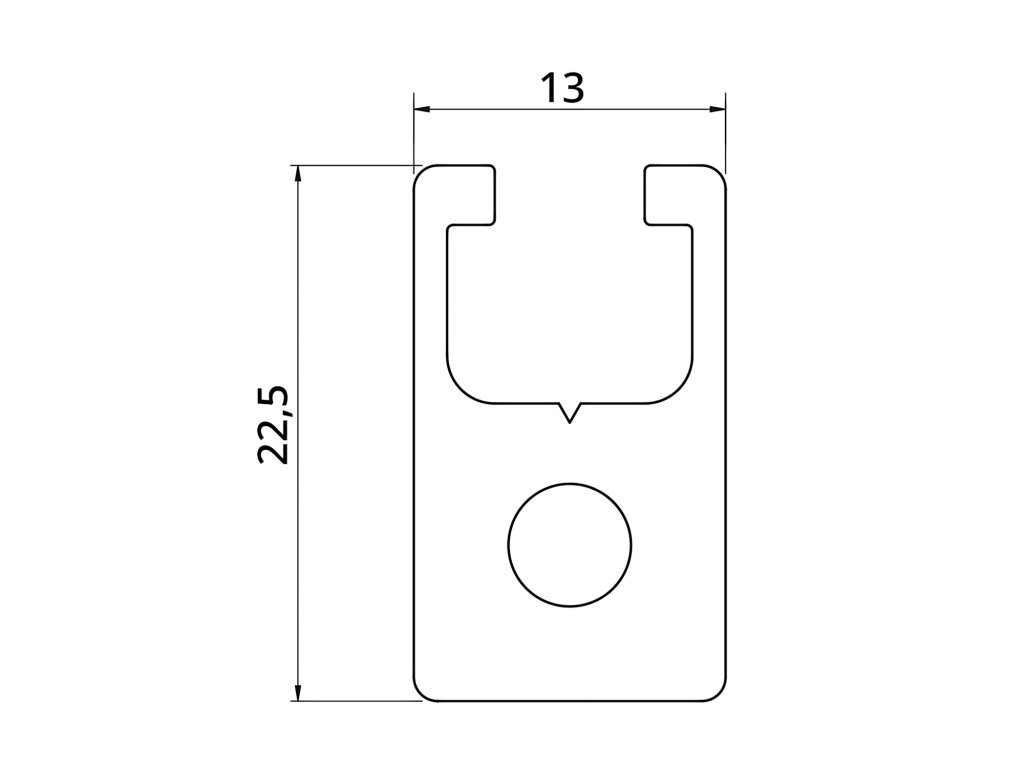

| Profile cut: | 13×22,5 |
| Series: | AC 30-6 |
| Weight (kg/m): | 0.5 |
| Material: | anodized aluminum |
| Color: | natural |
| Profile length (mm): | 6 040 |
| Moment of inertia lx (cm⁴): | 0,35 |
| Moment of inertia ly (cm⁴): | 0,35 |
| Sectional moment wx (cm³): | 0,50 |
| Section moment wy (cm³): | 0,53 |
| Cutting area (mm²): | 180 |
| Minimum length (mm): | 30 |
| Maximum length (mm): | 6 000 |

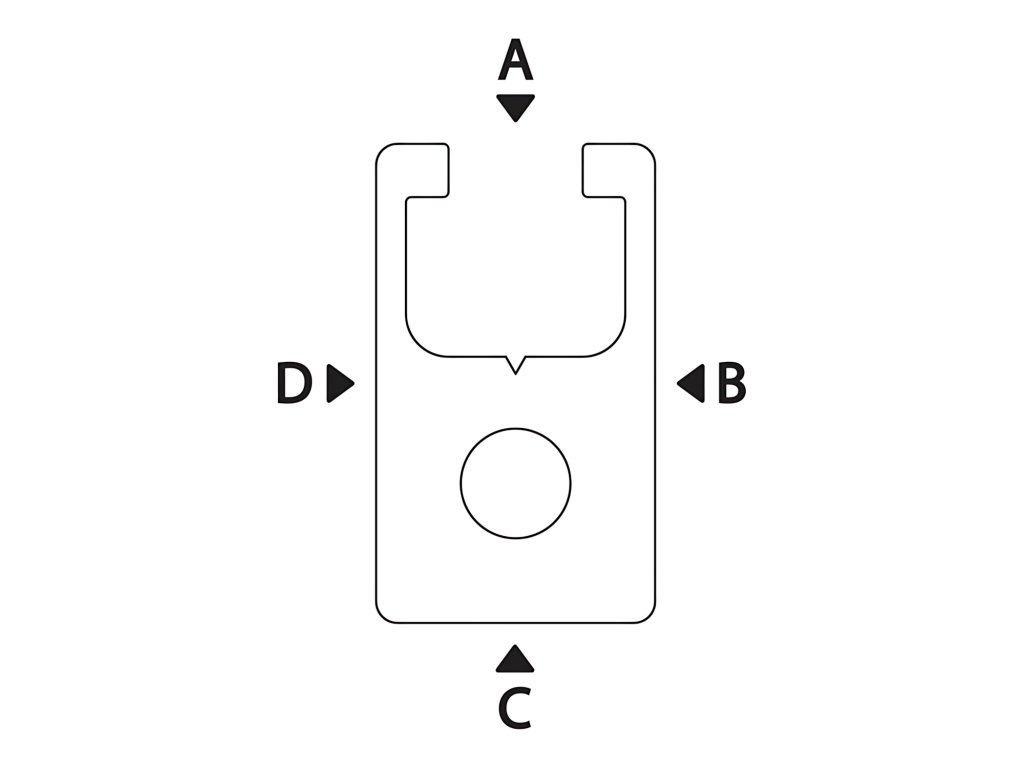

| Řez: | REZ-A |
| Řez link: | /rez-profilu-a/ |
