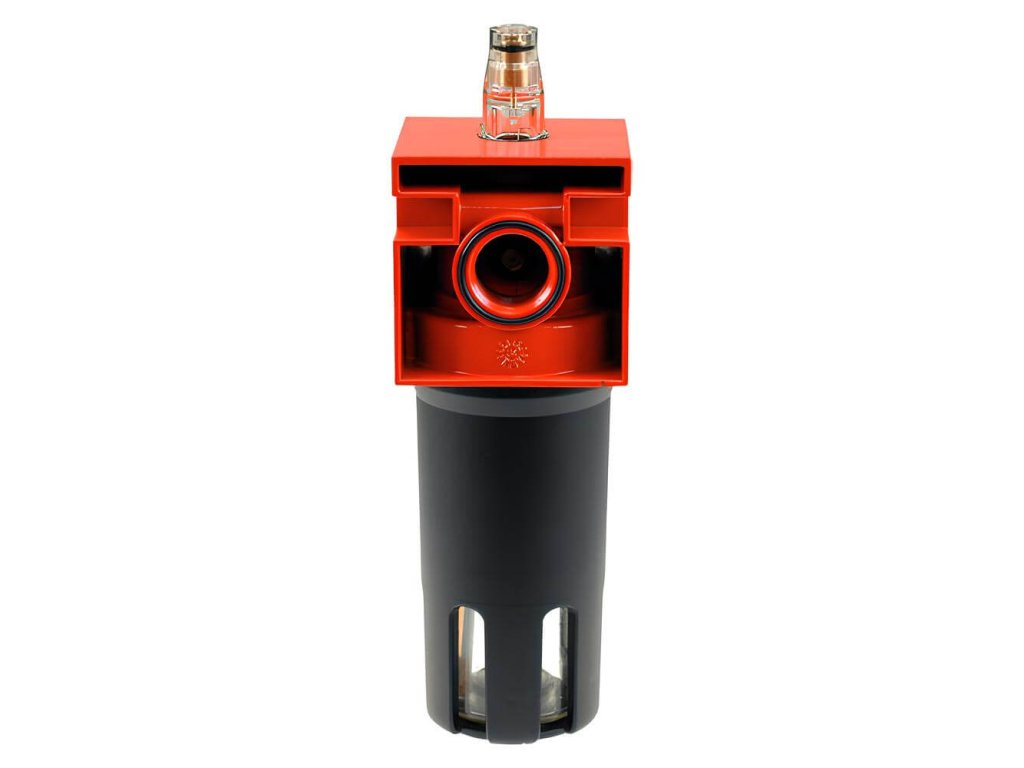

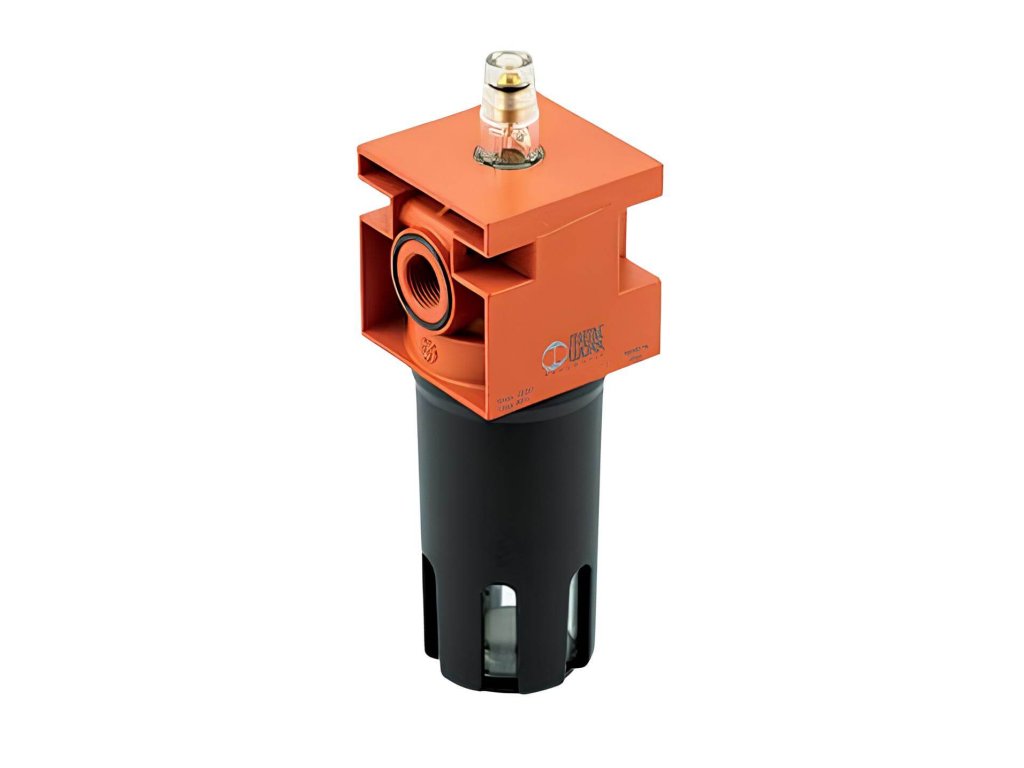

Metal lubricator N10 up to 18 bar - G 1" G 1" · up to 18 bar · 16000 l/min · 260 × 80 mm
Code: N10
Related products
Product detailed description
A metal compressed air lubricator with a G 1" thread adds oil to the air in proportion to the flow, so it lubricates even when little air is drawn. The oil is held in a 379 cm³ metal bowl, and you set the dose finely with a screw. Flow 16000 l/min. The 1" version has the same body as the 3/4" one.
Specifications
| N10 — specifications | |
|---|---|
| Type | Lubricator |
| Connection | G 1" female thread |
| Body size | 3 (body width 80 mm) |
| Inlet pressure | up to 18 bar |
| Flow | 16000 l/min |
| Height × width | 260 × 80 mm |
| Bowl volume | 379 cm³ |
| Material | zinc alloy, metal bowl with sight glass |
| Working temperature | −10 to +50 °C |
| Medium | compressed air |
What it is for
It is connected last, after the filter and regulator, for tools and actuators that need lubrication. It does not belong in a line for spraying. The G 1" thread is suitable for the main air line after the compressor or for large consumers.
The bowl takes oil for pneumatic tools, for example OLN-1. The replacement bowl is NOK3. The same body with a G 3/4" thread is N34.
Ventilek’s tip
Only oil for pneumatic tools. Engine or hydraulic oil is too thick and the dosing would not work properly.
Additional parameters
| Category: | Robust metal air treatment units I8 up to 18 bar |
|---|---|
| Version: | Lubricator |
| Pressure: | 18 bar |
| Dimensions: | 260 × 80 mm |
| Medium: | Compressed air |
| Vessel volume: | 379 cc |
| Working temperature: | -10 / 50 °C |
| Flow: | 16,000 l/min |
| Thread: | G 1" |
| In stock: | External warehouse |
