Fire hoses
The fire hose programme of the German manufacturer JAKOB ESCHBACH GmbH forms a comprehensive and complete offer for all fire brigades - from the smallest volunteer to the large professional brigades, which is basically made up of 10 model series of hoses.
Beyond the basic range of fire hoses, any individual solution can be supplied:
ESCHBACH hoses stand out in particular for their quality and meet all the requirements of international norms and standards. They are approved for the Czech market by the Technical Institute of Fire Protection in Prague. |
 |
Description and use of individual ESCHBACH fire hoses |
||||
 |
 |
 |
 |
 |
| EL standard hose standard fire hoses available in 3 quality versions divided by performance according to DIN 14811 class 1 L1 to L3 |
ESL reflective emergency hoses the main advantage is visibility in darkness and smoke during intervention; available in 3 quality versions according to DIN 14811 class 1 L1 to L3 |
X2000 lightweight hoses the inner tube is made of polyurethane, which reduces weight, reduces the dimensions after coiling and significantly increases the resistance to hose cutting; conforms to DIN 14811 class 1 |
ESP abrasion resistant hoses intervention hoses with an outer abrasion-resistant PU-coating, which significantly extends the hose life; conforms to DIN 14811 class 2 |
POLR chemically resistant hoses intervention hoses with inner and outer rubberized tubing suitable for pumping aggressive chemicals and highly abrasion resistant; conforms to DIN 14811 class 3 |
 |
 |
 |
 |
 |
| EDG fire resistant hoses extremely flame-resistant design with a lifetime of more than 1 hour in a 940 °C fire; simultaneously resistant to chemicals and abrasion; conforms to DIN 14811 class 3 |
ESFS hydrant hoses standard fire hoses in a version for installation in wall hydrants; conforms to DIN EN 14540 |

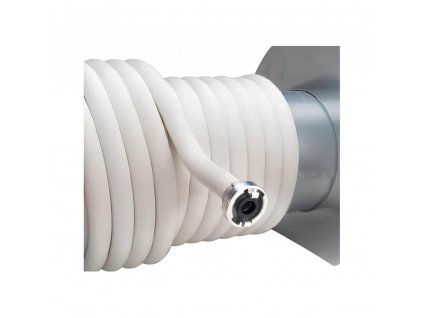

MNFX hose for winches shape-stable hoses for use in fire truck reels; conforms to DIN EN 694 |
OLRB antistatic hoses intervention hoses with inner layer of antistatic rubber and with copper wire and terminals for electrostatic charge dissipation; designed for pumping flammable substances - petrol, diesel, oils, petroleum products |
ADR hose for drinking water food-safe rubber with stainless steel end caps and silicone seals. Designed to ensure the supply of drinking water comply with KTW guidelines, WRAS and DVGW |
-
EL fire hose standard hose
-
ESPU fire hoses abrasion resistant hoses
-
ESL fire hoses reflective fire hoses
-
Fire hose X2000 lightweight hoses
-
ESFS fire hoses hydrant hoses
-
POLR fire hoses chemical resistant hoses
-
ADR fire hoses drinking water hoses
-
AQF flat hoses for irrigation and liquids
-
HLA flat hoses for connecting hammers
-
Hadice pro vzduch MNA pro vedení stlačeného vzduchu
-
Hadice plochá DJ120 pro sněžná děla
-
HLS flat hoses for pumping various substances
-
Ploché hadice HLPU pro čerpání rozličných látek
best-selling products
Flat hoses made of 100% synthetic high-strength polyester yarn with compact vulcanized rubberized special polymers, 50 mm in size with a working pressure of 20 bar. Special flat...
Emergency and sport fire hose with low weight and small dimensions, certified according to DIN 14811. Inner hose diameter 52 mm without hose ends in the hose yard. Extremely...
Extremely abrasion-resistant firefighting hose in red, certified to DIN 14811, diameter 25 mm. Made of 100% synthetic polyester yarn with black EPDM inner liner, outer surface...
Firefighting hoses with inner and outer rubber coating, certified according to DIN 14811. Inner diameter 42 mm without Storz type C42 end caps in metre gauge. Designed for...
Hose with shape stability for winches, certified according to DIN EN 694. Shape stable for easy winding, very light and flexible, resistant to ageing, abrasion and rot, flame...
Fire hoses in standard design in white, certified according to DIN 14811 class 1. Supplied in performance class L1. Made of 100% synthetic polyester yarn with black EPDM inner...
Fire hoses with reflective yellow colour visible in darkness and smoke, certified according to DIN 14811 in performance class L2. Made of 100% synthetic polyester yarn with...
Very robust flat hoses with inner and outer PU-coating for pumping drinking water in blue. Inner hose diameter 25 mm, length 20 m, including Storz D25 stainless steel hose ends...
Very robust flat hoses with inner and outer PU-coating for pumping drinking water in blue. 25 mm inner diameter hose, 25 m long, including Storz D25 stainless steel hose ends...
Fire hoses in standard design in white, certified according to DIN 14811 class 1. Supplied in performance class L1. Made of 100% synthetic polyester yarn with black EPDM inner...
Standard fire hose in white, certified according to DIN 14811 class 1. Supplied in performance class L1. Made of 100% synthetic polyester yarn with a black EPDM inner liner in a...
Standard fire hose in white, certified according to DIN 14811 class 1. Supplied in performance class L1. Made of 100% synthetic polyester yarn with a black EPDM inner liner in a...
Flat hoses made of 100% synthetic high-strength polyester yarn with compact vulcanized rubberized special polymers, 19 mm in size with a working pressure of 20 bar. Special flat...
Very robust flat hoses with inner and outer PU-coating for pumping drinking water in blue. Inner hose diameter 102 mm in the Storz A102 hose line without hose ends. Manufactured...
Flat hoses made of 100% synthetic high-strength polyester yarn with compact vulcanized rubberized special polymers in 38 mm with a working pressure of 20 bar. Special flat...
Fire hoses with reflective yellow colour visible in darkness and smoke, certified according to DIN 14811 in performance class L2. Made of 100% synthetic polyester yarn with...
Flat hoses made of 100% synthetic high-strength polyester yarn with compact vulcanized rubberized special polymers, 25 mm in size with a working pressure of 20 bar. Special flat...
Fire hoses with reflective yellow colour visible in darkness and smoke, certified according to DIN 14811 in performance class L3. Made of 100% synthetic polyester yarn with...
Fire hoses with reflective yellow colour visible in darkness and smoke, certified according to DIN 14811 in performance class L1. Made of 100% synthetic polyester yarn with...
ESFS hose for wall hydrants, certified to DIN EN 14540 with internal dimension 52 mm without Storz C52 end cap made of forged aluminium in material only. Easy to roll, very...
ESFS hose for wall hydrants, certified to DIN EN 14540 with internal dimension 25 mm without Storz D25 end cap made of forged aluminium in material only. Easy to roll, very...
Fire hoses in standard design in white, certified according to DIN 14811 class 1. Supplied in performance class L1. Made of 100% synthetic polyester yarn with black EPDM inner...
Fire hoses with reflective yellow colour visible in darkness and smoke, certified according to DIN 14811 in performance class L1. Made of 100% synthetic polyester yarn with...
Extremely abrasion-resistant fire hose in red, certified to DIN 14811, diameter 75 mm. Made of 100% synthetic polyester yarn with black EPDM inner liner, outer surface coated...
Flat hoses for water pumping in industry and agriculture with 38 mm inner diameter and without hose ends. Designed for irrigation and transport of liquids in industry,...
Fire hoses with reflective yellow colour visible in darkness and smoke, certified according to DIN 14811 in performance class L3. Made of 100% synthetic polyester yarn with...
Extremely abrasion-resistant fire hose in red, certified to DIN 14811, diameter 42 mm. Made of 100% synthetic polyester yarn with black EPDM inner liner, outer surface coated...
Fire hoses with reflective yellow colour visible in darkness and smoke, certified according to DIN 14811 in performance class L1. Made of 100% synthetic polyester yarn with...
Very robust flat hoses with inner and outer PU-coating for pumping drinking water in blue. Inner diameter of hose 25 mm in metre length without Storz D25 end caps. Manufactured...
Very robust flat hoses with inner and outer PU-coating for pumping drinking water in blue. Inner hose diameter 52 mm in the Storz C52 hose line without hose ends. Manufactured...
Fire hoses with reflective yellow colour visible in darkness and smoke, certified according to DIN 14811 in performance class L1. Made of 100% synthetic polyester yarn with...
Flat hoses for water pumping in industry and agriculture with an inner diameter of 125 mm without hose ends. Designed for irrigation and transport of liquids in industry,...
Firefighting hoses with inner and outer rubber coating, certified according to DIN 14811. Inner diameter 52 mm with Storz type C52 end fitting in the required length of 5 m,...
Fire hoses with reflective yellow colour visible in darkness and smoke, certified according to DIN 14811 in performance class L1. Made of 100% synthetic polyester yarn with...
Extremely abrasion-resistant fire hose in red, certified to DIN 14811, 52 mm diameter. Made of 100% synthetic polyester yarn with black EPDM inner liner, outer surface coated...
Fire hoses with reflective yellow colour visible in darkness and smoke, certified according to DIN 14811 in performance class L2. Made of 100% synthetic polyester yarn with...
Flat hoses for water pumping in industry and agriculture with an inner diameter of 76 mm without hose ends. Designed for irrigation and transport of liquids in industry,...
Very robust flat hoses with inner and outer PU-coating for pumping drinking water in blue. Inner hose diameter 75 mm in the Storz B75 hose line without end caps. Manufactured...
Extremely abrasion-resistant fire hose in red, certified to DIN 14811, 110 mm diameter. Made of 100% synthetic polyester yarn with black EPDM inner liner, outer surface coated...
Extremely abrasion-resistant fire hoses in red, certified according to DIN 14811, available as standard in 25 mm diameter including D-type forged aluminium end caps fixed with...
