Direct coupling external thread 1/2" - 22 mm

Not rated

€11,64 –3 %

€11,64 –3 % €11,29 / pcs €9,33 excl. VAT

26 pcs

Set up a watchdog

In store 5 pcs

External warehouse 21 pcs

We deliver to:

20.05.2025

Delivery offer

pcs

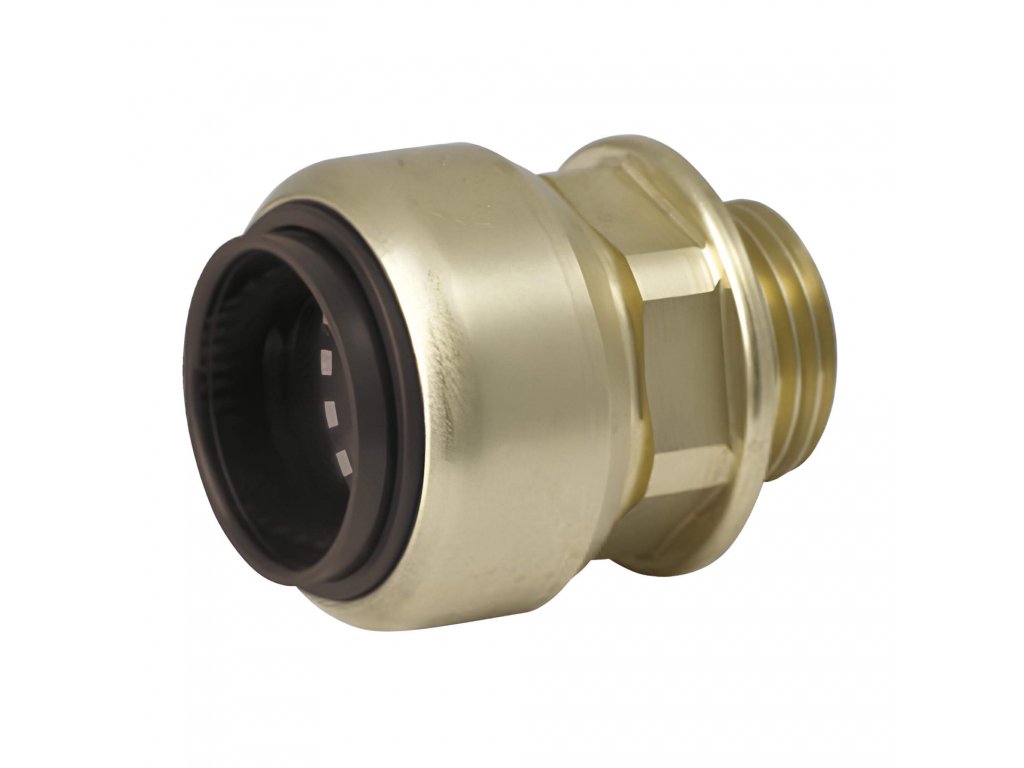

Straight socket couplings for air piping with outer pipe thread G 1/2" for pipe with outer diameter 22 mm. Simple Air Push socket system that can be disassembled again. No special tools are required for installation, which is quick and easy.

Detailed information

Add to comparison

Code: TA3-1222

Brand: Pegler Yorkshire

Add to inquiry

Free shipping

For purchases over 5,000 CZK

We guarantee

Extended warranty and service

Discount voucher

For every purchase

Return of goods within 30 days

Completely at our expense

Show all related products

Technical parameters

Socket coupling for air distribution 22 mm - 1/2" - TA3-1222

modern system for easy pipe joining
the connection is made by simply pushing the pipe into the coupling, extremely fast assembly
without the need for special tools
detachable design
body material brass, NBR ring, steel cutting edge
designed for compressed air piping in industry and crafts

Product is included in the following categories: Pipe distributions

Technical parameters

Category:	Compressed air piping systems
Version:	Straight couplings with external thread
Pressure:	15 bar
Working temperature:	-30 / 70 °C
SW:	28
Tube:	22 mm
Thread:	G 1/2"
Conduit:	22 mm
Version:	Straight couplings with external thread
Length:	44 mm
Pressure:	15 bar
Working temperature:	-30 / 70 °C
SW:	28
Tube:	22 mm
Thread:	G 1/2"
Conduit:	22 mm
