SCR-45/8EPM screw compressor Power input 45 kW, discharge up to 9,400 l/min, pressure 8 bar, frequency converter, voltage 400/50 V/Hz YD
Code: SCR-45/8EPM
Related products
Product detailed description
The 45 kW machine at eight bar delivers 9,400 l/min — only a hundred litres less than at seven. It is the highest delivery you will get from the EPM range at ordinary industrial pressure.
Why 8 bar
Eight bar means 9,400 l/min with control down to 2,400. The difference against seven bar is about one per cent, while the extra bar costs around seven per cent in energy — on a machine of this rating that is an annual figure you can see in the budget.
| The same 45 kW machine at three pressure settings | |||
|---|---|---|---|
| Order code | Pressure | Free air delivery (l/min) | Loss against 7 bar |
| SCR-45/7EPM | 7 bar | 2,500 – 9,500 | 0 % |
| SCR-45/8EPM — this machine | 8 bar | 2,400 – 9,400 | 1 % |
| SCR-45/10EPM | 10 bar | 3,000 – 8,000 | 16 % |
Dimensions 1,530 × 1,100 × 1,370 mm, weight 890 kg, outlet R 1½" and noise 72 dB(A) are identical at all three settings — it is one and the same machine.
How it differs from its neighbours
The nearest smaller is SCR-37/8EPM with 7,350 l/min. Above the 45 kW there is nothing left in the EPM range — it continues into EPM2 from 55 kW upwards.

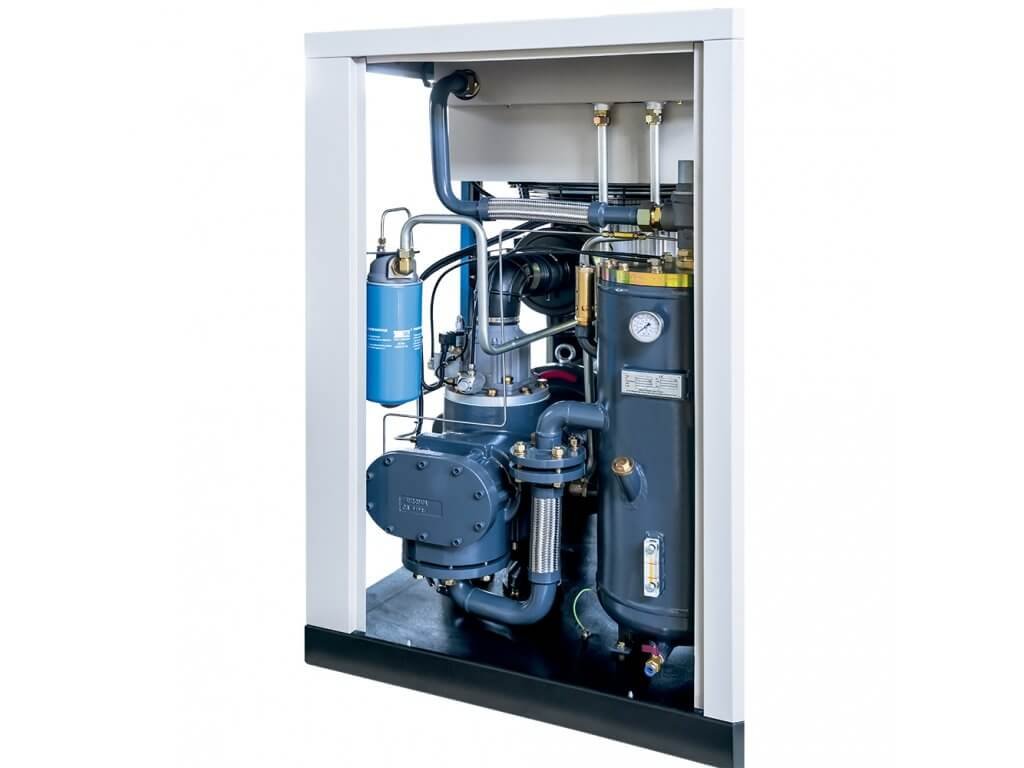

What is inside

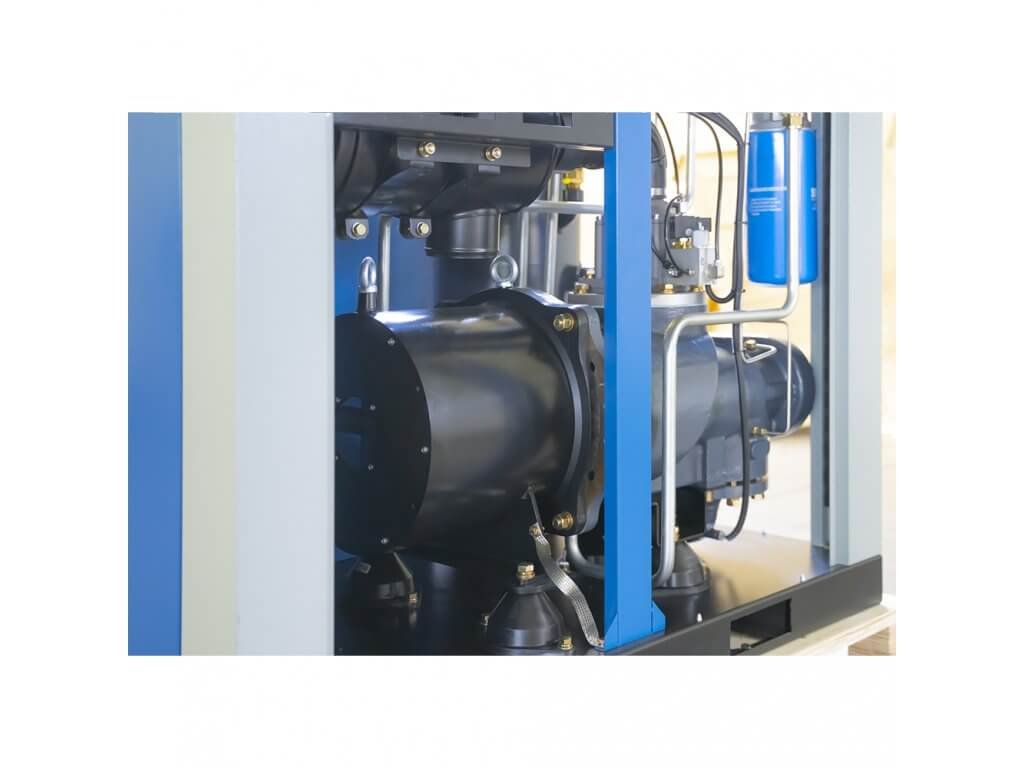

Permanent magnet motor
Magnets instead of a cage: efficiency exceeds IE4 and takes 5 to 6 % off consumption against IE2. On a machine delivering 9,400 l/min that adds up faster than you would expect.

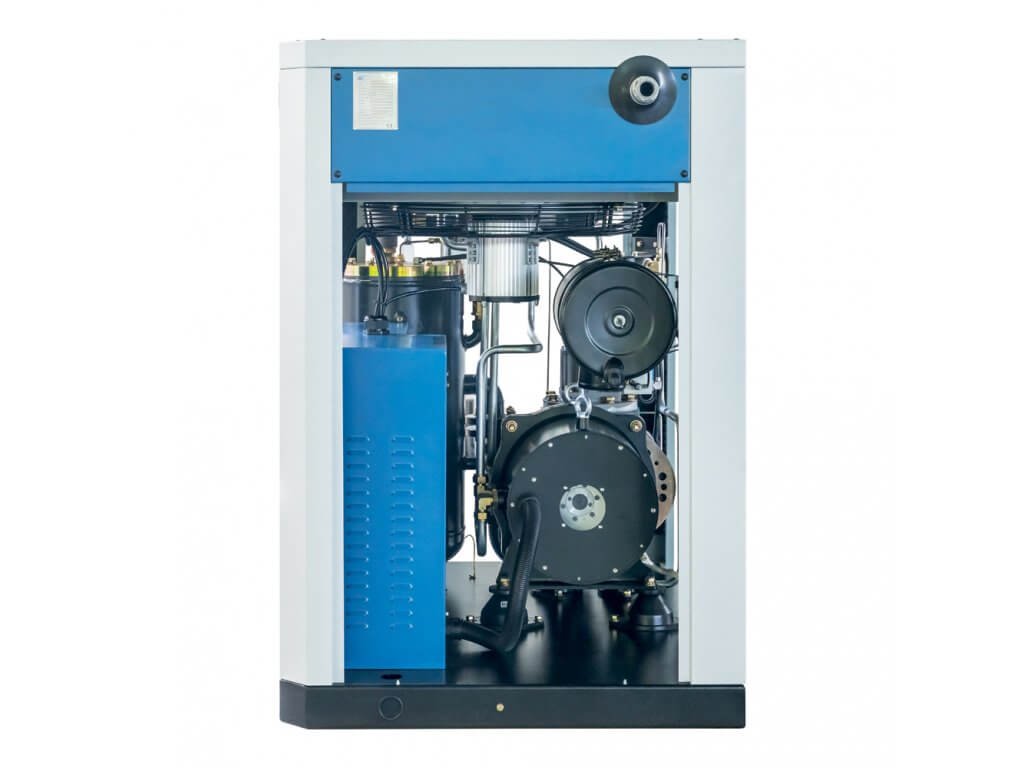

Direct drive through a taper coupling
The airend sits directly on the motor. A slipping belt would quietly eat into 9,400 l/min and you would only notice on the bill; here there is none.

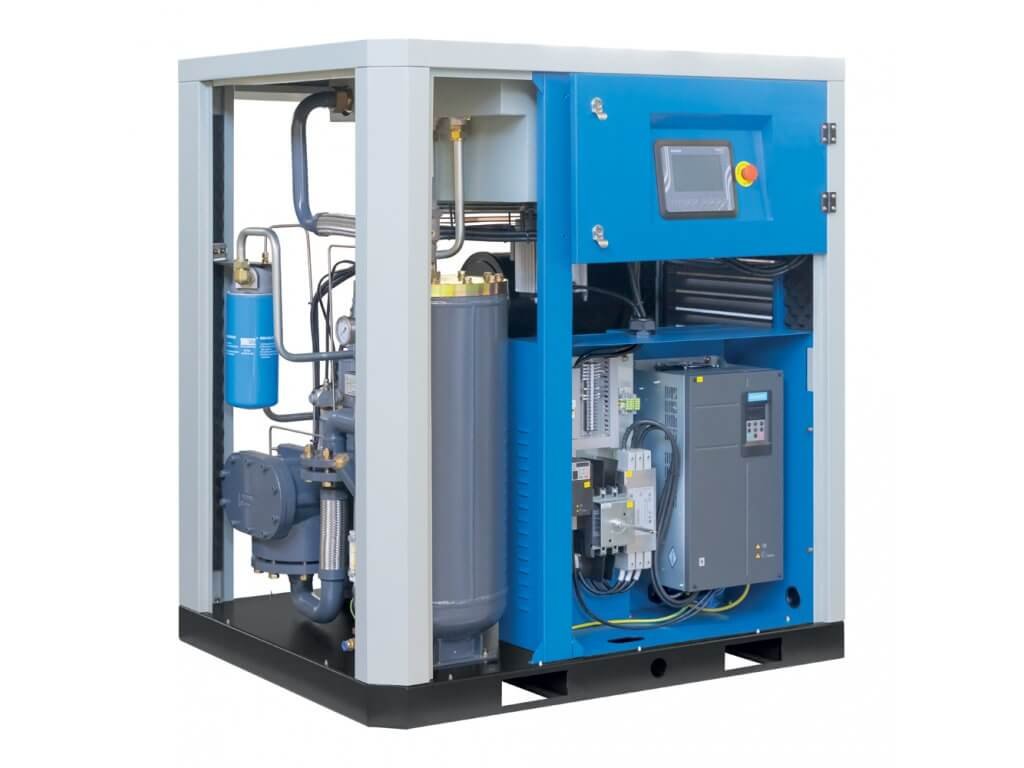

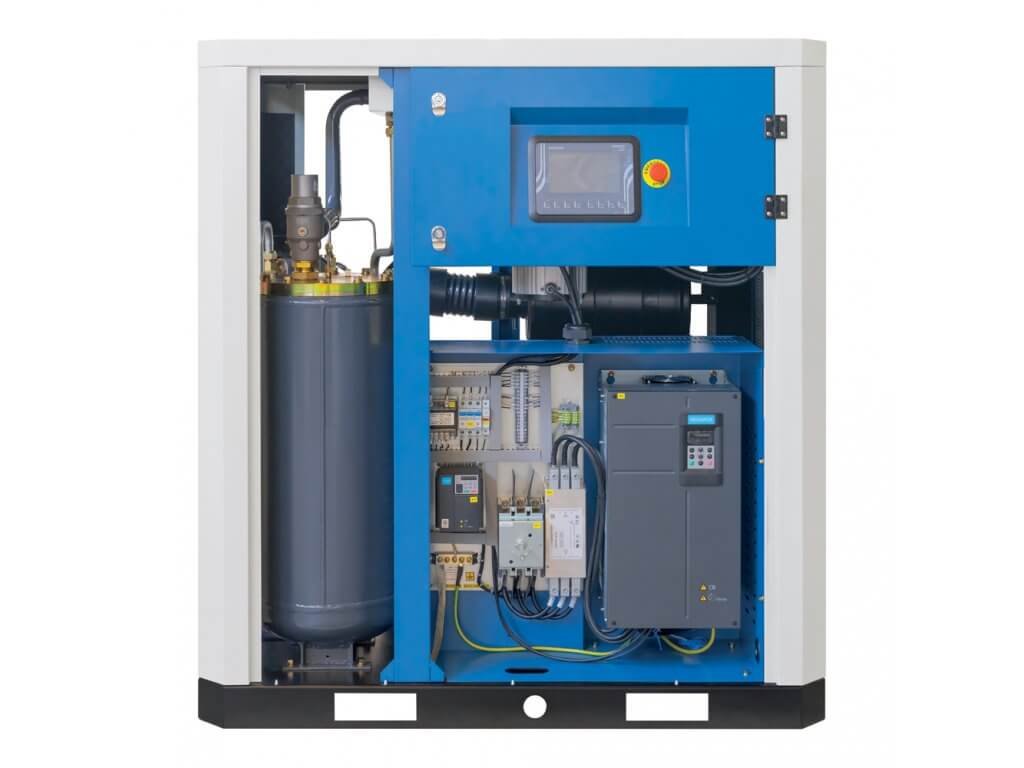

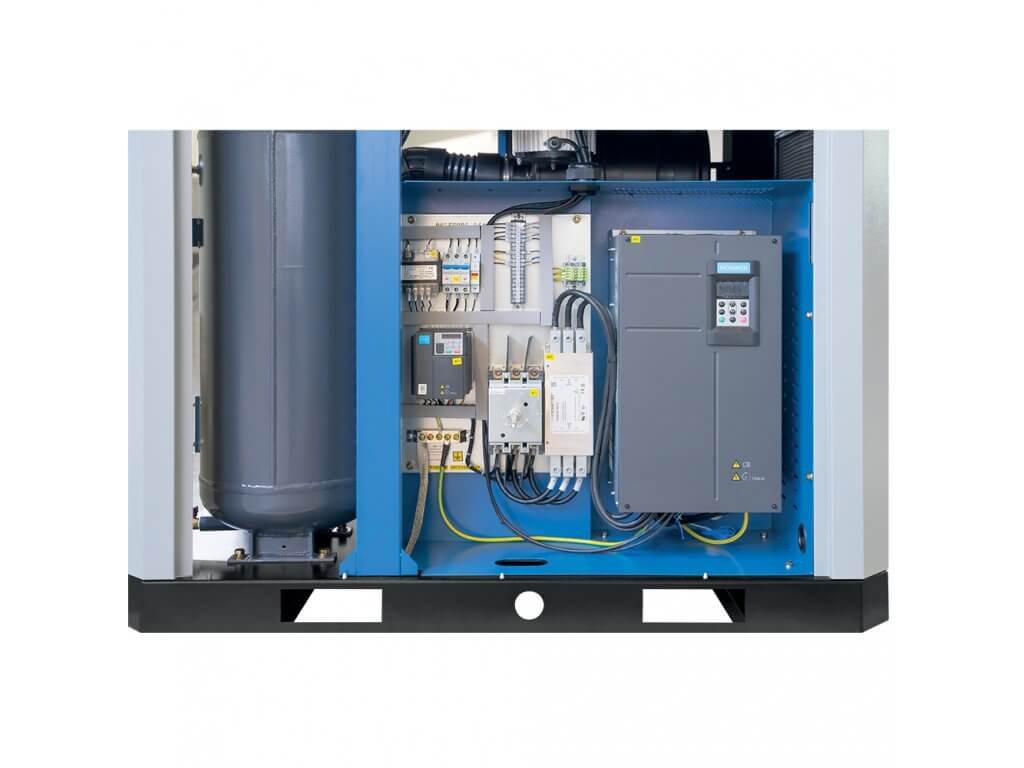

Frequency inverter
Workshop demand fluctuates — so the inverter reduces speed instead of blowing off the excess. The machine covers the 2,400 to 9,400 l/min band without a single shutdown.

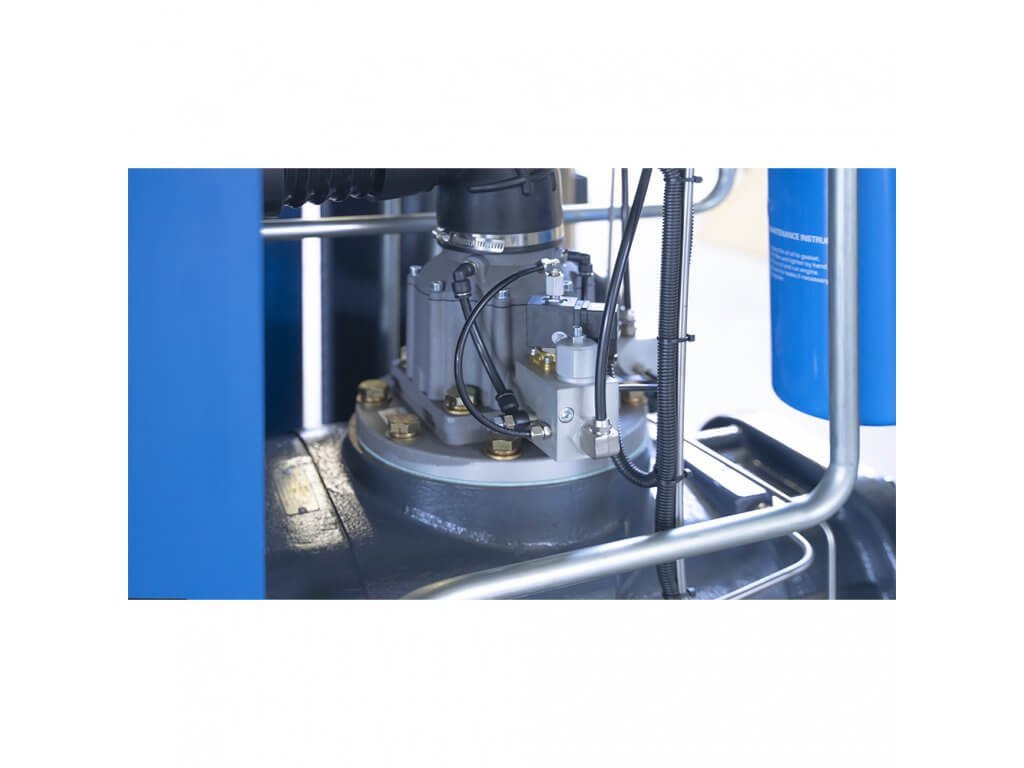

Screw airend
The new airend is quiet and efficient — on 45 kW the sixteen percent improvement shows up in consumption before it shows in noise, though that is 72 dB(A) here.
SCR9000 controller
You schedule when the machine should run and it starts and stops itself. Over RS485 you connect it to remote monitoring, and it handles a cascade of up to sixteen units.
What the machine needs in the plant room
Noise of 72 dB(A) is the highest in the range and means a separate plant room with ventilation for 9,000 m³/h. The footprint of 1,530 × 1,100 mm is the same as the 37 kW, so if you are building the plant room, build it for the 45 kW straight away — it will not ask for any more space.
| SCR-45/8EPM — figures for the plant room design | |
|---|---|
| Free air delivery | 9,400 l/min · 564 m³/h |
| Speed control range | 2,400 – 9,400 l/min (from 26 % of output) |
| Ventilation required | 9,000 m³/h |
| Dimensions L × W × H | 1,530 × 1,100 × 1,370 mm |
| Weight | 890 kg |
| Compressed air outlet | R 1½" |
| Noise at 1 m distance | 72 dB(A) |
| Supply voltage | 400 V / 50 Hz |
Equipment
- permanent magnet motor above IE4, oil-cooled, IP65 protection, no bearings
- direct drive by taper connection — no belts, gearbox or coupling
- vector-controlled frequency inverter, 25 to 100 % speed range
- the inverter drives the cooling fan as well
- new airend with a rotor profile developed in Japan
- SCR9000 controller with touch display, weekly timer and cascade of up to 16 machines

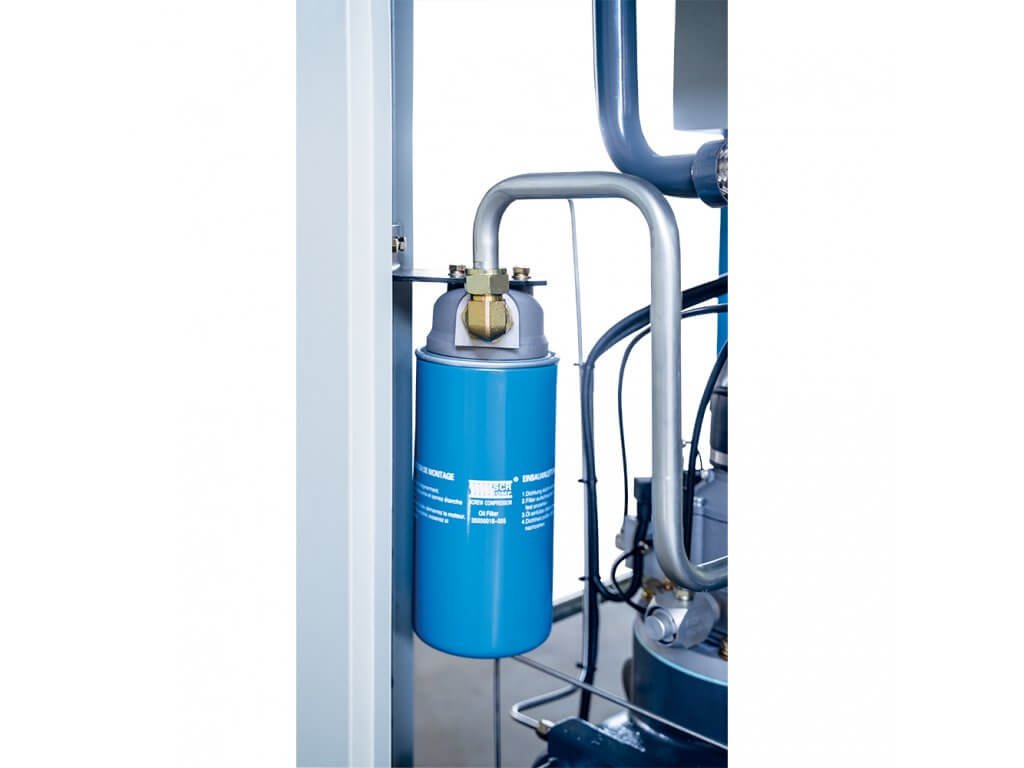

- nano-scale intake filter at 99.9 % efficiency, 0.1 µm oil filter
- separator with oil carry-over below 3 ppm

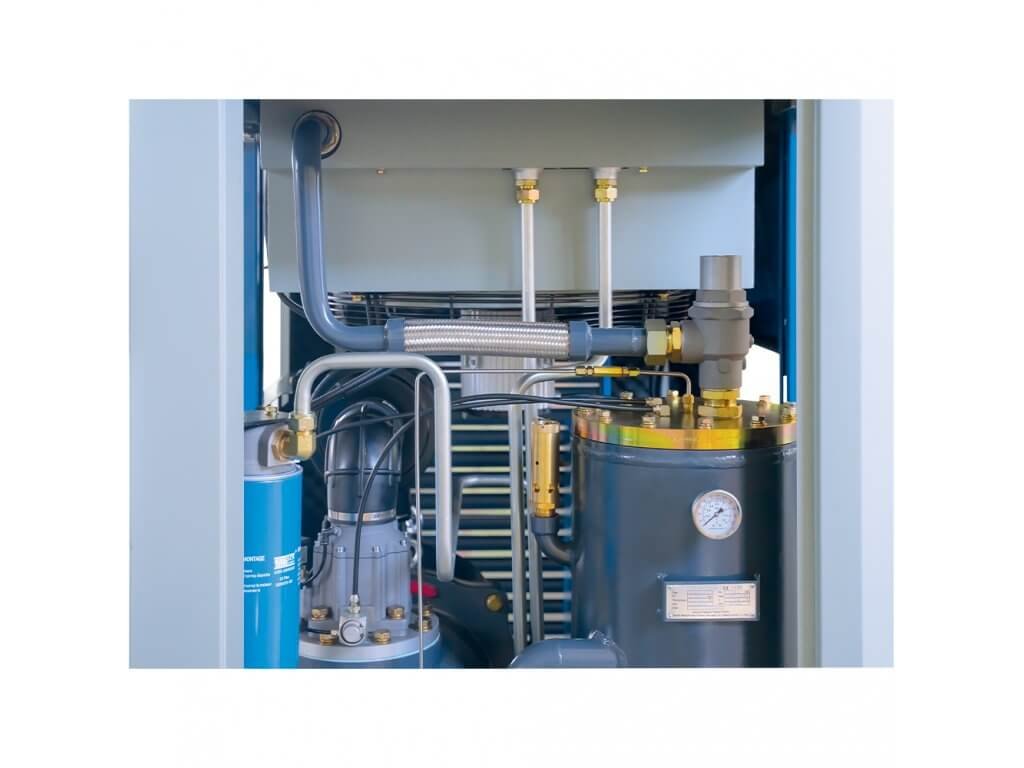

- all-steel internal pipework instead of rubber hoses
- soft start — the current never exceeds the rated value
On 45 kW machines it is almost always worth calculating heat recovery — in continuous operation it is the single largest saving after the inverter itself. We are happy to work it out; service we provide across the country. Higher outputs are in the SCR-EPM2 range, the whole range in the SCR-EPM range.
Seven per cent of forty-five kilowatts on three-shift work is not small change. Measure the system before you set the pressure.
Additional parameters
| Category: | Compressors for all applications - hobby and industrial |
|---|---|
| Warranty: | 5 years |
| Compressor type: | Screw compressor |
| Pressure: | 8 bar |
| Displacement: | 9,400 l/min |
| Pressure vessel volume: | It isn't |
| Connecting: | 1 1/2" |
| Motor power: | 45 kW |
| Mains voltage: | 400/50 V/Hz |
| Lubrication: | Oleic |
| Noise: | 72 dB(A) |
| Dimensions: | 1 530 × 1 100 × 1 500 mm |
| Weight: | 890 kg |
| Engine: | Electric |
| Soundproofed: | Yes |
| Drive: | Direct |
| Air dryer: | No |
| Retrieved from: | Professional |
| Development: | Stationary |
| Frequency converter: | Yes |
-
