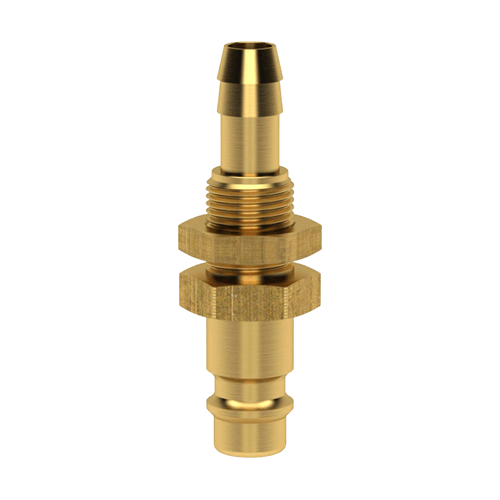

    Nipple with hose barb for hose into the EC quick coupling panel

    Vsuvka do panelu s trnem na hadici pro rychlospojku ES DN7,2
    • universal quick couplings in one-sided closable design
    • materials used:
    • body, locking ring, valve body, valve: brass MS 58
    • springs, spacer ring: stainless steel 1.4310
    • pins: stainless steel 1.4305
    • seal: NBR
    • nipple: brass MS 58
    • designed for compressed air in industry and crafts, can be used for water and other media

    Panel-mounted hose nipple with hose shank for quick couplings ES DN 7,2
    Order
    number    		 Hose barb
    mm    		 Thread
    "    		 SW
    mm    		 Length
    mm    		 Diameter
    mm    		 Thread length
    mm    		 Weight
    g
    ES6SSV 6 mm M12 x 1 17 56 17 14 30
    ES8SSV 8 mm M14 x 1 17 56 17 14 35
    ES10SSV 10 mm M16 x 1 17 56 17 14 42
