    Omega Air EMD Electronic Condensate Drains

    Elektronický odpouštěč kondenzátu EMD12 s automatickým řízením

    Modern EMD condensate drain system represents a revolution in energy saving for your compressor station. Thanks to the advanced capacitive sensor and automatic control, condensate is drained from the system without any loss of precious compressed air.

    • ✅ 100% lossless operation: Drains only water and oil, compressed air remains in the system. Significant energy savings.
    • ✅ Smart design: The body made of durable PA polyamide allows for flexible horizontal and vertical installation.
    • ✅ High reliability: Directly controlled self-cleaning valve (patented solution) with an integrated filter screen prevents clogging. Operating temperature +1.5 °C to +65 °C, IP54 protection.
    • 🔹 Advanced versions (C / A): Models are available with an alarm output, LED signaling, test button, and connection option for the Service Network device for remote monitoring.
    • ✔ Universal use: Ideal for efficient condensate drainage from dryers, pressure vessels, and filters. Drainage via 8 mm push-in connector.

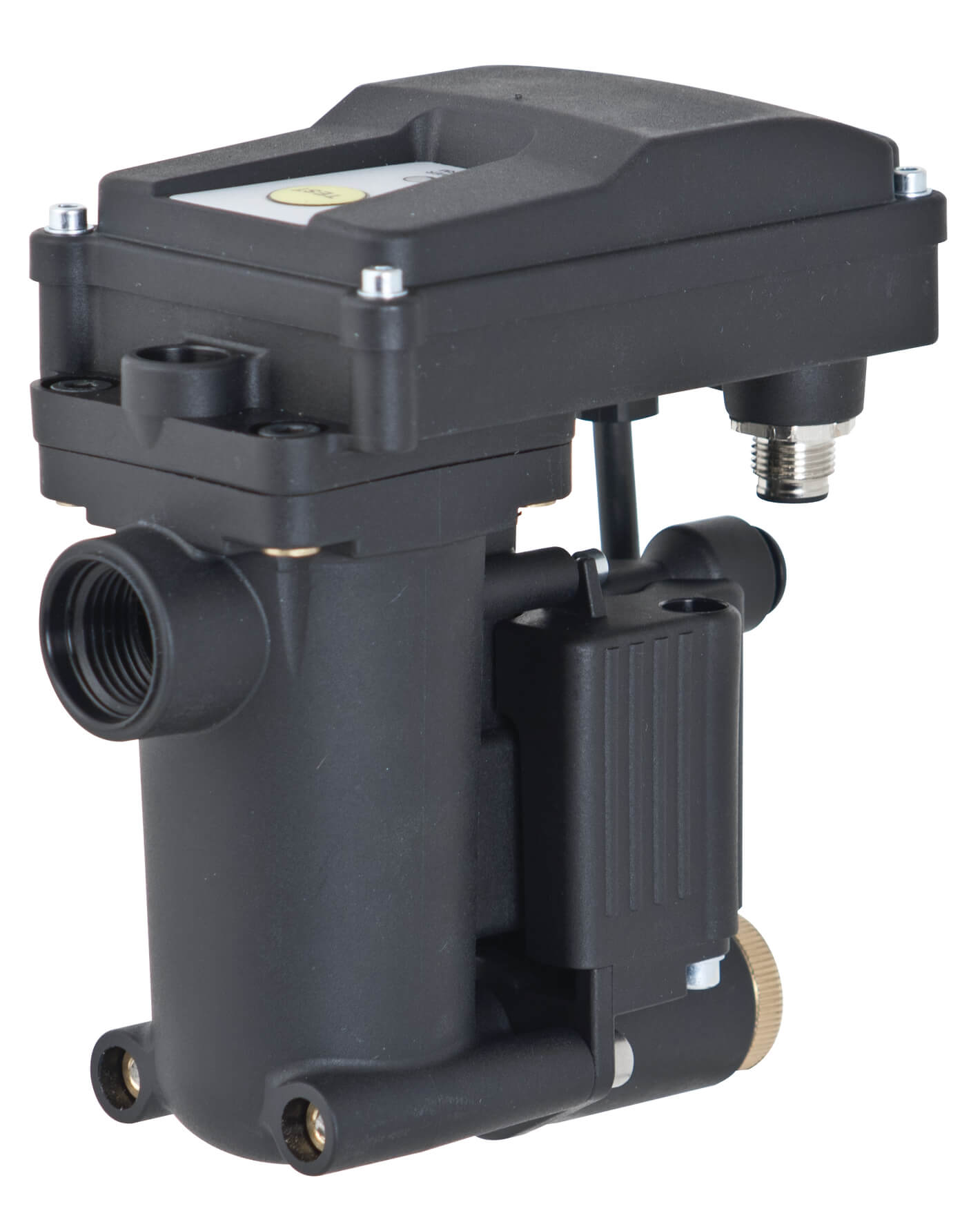

    Electronic condensate drains EMD12
    Ordering
    number    		 Max. pressure Compressor performance Dryer performance Filter performance Alarm output Service connection Voltage Thread d with in Weight
    bar l/min l/min l/min Yes/No Yes/No V/Hz/Ph " mm mm mm kg
    EMD12 16 7 400 14 900 74 400 No No 230 V AC 1/2" 133 76 147 0,55
    EMD12A 16 7 400 14 900 74 400 Yes No 230 V AC 1/2" 133 76 147 0,55
    EMD12C 16 7 400 14 900 74 400 Yes Yes 230 V AC 1/2" 133 76 147 0,55
    EMD12-24A 16 7 400 14 900 74 400 No No 24 V AC 1/2" 133 76 147 0,55
    EMD12A-24A 8 7 400 14 900 74 400 Yes No 24 V AC 1/2" 133 76 147 0,55
    EMD12A-24D 16 7 400 14 900 74 400 Yes No 230 V AC 1/2" 133 76 147 0,55
    EMD12-MK Service kit for annual maintenance of the EMD12 drain

    Electronic condensate drains EMD25
    Ordering
    number    		 Max. pressure Compressor performance Dryer performance Filter performance Alarm output Service connection Voltage Thread d with in Weight
    bar l/min l/min l/min Yes/No Yes/No V/Hz/Ph " mm mm mm kg
    EMD25 16 15 400 31 000 155 000 No No 230 V AC 1/2" 131 86 166 0,73
    EMD25A 16 15 400 31 000 155 000 Yes No 230 V AC 1/2" 131 86 166 0,73
    EMD25C 16 15 400 31 000 155 000 Yes Yes 230 V AC 1/2" 131 86 166 0,73
    EMD25-MK Service kit for annual maintenance of the EMD25 drain

    Electronic condensate drains EMD75
    Ordering
    number    		 Max. pressure Compressor performance Dryer performance Filter performance Alarm output Service connection Voltage Thread d with in Weight
    bar l/min l/min l/min Yes/No Yes/No V/Hz/Ph " mm mm mm kg
    EMD75 16 46 200 93 000 465 000 No No 230 V AC 1/2" 161 97 162 1,20
    EMD75A 16 46 200 93 000 465 000 Yes No 230 V AC 1/2" 161 97 162 1,20
    EMD75C 16 46 200 93 000 465 000 Yes Yes 230 V AC 1/2" 161 97 162 1,20
    EMD25-MK Service kit for annual maintenance of the EMD75 drain

    Electronic condensate drains EMD150
    Ordering
    number    		 Max. pressure Compressor performance Dryer performance Filter performance Alarm output Service connection Voltage Thread d with in Weight
    bar l/min l/min l/min Yes/No Yes/No V/Hz/Ph " mm mm mm kg
    EMD150 16 92 000 186 000 930 000 No No 230 V AC 1/2" 190 97 162 1,3
    EMD150A 16 92 000 186 000 930 000 Yes No 230 V AC 1/2" 190 97 162 1,3
    EMD150C 16 92 000 186 000 930 000 Yes Yes 230 V AC 1/2" 190 97 162 1,3
    EMD25-MK Service kit for annual maintenance of the EMD150 drain

    EMD-HP (high pressure) electronic condensate drains
    Ordering
    number    		 Max. pressure Compressor performance Dryer performance Filter performance Alarm output Service connection Voltage Thread d with in Weight
    bar l/min l/min l/min Yes/No Yes/No V/Hz/Ph " mm mm mm kg
    EMD-HP 16 22 000 93 000 465 000 No No 230 V AC 1/2" 158 94 174 2,3
    EMD-HPA 16 22 000 93 000 465 000 Yes No 230 V AC 1/2" 158 94 174 0,73
    EMD-HPC 16 22 000 93 000 465 000 Yes Yes 230 V AC 1/2" 158 94 174 0,73
    EMD-HP-MK Service kit for annual maintenance of the EMD-HP drain
    Maskot Ventilek radí s elektronickými odpouštěči kondenzátu

    Ventilek advises: Do you have an old mechanical or timer drain on your compressor that blows a lot of valuable compressed air into the drain every now and then, even when there's no water in the tank? Replace it with an electronic EMD! Its sensor precisely detects the water level and opens the valve only for the necessary time. Air is not released. The saved kilowatt-hours from the unnecessarily running compressor will pay back your investment in the "EMD" sooner than you can say it. And thanks to the built-in strainer with a large cross-section, this valve won't get clogged with rust from the piping!
