Automatic condensate drains
Don't worry about condensate any more, the automatic condensate drainers take care of it for you. And it's absolutely perfect, thanks to modern technology that also detects faults or has the so-called. by capacitive discharge. Electronically controlled condensate drainers are used to drain condensate from pressure vessels, or air tanks, directly into waste and piping systems. In addition, we also offer service kits for these smart assistants.
.jpg)
#ShowMore#

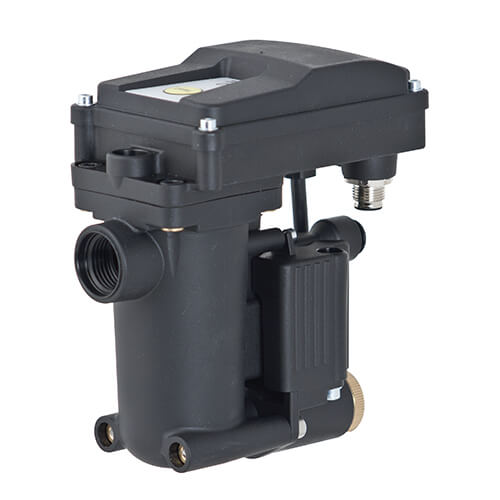

| EMD electronic condensate drain |

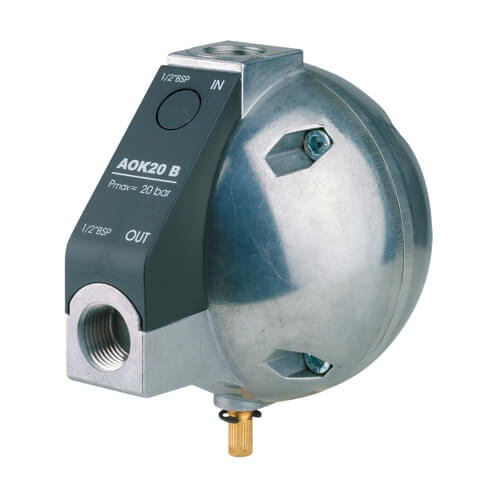

AOK20B mechanical condensate drain |
TD time condensate drain |
.jpg) |
.jpg) |
 |
| The function of the EMD12 series electronic condensate drain is based on non-contact measurement of the condensate level and its discharge without any loss of compressed air. The EMD12 series is made of polyamide. The operating principles of the EMD12 are identical to those of the old ECDB series. | AOK20B series condensate drainers are designed for automatic drainage of condensate from filter vessels, pressure vessels and cyclone separator vessels. These condensate drainers allow the drainage of large quantities of condensate (up to 300 l/h) and operation at pressures up to 20 bar. When the condensate level is elevated, a float inside the aluminium drain valve opens the valve and discharges the accumulated condensate into the drain pipe. The drain valve closes automatically when the condensate level drops, which prevents compressed air leaks. | Condensate should be collected in a suitable container. The time release of the solenoid valve is controlled by electronics built into the plastic housing of the solenoid valve. The time release of the valve can be set according to the needs of the system and depends on the amount of condensate accumulated. The adjustable timed opening of the solenoid valve ensures complete discharge of accumulated condensate. |

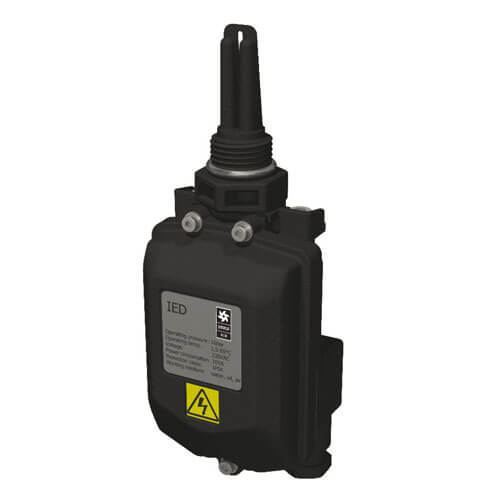

| IED electronic condensate drain |

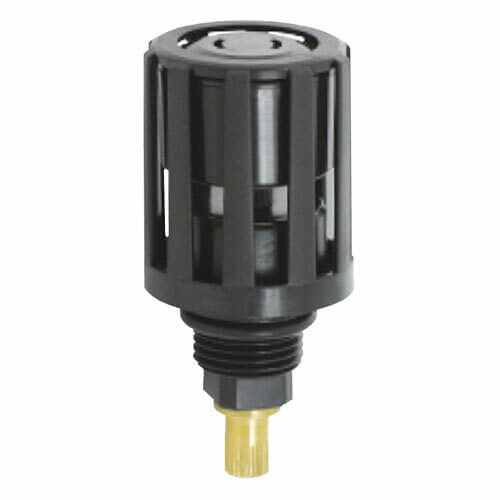

AOK16B float condensate trap |
 |
.jpg) |
.jpg) |
|
| The level of accumulated condensate at the bottom of the filter vessel is sensed by a precision capacitive sensor. When the condensate level reaches the maximum permissible level, the condensate is drained from the system without any loss of compressed air. This series is primarily designed for installation directly into the filter vessels and subsequent drainage of condensed water from the system. | The AOK16B series automatic condensate drainers are primarily designed for installation inside filters. Their main task is automatic condensate discharge, but at the same time, condensate can also be discharged manually. The precision-engineered float opens the valve and drains the accumulated condensate from the system without loss of compressed air. |
-
Electronic EMD forgivers; modern control system
-
Electronic LD dischargers; intelligent control
-
TD time relief valves; pressure 16 to 420 bar
.jpg)
Bestsellers
Electronic timed condensate drain for compressed air systems up to 16 bar, operating on a time switching valve. External mounting on the filter body with 1/2" thread. Simple...
The state-of-the-art EMD25 condensate drainage system with a compressor flow rate of up to 15,400 l/min and automatic operation control, fault detection and no air discharge....
The state-of-the-art EMD75 condensate drainage system with a compressor flow rate of up to 46,200 l/min and automatic run control, fault detection and no air discharge. Directly...
Electronic timed condensate drain for compressed air systems up to 50 bar, operating on a time switching valve. External mounting on the filter body with 1/2" thread. Simple...
The state-of-the-art EMD12 condensate drainage system with a compressor flow rate of up to 7,400 l/min and automatic operation control, fault detection and no air discharge....
The new range of LD condensate drainers uses a system called capacitive drainage for its function. Compared to traditional time forgiveness, this system has several significant...
The LogiDrain LD203 intelligent condensate drain with a compressor flow rate of up to 158,333 l/min is a state-of-the-art condensate drainage system with automatic operation...
Service kit for the maintenance of modern compressor condensate drainage systems for EMD25, EMD75, EMD150, EMD300 electronic condensate drainers.
Electronic timed condensate drain for compressed air systems up to 25 bar, operating on a time switching valve. External mounting on the filter body with 1/2" thread. Simple...
The state-of-the-art EMD12 condensate drainage system with a compressor flow rate of up to 7,400 l/min and automatic operation control, fault detection and no air discharge....
The LogiDrain LD202 intelligent condensate drainage system with a compressor flow rate of up to 30,000 l/min is a state-of-the-art condensate drainage system with automatic...
The state-of-the-art EMD75A condensate drainage system with a compressor flow rate of up to 46,200 l/min and automatic run control, fault detection and no air discharge....
The state-of-the-art EMD150 condensate drainage system with a compressor flow rate of up to 15,400 l/min and automatic operation control, fault detection and no air discharge....
Service kit for maintenance of modern condensate discharge systems from the EMD12 compressor.
The state-of-the-art EMD12 condensate drainage system with a compressor flow rate of up to 7,400 l/min and automatic operation control, fault detection and no air discharge....
The state-of-the-art EMD25C condensate drainage system with a compressor flow rate of up to 15,400 l/min and automatic run control, fault detection and no air discharge....
The state-of-the-art EMD75C condensate drainage system with a compressor flow rate of up to 46,200 l/min and automatic run control, fault detection and no air discharge....
The LogiDrain LD200 intelligent condensate drainage system with a compressor flow rate of up to 15,000 l/min is a state-of-the-art condensate drainage system with automatic...
The state-of-the-art EMD12-24A condensate drainage system with a compressor flow rate of up to 7,400 l/min and automatic run control, fault detection and no air discharge....
The state-of-the-art EMD12A-24A condensate drainage system with a compressor flow rate of up to 7,400 l/min and automatic run control, fault detection and no air discharge....
The state-of-the-art EMD12A-24D condensate drainage system with a compressor flow rate of up to 7,400 l/min and automatic run control, fault detection and no air discharge....
The state-of-the-art EMD150A condensate drainage system with a compressor flow rate of up to 15,400 l/min and automatic run control, fault detection and no air discharge....
The state-of-the-art EMD150C condensate drainage system with a compressor flow rate of up to 15,400 l/min and automatic operation control, fault detection and no air discharge....
The state-of-the-art EMD25A condensate drainage system with a compressor flow rate of up to 15,400 l/min and automatic run control, fault detection and no air discharge....
Electronic timed condensate drain for compressed air systems up to 150 bar, operating on a time switching valve. External mounting on the filter body with 1/2" thread. Simple...
Electronic stainless steel timed condensate drain from compressed air system up to 16 bar, working on time switching valve. External mounting on the filter body with 1/2"...
Electronic timed condensate drain for compressed air systems up to 420 bar, operating on a time switching valve. External mounting on the filter body with 1/4" thread. Simple...
Electronic time release condensate drain with 24V DC voltage from compressed air system up to 420 bar, working on time switching valve. External mounting on the filter body with...
