Activated carbon filter Hankison F06-B-CF – G 3/4", 2,116 l/min oil vapour below 0.004 mg/m³ · class 1-x-1 · 16 bar
Code: F06-B-CF
Related products
Product detailed description
The Hankison NGF F06-B-CF activated carbon filter removes oil vapours, odours and tastes; residual oil in the form of vapour is below 0.004 mg/m³. It has a G 3/4" thread, a flow of 2,116 l/min (127 Nm³/h) at 7 bar and a working pressure of up to 16 bar.
It belongs to the range of Hankison NGF filters: the housing is the same for all five stages, and the stage is determined by the element with its coloured end cap.
Specifications
| Parameter | Value |
|---|---|
| Connection | G 3/4" (female thread) |
| Flow at 7 bar | 2,116 l/min (127 Nm³/h) |
| Working pressure | 16 bar |
| Inlet air temperature | +2 to +66 °C |
| Particle retention | 0.01 µm |
| Residual oil | < 0.004 mg/m³ (as vapour) |
| ISO 8573-1 class | 1-x-1 |
| Particle removal efficiency | 99.999+ % |
| Pressure drop of a new element (dry / wet) | 70 mbar / – |
| Element replacement | after 1,000 operating hours, within 12 months at the latest |
| Element end cap colour | black |
| Spare element | CF-06 |
| Clogging indication | no indication (activated carbon is replaced by time) |
| Condensate drain | manual valve (ball valve) |
| Housing | die-cast aluminium, chromated, powder-coated |
| Width A | 132 mm |
| Height B | 262.1 mm |
| Connection axis to bottom edge C | 219.8 mm |
| Clearance below the filter D | 127 mm |
| Weight | 1.4 kg |
Housing and dimensions
The housing is die-cast aluminium, chromated and protected by a polyester epoxy powder coating. The inlet and outlet are shaped as flanges with a female thread; the bowl has internal ribs along which the condensate runs down.
Dimensions according to the manufacturer: width A 132 mm, height B 262.1 mm, connection axis to bottom edge C 219.8 mm, and a clearance D of 127 mm is needed below the filter so that the bowl can be removed. Weight 1.4 kg.
Standard equipment

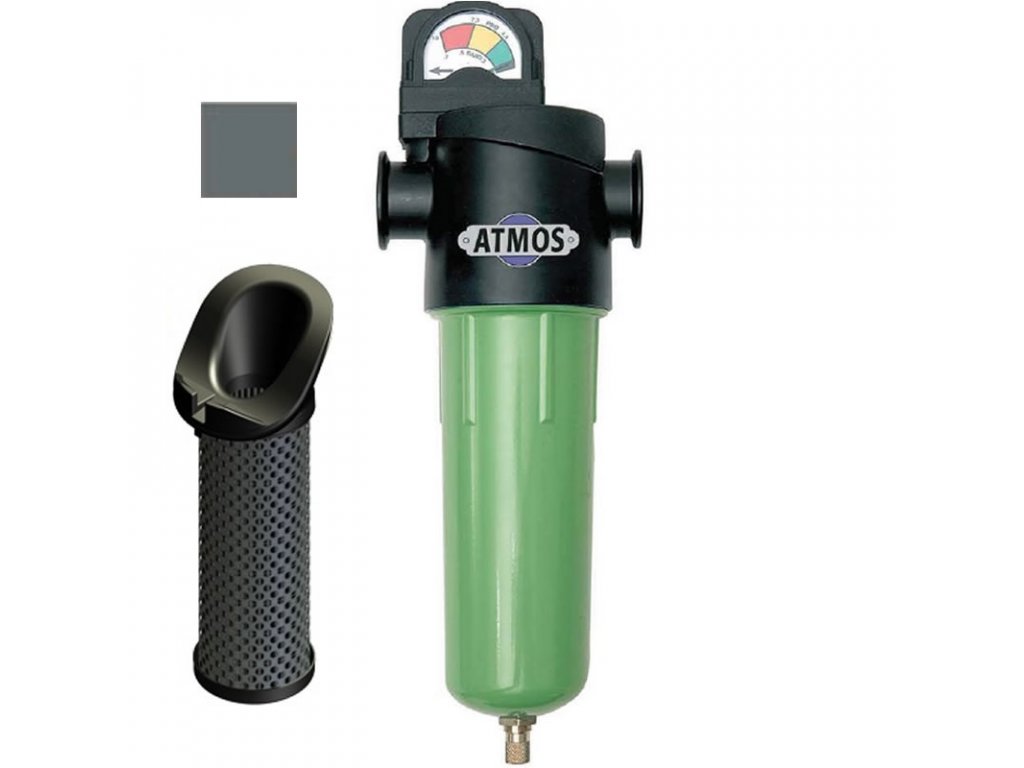

The filter is supplied with the CF-06 element. It has no condensate drain or pressure drop indication — there is a manual valve (ball valve) on the bowl, and the element is replaced by time.
Flow by pressure
The flow applies to a pressure of 7 bar and a temperature of +20 °C. At a different pressure, it changes according to the correction factor; this filter works up to 16 bar:
| Pressure (bar) | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 |
|---|---|---|---|---|---|---|---|---|---|
| Flow (l/min) | 1,333 | 1,587 | 1,862 | 2,116 | 2,391 | 2,920 | 3,491 | 3,956 | 4,507 |
When to use it
It is for air in contact with food and pharmaceuticals, and for process and analytical air. It does not remove methane, carbon monoxide, carbon dioxide or other toxic gases.
Where to place it
It always goes after the HF microfilter or UF microfilter — liquid oil must not reach the activated carbon.
Element and maintenance
Replace the CF-06 activated carbon element by time: after 1,000 operating hours, within 12 months at the latest.
Filter medium
The element has the patented Venturi-Wave shape, through which air enters the element without turbulence, and a deep pleated filter medium with a large area — air passes through it with a lower pressure drop.
You will find other sizes among the filters of the same stage, and spare elements in the NGF accessories.
Additional parameters
| Category: | Hankison NGF CF activated carbon compressed air filters |
|---|---|
| Version: | Activated carbon |
| Pressure: | 16 bar |
| Connecting: | 3/4" |
| Dimensions: | 132 × 262 mm |
| Certification: | ISO 8573-1 (IUTA) |
| Filtration: | Activated carbon |
| Filter insert: | CF-06 |
| Material: | Aluminium |
| Condensate discharge: | Manual |
| Working temperature: | +2 / +66 °C |
| Flow: | 2,116 l/min |
| Residual oil: | <0.004 mg/m³ |
| Quality class - oils: | 1 |
| Quality class - solid impurities: | 1 |
