Activated carbon filter HPFA-094 – 50 bar, G 2", 15,000 l/min activated carbon · class 1-x-1 · 50 bar
Code: HPFA-094
Related products
Product detailed description

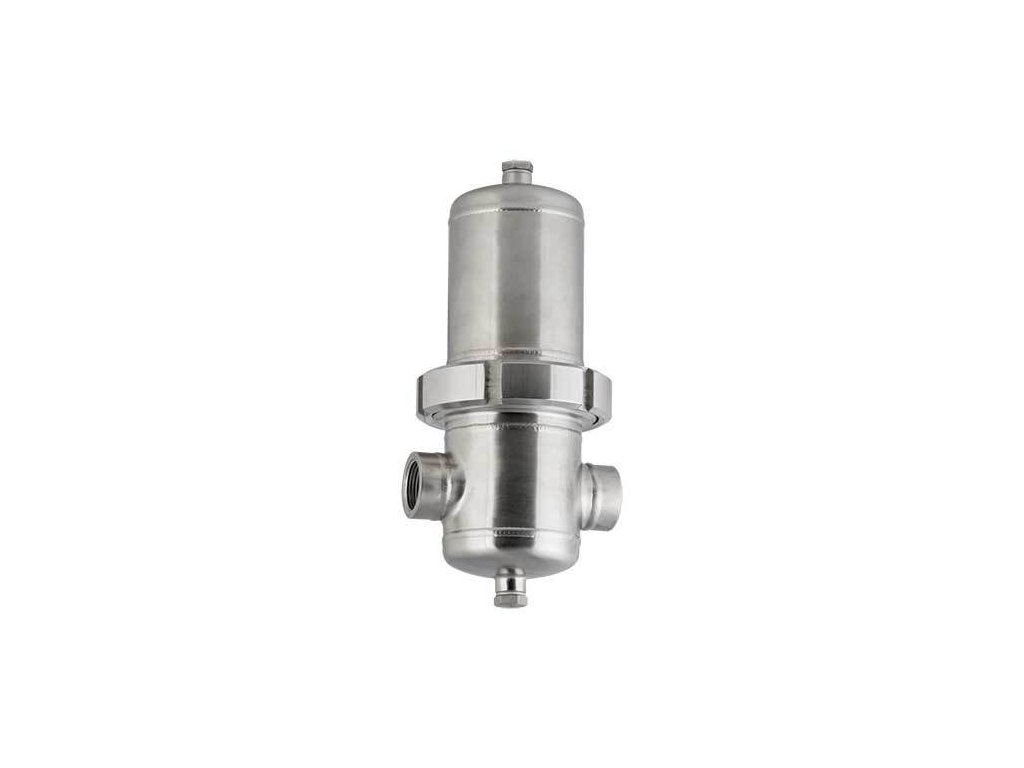

The HPFA-094 activated carbon process filter removes oil vapours, hydrocarbons and odours. It has a G 2" connection (female pipe thread), a flow of 15,000 l/min at 7 bar and a working pressure of up to 50 bar.
It belongs to the HPF process filters, among the HPFA activated carbon filters: the housing is the same for all stages, only the element differs.
Specifications
| Parameter | Value |
|---|---|
| Connection | G 2" (female pipe thread) |
| Flow at 7 bar | 15,000 l/min (900 Nm³/h) |
| Working pressure | 50 bar |
| Element temperature | +1.5 to +45 °C |
| ISO 8573-1 class | 1-x-1 |
| Element replacement | at least once every 12 months |
| Element | PFA-094V |
| Element material | borosilicate microfibres and activated carbon |
| Element design | wrapped |
| Housing | stainless steel 1.4404 |
| Height A | 481 mm |
| Width across the connections B | 180 mm |
| Housing diameter C | 114.3 mm |
| Weight | 9.2 kg |
| Condensate drain outlet E | G 1/4" thread in the bottom |
| Condensate drain | ordered separately |
Housing and dimensions
The housing for pressures up to 50 bar is made of stainless steel 1.4404, or 1.4301 on request, with the outer surface polished to Ra 1.6 and EPDM seals (FKM or silicone on request). It withstands −20 to +150 °C; the actual limit depends on the seals and the element.
According to the manufacturer: height A 481 mm, width across the connections B 180 mm, housing diameter C 114.3 mm. Weight 9.2 kg.
Flow by pressure
The flow applies to a pressure of 7 bar and a temperature of +20 °C. At a different pressure, it is multiplied by the correction factor; at 50 bar it is 6.38:
| Pressure (bar) | 7 | 16 | 30 | 50 |
|---|---|---|---|---|
| Flow (l/min) | 15,000 | 31,950 | 58,200 | 95,700 |
Element and accessories
| For this filter: | |
|---|---|
| Spare element | PFA-094V |
| Condensate drain (ordered separately) | AOK50SS, TD420M-230VAC |
Where to place it
It goes after the fine pre-filter and the microfilter: activated carbon must not work in an oil-saturated environment, and solid particle class 1 only applies with a microfilter before it. It is followed by the HPFSF sterile filter.
You will find other sizes among the filters of the same stage.
Additional parameters
| Category: | HPFA stainless steel activated carbon filters up to 50 bar |
|---|---|
| Version: | Activated carbon |
| Pressure: | 50 bar |
| Connecting: | 2" |
| Dimensions: | 481 × 180 × 114.3 mm |
| Filtration: | Activated carbon |
| Filter insert: | PFA-094V |
| Material: | Stainless steel |
| Condensate discharge: | Without drain |
| Number of inserts: | 1 |
| Working temperature: | +1.5 / +45°C |
| Flow: | 15,000 l/min |
| Quality class - oils: | 1 |
| Quality class - solid impurities: | 1 |
