HPFSF stainless steel filters with a sterile element up to 50 bar

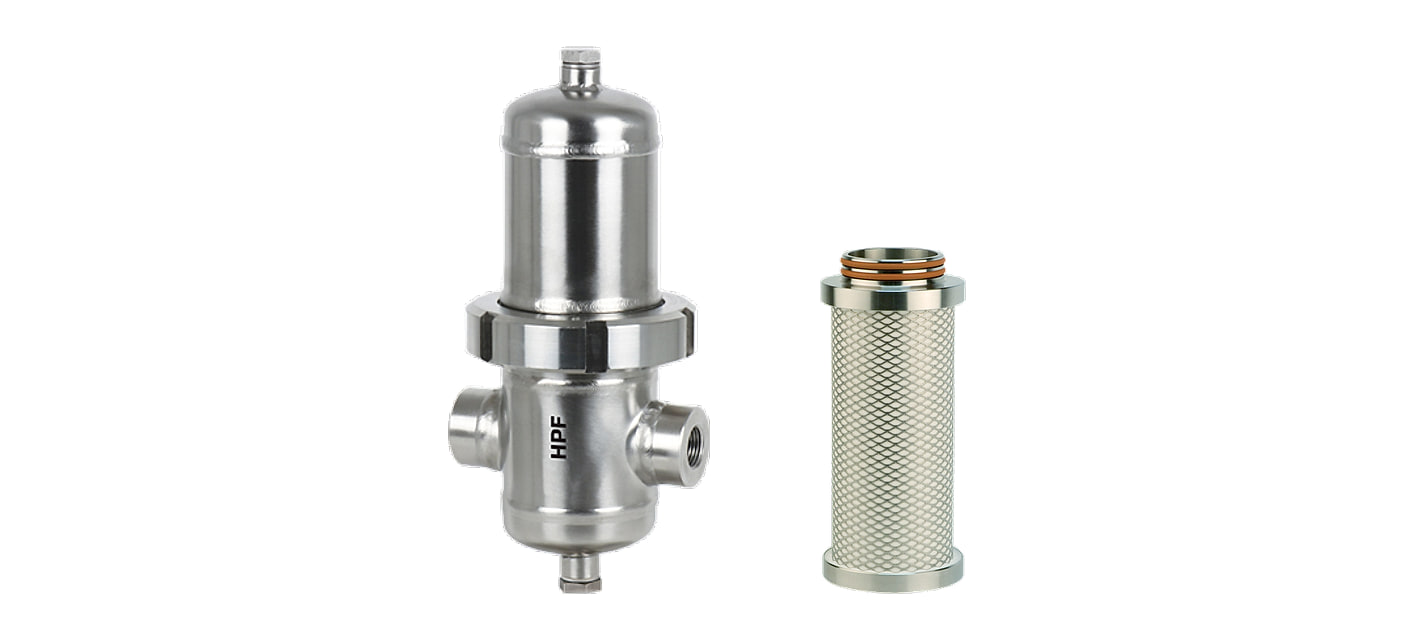

The HPFSF sterile filter is the last filtration stage of the HPF range. It has a sterile element with a filtration rating of 0.01 µm and a polished stainless steel 1.4404 housing.
The HPFSF filter comes in 8 sizes (G 1/2" to 3") with flows of 2,500 to 40,000 l/min at 7 bar; working pressure up to 50 bar. It is one of the stages of the HPF filters — the housing is the same for all stages, only the element differs.
HPFSF filters by size
The size determines the connection and the flow. Each size has its own PF range spare element.
| HPFSF filters and spare elements by size | ||||||
|---|---|---|---|---|---|---|
| Filter | Connection | l/min at 7 bar | Nm³/h at 7 bar | Height A × diameter C | Weight | Spare element |
| HPFSF-010 | G 1/2" | 2,500 | 150 | 243 × 76.1 mm | 2.5 kg | PFSF-010V |
| HPFSF-018 | G 3/4" | 3,750 | 225 | 267 × 76.1 mm | 2.7 kg | PFSF-018V |
| HPFSF-030 | G 1" | 5,250 | 315 | 286 × 88.9 mm | 3.4 kg | PFSF-030V |
| HPFSF-047 | G 1 1/4" | 7,000 | 420 | 355 × 88.9 mm | 3.9 kg | PFSF-047V |
| HPFSF-070 | G 1 1/2" | 10,000 | 600 | 400 × 114.3 mm | 5.6 kg | PFSF-070V |
| HPFSF-094 | G 2" | 15,000 | 900 | 481 × 114.3 mm | 9.2 kg | PFSF-094V |
| HPFSF-150 | G 2" | 21,000 | 1,260 | 607 × 114.3 mm | 10.9 kg | PFSF-150V |
| HPFSF-200 | G 3" | 40,000 | 2,400 | 1,018 × 139.7 mm | 11.5 kg | PFSF-200V |
The flows apply to a pressure of 7 bar and a temperature of +20 °C. Dimensions and weights according to the manufacturer’s technical data sheet; you will find further data on the product page of each filter.
#showmore#
When to use it
The sterile filter goes at the end of the filtration, after the fine pre-filter and the microfilter. The manufacturer designs the HPF range for pharmaceuticals, biotechnology, the food industry and hospitals, among other uses.
Where to place it

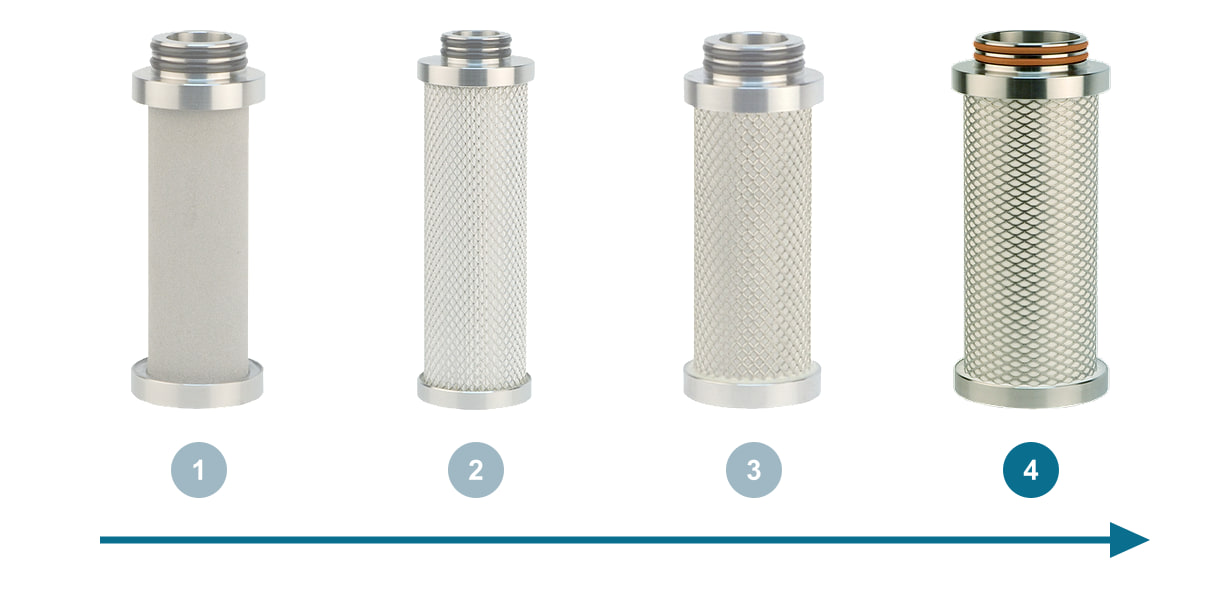

At the end of the filtration, after the HPFM fine pre-filter and HPFA activated carbon.
Flow by pressure
The catalogue flows apply to a pressure of 7 bar and a temperature of +20 °C. At a higher pressure the filter passes more air — 6.38 times as much at 50 bar.
| HPFSF filter flow in l/min by pressure | ||||
|---|---|---|---|---|
| Size (connection) | 7 bar | 16 bar | 30 bar | 50 bar |
| 010 (G 1/2") | 2,500 | 5,325 | 9,700 | 15,950 |
| 018 (G 3/4") | 3,750 | 7,988 | 14,550 | 23,925 |
| 030 (G 1") | 5,250 | 11,183 | 20,370 | 33,495 |
| 047 (G 1 1/4") | 7,000 | 14,910 | 27,160 | 44,660 |
| 070 (G 1 1/2") | 10,000 | 21,300 | 38,800 | 63,800 |
| 094 (G 2") | 15,000 | 31,950 | 58,200 | 95,700 |
| 150 (G 2") | 21,000 | 44,730 | 81,480 | 133,980 |
| 200 (G 3") | 40,000 | 85,200 | 155,200 | 255,200 |
Element, condensate drainage and maintenance

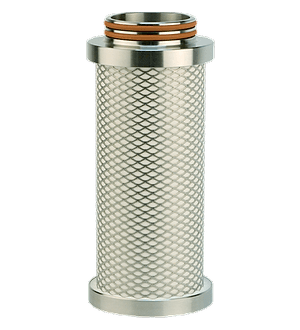

A PF range element is fitted in the housing — for example, the PFSF-010V for the HPFSF-010.
The filter is supplied with an element, without a condensate drain. For HPF filters, the manufacturer offers the AOK50SS stainless steel float drain up to 50 bar, recommended from 10 bar, or the TD420M timed drain with a G 1/4" thread. The drain outlet in the bottom has a G 1/4" thread.
Replace the element at least once every 12 months. Once a year, also check the housing for visible damage.
Accessories for HPFSF filters
The same stage in other ranges
Only the HPF range has stage SF. You will find the other stages among the HPF filters.
Ventilek’s tip
The sterile element goes last. Stages that trap solid particles and oil go before the sterile filter. The sterile element is then the final safeguard of air purity.
- What filtration rating does the HPFSF sterile element have?
- 0.01 µm.
- Where should it be placed?
- At the end of the filtration, after the fine pre-filter and the microfilter.
- When should the element be replaced?
- At least once every 12 months.
