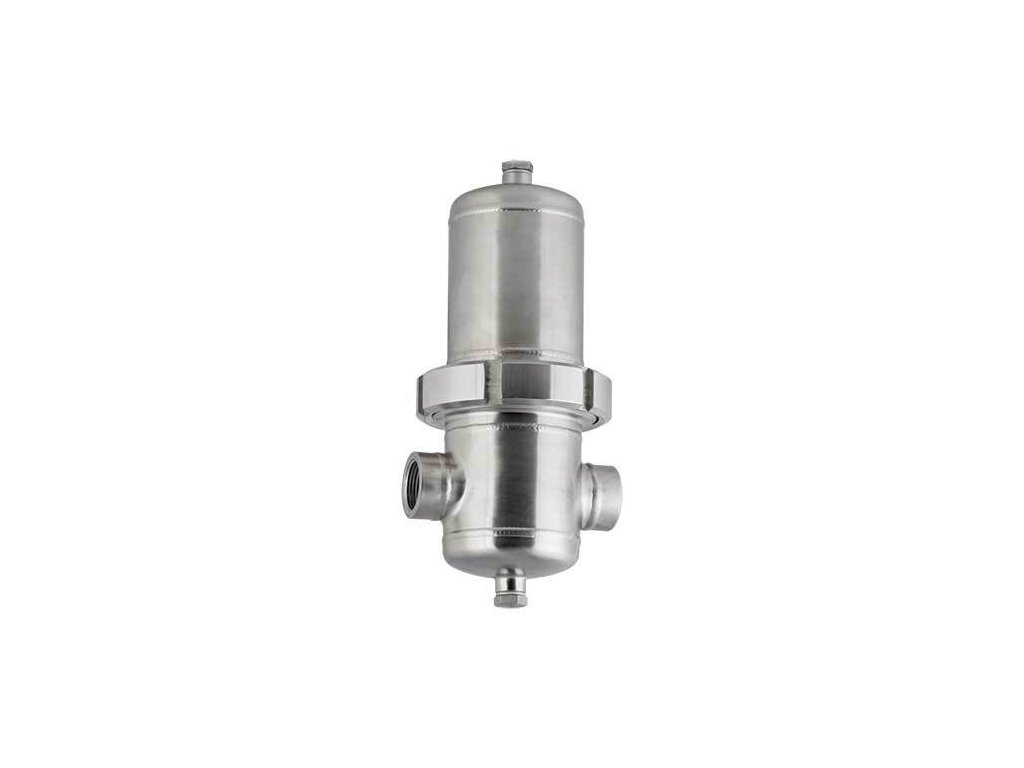

Sterile filter HPFSF-094 – 50 bar, G 2", 15,000 l/min 0.01 micron sterile element · 50 bar
Code: HPFSF-094
Related products
Product detailed description
The HPFSF-094 process filter with a sterile element has a 0.01 µm sterile element for the end of the filtration. It has a G 2" connection (female pipe thread), a flow of 15,000 l/min at 7 bar and a working pressure of up to 50 bar.
It belongs to the HPF process filters, among the HPFSF sterile filters: the housing is the same for all stages, only the element differs.
Specifications
| Parameter | Value |
|---|---|
| Connection | G 2" (female pipe thread) |
| Flow at 7 bar | 15,000 l/min (900 Nm³/h) |
| Working pressure | 50 bar |
| Filtration rating | 0.01 µm |
| Element replacement | at least once every 12 months |
| Element | PFSF-094V |
| Housing | stainless steel 1.4404 |
| Height A | 481 mm |
| Width across the connections B | 180 mm |
| Housing diameter C | 114.3 mm |
| Weight | 9.2 kg |
| Condensate drain outlet E | G 1/4" thread in the bottom |
| Condensate drain | ordered separately |
Housing and dimensions
The housing for pressures up to 50 bar is made of stainless steel 1.4404, or 1.4301 on request, with the outer surface polished to Ra 1.6 and EPDM seals (FKM or silicone on request). It withstands −20 to +150 °C; the actual limit depends on the seals and the element.
According to the manufacturer: height A 481 mm, width across the connections B 180 mm, housing diameter C 114.3 mm. Weight 9.2 kg.
Flow by pressure
The flow applies to a pressure of 7 bar and a temperature of +20 °C. At a different pressure, it is multiplied by the correction factor; at 50 bar it is 6.38:
| Pressure (bar) | 7 | 16 | 30 | 50 |
|---|---|---|---|---|
| Flow (l/min) | 15,000 | 31,950 | 58,200 | 95,700 |
Element and accessories
| For this filter: | |
|---|---|
| Spare element | PFSF-094V |
| Condensate drain (ordered separately) | AOK50SS, TD420M-230VAC |
Where to place it
It goes at the end of the filtration, after the HPFM fine pre-filter and the HPFA activated carbon.
You will find other sizes among the filters of the same stage.
Additional parameters
| Category: | HPFSF stainless steel filters with a sterile element up to 50 bar |
|---|---|
| Version: | Sterile filter |
| Pressure: | 50 bar |
| Connecting: | 2" |
| Dimensions: | 481 × 180 × 114.3 mm |
| Filtration: | 0.01 µm |
| Filter insert: | PFSF-094V |
| Material: | Stainless steel |
| Condensate discharge: | Without drain |
| Number of inserts: | 1 |
| Flow: | 15,000 l/min |
