Molecular sieve filter AAFMS2-510 – G 1 1/2", 8,500 l/min safeguard against moisture · 16 bar
Code: AAFMS2-510
Related products
Product detailed description
The AAFMS2-510 filter with a molecular sieve capsule is a safeguard against moisture entering the air while the adsorption dryer is shut down. It has a G 1 1/2" thread and a flow of 8,500 l/min at 7 bar, working pressure up to 16 bar.
It belongs to the range of Omega Air AAF filters: the housing is the same for all stages, only the element differs.
Specifications
| Parameter | Value |
|---|---|
| Connection | G 1 1/2" |
| Flow at 7 bar | 8,500 l/min (510 Nm³/h) |
| Working pressure | 16 bar |
| Working temperature | +1.5 to +45 °C |
| ISO 8573-1 class | 1-x-x |
| Element replacement | within 6 months at the latest, earlier depending on use |
| Condensate drain | MCD manual drain |

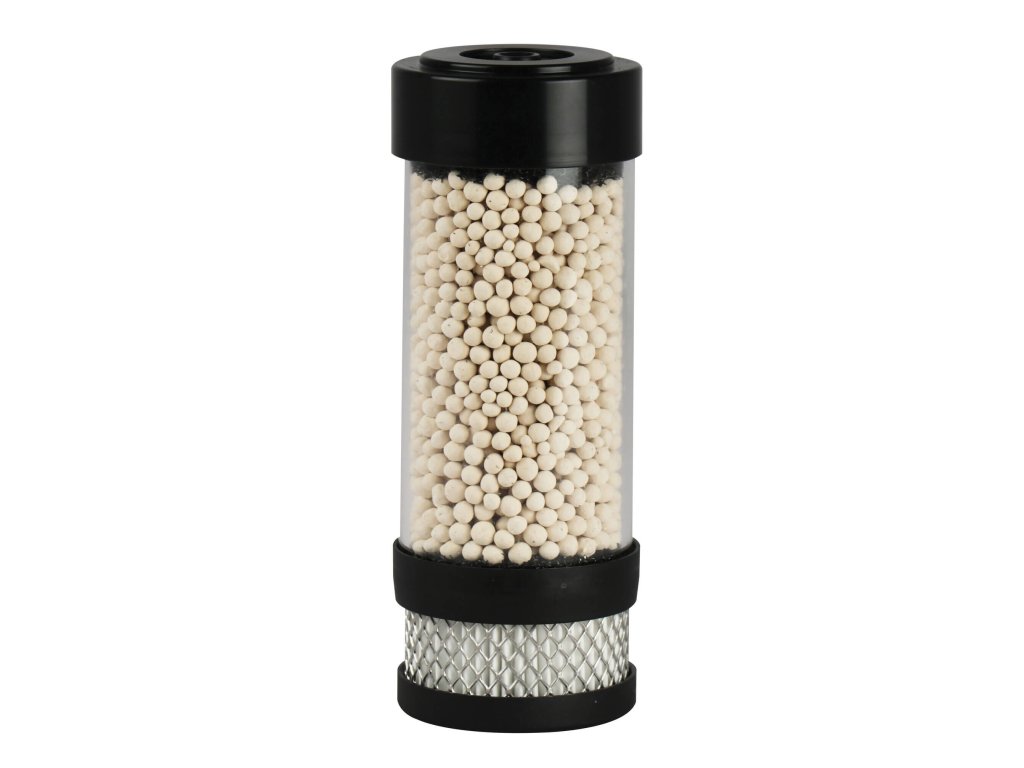

| Filter material | molecular sieve in a capsule |
| Housing | aluminium, cataphoretic coating, X2-COAT protection, AVELOCK element locking |
| Dimensions A × B × C × D | 461 × 125 × 37 × 350 mm |
| Weight | 1.9 kg |
| Spare element | AAFMS2-510V |
Dimensions
Dimensions A × B × C × D: 461 × 125 × 37 × 350 mm, weight 1.9 kg.
Flow by pressure
The flow applies to a pressure of 7 bar, an ambient temperature of +20 °C and an air inlet temperature of +35 °C. At a different pressure, it changes according to the correction factor:
| Pressure (bar) | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Flow (l/min) | 3,230 | 4,250 | 5,355 | 6,375 | 7,480 | 8,500 | 9,605 | 10,625 | 11,730 | 12,750 | 13,855 | 14,875 | 15,980 | 17,000 | 18,105 |
Spare element and accessories
| For this filter: | |
|---|---|
| Spare element | AAFMS2-510V |
| Connection kits (2 and 3 filters) | AAF-2XL, AAF-3XL |
| Kits with wall brackets | AAF-W1XL, AAF-W2XL, AAF-W3XL |
| Housing without element | AAF-510T |
| Another condensate drain | drains for filters |
| Clogging indication | indicators and differential pressure gauges |
Where to place it
It goes after the adsorption dryer and the AAFS microfilter.
You will find other sizes among the filters of the same stage.
Additional parameters
| Category: | AAFMS2 molecular sieve filters against moisture breakthrough |
|---|---|
| Version: | Catalytic filter (hopcalite) |
| Pressure: | 16 bar |
| Connecting: | 1 1/2" |
| Dimensions: | (A)461 x (B)125 x (C)37 x (D)350 mm |
| Certification: | CE-PED-H, ISO 8573-1 (IUTA) |
| Filter insert: | AAFMS2-510V |
| Material: | Aluminium |
| Condensate discharge: | Manual |
| Working temperature: | +1.5 / +45°C |
| Flow: | 8,500 l/min |
| Quality class - solid impurities: | 1 |
