Catalytic filter AAFH2-198 – G 1", 3,300 l/min CO and CO₂ removal · 16 bar
Code: AAFH2-198
Related products
Product detailed description
The AAFH2-198 catalytic filter with a hopcalite filling removes CO and CO₂ from the air to the level of breathable air. It has a G 1" thread and a flow of 3,300 l/min at 7 bar, working pressure up to 16 bar.

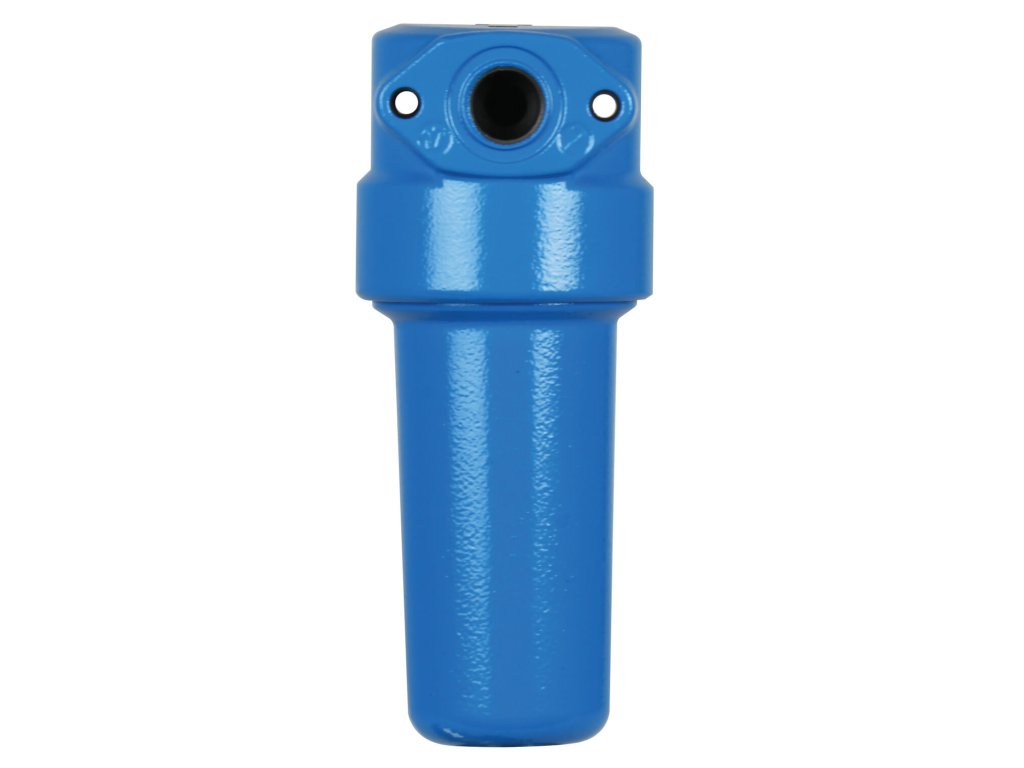

It belongs to the range of Omega Air AAF filters: the housing is the same for all stages, only the element differs.
Specifications
| Parameter | Value |
|---|---|
| Connection | G 1" |
| Flow at 7 bar | 3,300 l/min (198 Nm³/h) |
| Working pressure | 16 bar |
| Working temperature | +1.5 to +45 °C |
| ISO 8573-1 class | 1-x-x |
| Residual oil | < 0.005 mg/m³ |
| Element replacement | within 6 months at the latest, earlier depending on use |
| Condensate drain | MCD manual drain |
| Filter material | hopcalite and borosilicate microfibres |
| Housing | aluminium, cataphoretic coating, X2-COAT protection, AVELOCK element locking |
| Dimensions A × B × C × D | 261 × 125 × 37 × 160 mm |
| Weight | 1.2 kg |

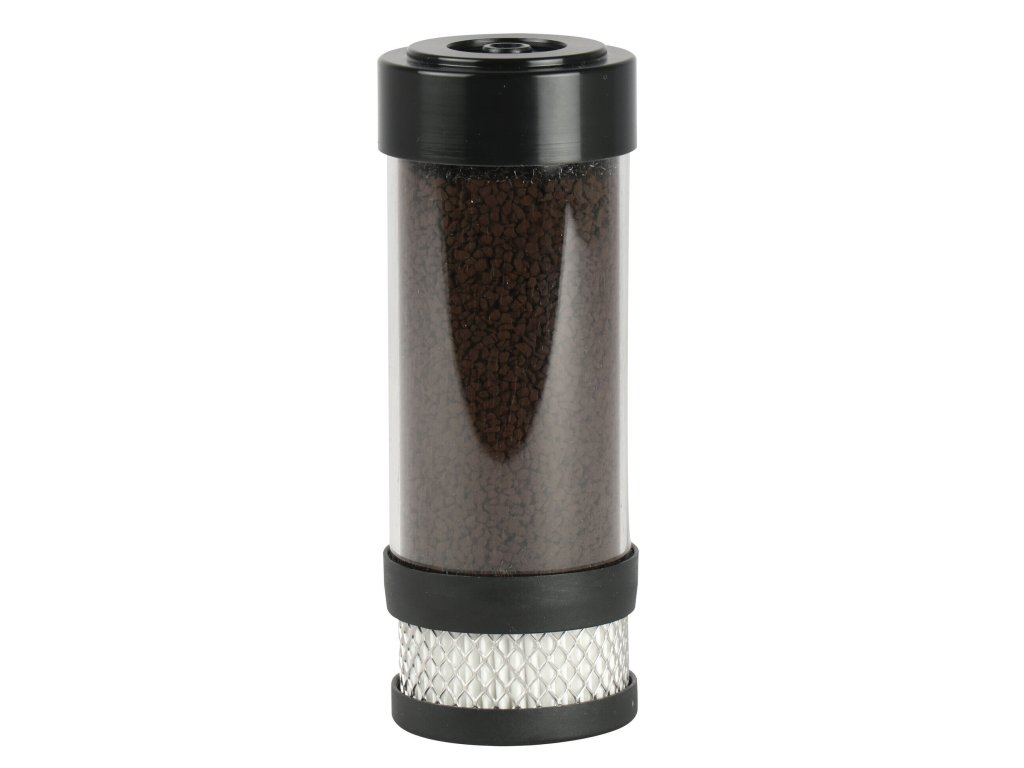

| Spare element | AAFH2-198V |
Dimensions
Dimensions A × B × C × D: 261 × 125 × 37 × 160 mm, weight 1.2 kg.
Flow by pressure
The flow applies to a pressure of 7 bar, an ambient temperature of +20 °C and an air inlet temperature of +35 °C. At a different pressure, it changes according to the correction factor:
| Pressure (bar) | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Flow (l/min) | 1,254 | 1,650 | 2,079 | 2,475 | 2,904 | 3,300 | 3,729 | 4,125 | 4,554 | 4,950 | 5,379 | 5,775 | 6,204 | 6,600 | 7,029 |
Spare element and accessories
| For this filter: | |
|---|---|
| Spare element | AAFH2-198V |
| Connection kits (2 and 3 filters) | AAF-2XL, AAF-3XL |
| Kits with wall brackets | AAF-W1XL, AAF-W2XL, AAF-W3XL |
| Housing without element | AAF-198T |
| Another condensate drain | drains for filters |
| Clogging indication | indicators and differential pressure gauges |
Where to place it
It goes after the AAFS microfilter; solid particle class 1 only applies with it.
You will find other sizes among the filters of the same stage.
Additional parameters
| Category: | AAFH2 catalytic filters for CO and CO₂ removal |
|---|---|
| Version: | Catalytic filter (hopcalite) |
| Pressure: | 16 bar |
| Connecting: | 1" |
| Dimensions: | (A)361 x (B)125 x (C)37 x (D)250 mm |
| Certification: | CE-PED-H, ISO 8573-1 (IUTA) |
| Filter insert: | AAFH2-198V |
| Material: | Aluminium |
| Condensate discharge: | Manual |
| Working temperature: | +1.5 / +45°C |
| Flow: | 3,300 l/min |
| Residual oil: | <0,005 mg/m³ |
| Quality class - solid impurities: | 1 |
