MADRY-24M spare membrane for the MADRY-24 dryer
Code: MADRY-24M
Related products
Product detailed description
The MADRY-24M spare membrane is the membrane module for the MADRY-24 dryer: a bundle of hollow fibres in an aluminium housing with end caps at both ends. Water vapour passes outwards through the fibre walls and dry air continues to the outlet.
It fits the MADRY-24 dryer from the Omega Air MADRY membrane dryer series.
Technical parameters

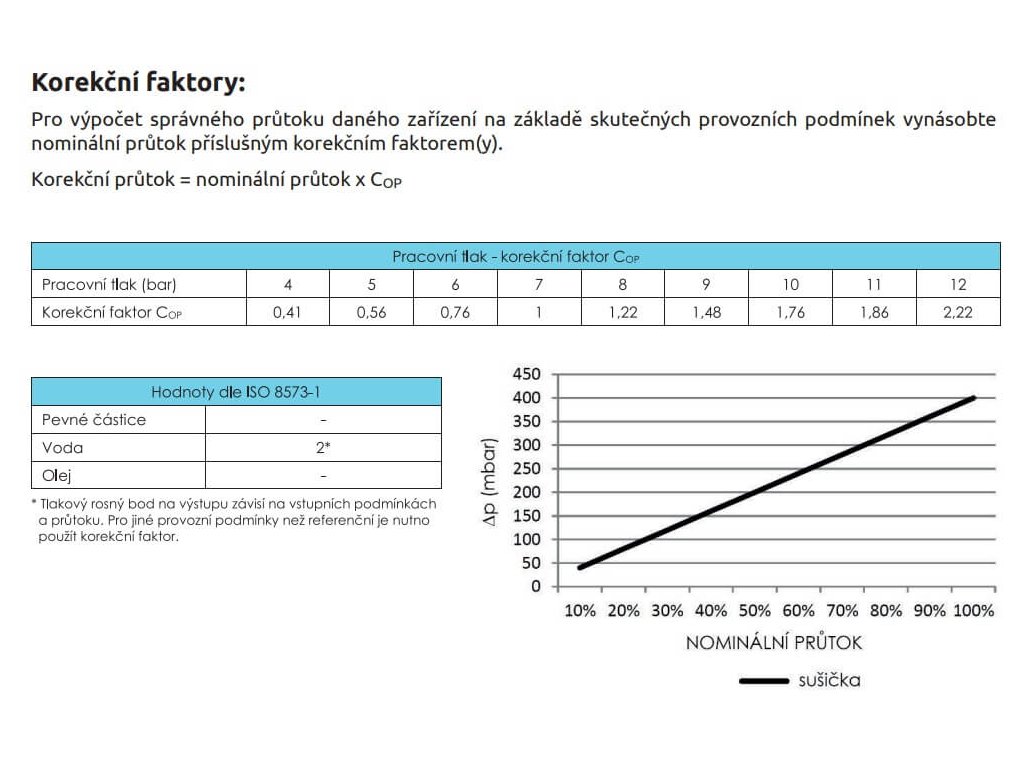

| Parameter | Value |
|---|---|
| For dryer | MADRY-24 |
| Length A | 376 mm |
| Diameter B | 61 mm |
| Connection | 1/2" |
| Working pressure | 0 to 12 bar |
| Operating temperature | +1.5 to +60 °C |
| Inlet flow of the dryer at 7 bar | 400 / 283 / 188 / 137 l/min for a dew point of +15 / +3 / −20 / −40 °C |
| Materials | PES fibres, nylon end caps, aluminium housing |
The housing of the membrane module is made of aluminium, the end caps of nylon (aluminium on the MADRY-180) and the membrane fibres of PES. For every size there is a spare membrane with the dryer code and the letter M at the end – for example MADRY-12M for the MADRY-12 dryer.
When to replace the membrane
Once a year, visually inspect the housing of the membrane module. Replace a damaged membrane; after 10 years the manufacturer requires a detailed inspection of the whole dryer. Oil, solid particles or liquid water damage the membrane permanently – so always keep the fine pre-filter and microfilter upstream of it and replace their elements at least once a year.
How the membrane works
The compressed air flows through the hollow fibres and, thanks to the pressure difference, water vapour passes outwards through their walls. A small part of the dry air flows back around the fibres and carries the moisture out through an opening in the housing – depending on the dew point this is 10 to 29 % of the flow.
A small part of the already dried air expands in a nozzle and flows back around the outside of the fibres – it carries the water vapour out through an opening in the membrane housing. This purge runs continuously, so the dryer delivers dry air quickly and without interruption. The purge opening must never be covered during operation.
Replacement
Depressurise the system before replacement. Replace the membrane with a new one of the same code, keep the flow direction and seal the threads with PTFE tape or a non-anaerobic sealant. After replacement check for leaks and open the air supply slowly.
You will find other sizes among the MADRY membrane dryers.
Additional parameters
| Category: | Compressed air dryers for compressorsMembrane dryers for compressed air from a compressor |
|---|---|
| Dryer type: | Membrane dryer |
