Dust filter CHP1R-030 – 100 bar, G 1 1/4", 6,333 l/min 1 micron · class 3 · 100 bar
Code: CHP1R-030
Related products
Product detailed description

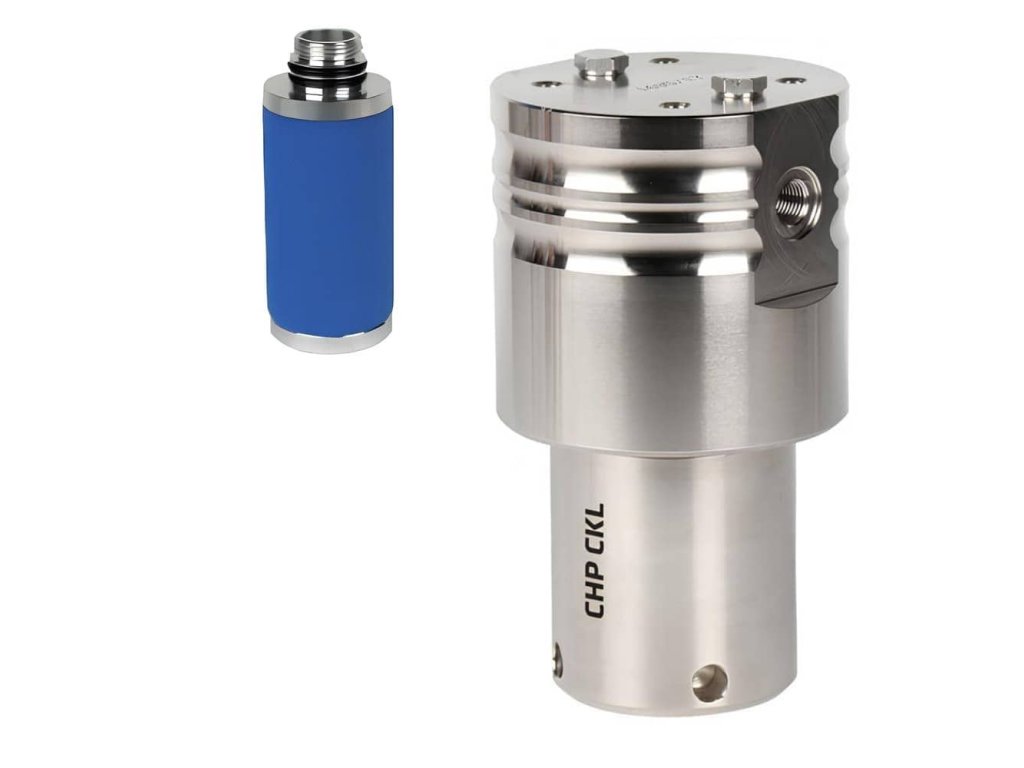

The CHP1R-030 high-pressure dust filter traps solid particles larger than 1 µm and liquid water. It has a G 1 1/4" thread, a flow of 6,333 l/min at 7 bar and a working pressure of up to 100 bar.
It belongs to the range of CHP1 high-pressure filters, among the CHP1R dust filters: the housing is the same for all stages, only the element differs.
Specifications
| Parameter | Value |
|---|---|
| Connection | G 1 1/4" (female pipe thread) |
| Flow at 7 bar | 6,333 l/min (380 Nm³/h) |
| Working pressure | 100 bar |
| Working temperature | +1.5 to +65 °C |
| Filtration rating | 1 µm |
| ISO 8573-1 class | 3-x-x |
| Element replacement | at a pressure drop of 350 mbar, at least once every 12 months |
| Element | CHPR-030V |
| Element material | borosilicate microfibres |
| Housing | carbon steel with chemical nickel plating |
| Height A | 328 mm |
| Head width B | 145 mm |
| Maximum width C | 158 mm |
| From the top edge D | 46 mm |
| Weight | 28.6 kg |
| Condensate drain | ordered separately |
| Condensate outlet | G 1/4" opening in the bottom |
Housing and dimensions
The housing is made of ANSI A-105 carbon steel with chemical nickel plating, the fittings and bolts are made of stainless steel 1.4404 and the seals of FKM with a PTFE back-up ring. The air is connected through female pipe threads in the filter head; the condensate leaves through a G 1/4" opening in the bottom.
According to the manufacturer: height A 328 mm, head width B 145 mm, maximum width C 158 mm and from the top edge D 46 mm. Weight 28.6 kg.
Flow by pressure
The flow applies to a pressure of 7 bar and a temperature of +20 °C. At a higher pressure, it is multiplied by the correction factor; from 100 bar it is 12:
| Pressure (bar) | 7 | 25 | 40 | 64 | 100 |
|---|---|---|---|---|---|
| Flow (l/min) | 6,333 | 18,999 | 31,665 | 50,664 | 75,996 |
Element and accessories
| For this filter: | |
|---|---|
| Spare element | CHPR-030V |
| Condensate drain (ordered separately) | TD420M-230VAC, TD420M-24VDC |
| Wall bracket | CHP-WL |
| Water separator before the filter | CHP cyclone separators |
Where to place it
It goes after the basic filter, before the CHP1M fine pre-filter or CHP1S microfilter — or as a dust filter after an adsorption dryer.
You will find other sizes among the filters of the same stage.
Additional parameters
| Category: | CHP1R high-pressure compressed air dust filters up to 100 bar |
|---|---|
| Version: | Dust filter |
| Pressure: | 100 bar |
| Connecting: | 1 1/4" |
| Dimensions: | 328 × 145 × 158 mm |
| Filtration: | 1 µm |
| Filter insert: | CHPR-030V |
| Material: | Carbon steel |
| Condensate discharge: | Without drain |
| Working temperature: | +1.5 / +65°C |
| Flow: | 6,333 l/min |
| Quality class - solid impurities: | 3 |
