Kit for galvanized pressure vessel KVG720-11 For vessel VVG2-720-11 · safety valve 1/2", 484 Nm³/h · ball valves 1"
Code: KVG720-11
Related products
Product detailed description
A kit for the galvanised vertical 720 l vessel. For this size, the kits for the painted and the galvanised vessel have exactly the same parts.

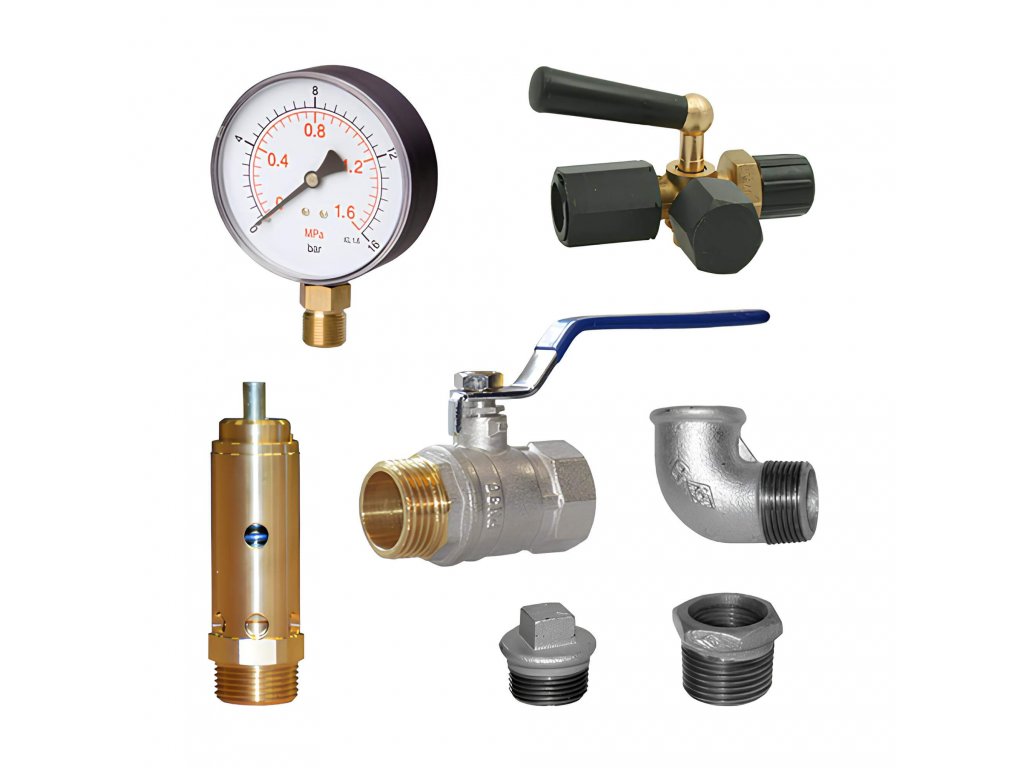

Kit contents
| KVG720-11 — kit contents | |
|---|---|
| For vessel | 720 l vertical galvanised vessel, 11 bar (VVG2-720-11) |
| Safety valve | G 1/2", opens at 10.5 bar, flow capacity 484 Nm³/h |
| Ball valves | 2×, G 1", female/male thread, DN 25, PN 25 |
| Condensate drain valve | G 1/2", DN 15 |
| Pressure gauge | Ø 100 mm, 0–16 bar, bottom connection M20 × 1.5 |
| Test cock | yes, between the pressure gauge and the vessel |
| Mounting hardware | reducers, elbows, nipples, plugs for the unused connections and sealing rings |
| For compressors | cut-out pressure up to 10 bar |
| Not included | vessel, connecting hoses, automatic condensate drain, thread sealant |
Typical uses
It is intended for the galvanised 720 l vessel in damp operations, where condensate collects quickly. The test cock makes inspections easier, as the pressure gauge does not have to be removed.
The vessel without fittings is the galvanised variant listed under VVP2-720-11, and the fully equipped galvanised variant is listed under VVP2-720-11A. For the painted vessel, the kit is KVP720-11.
Ventilek’s tip
Choose a pressure gauge with headroom. A scale up to 16 bar on an 11-bar vessel means that in normal operation the needle does not sit at the end of the scale, and the reading is easy to see.
Additional parameters
| Category: | Pressure vessels and air receivers for compressed air |
|---|---|
| Medium: | Air |
| Surface treatment: | Galvanized |
| Container volume: | 720 l |
