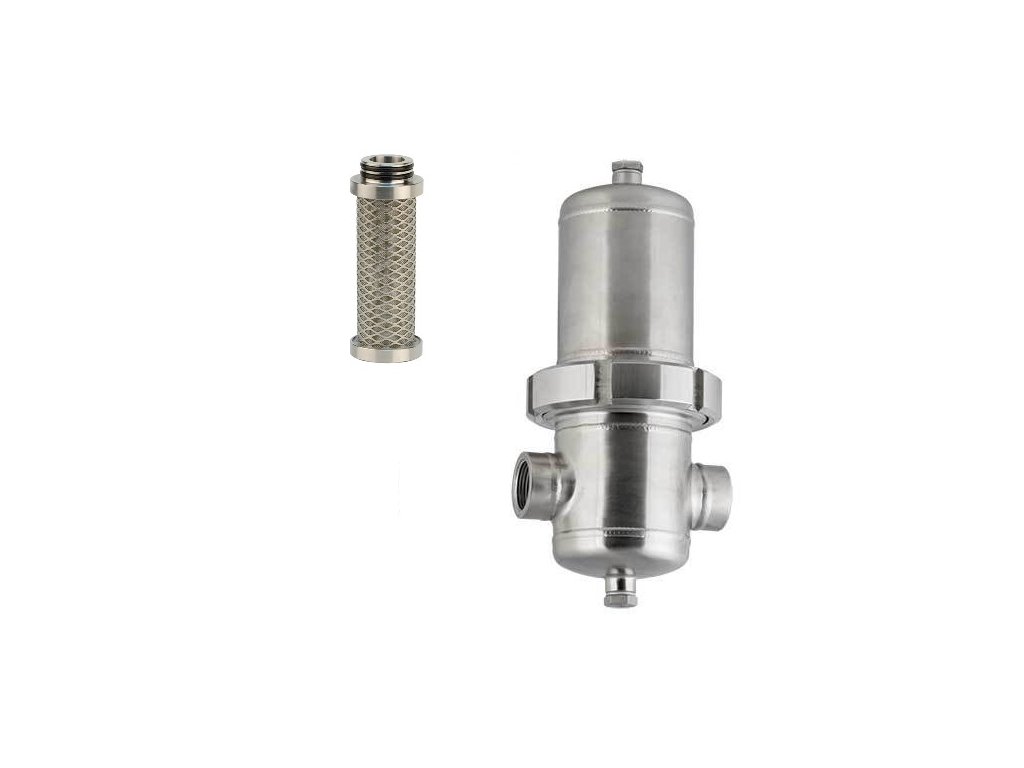

    Mesh filter PFN5 G3" cartridge PFN5-240

    Code: PFN5-240
    Not rated Rating details
    Mesh filter PFN5 G3" cartridge PFN5-240
    €6 662,75 / pcs €5 506,40 excl. VAT Measure price:
    up to 14 days
    Delivery to:
    17.11.2026
    Delivery options
    PFN5 strainer filter with G3" connection thread designed for use in highly corrosive environments. Filtration capability down to 5 µm. Maximum working pressure up to 12 bar, maximum flow rate up to 60,000 l/min. Made of 1.4301 stainless steel. Automatic condensate drain must be ordered separately.

    Detailed information

    Free shipping
    Free shipping
    For purchases over 5,000 CZK
    We guarantee
    We guarantee
    Extended warranty and service
    Discount voucher
    Discount voucher
    For every purchase
    Return of goods within 30 days
    Return of goods within 30 days
    Completely at our expense

    Related products

    Filter cartridge PFIW1-030V
    Original parts
    €333,90 –3 %
    Filter cartridge PFIW1-030V
    up to 14 days
    €267,68 excl. VAT
    €323,89

    Replacement filter cartridge PFIW1 for filters (PF, HPF) with filtration capacity up to 1 µm, working pressure up to 50 bar and flow rate up to 5 250 l/min. Operating...

    Code: PFIW1-030V
    Filter insert PFI1 005V
    Original parts
    €176,88 –3 %
    Filter insert PFI1 005V
    up to 14 days
    €141,80 excl. VAT
    €171,58

    Replacement PFI1 filter element for a filter with a filtration capability down to 1 µm and a working pressure of 16 bar. Working temperature up to 150°C. Made of stainless steel...

    Code: PFI1-005V
    Filter insert PFM 240V
    Original parts
    €1 107,32 –3 %
    Filter insert PFM 240V
    up to 14 days
    €887,69 excl. VAT
    €1 074,10

    Replacement filter element PFM for a filter with filtration capability down to 0.1 µm and working pressure of 12 bar. Working temperature up to 150°C. Made of borosilicate...

    Code: PFM-240V
    Filter insert PFI20 030V
    Original parts
    €333,90 –3 %
    Filter insert PFI20 030V
    up to 14 days
    €267,68 excl. VAT
    €323,89

    Replacement filter cartridge PFI20 for filter with filtration capacity up to 20 µm and working pressure 16 bar. Operating temperature up to 150°C.

    Code: PFI20-030V
    Filter insert PFI20 007V
    Original parts
    €207,56 –3 %
    Filter insert PFI20 007V
    up to 14 days
    €166,39 excl. VAT
    €201,33

    Replacement filter cartridge PFI20 for filter with filtration capacity up to 20 µm and working pressure 16 bar. Operating temperature up to 150°C.

    Code: PFI20-007V
    Filter insert PFI20 010V
    Original parts
    €225,60 –3 %
    Filter insert PFI20 010V
    up to 14 days
    €180,85 excl. VAT
    €218,83

    Replacement filter cartridge PFI20 for filter with filtration capacity up to 20 µm and working pressure 16 bar. Operating temperature up to 150°C.

    Code: PFI20-010V
    Filter insert PFI20 005V
    Original parts
    €176,88 –3 %
    Filter insert PFI20 005V
    up to 14 days
    €141,80 excl. VAT
    €171,58

    Replacement filter cartridge PFI20 for filter with filtration capacity up to 20 µm and working pressure 16 bar. Operating temperature up to 150°C.

    Code: PFI20-005V
    Filter insert PFA 010V
    Original parts
    €192,68 –3 %
    Filter insert PFA 010V
    up to 14 days
    €154,46 excl. VAT
    €186,90

    Replacement PFA filter cartridge for filter with filtration capacity up to 0,1 µm and working pressure 16 bar. Operating temperature up to 150°C. Contains filtering activated...

    Code: PFA-010V
    Filter insert PFA 200V
    Original parts
    €913,96 –3 %
    Filter insert PFA 200V
    up to 14 days
    €732,68 excl. VAT
    €886,54

    Replacement PFA filter cartridge for filter with filtration capacity up to 0,1 µm and working pressure 16 bar. Operating temperature up to 150°C. Contains filtering activated...

    Code: PFA-200V
    Filter cartridge PFIW1-175V
    Original parts
    €893,44 –3 %
    Filter cartridge PFIW1-175V
    up to 14 days
    €716,23 excl. VAT
    €866,64

    Replacement filter cartridge PFIW1 for filters (PF, HPF) with filtration capacity up to 1 µm, working pressure up to 50 bar and flow rate up to 28,000 l/min. Operating...

    Code: PFIW1-175V
    Filter cartridge PFIW1-150V
    Original parts
    €721,99 –3 %
    Filter cartridge PFIW1-150V
    up to 14 days
    €578,79 excl. VAT
    €700,33

    Replacement filter cartridge PFIW1 for filters (PF, HPF) with filtration capacity up to 1 µm, working pressure up to 50 bar and flow rate up to 21,000 l/min. Operating...

    Code: PFIW1-150V
    Filter cartridge PFM 007V
    Original parts
    €175,74 –3 %
    Filter cartridge PFM 007V
    up to 14 days
    €140,88 excl. VAT
    €170,47

    Replacement PFM filter element for a filter with a filtration capability down to 0.1 µm and a working pressure of 16 bar. Working temperature up to 150°C. Made of borosilicate...

    Code: PFM-007V
    Filter insert PFI20 240V
    Original parts
    €2 596,63 –3 %
    Filter insert PFI20 240V
    up to 14 days
    €2 081,60 excl. VAT
    €2 518,73

    Replacement filter cartridge PFI20 for filter with filtration capacity up to 20 µm and working pressure 12 bar. Operating temperature up to 150°C.

    Code: PFI20-240V
    Filter insert PFN25 005V
    Original parts
    €176,88 –3 %
    Filter insert PFN25 005V
    up to 14 days
    €141,80 excl. VAT
    €171,58

    Replacement PFN25 filter element for a filter with a filtration capability down to 25 µm and a working pressure of 16 bar. Working temperature up to 150°C. Made of stainless...

    Code: PFN25-005V
    Filter insert PFI20 018V
    Original parts
    €279,75 –3 %
    Filter insert PFI20 018V
    up to 14 days
    €224,26 excl. VAT
    €271,36

    Replacement filter cartridge PFI20 for filter with filtration capacity up to 20 µm and working pressure 16 bar. Operating temperature up to 150°C.

    Code: PFI20-018V
    Filter cartridge PFIW1-047V
    Original parts
    €397,08 –3 %
    Filter cartridge PFIW1-047V
    up to 14 days
    €318,32 excl. VAT
    €385,17

    Replacement filter cartridge PFIW1 for filters (PF, HPF) with filtration capacity up to 1 µm, working pressure up to 50 bar and flow rate up to 7,000 l/min. Operating...

    Code: PFIW1-047V
    Show all related products Previous product Next product

    Product detailed description

    Filter 14 bar, N5 - screen barrier 5 µm - PFN5-240

    • A collection of filters designed to eliminate impurities from compressed air, ideal for applications with a high likelihood of corrosion risks.
    • Construction in stainless steel 1.4301, connection via internal pipe threads or flanges.
    • Connection for pressure measurement and release from the top/bottom of the filter via internal pipe thread.
    • Operating temperature up to +150 °C, PF with a maximum working pressure of 14 bar.
    • Delivery includes filter body and filter cartridge, without condensate drainage system - must be ordered separately.
    • Reference flow conditions: temperature +20 °C, working pressure 7 bar; for different conditions a correction factor must be applied for calculation - please contact us.

    Additional parameters

    Category: Stainless process filters PFN5
    Version: Basic filter
    Pressure: 12 bar
    Connecting: 3"
    Dimensions: 1 029 × 252 × 168 mm
    Filtration: 5 µm
    Filter insert: PFN5-240
    Condensate discharge: Without drain
    Number of inserts: 1
    Working temperature: 0 / 150 °C
    Flow: 60,000 l/min
