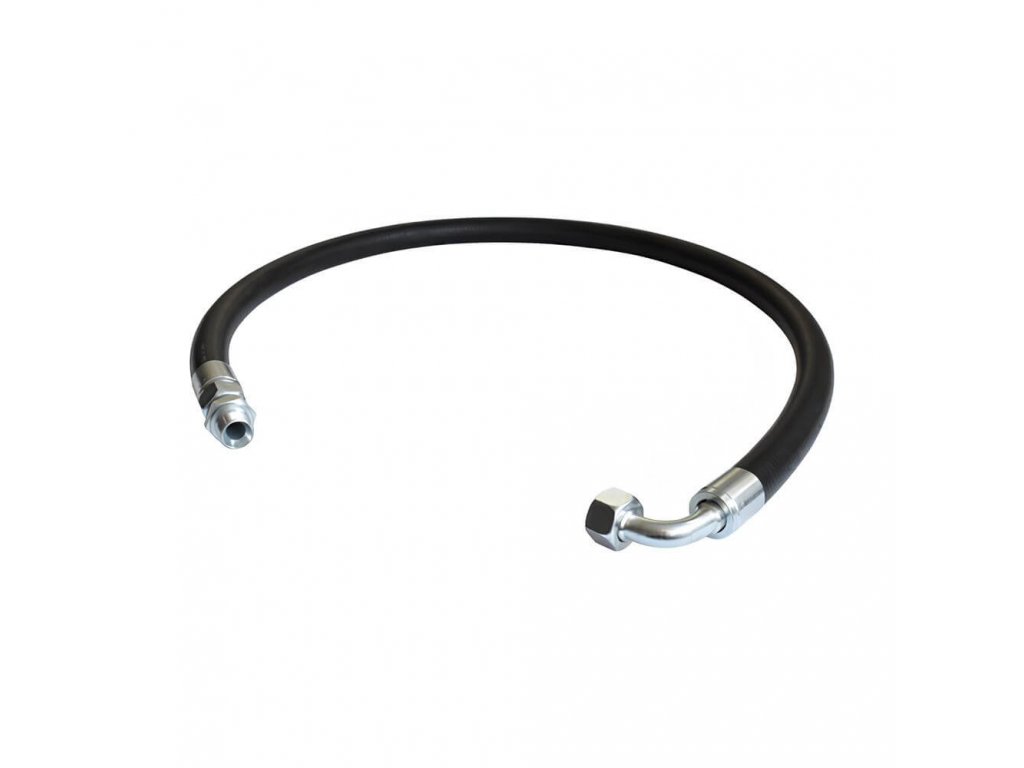

    Crimped connecting hose with elbow 1/2" - 2 m Working pressure 20 bar · −40 to +100 °C · 2 adaptors supplied

    Code: FPL12-2-0
    Not rated Rating details
    €32,42 –2 %
    Pryžová spojovací hadice s jedním přímým koncem a druhým zalomeným o 90°
    €32,42 –2 % €31,45 / pcs €25,99 excl. VAT Measure price:
    up to 14 days
    Delivery to:
    17.11.2026
    Delivery options

    A two-metre 1/2" rubber hose with a 90° elbow at one end for smaller compressors and dryers. Working pressure 20 bar, supplied with two male-thread adaptors.

    Detailed information

    Free shipping
    Free shipping
    For purchases over 5,000 CZK
    We guarantee
    We guarantee
    Extended warranty and service
    Discount voucher
    Discount voucher
    For every purchase
    Return of goods within 30 days
    Return of goods within 30 days
    Completely at our expense

    Related products

    vlp 50 tlakova nadoba vzdusnik lakovana lezata
    FREEFREE €147,85 –3 %
    Horizontal pressure vessel 5 l without feet - 11 bar Ø 150 × 370 mm · 5.5 kg · connections 1/2" and 1/4"
    Stock (8 pcs)
    €118,53 excl. VAT
    €143,42

    The smallest air receiver for built-in use, a smooth cylinder without feet. You mount it with clamps in a frame, a cabinet or a small pneumatic device.

    Code: VLP5-11
    Vakuová nádoba stojatá 500 l, podtlak do −1 bar
    FREEFREE €1 342,99 –3 %
    Vertical vacuum vessel 500 l, vacuum down to −1 bar Ø 600 × 2050 mm · 145 kg · connections 2" and 3/8"
    up to 20 days
    €1 076,61 excl. VAT
    €1 302,70

    A vertical vacuum vessel for vacuum systems with a higher demand or with several vacuum pumps. Vacuum down to −1 bar, blue RAL 5015 paint.

    Code: VVP500-V
    Tlaková nádoba stojatá pro kyslík 2 000 l - 12 bar
    New
    FREEFREE €6 326,01 –3 %
    Vertical pressure vessel for oxygen 2000 l - 12 bar Ø 1100 × 2490 mm · 388 kg · connections 2" and 1/2"
    up to 20 days
    €5 071,26 excl. VAT
    €6 136,23

    A vertical pressure vessel for oxygen, 2000 l at 12 bar, intended for larger oxygen distribution systems. White RAL 9010 paint on the outside, ALM epoxy coating on the inside.

    Code: VVA2000-12-OX
    Vystrojená stojatá tlaková nádoba lakovaná modrou RAL 5015 s kohouty a manometrem (ilustrační obrázek, sestava 1 000 l se stejnými armaturami)
    Tip
    FREEFREE from €4 157,60 –3 %
    Vertical pressure vessel with fittings 1500 l - 12 bar Ø 1000 × 2328 mm · 326 kg · ball valves 1 1/2"
    up to 20 days
    from €3 332,96 excl. VAT
    from €4 032,88

    A TÜV-certified 1500 l vertical air receiver with ball valves, a pressure gauge with a test cock and a high-flow safety valve set to 10.5 bar already mounted. For compressor...

    Code: VVP2-1500-12A
    Tlaková nádoba stojatá pro kyslík 500 l - 11 bar
    New
    FREEFREE €2 113,56 –3 %
    Vertical pressure vessel for oxygen 500 l - 11 bar Ø 600 × 2050 mm · 116 kg · connections 2" and 3/8"
    up to 20 days
    €1 694,35 excl. VAT
    €2 050,16

    A vertical pressure vessel for oxygen and group 1 fluids except hydrogen. White RAL 9010 paint outside, ALM epoxy coating inside, manufactured to the Pressure Equipment...

    Code: VVA500-11-OX
    Vystrojená stojatá tlaková nádoba lakovaná modrou RAL 5015 s kohouty a manometrem
    Tip
    FREEFREE from €1 318,13 –3 %
    Vertical pressure vessel with fittings 270 l - 11 bar Ø 500 × 1724 mm · 68 kg · ball valves 3/4"
    Stock (1 pcs)
    from €1 056,69 excl. VAT
    from €1 278,59

    A TÜV-certified 270 l vertical air receiver with ball valves, a pressure gauge and a safety valve set to 10.5 bar already mounted. An air reserve for a piston compressor or a...

    Code: VVP2-270-11A
    Vystrojená stojatá tlaková nádoba lakovaná modrou RAL 5015 s kohouty a manometrem (ilustrační obrázek, sestava 270 l se stejnými armaturami)
    Tip
    FREEFREE from €987,22 –3 %
    Vertical pressure vessel with fittings 100 l - 11 bar Ø 370 × 1289 mm · 32 kg · ball valves 3/4"
    up to 14 days
    from €791,41 excl. VAT
    from €957,61

    A TÜV-certified 100 l vertical air receiver with ball valves, a pressure gauge and a safety valve set to 10.5 bar already mounted. It works well as an additional reservoir for a...

    Code: VVP2-100-11A
    Nerezová tlaková nádoba ležatá 10 l - 12 bar
    New
    FREEFREE from €954,04 –3 %
    Horizontal stainless steel pressure vessel 10 l - 12 bar Ø 169 × 506 mm · 8 kg · connections 1/2"
    up to 20 days
    from €764,81 excl. VAT
    from €925,42

    A horizontal stainless steel pressure vessel, 10 l at 12 bar, in AISI304 or AISI316L. Pickled and passivated, with a connection on top of the shell.

    Code: VHS10-12
    Tlaková nádoba stojatá pro nízké teploty a tekutiny 8 000 l - 8 bar
    REQUEST
    FREEFREE from €5 669,27 –100 %
    Vertical low-temperature pressure vessel for fluids 8000 l - 8 bar Ø 1650 × 4318 mm · 1400 kg · connections 3", 2", 3/4" and 3/8"
    up to 30 days
    €0,04 excl. VAT
    €0,05

    A large 8-bar vertical air receiver for lower-pressure networks and large gas reserves, outdoors or in unheated halls at temperatures down to −20 °C. It comes in painted and...

    Code: VVP8000-8
    Tlaková nádoba stojatá 2 000 l - 42 bar
    New REQUEST
    FREEFREE
    Vertical pressure vessel 2000 l - 42 bar Ø 1100 × 2490 mm · 1460 kg · connections 2" and 1/2"
    up to 20 days
    €0,04 excl. VAT
    €0,05

    A vertical high-pressure vessel, 2000 l at 42 bar, for compressed air, nitrogen and oxygen, painted in RAL 5015 or galvanised. Wider and lower than the 32-bar vessel of the same...

    Code: VVP2000-42
    Nerezová tlaková nádoba stojatá 200 l - 11 bar
    New
    FREEFREE from €5 034,38 –3 %
    Vertical stainless steel pressure vessel 200 l - 11 bar Ø 446 × 1572 mm · 55 kg · connections 1", 1/2" and 3/8"
    up to 20 days
    from €4 035,83 excl. VAT
    from €4 883,35

    A vertical stainless steel pressure vessel, 200 l at 11 bar, in AISI304 or AISI316L steel. As slim as the 150 l vessel, just taller. Pickled and passivated inside and out.

    Code: VVS200-11
    Nerezová tlaková nádoba stojatá 500 l - 11 bar
    New
    FREEFREE from €0,05 up to –3 %
    Vertical stainless steel pressure vessel 500 l - 11 bar Ø 600 × 2061 mm · 125 kg · connections 1", 1/2" and 3/8"
    up to 20 days
    from €0,04 excl. VAT
    from €0,05

    A vertical stainless steel pressure vessel, 500 l at 11 bar, in AISI304 or AISI316L steel. Pickled and passivated, with no coating, manufactured to the Pressure Equipment...

    Code: VVX500-11
    Tlaková nádoba ležatá 2 000 l - 12 bar
    FREEFREE from €3 924,40 –3 %
    Horizontal pressure vessel 2000 l - 12 bar Ø 1100 × 2252 mm · 394 kg · connections 2" and 1/2"
    up to 20 days
    from €3 146,01 excl. VAT
    from €3 806,67

    A horizontal air receiver with twice the volume of the 1000-litre vessel and almost the same length. It comes painted, galvanised or with a food-grade internal coating.

    Code: VHP2000-12
    Tlaková nádoba stojatá 100 l - 32 bar
    New
    FREEFREE from €3 348,31 –3 %
    Vertical pressure vessel 100 l - 32 bar Ø 370 × 1213 mm · 89 kg · connections 2", 3/4" and 3/8"
    up to 20 days
    from €2 684,18 excl. VAT
    from €3 247,86

    A vertical high-pressure vessel, 100 l at 32 bar, for compressed air, nitrogen and oxygen, painted in RAL 5015 or galvanised. The smallest size in the series, for a small 30-bar...

    Code: VVP100-32
    Nerezová tlaková nádoba ležatá 15 l - 12 bar
    New
    FREEFREE from €1 043,94 –3 %
    Horizontal stainless steel pressure vessel 15 l - 12 bar Ø 196 × 624 mm · 11 kg · connections 1/2"
    up to 20 days
    from €836,88 excl. VAT
    from €1 012,62

    A horizontal stainless steel pressure vessel, 15 l at 12 bar, in AISI304 or AISI316L steel. Pickled and passivated, with no coating, manufactured to the Pressure Equipment...

    Code: VHS15-12
    Tlaková nádoba stojatá pro kyslík 1 500 l - 12 bar
    New
    FREEFREE €5 438,02 –3 %
    Vertical pressure vessel for oxygen 1500 l - 12 bar Ø 1000 × 2305 mm · 320 kg · connections 2" and 1/2"
    up to 20 days
    €4 359,40 excl. VAT
    €5 274,88

    A vertical pressure vessel for oxygen, 1500 l at 12 bar, lower and wider than the 1000-litre vessel. White RAL 9010 paint, ALM coating inside, manufactured to the Pressure...

    Code: VVA1500-12-OX
    Show all related products Previous product Next product

    Product detailed description

    90° elbowRubber connecting hose with one straight end and the other bent at 90°

    A 1/2" hose with a 90° elbow, 2 metres long, for bridging a greater distance where space is tight at one of the connections.

    1/2"thread
    DN 12nominal bore
    2 mlength
    20 barworking pressure

    Specifications

    Close-up of the crimped end fitting of a hose with a 90° elbow and swivel nut
    90° elbow with swivel nut
    FPL12-2-0 — specifications
    ThreadG 1/2"
    Nominal boreDN 12
    Length2000 mm
    End fittingsone straight, the other with a 90° elbow, swivel nuts with female thread
    Working pressure20 bar
    Working temperature−40 to +100 °C
    Hoserubber, crimped end fittings
    Resistant tocompressor oil, condensate
    Scope of supplyhose and 2 adaptors with G 1/2" male thread

    Typical uses

    A 1/2" hose with an elbow suits smaller compressors and dryers where the connection faces a wall or the vessel and a hose with a straight end fitting would have to be bent immediately.

    The next length down is FPL12-1-5, and the next length up is FPL12-2-5. The version with straight ends is FP12-2-0.

    Ventilek’s tip

    Position the elbow before tightening. The swivel nut lets you turn the elbow in the required direction. Only then tighten the nut, and the hose will not twist.

    Additional parameters

    Category: Connecting hoses crimped including fittings
    Pressure: 20 bar
    Barva: Black
    End design: Straight and corner end
    Lightness: DN 12
    Temperature: -40/+100 °C
    Inner diameter: 12 mm
    Threads: 1/2"
