    Home / Hoses / Connecting hoses / Crimped connecting hose with elbow 1 1/4" - 2.5 m Working pressure 20 bar · −40 to +100 °C · 2 adaptors supplied

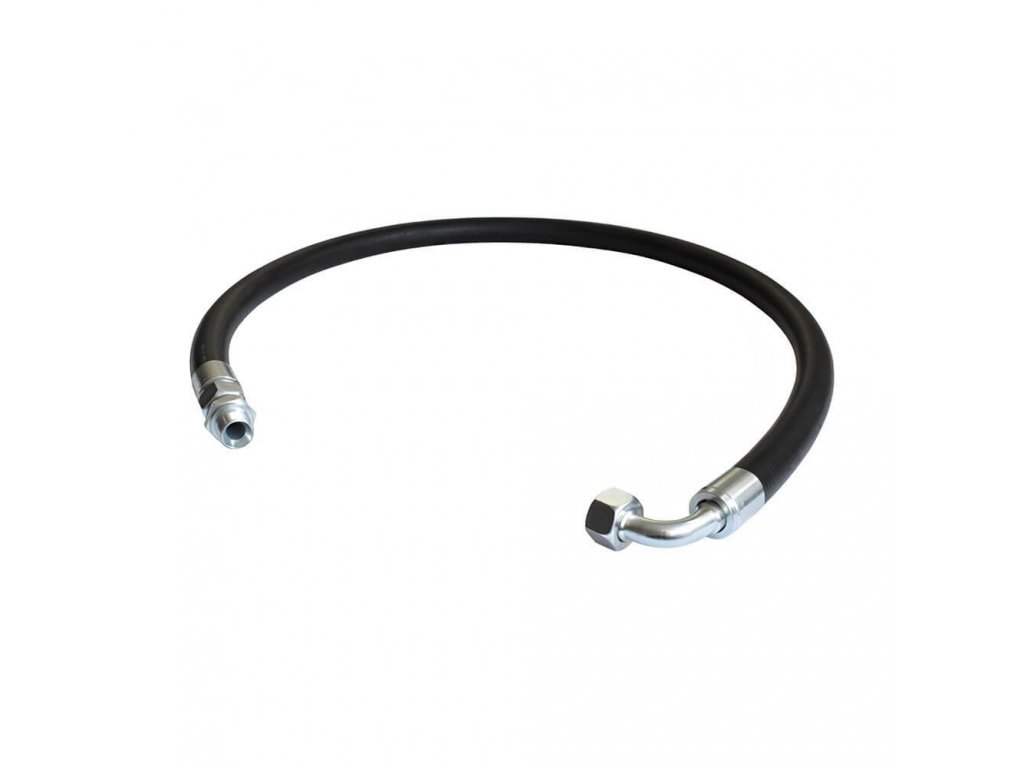

    Crimped connecting hose with elbow 1 1/4" - 2.5 m Working pressure 20 bar · −40 to +100 °C · 2 adaptors supplied

    Code: FPL54-2-5
    Not rated Rating details
    €166,23 –3 %
    Pryžová spojovací hadice s jedním přímým koncem a druhým zalomeným o 90°
    €166,23 –3 % €161,24 / pcs €133,26 excl. VAT Measure price:
    up to 14 days
    Delivery to:
    20.11.2026
    Delivery options

    A long 1 1/4" rubber hose with a 90° elbow at one end for connecting a more powerful compressor to an air receiver over a greater distance. Working pressure 20 bar; swivel nuts and two adaptors supplied.

    Detailed information

    Free shipping
    Free shipping
    For purchases over 5,000 CZK
    We guarantee
    We guarantee
    Extended warranty and service
    Discount voucher
    Discount voucher
    For every purchase
    Return of goods within 30 days
    Return of goods within 30 days
    Completely at our expense

    Related products

    Tlaková nádoba stojatá 50 l - 11 bar
    €332,67 –3 %
    Vertical pressure vessel 50 l - 11 bar Ø 305 × 929 mm · 19 kg · connections 1/2" and 3/8"
    Stock (2 pcs)
    €266,69 excl. VAT
    €322,69

    A vertical air receiver with twice the air reserve of the 24-litre version, while still needing little floor space. The taller legs leave room under the bottom end for a...

    Code: VVP50-11
    Tlaková nádoba stojatá pro kyslík 5 000 l - 12 bar
    New REQUEST
    FREEFREE
    Vertical pressure vessel for oxygen 5000 l - 12 bar Ø 1450 × 3390 mm · 962 kg · connections 3", 2", 3/4" and 3/8"
    up to 20 days
    €0,04 excl. VAT
    €0,05

    The largest vertical pressure vessel for oxygen, 5000 l at 12 bar. White RAL 9010 paint outside, ALM epoxy coating inside, manufactured to the Pressure Equipment Directive (PED).

    Code: VVA5000-12-OX
    Nerezová tlaková nádoba ležatá 500 l - 11 bar
    New REQUEST
    FREEFREE
    Horizontal stainless steel pressure vessel 500 l - 11 bar Ø 600 × 1864 mm · 125 kg · connections 1", 1/2" and 3/8"
    up to 20 days
    €0,04 excl. VAT
    €0,05

    A horizontal stainless steel pressure vessel, 500 l at 11 bar, in AISI304 or AISI316L. Pickled and passivated, it stands on two saddle feet.

    Code: VHS500-11
    Nerezová tlaková nádoba stojatá 500 l - 11 bar
    New
    FREEFREE from €0,05 up to –3 %
    Vertical stainless steel pressure vessel 500 l - 11 bar Ø 600 × 2061 mm · 125 kg · connections 1", 1/2" and 3/8"
    up to 20 days
    from €0,04 excl. VAT
    from €0,05

    A vertical stainless steel pressure vessel, 500 l at 11 bar, in AISI304 or AISI316L steel. Pickled and passivated, with no coating, manufactured to the Pressure Equipment...

    Code: VVX500-11
    Tlaková nádoba stojatá 720 l - 11 bar
    FREEFREE from €1 691,11 –3 %
    Vertical pressure vessel 720 l - 11 bar Ø 800 × 1745 mm · 155 kg · connections 2" and 3/8"
    up to 20 days
    from €1 355,68 excl. VAT
    from €1 640,37

    The largest vertical air receiver in this category, with wide main connections for large-diameter pipework. It is suitable as the main air reserve downstream of a larger screw...

    Code: VVP2-720-11
    Vakuová nádoba stojatá 3 000 l, podtlak do −1 bar
    FREEFREE €7 072,72 –3 %
    Vertical vacuum vessel 3000 l, vacuum down to −1 bar Ø 1200 × 2990 mm · 630 kg · connections 2" and 1/2"
    up to 20 days
    €5 669,87 excl. VAT
    €6 860,54

    The largest vertical vacuum vessel, for the central vacuum reserve of an entire production plant. Vacuum down to −1 bar, blue RAL 5015 paint.

    Code: VVP3000-V
    Tlaková nádoba stojatá pro nízké teploty a tekutiny 1 500 l - 16 bar
    FREEFREE from €4 216,11 –3 %
    Vertical low-temperature pressure vessel for fluids 1500 l - 16 bar Ø 1000 × 2305 mm · 423 kg · connections 2" and 1/2"
    up to 20 days
    from €3 379,86 excl. VAT
    from €4 089,63

    A 16-bar vertical air receiver with a larger diameter and a lower height, for outdoor and unheated sites with frost down to −20 °C. It can also hold nitrogen, argon, helium or...

    Code: VVP1500-16-G1
    Nerezová tlaková nádoba stojatá 100 l - 11 bar
    New
    FREEFREE from €2 517,19 –3 %
    Vertical stainless steel pressure vessel 100 l - 11 bar Ø 370 × 1184 mm · 32 kg · connections 3/4", 1/2" and 3/8"
    up to 20 days
    from €2 017,92 excl. VAT
    from €2 441,68

    A vertical stainless steel pressure vessel, 100 l at 11 bar, in AISI304 or AISI316L steel. The 316L version is lower and has its side connections in positions 2 and 7.

    Code: VVS100-11
    Tlaková nádoba stojatá 270 l - 42 bar
    New
    FREEFREE from €7 136,94 –3 %
    Vertical pressure vessel 270 l - 42 bar Ø 500 × 1648 mm · 215 kg · connections 2", 1" and 3/8"
    up to 20 days
    from €5 721,35 excl. VAT
    from €6 922,83

    A vertical high-pressure vessel, 270 l at 42 bar, for compressed air, nitrogen and oxygen, painted in RAL 5015 or galvanised. Four side connections for the air inlet and outlet.

    Code: VVP270-42
    Nerezová tlaková nádoba stojatá 1 500 l - 11 bar
    New REQUEST
    FREEFREE
    Vertical stainless steel pressure vessel 1500 l - 11 bar Ø 1000 × 2305 mm · 634 kg · connections 2" and 1/2"
    up to 20 days
    €0,04 excl. VAT
    €0,05

    A vertical stainless steel pressure vessel, 1500 l at 11 bar, AISI304 or AISI316L. Wider and lower than the thousand-litre vessel, pickled and passivated inside and out.

    Code: VVS1500-11
    Tlaková nádoba stojatá pro nízké teploty a tekutiny 5 000 l - 16 bar
    REQUEST
    FREEFREE from €5 669,27 –100 %
    Vertical low-temperature pressure vessel for fluids 5000 l - 16 bar Ø 1450 × 3390 mm · 1145 kg · connections 3", 2", 3/4" and 3/8"
    up to 20 days
    €0,04 excl. VAT
    €0,05

    A large 16-bar vertical air receiver for compressor stations with a higher pressure and for gas storage, in environments with temperatures down to −20 °C. It comes painted,...

    Code: VVP5000-16
    Nerezová tlaková nádoba stojatá 1 000 l - 11 bar
    New REQUEST
    FREEFREE
    Vertical stainless steel pressure vessel 1000 l - 11 bar Ø 800 × 2346 mm · 377 kg · connections 2" and 3/8"
    up to 20 days
    €0,04 excl. VAT
    €0,05

    A vertical stainless steel pressure vessel, 1000 l at 11 bar, in AISI304 or AISI316L. Large connections for the main pipework, pickled and passivated.

    Code: VVS1000-11
    vlp 50 tlakova nadoba vzdusnik lakovana lezata
    FREEFREE €343,23 –3 %
    Horizontal pressure vessel 24 l without feet - 11 bar Ø 240 × 592 mm · 9 kg · connections 1/2" and 3/8"
    Stock (3 pcs)
    €275,15 excl. VAT
    €332,93

    An air receiver without feet, with the volume typical of small compressor tanks. It suits a custom assembly where the vessel is to lie in a frame, or serves as a built-in air...

    Code: VLP24-11
    Nerezová tlaková nádoba ležatá 50 l - 11 bar
    New
    FREEFREE from €2 032,83 –3 %
    Horizontal stainless steel pressure vessel 50 l - 11 bar Ø 305 × 784 mm · 21 kg · connections 1/2" and 3/8"
    up to 20 days
    from €1 629,63 excl. VAT
    from €1 971,85

    A horizontal stainless steel pressure vessel, 50 l at 11 bar, in AISI304 or AISI316L steel. Pickled and passivated, with two connections on top of the shell.

    Code: VHS50-11
    Nerezová tlaková nádoba ležatá 10 l - 12 bar
    New
    FREEFREE from €954,04 –3 %
    Horizontal stainless steel pressure vessel 10 l - 12 bar Ø 169 × 506 mm · 8 kg · connections 1/2"
    up to 20 days
    from €764,81 excl. VAT
    from €925,42

    A horizontal stainless steel pressure vessel, 10 l at 12 bar, in AISI304 or AISI316L. Pickled and passivated, with a connection on top of the shell.

    Code: VHS10-12
    Tlaková nádoba ležatá 500 l - 11 bar
    FREEFREE from €1 234,74 –3 %
    Horizontal pressure vessel 500 l - 11 bar Ø 600 × 1858 mm · 130 kg · connections 2", 1", 1/2" and 3/8"
    up to 20 days
    from €989,83 excl. VAT
    from €1 197,70

    A horizontal air receiver for the main air reserve downstream of a screw compressor in a room with a low ceiling. It comes in painted, galvanised and ALM-coated versions.

    Code: VHP500-11
    Show all related products Previous product Next product

    Product detailed description

    90° elbowRubber connecting hose with one straight end and the other bent at 90°

    The longest 1 1/4" hose with a 90° elbow, 2.5 metres.

    1 1/4"thread
    DN 32nominal bore
    2.5 mlength
    20 barworking pressure

    Specifications

    Close-up of the crimped end fitting of a hose with a 90° elbow and swivel nut
    90° elbow with swivel nut
    FPL54-2-5 — specifications
    ThreadG 1 1/4"
    Nominal boreDN 32
    Length2500 mm
    End fittingsone straight, the other with a 90° elbow, swivel nuts with female thread
    Working pressure20 bar
    Working temperature−40 to +100 °C
    Hoserubber, crimped end fittings
    Resistant tocompressor oil, condensate
    Scope of supplyhose and 2 adaptors with G 1 1/4" male thread

    Typical uses

    A 1 1/4" hose with a 90° elbow suits more powerful screw compressors and dryers where the hose has to turn away from the connection right at the machine housing.

    The next length down is FPL54-2-0, and the version with straight ends is FP54-2-5.

    Ventilek’s tip

    Do not combine the elbow with another bend. After the elbow, run the hose in a loose curve, not sharply back. Every further sharp bend reduces the flow.

    Additional parameters

    Category: Connecting hoses crimped including fittings
    Pressure: 20 bar
    Barva: Black
    End design: Straight and corner end
    Lightness: DN 32
    Temperature: -40/+100 °C
    Inner diameter: 32 mm
    Threads: 1 1/4"
