    Crimped connecting hose with elbow 3/4" - 1 m Working pressure 20 bar · −40 to +100 °C · 2 adaptors supplied

    Code: FPL34-1-0
    Not rated Rating details
    €48,12 –2 %
    Pryžová spojovací hadice s jedním přímým koncem a druhým zalomeným o 90°
    €48,12 –2 % €46,68 / pcs €38,58 excl. VAT Measure price:
    up to 14 days
    Delivery to:
    17.11.2026
    Delivery options

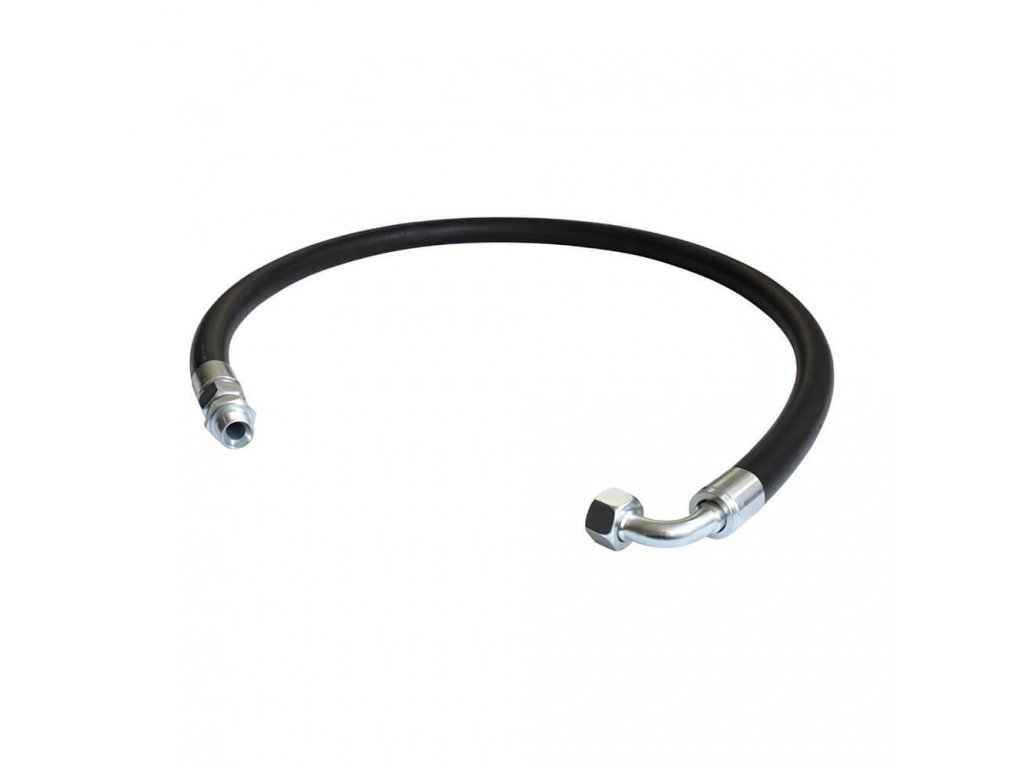

    A one-metre 3/4" rubber hose with one straight end and a 90° elbow at the other for a short connection in a tight space. Working pressure 20 bar, two adaptors supplied.

    Detailed information

    Free shipping
    Free shipping
    For purchases over 5,000 CZK
    We guarantee
    We guarantee
    Extended warranty and service
    Discount voucher
    Discount voucher
    For every purchase
    Return of goods within 30 days
    Return of goods within 30 days
    Completely at our expense

    Related products

    Tlaková nádoba stojatá 100 l - 11 bar
    FREEFREE from €348,56 –3 %
    Vertical pressure vessel 100 l - 11 bar Ø 370 × 1213 mm · 31 kg · connections 3/4", 1/2" and 3/8"
    up to 20 days
    from €279,43 excl. VAT
    from €338,11

    A vertical air receiver that fits next to the compressor or into a narrow corner. It works well as the main vessel for a piston compressor or as a second air reserve at a remote...

    Code: VVP2-100-11
    Vystrojená stojatá tlaková nádoba lakovaná modrou RAL 5015 s kohouty a manometrem
    Tip
    FREEFREE from €2 806,23 –3 %
    Vertical pressure vessel with fittings 1000 l - 12 bar Ø 800 × 2373 mm · 216 kg · ball valves 1 1/2"
    Stock (4 pcs)
    from €2 249,62 excl. VAT
    from €2 722,04

    A TÜV-certified 1000 l vertical air receiver with ball valves, a pressure gauge with a test cock and a safety valve set to 10.5 bar already mounted. The main air reserve...

    Code: VVP2-1000-12A
    Tlaková nádoba stojatá pro nízké teploty a tekutiny 8 000 l - 8 bar
    REQUEST
    FREEFREE from €5 669,27 –100 %
    Vertical low-temperature pressure vessel for fluids 8000 l - 8 bar Ø 1650 × 4318 mm · 1400 kg · connections 3", 2", 3/4" and 3/8"
    up to 30 days
    €0,04 excl. VAT
    €0,05

    A large 8-bar vertical air receiver for lower-pressure networks and large gas reserves, outdoors or in unheated halls at temperatures down to −20 °C. It comes in painted and...

    Code: VVP8000-8
    Vakuová nádoba stojatá 500 l, podtlak do −1 bar
    FREEFREE €1 342,99 –3 %
    Vertical vacuum vessel 500 l, vacuum down to −1 bar Ø 600 × 2050 mm · 145 kg · connections 2" and 3/8"
    up to 20 days
    €1 076,61 excl. VAT
    €1 302,70

    A vertical vacuum vessel for vacuum systems with a higher demand or with several vacuum pumps. Vacuum down to −1 bar, blue RAL 5015 paint.

    Code: VVP500-V
    Vakuová nádoba stojatá 1 000 l, podtlak do −1 bar
    FREEFREE €2 370,42 –3 %
    Vertical vacuum vessel 1000 l, vacuum down to −1 bar Ø 800 × 2350 mm · 245 kg · connections 2" and 3/8"
    up to 20 days
    €1 900,26 excl. VAT
    €2 299,31

    A vertical vacuum vessel for the central vacuum system of a production plant. Vacuum down to −1 bar, blue RAL 5015 paint and the same dimensions as a standard 1000-litre air...

    Code: VVP1000-V
    Tlaková nádoba ležatá 3 000 l - 12 bar
    REQUEST
    FREEFREE from €6 592,04 up to –100 %
    Horizontal pressure vessel 3000 l - 12 bar Ø 1200 × 2850 mm · 605 kg · connections 2" and 1/2"
    up to 20 days
    from €0,04 excl. VAT
    from €0,05

    The largest horizontal air receiver in the category, for the central air reserve of a compressor station. It comes painted, galvanised or with a food-grade internal coating.

    Code: VHG3000-12
    Tlaková nádoba stojatá pro kyslík 500 l - 11 bar
    New
    FREEFREE €2 113,56 –3 %
    Vertical pressure vessel for oxygen 500 l - 11 bar Ø 600 × 2050 mm · 116 kg · connections 2" and 3/8"
    up to 20 days
    €1 694,35 excl. VAT
    €2 050,16

    A vertical pressure vessel for oxygen and group 1 fluids except hydrogen. White RAL 9010 paint outside, ALM epoxy coating inside, manufactured to the Pressure Equipment...

    Code: VVA500-11-OX
    Nerezová tlaková nádoba ležatá 270 l - 11 bar
    New
    FREEFREE from €6 113,18 –3 %
    Horizontal stainless steel pressure vessel 270 l - 11 bar Ø 500 × 1558 mm · 69 kg · connections 1", 1/2" and 3/8"
    up to 20 days
    from €4 900,65 excl. VAT
    from €5 929,79

    A horizontal stainless steel pressure vessel, 270 l at 11 bar, in AISI304 or AISI316L steel. Pickled and passivated, with a larger top connection for connecting the pipework.

    Code: VHS270-11
    Tlaková nádoba stojatá 500 l - 42 bar
    New REQUEST
    FREEFREE
    Vertical pressure vessel 500 l - 42 bar Ø 600 × 2050 mm · 355 kg · connections 2" and 1/2"
    up to 20 days
    €0,04 excl. VAT
    €0,05

    A vertical high-pressure vessel, 500 l at 42 bar, for compressed air, nitrogen and oxygen, painted in RAL 5015 or galvanised. Large connections in both ends and on the sides.

    Code: VVP500-42
    Vystrojená stojatá tlaková nádoba lakovaná modrou RAL 5015 s kohouty a manometrem
    Tip
    FREEFREE from €7 293,88 –3 %
    Vertical pressure vessel with fittings 3000 l - 12 bar Ø 1200 × 3013 mm · 601 kg · ball valves 2"
    up to 14 days
    from €5 847,16 excl. VAT
    from €7 075,06

    The largest TÜV-certified vertical air receiver, with ball valves, a pressure gauge with a test cock and a safety valve set to 10.5 bar already mounted. The central air reserve...

    Code: VVP2-3000-12A
    Nerezová tlaková nádoba stojatá 100 l - 11 bar
    New
    FREEFREE from €2 517,19 –3 %
    Vertical stainless steel pressure vessel 100 l - 11 bar Ø 370 × 1184 mm · 32 kg · connections 3/4", 1/2" and 3/8"
    up to 20 days
    from €2 017,92 excl. VAT
    from €2 441,68

    A vertical stainless steel pressure vessel, 100 l at 11 bar, in AISI304 or AISI316L steel. The 316L version is lower and has its side connections in positions 2 and 7.

    Code: VVS100-11
    Tlaková nádoba ležatá 500 l - 16 bar
    FREEFREE €1 625,53 –3 %
    Horizontal pressure vessel 500 l - 16 bar Ø 600 × 1858 mm · 163 kg · connections 2", 1", 1/2" and 3/8"
    up to 20 days
    €1 303,12 excl. VAT
    €1 576,77

    A 16-bar horizontal air receiver with a large air reserve for compressors with a higher working pressure. Its dimensions match those of the 11-bar version, so it can take its...

    Code: VHP500-16
    Nerezová tlaková nádoba ležatá 150 l - 11 bar
    New
    FREEFREE from €3 955,59 –3 %
    Horizontal stainless steel pressure vessel 150 l - 11 bar Ø 446 × 1064 mm · 49 kg · connections 1/2" and 3/8"
    up to 20 days
    from €3 171,01 excl. VAT
    from €3 836,92

    A horizontal stainless steel pressure vessel, 150 l at 11 bar, in AISI304 or AISI316L steel. Pickled and passivated, with three connections on top of the shell.

    Code: VHS150-11
    Tlaková nádoba stojatá 1 000 l - 32 bar
    New REQUEST
    FREEFREE
    Vertical pressure vessel 1000 l - 32 bar Ø 800 × 2350 mm · 470 kg · connections 2" and 3/8"
    up to 20 days
    €0,04 excl. VAT
    €0,05

    A vertical high-pressure vessel, 1000 l at 32 bar, for compressed air, nitrogen and oxygen, painted in RAL 5015 or galvanised. It fits into the space of a standard 1000-litre...

    Code: VVP1000-32
    Tlaková nádoba stojatá 200 l - 42 bar
    New
    FREEFREE from €6 784,68 –3 %
    Vertical pressure vessel 200 l - 42 bar Ø 446 × 1587 mm · 150 kg · connections 2", 1", 1/2" and 3/8"
    up to 20 days
    from €5 438,96 excl. VAT
    from €6 581,14

    A vertical high-pressure vessel, 200 l at 42 bar, for compressed air, nitrogen and oxygen, painted in RAL 5015 or galvanised. A slim vessel for smaller high-pressure compressors.

    Code: VVP200-42
    Nerezová tlaková nádoba ležatá 5 l - 11 bar
    New
    FREEFREE from €693,51 –3 %
    Horizontal stainless steel pressure vessel 5 l - 11 bar Ø 150 × 314 mm · 6 kg · connections 1/2"
    up to 20 days
    from €555,96 excl. VAT
    from €672,71

    A small horizontal stainless steel pressure vessel, 5 l at 11 bar, in AISI304 or AISI316L steel. Pickled and passivated, it stands on two saddle feet.

    Code: VHS5-11
    Show all related products Previous product Next product

    Product detailed description

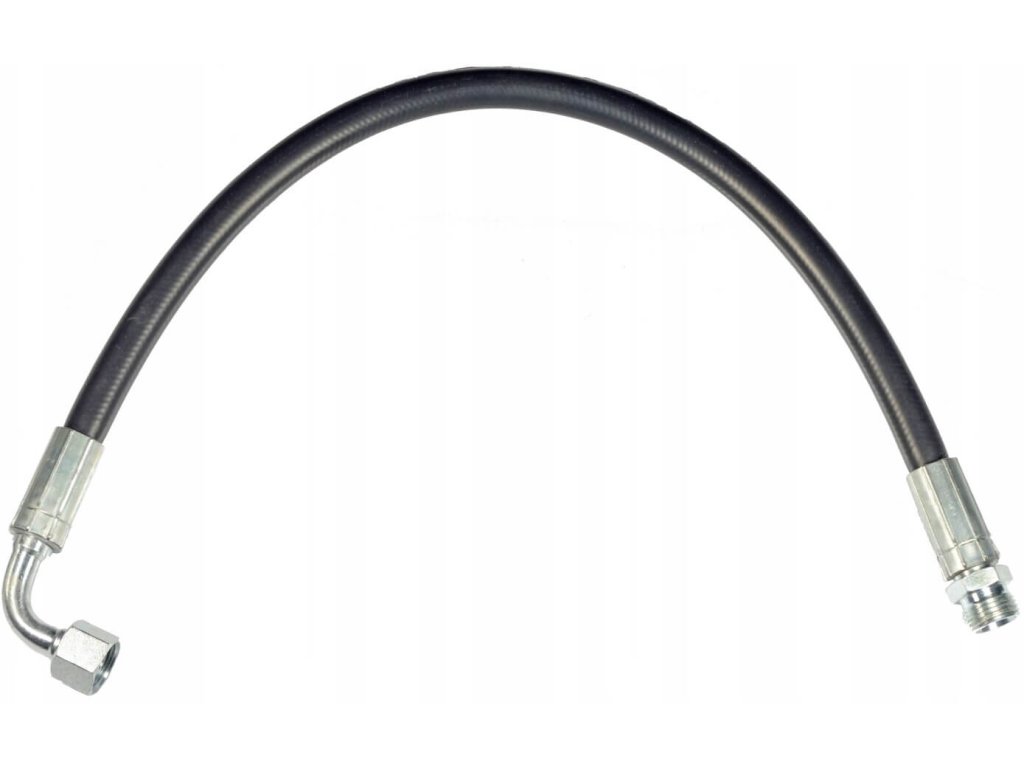

    90° elbowRubber connecting hose with one straight end and the other bent at 90°

    A short 3/4" hose with a 90° elbow, 1 metre long, for a compressor and vessel placed right next to each other.

    3/4"thread
    DN 20nominal bore
    1 mlength
    20 barworking pressure

    Specifications

    Close-up of the crimped end fitting of a hose with a 90° elbow and swivel nut
    90° elbow with swivel nut
    FPL34-1-0 — specifications
    ThreadG 3/4"
    Nominal boreDN 20
    Length1000 mm
    End fittingsone straight, the other with a 90° elbow, swivel nuts with female thread
    Working pressure20 bar
    Working temperature−40 to +100 °C
    Hoserubber, crimped end fittings
    Resistant tocompressor oil, condensate
    Scope of supplyhose and 2 adaptors with G 3/4" male thread

    Typical uses

    A 3/4" hose with a 90° elbow suits vessels from 100 to 270 l with 3/4" ball valves when the hose has to turn away from the valve along the vessel or a wall.

    The next length up is FPL34-1-5, and the version with straight ends is FP34-1-0.

    Ventilek’s tip

    Elbow to the ball valve, straight end to the compressor. Connect the bent end where space is tight, usually at the vessel. The straight end goes to the compressor outlet.

    Additional parameters

    Category: Connecting hoses crimped including fittings
    Pressure: 20 bar
    Barva: Black
    End design: Straight and corner end
    Lightness: DN 20
    Temperature: -40/+100 °C
    Inner diameter: 20 mm
    Threads: 3/4"
