    Home / Hoses / Connecting hoses / Crimped connecting hose with elbow 3/4" - 1.5 m Working pressure 20 bar · −40 to +100 °C · 2 adaptors supplied

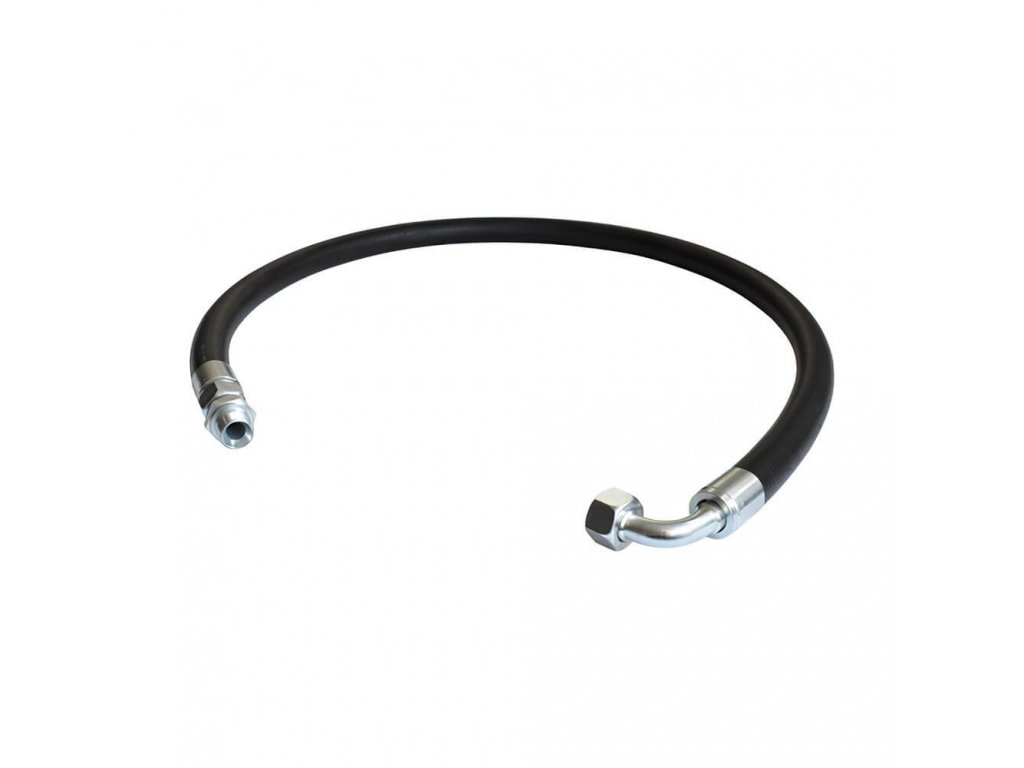

    Crimped connecting hose with elbow 3/4" - 1.5 m Working pressure 20 bar · −40 to +100 °C · 2 adaptors supplied

    Code: FPL34-1-5
    Not rated Rating details
    €55,01 –3 %
    Pryžová spojovací hadice s jedním přímým koncem a druhým zalomeným o 90°
    €55,01 –3 % €53,36 / pcs €44,10 excl. VAT Measure price:
    Stock (1 pcs)
    Delivery to:
    29.10.2026
    Delivery options

    A 3/4" rubber hose, 1.5 m long, with a 90° elbow at one end for connecting a compressor to an air receiver. Working pressure 20 bar; swivel nuts and two male-thread adaptors supplied.

    Detailed information

    Free shipping
    Free shipping
    For purchases over 5,000 CZK
    We guarantee
    We guarantee
    Extended warranty and service
    Discount voucher
    Discount voucher
    For every purchase
    Return of goods within 30 days
    Return of goods within 30 days
    Completely at our expense

    Related products

    Tlaková nádoba stojatá pro nízké teploty a tekutiny 10 000 l - 8 bar
    REQUEST
    FREEFREE from €5 669,27 –100 %
    Vertical low-temperature pressure vessel for fluids 10000 l - 8 bar Ø 1650 × 5118 mm · 1730 kg · connections 3", 2", 3/4" and 3/8"
    up to 30 days
    €0,04 excl. VAT
    €0,05

    The largest 8-bar vertical air receiver, for large reserves of air or gas in lower-pressure networks, outdoors or in unheated halls at temperatures down to −20 °C. It comes in...

    Code: VVP10000-8
    Tlaková nádoba ležatá 100 l - 11 bar
    FREEFREE €357,76 –3 %
    Horizontal pressure vessel 100 l - 11 bar Ø 370 × 1016 mm · 29 kg · connections 2", 1/2" and 3/8"
    up to 20 days
    €286,80 excl. VAT
    €347,03

    A low horizontal air receiver that fits under a workbench or on a shelf. It is suitable as an additional air reserve for a smaller compressor or for a single machine.

    Code: VHP100-11
    Vystrojená stojatá tlaková nádoba lakovaná modrou RAL 5015 s kohouty a manometrem (ilustrační obrázek, sestava 270 l se stejnými armaturami)
    Tip
    FREEFREE from €987,22 –3 %
    Vertical pressure vessel with fittings 100 l - 11 bar Ø 370 × 1289 mm · 32 kg · ball valves 3/4"
    up to 14 days
    from €791,41 excl. VAT
    from €957,61

    A TÜV-certified 100 l vertical air receiver with ball valves, a pressure gauge and a safety valve set to 10.5 bar already mounted. It works well as an additional reservoir for a...

    Code: VVP2-100-11A
    vhp 50 tlakova nadoba vzdusnik lakovana lezata
    €184,82 –3 %
    Horizontal pressure vessel 10 l with feet - 11 bar Ø 169 × 506 mm · 8 kg · connections 1/2" and 3/8"
    Stock (14 pcs)
    €148,16 excl. VAT
    €179,27

    A small horizontal air receiver that already has a top connection for a pressure gauge or safety valve. It stands on two feet with bolt holes and fits under a workbench or on a...

    Code: VHP10-11
    vhp 50 tlakova nadoba vzdusnik lakovana lezata
    €158,41 –3 %
    Horizontal pressure vessel 5 l with feet - 11 bar Ø 150 × 370 mm · 6.5 kg · connections 1/2" and 1/4"
    Stock (6 pcs)
    €126,99 excl. VAT
    €153,66

    The smallest air receiver with feet, both with bolt holes. It fits on a shelf, in a crate or under a workbench and serves as a small air reserve or a buffer volume.

    Code: VHP5-11
    Tlaková nádoba ležatá 3 000 l - 16 bar
    FREEFREE €6 836,05 –3 %
    Horizontal pressure vessel 3000 l - 16 bar Ø 1200 × 2850 mm · 640 kg · connections 2" and 1/2"
    up to 20 days
    €5 480,14 excl. VAT
    €6 630,97

    The largest 16-bar horizontal air receiver, for the central air reserve of a compressor station with a higher pressure. It comes in the painted version.

    Code: VHP3000-16
    Nerezová tlaková nádoba ležatá 5 l - 11 bar
    New
    FREEFREE from €693,51 –3 %
    Horizontal stainless steel pressure vessel 5 l - 11 bar Ø 150 × 314 mm · 6 kg · connections 1/2"
    up to 20 days
    from €555,96 excl. VAT
    from €672,71

    A small horizontal stainless steel pressure vessel, 5 l at 11 bar, in AISI304 or AISI316L steel. Pickled and passivated, it stands on two saddle feet.

    Code: VHS5-11
    Tlaková nádoba stojatá pro nízké teploty a tekutiny 4 000 l - 16 bar
    REQUEST
    FREEFREE from €5 669,27 –100 %
    Vertical low-temperature pressure vessel for fluids 4000 l - 16 bar Ø 1450 × 2790 mm · 995 kg · connections 3", 2", 3/4" and 3/8"
    up to 20 days
    €0,04 excl. VAT
    €0,05

    A large 16-bar vertical air receiver for compressor stations with a higher pressure and for gases stored at a higher pressure, in environments with temperatures down to −20 °C....

    Code: VVP4000-16
    Nerezová tlaková nádoba ležatá 270 l - 11 bar
    New
    FREEFREE from €6 113,18 –3 %
    Horizontal stainless steel pressure vessel 270 l - 11 bar Ø 500 × 1558 mm · 69 kg · connections 1", 1/2" and 3/8"
    up to 20 days
    from €4 900,65 excl. VAT
    from €5 929,79

    A horizontal stainless steel pressure vessel, 270 l at 11 bar, in AISI304 or AISI316L steel. Pickled and passivated, with a larger top connection for connecting the pipework.

    Code: VHS270-11
    Tlaková nádoba stojatá pro kyslík 1 500 l - 12 bar
    New
    FREEFREE €5 438,02 –3 %
    Vertical pressure vessel for oxygen 1500 l - 12 bar Ø 1000 × 2305 mm · 320 kg · connections 2" and 1/2"
    up to 20 days
    €4 359,40 excl. VAT
    €5 274,88

    A vertical pressure vessel for oxygen, 1500 l at 12 bar, lower and wider than the 1000-litre vessel. White RAL 9010 paint, ALM coating inside, manufactured to the Pressure...

    Code: VVA1500-12-OX
    Tlaková nádoba ležatá 500 l - 16 bar
    FREEFREE €1 625,53 –3 %
    Horizontal pressure vessel 500 l - 16 bar Ø 600 × 1858 mm · 163 kg · connections 2", 1", 1/2" and 3/8"
    up to 20 days
    €1 303,12 excl. VAT
    €1 576,77

    A 16-bar horizontal air receiver with a large air reserve for compressors with a higher working pressure. Its dimensions match those of the 11-bar version, so it can take its...

    Code: VHP500-16
    Vakuová nádoba stojatá 500 l, podtlak do −1 bar
    FREEFREE €1 342,99 –3 %
    Vertical vacuum vessel 500 l, vacuum down to −1 bar Ø 600 × 2050 mm · 145 kg · connections 2" and 3/8"
    up to 20 days
    €1 076,61 excl. VAT
    €1 302,70

    A vertical vacuum vessel for vacuum systems with a higher demand or with several vacuum pumps. Vacuum down to −1 bar, blue RAL 5015 paint.

    Code: VVP500-V
    Tlaková nádoba ležatá 150 l - 11 bar
    FREEFREE €530,22 –3 %
    Horizontal pressure vessel 150 l - 11 bar Ø 396 × 1240 mm · 44 kg · connections 2", 1/2" and 3/8"
    up to 20 days
    €425,06 excl. VAT
    €514,32

    A horizontal air receiver for when 100 litres is not enough and 200 would not fit. It is low and stands on two feet that sit on vibration dampers.

    Code: VHP150-11
    Vystrojená stojatá tlaková nádoba lakovaná modrou RAL 5015 s kohouty a manometrem (ilustrační obrázek, sestava 3 000 l se stejnými armaturami)
    Tip
    FREEFREE from €4 764,58 –3 %
    Vertical pressure vessel with fittings 2000 l - 12 bar Ø 1100 × 2513 mm · 395 kg · ball valves 2"
    up to 14 days
    from €3 819,54 excl. VAT
    from €4 621,64

    A TÜV-certified 2000 l vertical air receiver with ball valves, a pressure gauge with a test cock and a safety valve set to 10.5 bar already mounted. For compressor stations up...

    Code: VVP2-2000-12A
    Tlaková nádoba stojatá 270 l - 16 bar
    FREEFREE from €1 163,19 –3 %
    Vertical pressure vessel 270 l - 16 bar Ø 500 × 1648 mm · 101 kg · connections 1", 1/2" and 3/8"
    up to 20 days
    from €932,48 excl. VAT
    from €1 128,30

    A 16-bar vertical air receiver for compressors that cut out at 13 or 15 bar. Its dimensions match those of the 11-bar version, so it can take its place directly.

    Code: VVP2-270-16
    Nerezová tlaková nádoba stojatá 270 l - 11 bar
    New
    FREEFREE from €5 573,78 –3 %
    Vertical stainless steel pressure vessel 270 l - 11 bar Ø 500 × 1771 mm · 69 kg · connections 1", 1/2" and 3/8"
    up to 20 days
    from €4 468,24 excl. VAT
    from €5 406,57

    A vertical stainless steel pressure vessel, 270 l at 11 bar, AISI304 or AISI316L. The largest vertical size with a working temperature down to −80 °C. Pickled and passivated.

    Code: VVS270-11
    Show all related products Previous product Next product

    Product detailed description

    90° elbowRubber connecting hose with one straight end and the other bent at 90°

    A 3/4" hose with a 90° elbow, 1.5 metres long, for a vessel ball valve from which the hose has to turn away immediately.

    3/4"thread
    DN 20nominal bore
    1.5 mlength
    20 barworking pressure

    Specifications

    Close-up of the crimped end fitting of a hose with a 90° elbow and swivel nut
    90° elbow with swivel nut
    FPL34-1-5 — specifications
    ThreadG 3/4"
    Nominal boreDN 20
    Length1500 mm
    End fittingsone straight, the other with a 90° elbow, swivel nuts with female thread
    Working pressure20 bar
    Working temperature−40 to +100 °C
    Hoserubber, crimped end fittings
    Resistant tocompressor oil, condensate
    Scope of supplyhose and 2 adaptors with G 3/4" male thread

    Typical uses

    A 3/4" hose with a 90° elbow suits vessels from 100 to 270 l with 3/4" ball valves when the hose has to turn away from the valve along the vessel or a wall.

    The next length down is FPL34-1-0, and the next length up is FPL34-2-0. The version with straight ends is FP34-1-5.

    Ventilek’s tip

    Elbow to the ball valve, straight end to the compressor. Connect the bent end where space is tight, usually at the vessel. The straight end goes to the compressor outlet.

    Additional parameters

    Category: Connecting hoses crimped including fittings
    Pressure: 20 bar
    Barva: Black
    End design: Straight and corner end
    Lightness: DN 20
    Temperature: -40/+100 °C
    Inner diameter: 20 mm
    Threads: 3/4"
    In stock: External warehouse
