Vertical pressure vessel 270 l - 16 bar Ø 500 × 1648 mm · 101 kg · connections 1", 1/2" and 3/8"
Code: VVP2-270-16 VVG2-270-16 VVA2-270-16 Choose variant
Related products
Product detailed description
Two hundred and seventy litres at 16 bar. Its dimensions and connections are the same as on the 11-bar version, but its thicker walls make it about 50% heavier.
Dimensions and connections
| VVP2-270-16 — dimensions and connections | |
|---|---|
| Volume | 270 l |
| Maximum working pressure | 16 bar |
| Working temperature | −10 to +120 °C |
| Diameter De | 500 mm |
| Height L | 1648 mm |
| Ground clearance A | 175 mm |
| Height of connections 2 and 3 (B) | 599 mm |
| Height of connections 6 and 7 (C) | 1304 mm |
| Weight | 101 kg |
| Connection 1 | 1/2" (2×) |
| Connection 2 | 1" |
| Connection 3 | 1" |
| Connection 4 | none |
| Connection 5 | 3/8" |
| Connection 6 | 1" |
| Connection 7 | none |
| Material | carbon steel |
| Finish | external RAL 5015 powder coating |
| Directive | 2014/29/EU (SPVD) |
| Medium | compressed air, nitrogen |
Versions
| VVP2-270-16 — versions | |||
|---|---|---|---|
| Version | Order code | Weight | Difference from the painted version |
| painted RAL 5015 | VVP2-270-16 | 101 kg | – |
| galvanised | VVG2-270-16 | 104 kg | connection 1: 2", ground clearance A 170 mm |
| with ALM internal coating | VVA2-270-16 | 101 kg | connection 1: 2" |
Typical uses
It is suitable for compressors with a higher working pressure, for example on long air networks with a large pressure drop or for machines that need more than 10 bar. Connections at two heights allow the inlet to be connected at the bottom and the outlet at the top. It comes in painted, galvanised and ALM-coated versions.
The 11-bar version with the same dimensions is VVP2-270-11, and a larger 16-bar vessel is VVP2-500-16. You can choose a safety valve for the higher pressure from our range of HEROSE safety valves.

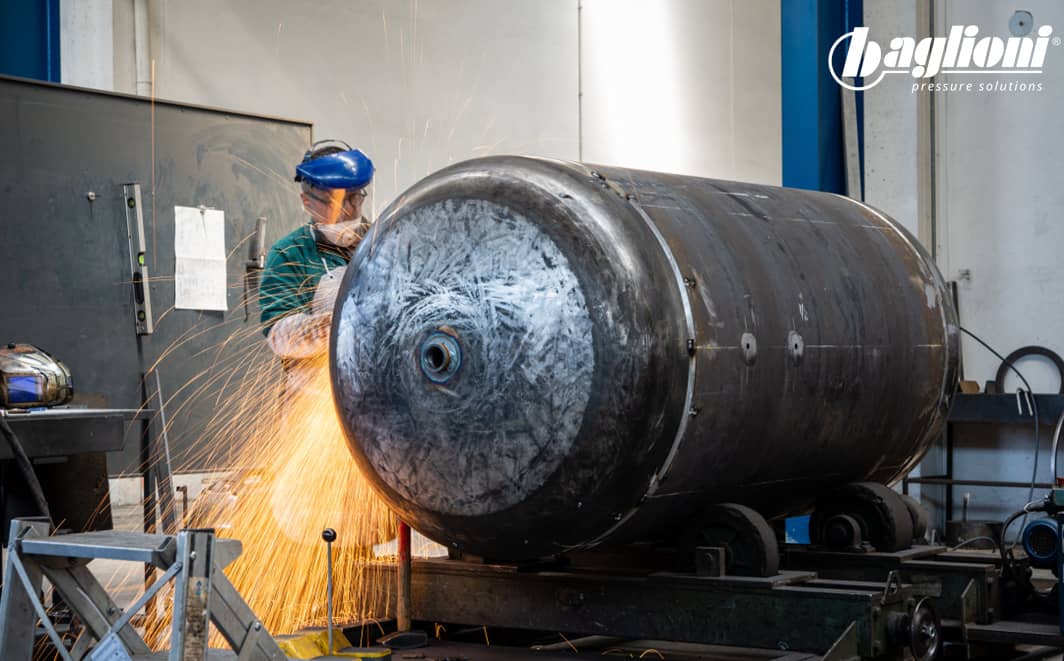

How it is made
Ventilek’s tip
The 11-bar fittings kit does not belong here. Its safety valve is designed for 11-bar vessels, and with a 15-bar compressor it would blow off every time the compressor pumps up to pressure.
Additional parameters
| Category: | Pressure vessels and air receivers for compressed air |
|---|---|
| Version: | Standing with pedestals |
| Pressure: | 16 bar |
| Material: | Carbon steel |
| Medium: | Air |
| Surface treatment: | Lacquered RAL, Galvanized, ALM coating (food industry) |
| Container volume: | 270 l |
| Directive: | SPVD - 29/2014EU |
| Thread (1): | 1/2" |
| Thread (2): | 1" |
| Thread (3): | 1" |
| Thread (4): | - |
| Thread (5): | 3/8" |
| Thread (6): | 1" |
| Thread (7): | - |
| Thread (8): | - |
Product rating
Be the first who will post an article to this item!
Almost fifty years of experience
AIR-COM Baglioni is one of the Italian manufacturers of air conditioning systems. The company was formed in 1971 and over the following years began distributing its products worldwide. Thanks to almost fifty years of experience in the field, it guarantees the customer the assurance of quality and precision of the products delivered. Currently, production AIR-COM BAGLIONI is divided into two main segments. On the one hand, the company manufactures accessories for air and cleaning equipment, on the other hand, it produces small compressors suitable for workshops and hobby use, which are outstanding for their quietness. The meticulousness of the products can also be confirmed by the production of airbrushes and other accessories used in fine art.
 |
 |
Certified quality

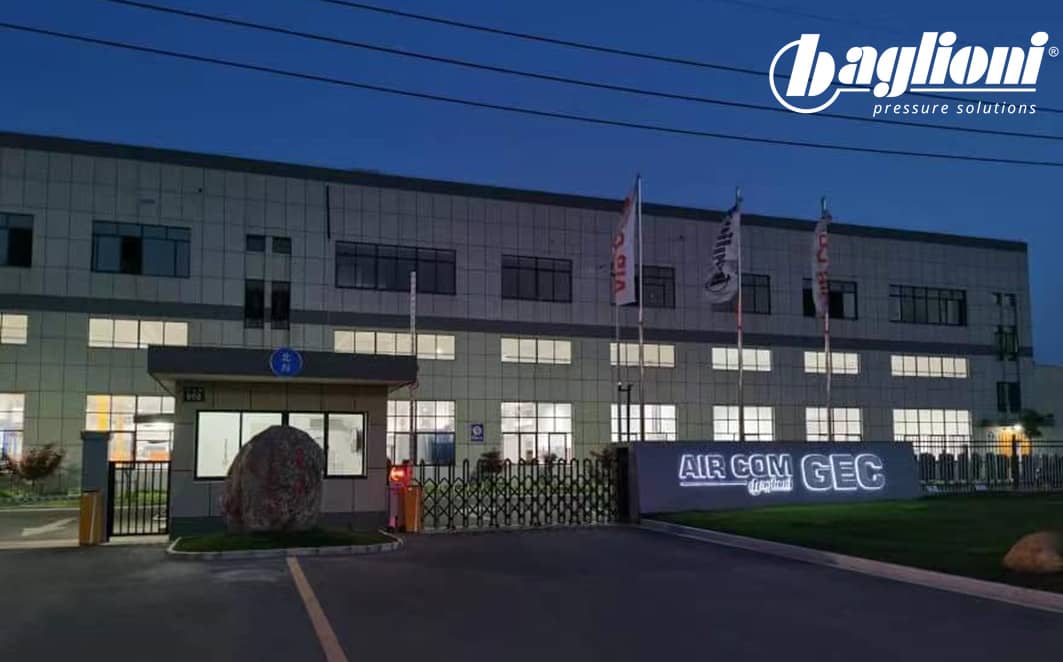

The productive heart of the company, spread over 2,000 square metres, is a core of 20 employees who oversee the daily production of all products, the quality of which is subject to rigorous and proven certification systems such as ISO 9001, TÜV Germany or CSA Canada. quality is one of the four mottos that AIR-COM BAGLIONI follows. Next to this are flexibility (production depending on customers), costs (constant research to reduce the final price tag) and speed (orders are processed in a shorter time thanks to stored semi-finished products).
 |
 |
