    Home / Hoses / Connecting hoses / Crimped connecting hose 2" - 1.5 m Working pressure 20 bar · −40 to +100 °C · 2 adaptors supplied

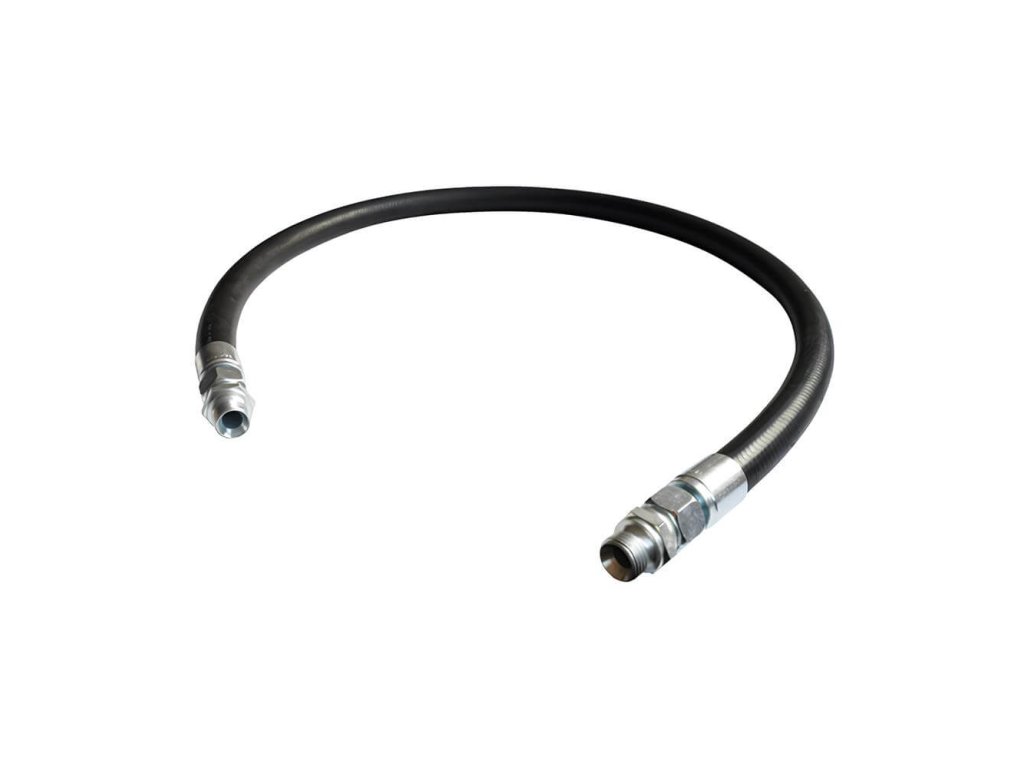

    Crimped connecting hose 2" - 1.5 m Working pressure 20 bar · −40 to +100 °C · 2 adaptors supplied

    Code: FP20-1-5
    Not rated Rating details
    €341,44 –3 %
    Pryžová spojovací hadice s přímými koncovkami a adaptérem s vnějším závitem
    €341,44 –3 % €331,20 / pcs €273,72 excl. VAT Measure price:
    up to 14 days
    Delivery to:
    17.11.2026
    Delivery options

    A 2" rubber hose, 1.5 m long, with straight ends for the largest compressors and air receivers. Working pressure 20 bar, supplied with swivel nuts and two adaptors.

    Detailed information

    Free shipping
    Free shipping
    For purchases over 5,000 CZK
    We guarantee
    We guarantee
    Extended warranty and service
    Discount voucher
    Discount voucher
    For every purchase
    Return of goods within 30 days
    Return of goods within 30 days
    Completely at our expense

    Related products

    Tlaková nádoba ležatá 1 500 l - 12 bar
    FREEFREE €3 537,28 –3 %
    Horizontal pressure vessel 1500 l - 12 bar Ø 1000 × 2135 mm · 325 kg · connections 2" and 1/2"
    up to 20 days
    €2 835,67 excl. VAT
    €3 431,16

    A horizontal air receiver with a larger diameter and roughly the same length as the 1000-litre vessel. For the main air reserve downstream of a screw compressor in a low...

    Code: VHP1500-12
    Vystrojená stojatá tlaková nádoba lakovaná modrou RAL 5015 s kohouty a manometrem (ilustrační obrázek, sestava 3 000 l se stejnými armaturami)
    Tip
    FREEFREE from €4 764,58 –3 %
    Vertical pressure vessel with fittings 2000 l - 12 bar Ø 1100 × 2513 mm · 395 kg · ball valves 2"
    up to 14 days
    from €3 819,54 excl. VAT
    from €4 621,64

    A TÜV-certified 2000 l vertical air receiver with ball valves, a pressure gauge with a test cock and a safety valve set to 10.5 bar already mounted. For compressor stations up...

    Code: VVP2-2000-12A
    Tlaková nádoba stojatá 270 l - 11 bar
    FREEFREE from €676,06 –3 %
    Vertical pressure vessel 270 l - 11 bar Ø 500 × 1648 mm · 67 kg · connections 1", 1/2" and 3/8"
    Stock (4 pcs)
    from €541,97 excl. VAT
    from €655,78

    A vertical air receiver with side connections at the bottom and at the top, so the air inlet and outlet can be connected far apart. It comes painted, galvanised or with a...

    Code: VVP2-270-11
    Nerezová tlaková nádoba ležatá 10 l - 12 bar
    New
    FREEFREE from €954,04 –3 %
    Horizontal stainless steel pressure vessel 10 l - 12 bar Ø 169 × 506 mm · 8 kg · connections 1/2"
    up to 20 days
    from €764,81 excl. VAT
    from €925,42

    A horizontal stainless steel pressure vessel, 10 l at 12 bar, in AISI304 or AISI316L. Pickled and passivated, with a connection on top of the shell.

    Code: VHS10-12
    Nerezová tlaková nádoba stojatá 1 500 l - 11 bar
    New REQUEST
    FREEFREE
    Vertical stainless steel pressure vessel 1500 l - 11 bar Ø 1000 × 2305 mm · 634 kg · connections 2" and 1/2"
    up to 20 days
    €0,04 excl. VAT
    €0,05

    A vertical stainless steel pressure vessel, 1500 l at 11 bar, AISI304 or AISI316L. Wider and lower than the thousand-litre vessel, pickled and passivated inside and out.

    Code: VVS1500-11
    vlp 50 tlakova nadoba vzdusnik lakovana lezata
    FREEFREE €264,02 –3 %
    Horizontal pressure vessel 10 l without feet - 11 bar Ø 169 × 506 mm · 7 kg · connections 1/2" and 3/8"
    Stock (11 pcs)
    €211,65 excl. VAT
    €256,10

    A 10-litre cylinder without feet for a machine frame or cabinet where feet would get in the way. It has a top connection for a pressure gauge or safety valve and a bottom one...

    Code: VLP10-11
    Tlaková nádoba ležatá 270 l - 16 bar
    FREEFREE €1 176,04 –3 %
    Horizontal pressure vessel 270 l - 16 bar Ø 500 × 1484 mm · 104 kg · connections 2", 1", 1/2" and 3/8"
    up to 20 days
    €942,77 excl. VAT
    €1 140,75

    A 16-bar horizontal air receiver for compressors that cut out at 13 or 15 bar. It is low, stands on two feet and has its connections in the same places as the 11-bar version.

    Code: VHP270-16
    Tlaková nádoba stojatá 270 l - 42 bar
    New
    FREEFREE from €7 136,94 –3 %
    Vertical pressure vessel 270 l - 42 bar Ø 500 × 1648 mm · 215 kg · connections 2", 1" and 3/8"
    up to 20 days
    from €5 721,35 excl. VAT
    from €6 922,83

    A vertical high-pressure vessel, 270 l at 42 bar, for compressed air, nitrogen and oxygen, painted in RAL 5015 or galvanised. Four side connections for the air inlet and outlet.

    Code: VVP270-42
    Tlaková nádoba stojatá 2 000 l - 32 bar
    New REQUEST
    FREEFREE
    Vertical pressure vessel 2000 l - 32 bar Ø 1000 × 2740 mm · 1100 kg · connections 2" and 1/2"
    up to 20 days
    €0,04 excl. VAT
    €0,05

    A vertical high-pressure vessel, 2000 l at 32 bar, for compressed air, nitrogen and oxygen, painted in RAL 5015 or galvanised. The slim design takes up less floor space.

    Code: VVP2000-32
    Tlaková nádoba stojatá 200 l - 11 bar
    FREEFREE from €622,43 –3 %
    Vertical pressure vessel 200 l - 11 bar Ø 446 × 1557 mm · 55 kg · connections 1", 1/2" and 3/8"
    Stock (5 pcs)
    from €498,98 excl. VAT
    from €603,76

    A vertical air receiver with the volume typical of larger piston compressor tanks. Placed next to the compressor, it doubles the air reserve and steadies the pressure in the air...

    Code: VVP2-200-11
    Tlaková nádoba stojatá 100 l - 11 bar
    FREEFREE from €348,56 –3 %
    Vertical pressure vessel 100 l - 11 bar Ø 370 × 1213 mm · 31 kg · connections 3/4", 1/2" and 3/8"
    up to 20 days
    from €279,43 excl. VAT
    from €338,11

    A vertical air receiver that fits next to the compressor or into a narrow corner. It works well as the main vessel for a piston compressor or as a second air reserve at a remote...

    Code: VVP2-100-11
    Tlaková nádoba ležatá 100 l - 11 bar
    FREEFREE €357,76 –3 %
    Horizontal pressure vessel 100 l - 11 bar Ø 370 × 1016 mm · 29 kg · connections 2", 1/2" and 3/8"
    up to 20 days
    €286,80 excl. VAT
    €347,03

    A low horizontal air receiver that fits under a workbench or on a shelf. It is suitable as an additional air reserve for a smaller compressor or for a single machine.

    Code: VHP100-11
    Vystrojená stojatá tlaková nádoba lakovaná modrou RAL 5015 s kohouty a manometrem (ilustrační obrázek, sestava 1 000 l se stejnými armaturami)
    Tip
    FREEFREE from €4 157,60 –3 %
    Vertical pressure vessel with fittings 1500 l - 12 bar Ø 1000 × 2328 mm · 326 kg · ball valves 1 1/2"
    up to 20 days
    from €3 332,96 excl. VAT
    from €4 032,88

    A TÜV-certified 1500 l vertical air receiver with ball valves, a pressure gauge with a test cock and a high-flow safety valve set to 10.5 bar already mounted. For compressor...

    Code: VVP2-1500-12A
    Nerezová tlaková nádoba ležatá 100 l - 11 bar
    New
    FREEFREE from €2 662,13 –3 %
    Horizontal stainless steel pressure vessel 100 l - 11 bar Ø 370 × 966 mm · 32 kg · connections 1/2" and 3/8"
    up to 20 days
    from €2 134,11 excl. VAT
    from €2 582,27

    A horizontal stainless steel pressure vessel, 100 l at 11 bar, in AISI304 or AISI316L. Three connections on top of the shell, pickled and passivated.

    Code: VHS100-11
    Nerezová tlaková nádoba ležatá 15 l - 12 bar
    New
    FREEFREE from €1 043,94 –3 %
    Horizontal stainless steel pressure vessel 15 l - 12 bar Ø 196 × 624 mm · 11 kg · connections 1/2"
    up to 20 days
    from €836,88 excl. VAT
    from €1 012,62

    A horizontal stainless steel pressure vessel, 15 l at 12 bar, in AISI304 or AISI316L steel. Pickled and passivated, with no coating, manufactured to the Pressure Equipment...

    Code: VHS15-12
    Nerezová tlaková nádoba stojatá 150 l - 11 bar
    New
    FREEFREE from €3 865,69 –3 %
    Vertical stainless steel pressure vessel 150 l - 11 bar Ø 446 × 1277 mm · 49 kg · connections 1", 1/2" and 1/4"
    up to 20 days
    from €3 098,94 excl. VAT
    from €3 749,72

    A vertical stainless steel pressure vessel, 150 l at 11 bar, AISI304 or AISI316L. Pickled and passivated, with no coating. Side connections with a larger thread for connecting...

    Code: VVS150-11
    Show all related products Previous product Next product

    Product detailed description

    Straight endsRubber connecting hose with straight ends and a male-thread adaptor

    The largest bore in the range: a 2" hose with straight ends, 1.5 metres long, for a compressor station with a 2000 or 3000 l vessel.

    2"thread
    DN 50nominal bore
    1.5 mlength
    20 barworking pressure

    Specifications

    FP20-1-5 — specifications
    ThreadG 2"
    Nominal boreDN 50
    Length1500 mm
    End fittingsboth straight, swivel nut with female thread
    Working pressure20 bar
    Working temperature−40 to +100 °C
    Hoserubber, crimped end fittings
    Resistant tocompressor oil, condensate
    Scope of supplyhose and 2 adaptors with G 2" male thread

    Typical uses

    A 2" hose suits the largest compressors and the 2000 and 3000 l vessels, whose fittings kits have 2" ball valves. It connects the compressor station to the air network without a restriction.

    The next length up is FP20-2-0, and the version with a 90° elbow is FPL20-1-5.

    Ventilek’s tip

    A heavy hose needs support. A 2" hose is heavy, end fittings included. Support or secure a long curve so that its full weight does not hang on the connections.

    Additional parameters

    Category: Connecting hoses crimped including fittings
    Pressure: 20 bar
    Barva: Black
    End design: Straight endings
    Lightness: DN 50
    Temperature: -40/+100 °C
    Threads: 2"
