    Crimped connecting hose with elbow 1 1/4" - 2 m Working pressure 20 bar · −40 to +100 °C · 2 adaptors supplied

    Code: FPL54-2-0
    Not rated Rating details
    €151,32 –3 %
    Pryžová spojovací hadice s jedním přímým koncem a druhým zalomeným o 90°
    €151,32 –3 % €146,78 / pcs €121,31 excl. VAT Measure price:
    up to 14 days
    Delivery to:
    17.11.2026
    Delivery options

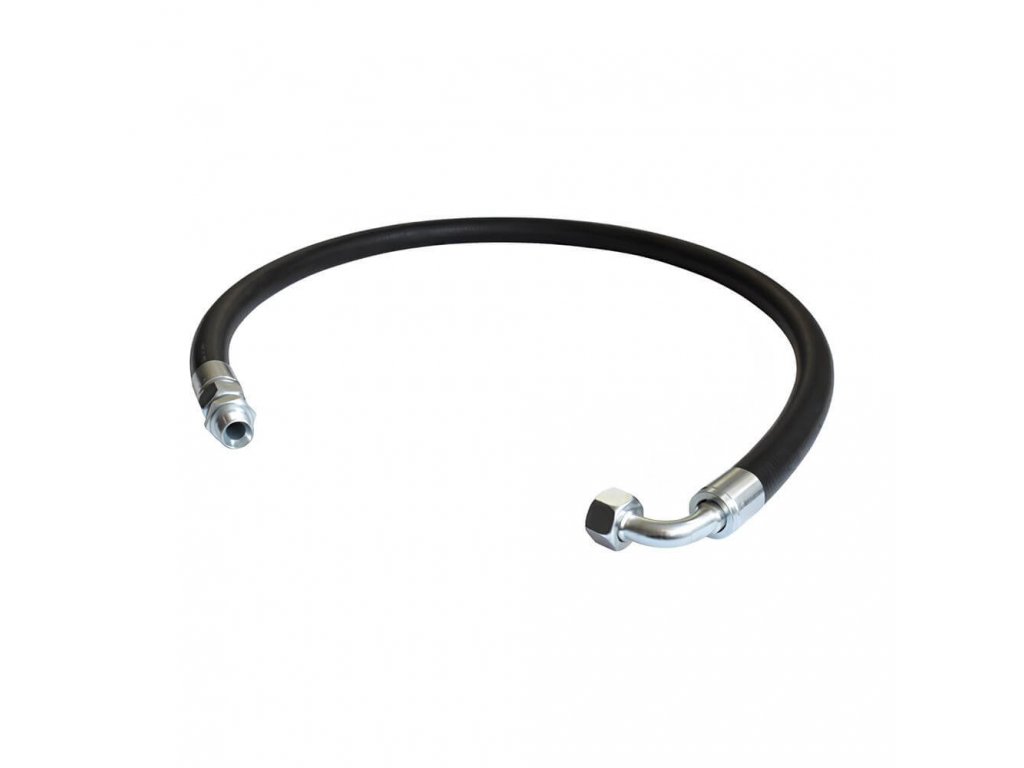

    A two-metre 1 1/4" rubber hose with one end bent at 90° for more powerful compressors. Working pressure 20 bar, supplied with two male-thread adaptors.

    Detailed information

    Free shipping
    Free shipping
    For purchases over 5,000 CZK
    We guarantee
    We guarantee
    Extended warranty and service
    Discount voucher
    Discount voucher
    For every purchase
    Return of goods within 30 days
    Return of goods within 30 days
    Completely at our expense

    Related products

    Tlaková nádoba stojatá pro kyslík 1 000 l - 12 bar
    New
    FREEFREE €3 249,23 –3 %
    Vertical pressure vessel for oxygen 1000 l - 12 bar Ø 800 × 2350 mm · 210 kg · connections 2" and 3/8"
    up to 20 days
    €2 604,76 excl. VAT
    €3 151,76

    A 12-bar vertical pressure vessel for oxygen. White RAL 9010 paint on the outside, an ALM epoxy coating on the inside, and the same dimensions and connections as a standard...

    Code: VVA1000-12-OX
    Tlaková nádoba ležatá 200 l - 11 bar
    FREEFREE €636,64 –3 %
    Horizontal pressure vessel 200 l - 11 bar Ø 446 × 1364 mm · 55 kg · connections 2", 1/2" and 3/8"
    up to 20 days
    €510,36 excl. VAT
    €617,54

    A low, stable horizontal air receiver with the volume typical of larger piston compressor tanks. It works well as a second vessel next to the compressor or under a platform.

    Code: VHP200-11
    Nerezová tlaková nádoba ležatá 50 l - 11 bar
    New
    FREEFREE from €2 032,83 –3 %
    Horizontal stainless steel pressure vessel 50 l - 11 bar Ø 305 × 784 mm · 21 kg · connections 1/2" and 3/8"
    up to 20 days
    from €1 629,63 excl. VAT
    from €1 971,85

    A horizontal stainless steel pressure vessel, 50 l at 11 bar, in AISI304 or AISI316L steel. Pickled and passivated, with two connections on top of the shell.

    Code: VHS50-11
    Tlaková nádoba stojatá 1 500 l - 16 bar
    FREEFREE from €4 019,80 –3 %
    Vertical pressure vessel 1500 l - 16 bar Ø 1000 × 2305 mm · 423 kg · connections 2" and 1/2"
    up to 20 days
    from €3 222,49 excl. VAT
    from €3 899,21

    A 16-bar vertical air receiver with a larger diameter and a lower height, for compressors with a higher working pressure. It comes in painted and galvanised versions.

    Code: VVP1500-16
    Tlaková nádoba stojatá 270 l - 16 bar
    FREEFREE from €1 163,19 –3 %
    Vertical pressure vessel 270 l - 16 bar Ø 500 × 1648 mm · 101 kg · connections 1", 1/2" and 3/8"
    up to 20 days
    from €932,48 excl. VAT
    from €1 128,30

    A 16-bar vertical air receiver for compressors that cut out at 13 or 15 bar. Its dimensions match those of the 11-bar version, so it can take its place directly.

    Code: VVP2-270-16
    Tlaková nádoba stojatá pro nízké teploty a tekutiny 10 000 l - 8 bar
    REQUEST
    FREEFREE from €5 669,27 –100 %
    Vertical low-temperature pressure vessel for fluids 10000 l - 8 bar Ø 1650 × 5118 mm · 1730 kg · connections 3", 2", 3/4" and 3/8"
    up to 30 days
    €0,04 excl. VAT
    €0,05

    The largest 8-bar vertical air receiver, for large reserves of air or gas in lower-pressure networks, outdoors or in unheated halls at temperatures down to −20 °C. It comes in...

    Code: VVP10000-8
    Tlaková nádoba ležatá 100 l - 11 bar
    FREEFREE €357,76 –3 %
    Horizontal pressure vessel 100 l - 11 bar Ø 370 × 1016 mm · 29 kg · connections 2", 1/2" and 3/8"
    up to 20 days
    €286,80 excl. VAT
    €347,03

    A low horizontal air receiver that fits under a workbench or on a shelf. It is suitable as an additional air reserve for a smaller compressor or for a single machine.

    Code: VHP100-11
    Nerezová tlaková nádoba ležatá 10 l - 12 bar
    New
    FREEFREE from €954,04 –3 %
    Horizontal stainless steel pressure vessel 10 l - 12 bar Ø 169 × 506 mm · 8 kg · connections 1/2"
    up to 20 days
    from €764,81 excl. VAT
    from €925,42

    A horizontal stainless steel pressure vessel, 10 l at 12 bar, in AISI304 or AISI316L. Pickled and passivated, with a connection on top of the shell.

    Code: VHS10-12
    Díly sady armatur KVG1500-12: manometr, pojistný ventil, kulový kohout, koleno, záslepka a redukce
    €297,51 –3 %
    Kit for galvanized pressure vessel KVG1500-12 For vessel VVG1500-12 · safety valve 3/4", 1024 Nm³/h · ball valves 1 1/2"
    up to 14 days
    €238,50 excl. VAT
    €288,59

    Fittings for a galvanised vertical 1500 l vessel: a high-flow safety valve set to 10.5 bar, a pressure gauge with a test cock, two ball valves, a condensate drain valve and...

    Code: KVG1500-12
    Tlaková nádoba stojatá 500 l - 32 bar
    New
    FREEFREE from €7 313,07 –3 %
    Vertical pressure vessel 500 l - 32 bar Ø 600 × 2050 mm · 308 kg · connections 2" and 1/2"
    up to 20 days
    from €5 862,55 excl. VAT
    from €7 093,68

    A vertical high-pressure vessel, 500 l at 32 bar, for compressed air, nitrogen and oxygen, painted in RAL 5015 or galvanised. Large connections for the main pipework.

    Code: VVP500-32
    Nerezová tlaková nádoba ležatá 24 l - 11 bar
    New
    FREEFREE from €1 205,39 –3 %
    Horizontal stainless steel pressure vessel 24 l - 11 bar Ø 240 × 634 mm · 13 kg · connections 1/2"
    up to 20 days
    from €966,31 excl. VAT
    from €1 169,23

    A horizontal stainless steel pressure vessel, 24 l at 11 bar, in AISI304 or AISI316L. Pickled and passivated, it stands on two saddle feet.

    Code: VHS24-11
    Tlaková nádoba ležatá 1 000 l - 16 bar
    FREEFREE €2 429,13 –3 %
    Horizontal pressure vessel 1000 l - 16 bar Ø 800 × 2158 mm · 253 kg · connections 2", 1", 3/4" and 1/2"
    up to 20 days
    €1 947,31 excl. VAT
    €2 356,25

    A 16-bar horizontal air receiver for compressors that cut out at 13 or 15 bar. Its dimensions match those of the 12-bar version, and it comes in the painted version.

    Code: VHP1000-16
    Díly sady armatur KVG200-11: manometr, pojistný ventil, kulový kohout, koleno, záslepka a redukce
    €93,24 –3 %
    Kit for galvanized pressure vessel KVG200-11 For vessel VVG2-200-11 · safety valve 1/4", 244 Nm³/h · ball valves 3/4"
    up to 14 days
    €74,74 excl. VAT
    €90,44

    Fittings for a galvanised vertical 200 l vessel: a safety valve set to 10.5 bar, a pressure gauge, two ball valves, a condensate drain valve and mounting hardware with a reducer...

    Code: KVG200-11
    Tlaková nádoba stojatá 24 l - 11 bar
    €229,70 –3 %
    Vertical pressure vessel 24 l - 11 bar Ø 240 × 656 mm · 10 kg · connections 1/2" and 3/8"
    Stock (10 pcs)
    €184,14 excl. VAT
    €222,81

    A vertical air receiver that fits even into a narrow corner of the workshop. It stands on legs, and you can feed air into it from above, from below or from the side.

    Code: VVP24-11
    Tlaková nádoba stojatá 270 l - 42 bar
    New
    FREEFREE from €7 136,94 –3 %
    Vertical pressure vessel 270 l - 42 bar Ø 500 × 1648 mm · 215 kg · connections 2", 1" and 3/8"
    up to 20 days
    from €5 721,35 excl. VAT
    from €6 922,83

    A vertical high-pressure vessel, 270 l at 42 bar, for compressed air, nitrogen and oxygen, painted in RAL 5015 or galvanised. Four side connections for the air inlet and outlet.

    Code: VVP270-42
    Tlaková nádoba stojatá 500 l - 16 bar
    FREEFREE from €1 456,74 –3 %
    Vertical pressure vessel 500 l - 16 bar Ø 600 × 2050 mm · 145 kg · connections 2" and 3/8"
    Stock (1 pcs)
    from €1 167,80 excl. VAT
    from €1 413,04

    A 16-bar vertical air receiver with a large air reserve and wide connections for large-diameter pipework. Suited to higher-pressure screw compressors and to operations with...

    Code: VVP2-500-16
    Show all related products Previous product Next product

    Product detailed description

    90° elbowRubber connecting hose with one straight end and the other bent at 90°

    A 1 1/4" hose with a 90° elbow, 2 metres long, for connecting a compressor to a dryer or vessel.

    1 1/4"thread
    DN 32nominal bore
    2 mlength
    20 barworking pressure

    Specifications

    Close-up of the crimped end fitting of a hose with a 90° elbow and swivel nut
    90° elbow with swivel nut
    FPL54-2-0 — specifications
    ThreadG 1 1/4"
    Nominal boreDN 32
    Length2000 mm
    End fittingsone straight, the other with a 90° elbow, swivel nuts with female thread
    Working pressure20 bar
    Working temperature−40 to +100 °C
    Hoserubber, crimped end fittings
    Resistant tocompressor oil, condensate
    Scope of supplyhose and 2 adaptors with G 1 1/4" male thread

    Typical uses

    A 1 1/4" hose with a 90° elbow suits more powerful screw compressors and dryers where the hose has to turn away from the connection right at the machine housing.

    The next length down is FPL54-1-5, and the next length up is FPL54-2-5. The version with straight ends is FP54-2-0.

    Ventilek’s tip

    Do not combine the elbow with another bend. After the elbow, run the hose in a loose curve, not sharply back. Every further sharp bend reduces the flow.

    Additional parameters

    Category: Connecting hoses crimped including fittings
    Pressure: 20 bar
    Barva: Black
    End design: Straight and corner end
    Lightness: DN 32
    Temperature: -40/+100 °C
    Inner diameter: 32 mm
