    Home / Hoses / Connecting hoses / Crimped connecting hose with elbow 3/4" - 2 m Working pressure 20 bar · −40 to +100 °C · 2 adaptors supplied

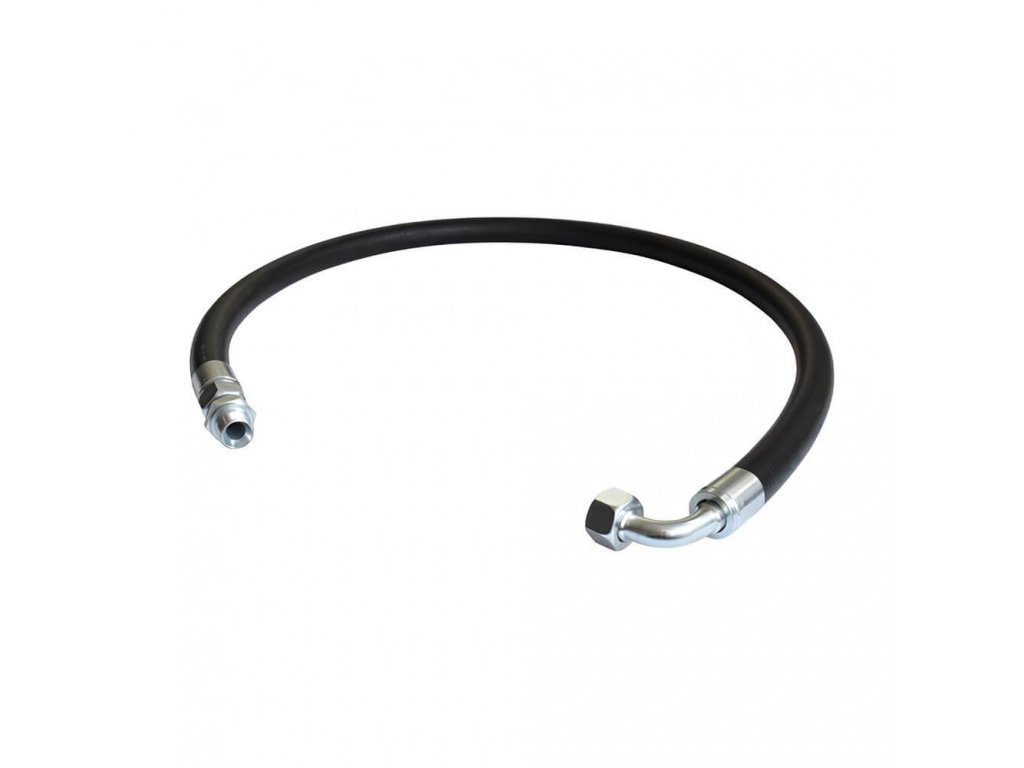

    Crimped connecting hose with elbow 3/4" - 2 m Working pressure 20 bar · −40 to +100 °C · 2 adaptors supplied

    Code: FPL34-2-0
    Not rated Rating details
    €61,91 –3 %
    Pryžová spojovací hadice s jedním přímým koncem a druhým zalomeným o 90°
    €61,91 –3 % €60,05 / pcs €49,63 excl. VAT Measure price:
    Stock (2 pcs)
    Delivery to:
    29.10.2026
    Delivery options

    A two-metre 3/4" rubber hose with one end bent at 90° for connecting a compressor, air receiver and dryer. Working pressure 20 bar, two adaptors supplied.

    Detailed information

    Free shipping
    Free shipping
    For purchases over 5,000 CZK
    We guarantee
    We guarantee
    Extended warranty and service
    Discount voucher
    Discount voucher
    For every purchase
    Return of goods within 30 days
    Return of goods within 30 days
    Completely at our expense

    Related products

    Tlaková nádoba stojatá 500 l - 11 bar
    FREEFREE from €1 106,98 –3 %
    Vertical pressure vessel 500 l - 11 bar Ø 600 × 2050 mm · 115 kg · connections 1", 1/2" and 3/8"
    up to 20 days
    from €887,41 excl. VAT
    from €1 073,77

    A vertical air receiver for the main air reserve downstream of a screw compressor. It takes up little floor space and, with three versions, suits dry, damp and food-processing...

    Code: VVP2-500-11
    Díly sady armatur KVG270-11: manometr, pojistný ventil, kulový kohout, koleno, záslepka a redukce
    €93,72 –3 %
    Kit for galvanized pressure vessel KVG270-11 For vessel VVG2-270-11 · safety valve 1/4", 244 Nm³/h · ball valves 3/4"
    up to 14 days
    €75,13 excl. VAT
    €90,91

    Fittings for a galvanised vertical 270 l vessel: a safety valve set to 10.5 bar, a pressure gauge, two ball valves, a condensate drain valve and mounting hardware, including a...

    Code: KVG270-11
    Tlaková nádoba ležatá 200 l - 11 bar
    FREEFREE €636,64 –3 %
    Horizontal pressure vessel 200 l - 11 bar Ø 446 × 1364 mm · 55 kg · connections 2", 1/2" and 3/8"
    up to 20 days
    €510,36 excl. VAT
    €617,54

    A low, stable horizontal air receiver with the volume typical of larger piston compressor tanks. It works well as a second vessel next to the compressor or under a platform.

    Code: VHP200-11
    Tlaková nádoba ležatá 1 000 l - 16 bar
    FREEFREE €2 429,13 –3 %
    Horizontal pressure vessel 1000 l - 16 bar Ø 800 × 2158 mm · 253 kg · connections 2", 1", 3/4" and 1/2"
    up to 20 days
    €1 947,31 excl. VAT
    €2 356,25

    A 16-bar horizontal air receiver for compressors that cut out at 13 or 15 bar. Its dimensions match those of the 12-bar version, and it comes in the painted version.

    Code: VHP1000-16
    Vystrojená stojatá tlaková nádoba lakovaná modrou RAL 5015 s kohouty a manometrem
    Tip
    FREEFREE from €1 318,13 –3 %
    Vertical pressure vessel with fittings 270 l - 11 bar Ø 500 × 1724 mm · 68 kg · ball valves 3/4"
    Stock (1 pcs)
    from €1 056,69 excl. VAT
    from €1 278,59

    A TÜV-certified 270 l vertical air receiver with ball valves, a pressure gauge and a safety valve set to 10.5 bar already mounted. An air reserve for a piston compressor or a...

    Code: VVP2-270-11A
    Nerezová tlaková nádoba stojatá 24 l - 11 bar
    New
    FREEFREE from €1 133,84 –3 %
    Vertical stainless steel pressure vessel 24 l - 11 bar Ø 240 × 772 mm · 15 kg · connections 1/2"
    up to 20 days
    from €908,94 excl. VAT
    from €1 099,82

    A small vertical stainless steel pressure vessel, 24 l at 11 bar, in AISI304 or AISI316L steel, pickled and passivated inside and out. It takes up very little floor space.

    Code: VVS24-11
    Tlaková nádoba stojatá 270 l - 16 bar
    FREEFREE from €1 163,19 –3 %
    Vertical pressure vessel 270 l - 16 bar Ø 500 × 1648 mm · 101 kg · connections 1", 1/2" and 3/8"
    up to 20 days
    from €932,48 excl. VAT
    from €1 128,30

    A 16-bar vertical air receiver for compressors that cut out at 13 or 15 bar. Its dimensions match those of the 11-bar version, so it can take its place directly.

    Code: VVP2-270-16
    Nerezová tlaková nádoba ležatá 15 l - 12 bar
    New
    FREEFREE from €1 043,94 –3 %
    Horizontal stainless steel pressure vessel 15 l - 12 bar Ø 196 × 624 mm · 11 kg · connections 1/2"
    up to 20 days
    from €836,88 excl. VAT
    from €1 012,62

    A horizontal stainless steel pressure vessel, 15 l at 12 bar, in AISI304 or AISI316L steel. Pickled and passivated, with no coating, manufactured to the Pressure Equipment...

    Code: VHS15-12
    Nerezová tlaková nádoba ležatá 10 l - 12 bar
    New
    FREEFREE from €954,04 –3 %
    Horizontal stainless steel pressure vessel 10 l - 12 bar Ø 169 × 506 mm · 8 kg · connections 1/2"
    up to 20 days
    from €764,81 excl. VAT
    from €925,42

    A horizontal stainless steel pressure vessel, 10 l at 12 bar, in AISI304 or AISI316L. Pickled and passivated, with a connection on top of the shell.

    Code: VHS10-12
    Tlaková nádoba stojatá 720 l - 11 bar
    FREEFREE from €1 691,11 –3 %
    Vertical pressure vessel 720 l - 11 bar Ø 800 × 1745 mm · 155 kg · connections 2" and 3/8"
    up to 20 days
    from €1 355,68 excl. VAT
    from €1 640,37

    The largest vertical air receiver in this category, with wide main connections for large-diameter pipework. It is suitable as the main air reserve downstream of a larger screw...

    Code: VVP2-720-11
    Tlaková nádoba stojatá 200 l - 42 bar
    New
    FREEFREE from €6 784,68 –3 %
    Vertical pressure vessel 200 l - 42 bar Ø 446 × 1587 mm · 150 kg · connections 2", 1", 1/2" and 3/8"
    up to 20 days
    from €5 438,96 excl. VAT
    from €6 581,14

    A vertical high-pressure vessel, 200 l at 42 bar, for compressed air, nitrogen and oxygen, painted in RAL 5015 or galvanised. A slim vessel for smaller high-pressure compressors.

    Code: VVP200-42
    Tlaková nádoba stojatá 1 500 l - 42 bar
    New REQUEST
    FREEFREE
    Vertical pressure vessel 1500 l - 42 bar Ø 1000 × 2305 mm · 1100 kg · connections 2" and 1/2"
    up to 20 days
    €0,04 excl. VAT
    €0,05

    A vertical high-pressure vessel, 1500 l at 42 bar, for compressed air, nitrogen and oxygen, painted in RAL 5015 or galvanised. Wider and lower than the 1000-litre vessel.

    Code: VVP1500-42
    Vystrojená stojatá tlaková nádoba lakovaná modrou RAL 5015 s kohouty a manometrem (ilustrační obrázek, sestava 270 l se stejnými armaturami)
    Tip
    FREEFREE from €987,22 –3 %
    Vertical pressure vessel with fittings 100 l - 11 bar Ø 370 × 1289 mm · 32 kg · ball valves 3/4"
    up to 14 days
    from €791,41 excl. VAT
    from €957,61

    A TÜV-certified 100 l vertical air receiver with ball valves, a pressure gauge and a safety valve set to 10.5 bar already mounted. It works well as an additional reservoir for a...

    Code: VVP2-100-11A
    Nerezová tlaková nádoba stojatá 200 l - 11 bar
    New
    FREEFREE from €5 034,38 –3 %
    Vertical stainless steel pressure vessel 200 l - 11 bar Ø 446 × 1572 mm · 55 kg · connections 1", 1/2" and 3/8"
    up to 20 days
    from €4 035,83 excl. VAT
    from €4 883,35

    A vertical stainless steel pressure vessel, 200 l at 11 bar, in AISI304 or AISI316L steel. As slim as the 150 l vessel, just taller. Pickled and passivated inside and out.

    Code: VVS200-11
    Vakuová nádoba stojatá 3 000 l, podtlak do −1 bar
    FREEFREE €7 072,72 –3 %
    Vertical vacuum vessel 3000 l, vacuum down to −1 bar Ø 1200 × 2990 mm · 630 kg · connections 2" and 1/2"
    up to 20 days
    €5 669,87 excl. VAT
    €6 860,54

    The largest vertical vacuum vessel, for the central vacuum reserve of an entire production plant. Vacuum down to −1 bar, blue RAL 5015 paint.

    Code: VVP3000-V
    vhp 50 tlakova nadoba vzdusnik lakovana lezata
    €332,67 –3 %
    Horizontal pressure vessel 50 l with feet - 11 bar Ø 305 × 784 mm · 19 kg · connections 1/2" and 3/8"
    Stock (2 pcs)
    €266,69 excl. VAT
    €322,69

    The largest of the small horizontal air receivers, with two top connections, so you can fit both the safety valve and the pressure gauge without branch fittings. It suits a...

    Code: VHP50-11
    Show all related products Previous product Next product

    Product detailed description

    90° elbowRubber connecting hose with one straight end and the other bent at 90°

    A 3/4" hose with a 90° elbow, 2 metres long, for a connection over a greater distance.

    3/4"thread
    DN 20nominal bore
    2 mlength
    20 barworking pressure

    Specifications

    Close-up of the crimped end fitting of a hose with a 90° elbow and swivel nut
    90° elbow with swivel nut
    FPL34-2-0 — specifications
    ThreadG 3/4"
    Nominal boreDN 20
    Length2000 mm
    End fittingsone straight, the other with a 90° elbow, swivel nuts with female thread
    Working pressure20 bar
    Working temperature−40 to +100 °C
    Hoserubber, crimped end fittings
    Resistant tocompressor oil, condensate
    Scope of supplyhose and 2 adaptors with G 3/4" male thread

    Typical uses

    A 3/4" hose with a 90° elbow suits vessels from 100 to 270 l with 3/4" ball valves when the hose has to turn away from the valve along the vessel or a wall.

    The next length down is FPL34-1-5, and the next length up is FPL34-2-5. The version with straight ends is FP34-2-0.

    Ventilek’s tip

    Elbow to the ball valve, straight end to the compressor. Connect the bent end where space is tight, usually at the vessel. The straight end goes to the compressor outlet.

    Additional parameters

    Category: Connecting hoses crimped including fittings
    Pressure: 20 bar
    Barva: Black
    End design: Straight and corner end
    Lightness: DN 20
    Temperature: -40/+100 °C
    Inner diameter: 20 mm
    Threads: 3/4"
    In stock: External warehouse
