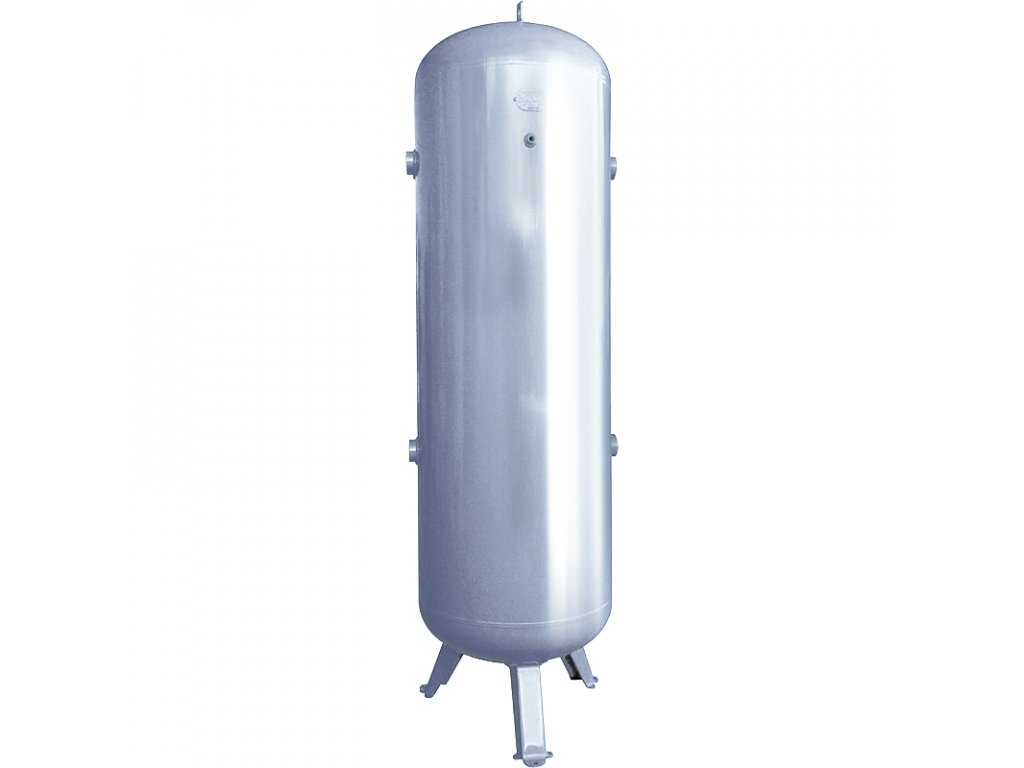

Vertical pressure vessel 1500 l - 16 bar Ø 1000 × 2305 mm · 423 kg · connections 2" and 1/2"
Code: VVP1500-16 VVG1500-16 Choose variant
Related products
Product detailed description
Fifteen hundred litres at 16 bar, with the same dimensions as the 12-bar version. The thicker steel adds over a hundred kilograms.

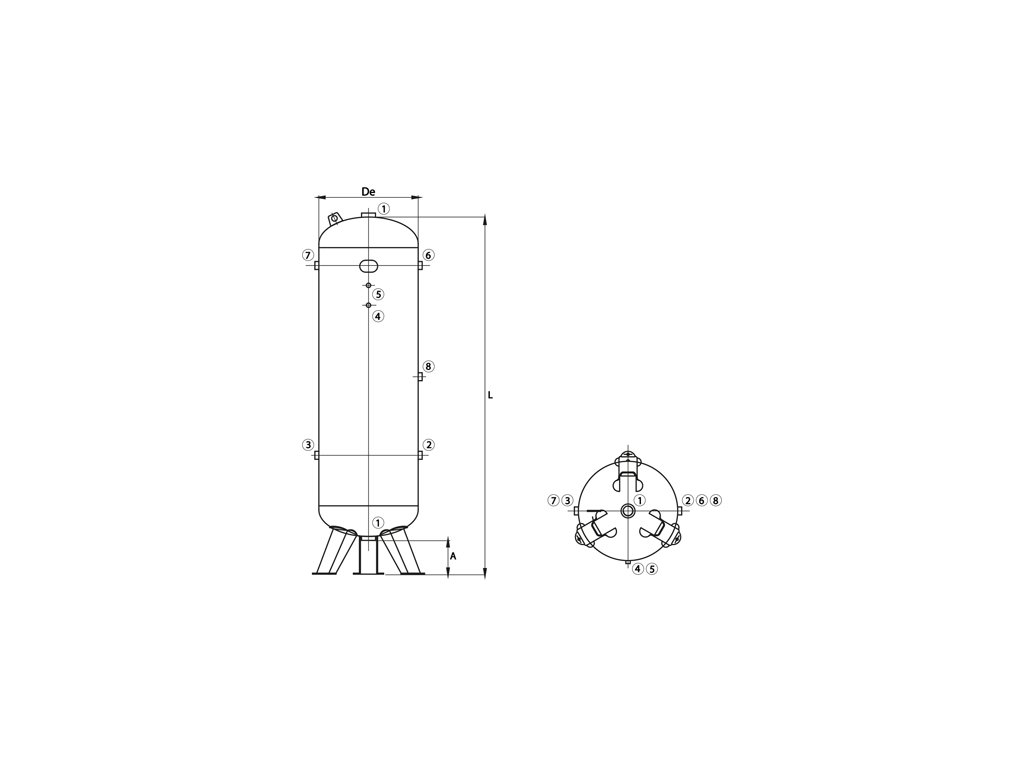

Dimensions and connections
| VVP1500-16 — dimensions and connections | |
|---|---|
| Volume | 1500 l |
| Maximum working pressure | 16 bar |
| Working temperature | −10 to +50 °C |
| Diameter De | 1000 mm |
| Height L | 2305 mm |
| Ground clearance A | 170 mm |
| Height of connections 2 and 3 (B) | 680 mm |
| Height of connections 6 and 7 (C) | 1780 mm |
| Weight | 423 kg |
| Transport on a pallet | lying flat, 2500 × 1200 × 1200 mm, 443 kg |
| Connection 1 | 2" (2×) |
| Connection 2 | 2" |
| Connection 3 | 2" |
| Connection 4 | 1/2" |
| Connection 5 | 1/2" |
| Connection 6 | 2" |
| Connection 7 | 2" |
| Connection 8 | none |
| Material | carbon steel |
| Finish | external RAL 5015 powder coating |
| Directive | 2014/68/EU (PED) |
| Medium | compressed air, nitrogen |
Versions
| VVP1500-16 — versions | |||
|---|---|---|---|
| Version | Order code | Weight | Difference from the painted version |
| painted RAL 5015 | VVP1500-16 | 423 kg | – |
| galvanised | VVG1500-16 | 428 kg | same dimensions and connections |
Typical uses
It serves as the main air receiver downstream of a compressor rated at 13 or 15 bar, in an operation where the ceiling does not allow a taller vessel. The large reserve evens out peaks in demand even at a higher pressure in the air network.
A smaller 16-bar vessel is VVP1000-16, and a larger one is VVP2000-16. The same size for 12 bar is VVP1500-12.
How it is made
Ventilek’s tip
Heavy vessel, solid floor. Over four hundred kilograms rest on three foot plates, and the floor must carry the concentrated load. Vibration dampers belong under the foot plates.
Additional parameters
| Category: | Pressure vessels and air receivers for compressed air |
|---|---|
| Version: | Standing with pedestals |
| Pressure: | 16 bar |
| Material: | Carbon steel |
| Medium: | Air |
| Surface treatment: | Lacquered RAL, Galvanized |
| Container volume: | 1 500 l |
| Directive: | PED - 68/2014EU |
| Thread (1): | 2" |
| Thread (2): | 2" |
| Thread (3): | 2" |
| Thread (4): | 1/2" |
| Thread (5): | 1/2" |
| Thread (6): | 2" |
| Thread (7): | 2" |
| Thread (8): | - |
