Vertical pressure vessel 1500 l - 12 bar Ø 1000 × 2305 mm · 320 kg · connections 2" and 1/2"
Code: VVP1500-12 VVG1500-12 VVA1500-12 Choose variant
Related products
Product detailed description
Fifteen hundred litres, and yet lower than the 1000-litre vessel. It gains its volume from a larger diameter of 1000 mm, so it also fits into a compressor room with a lower ceiling.
Dimensions and connections
| VVP1500-12 — dimensions and connections | |
|---|---|
| Volume | 1500 l |
| Maximum working pressure | 12 bar |
| Working temperature | −10 to +50 °C |
| Diameter De | 1000 mm |
| Height L | 2305 mm |
| Ground clearance A | 170 mm |
| Height of connections 2 and 3 (B) | 680 mm |
| Height of connections 6 and 7 (C) | 1780 mm |
| Weight | 320 kg |
| Transport on a pallet | lying flat, 2500 × 1200 × 1200 mm, 340 kg |
| Connection 1 | 2" (2×) |
| Connection 2 | 2" |
| Connection 3 | 2" |
| Connection 4 | 1/2" |
| Connection 5 | 1/2" |
| Connection 6 | 2" |
| Connection 7 | 2" |
| Connection 8 | none |
| Material | carbon steel |
| Finish | external RAL 5015 powder coating |
| Directive | 2014/68/EU (PED) |
| Medium | compressed air, nitrogen |
Versions
| VVP1500-12 — versions | |||
|---|---|---|---|
| Version | Order code | Weight | Difference from the painted version |

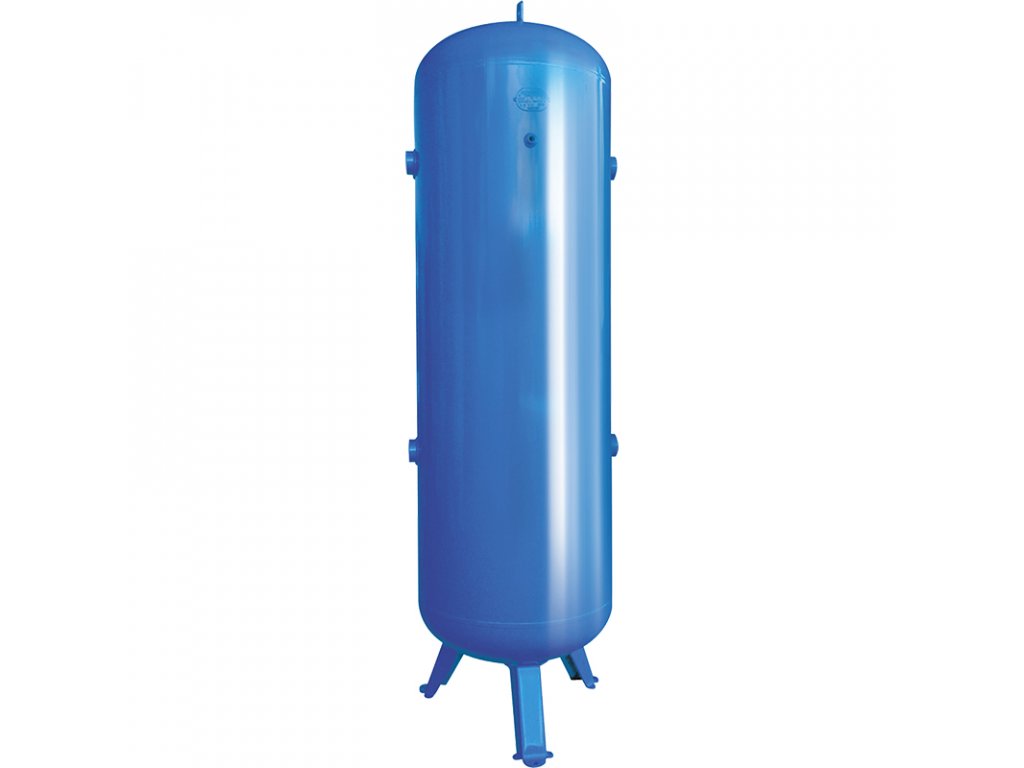

| painted RAL 5015 | VVP1500-12 | 320 kg | – |

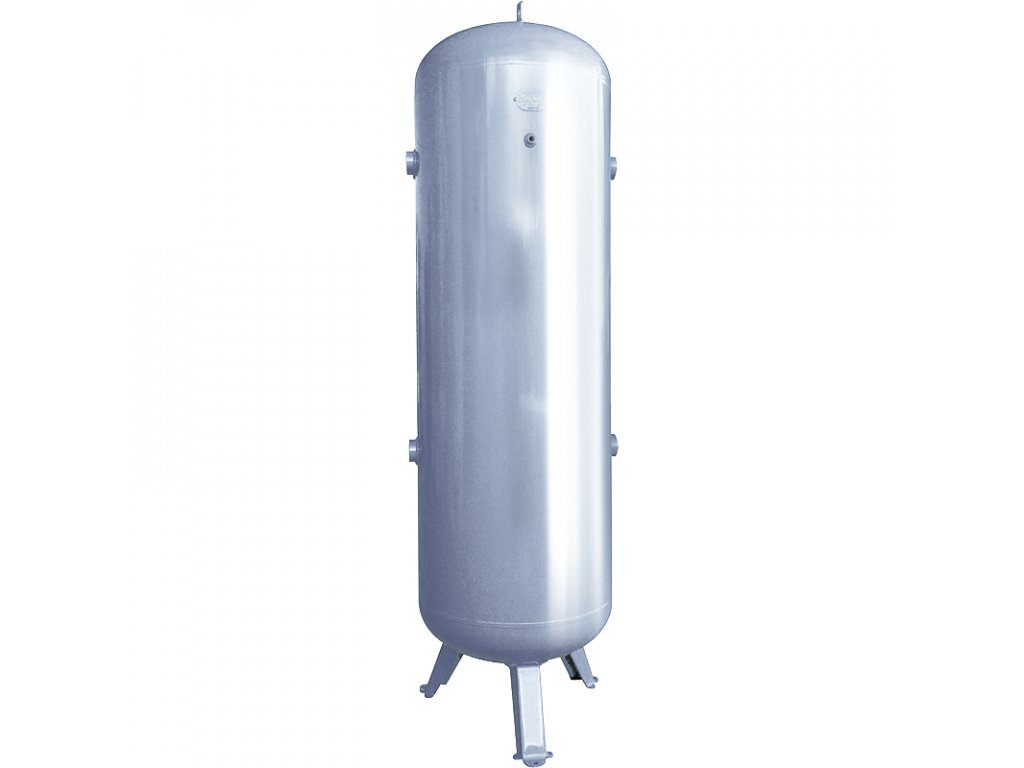

| galvanised | VVG1500-12 | 325 kg | same dimensions and connections |

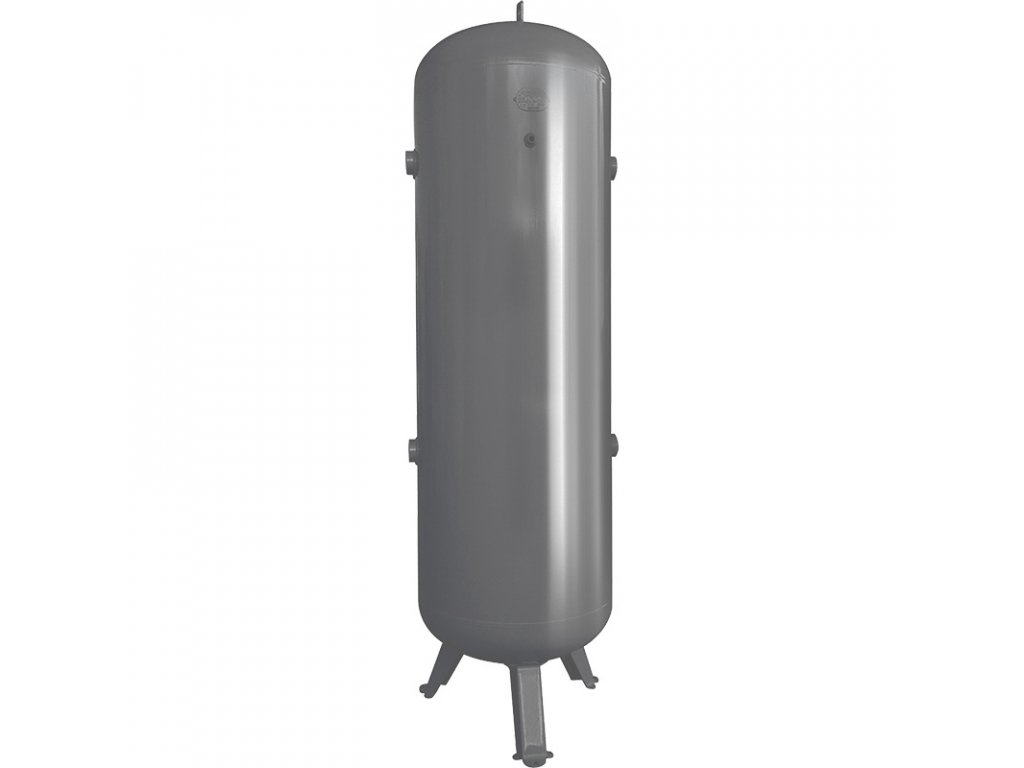

| with ALM internal coating | VVA1500-12 | 320 kg | same dimensions and connections |
Typical uses
It is suitable where 1000 litres is not enough and the ceiling does not allow a taller vessel. The large air reserve lengthens the pauses between compressor starts and covers peaks in demand, for example during blasting or filling. It comes in painted, galvanised and ALM-coated versions.
A smaller option is VVP1000-12, and a larger one is VVP2000-12. The 16-bar version with the same dimensions is VVP1500-16, and the fittings for the painted version come as KVP1500-12.
How it is made
Ventilek’s tip
Measure the doorways, legs included. The vessel is 1000 mm in diameter, and the legs with their foot plates make it wider still. It arrives lying flat on a 2.5 × 1.2 metre pallet.
Additional parameters
| Category: | Pressure vessels and air receivers for compressed air |
|---|---|
| Version: | Standing with pedestals |
| Pressure: | 12 bar |
| Material: | Carbon steel |
| Medium: | Air |
| Surface treatment: | Lacquered RAL, Galvanized, ALM coating (food industry) |
| Container volume: | 1 500 l |
| Directive: | PED - 68/2014EU |
| Thread (1): | 2" |
| Thread (2): | 2" |
| Thread (3): | 2" |
| Thread (4): | 1/2" |
| Thread (5): | 1/2" |
| Thread (6): | 2" |
| Thread (7): | 2" |
| Thread (8): | - |
