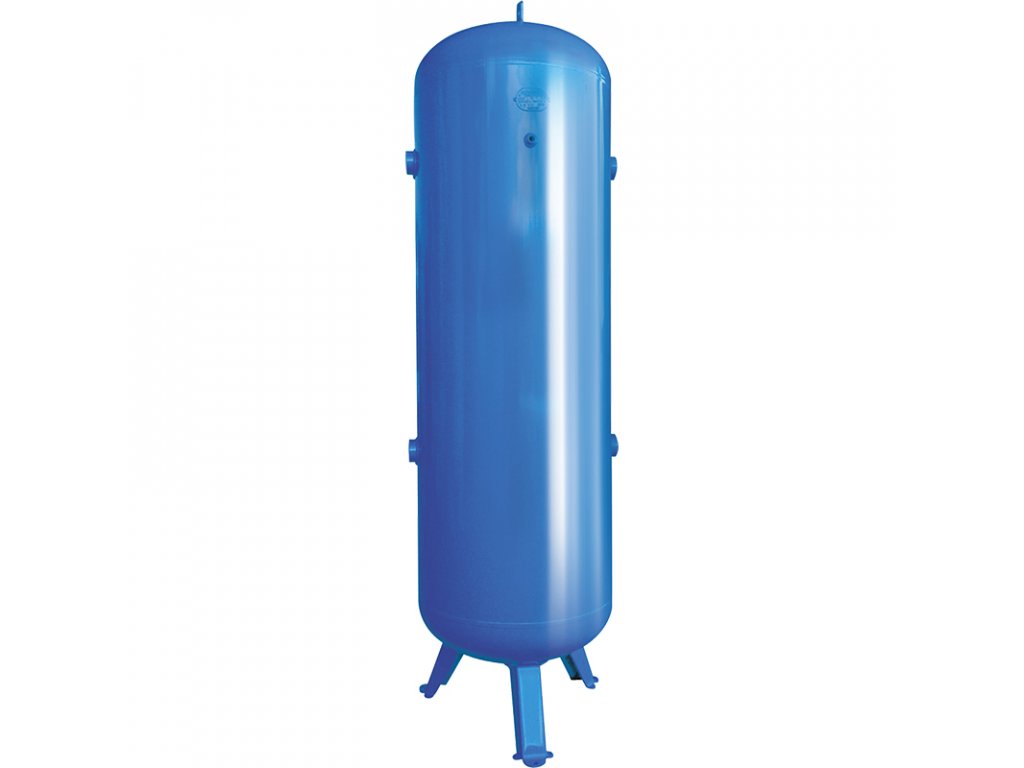

Vertical pressure vessel 1000 l - 12 bar Ø 800 × 2350 mm · 210 kg · connections 2" and 3/8"
Code: VVP1000-12 VVG1000-12 VVA1000-12 Choose variant
Related products
Product detailed description
The smallest vessel in the category. Its footprint is a circle just 800 mm in diameter, but it needs 2.35 metres of height, so measure the ceiling and the doorways before you order.
Dimensions and connections
| VVP1000-12 — dimensions and connections | |
|---|---|
| Volume | 1000 l |
| Maximum working pressure | 12 bar |
| Working temperature | −10 to +50 °C |
| Diameter De | 800 mm |
| Height L | 2350 mm |
| Ground clearance A | 145 mm |
| Height of connections 2 and 3 (B) | 770 mm |
| Height of connections 6 and 7 (C) | 1720 mm |
| Weight | 210 kg |
| Transport on a pallet | lying flat, 2400 × 800 × 1000 mm, 230 kg |
| Connection 1 | 2" (2×) |
| Connection 2 | 2" |
| Connection 3 | 2" |
| Connection 4 | 3/8" |
| Connection 5 | 3/8" |
| Connection 6 | 2" |
| Connection 7 | 2" |
| Connection 8 | none |
| Material | carbon steel |
| Finish | external RAL 5015 powder coating |
| Directive | 2014/68/EU (PED) |
| Medium | compressed air, nitrogen |
Versions
| VVP1000-12 — versions | |||
|---|---|---|---|
| Version | Order code | Weight | Difference from the painted version |
| painted RAL 5015 | VVP1000-12 | 210 kg | – |
| galvanised | VVG1000-12 | 214 kg | same dimensions and connections |
| with ALM internal coating | VVA1000-12 | 210 kg | same dimensions and connections |
Typical uses
It serves as the main air receiver of a compressor station with a single screw compressor, or as a reservoir for large peaks in demand. Its 2" side connections, one low and one high on opposite sides, allow the air to be fed in through the lower one and drawn off through the upper one, so the condensate stays at the bottom.
A larger volume and 45 mm less height are offered by VVP1500-12, and for compressors rated at 13 or 15 bar, there is VVP1000-16. The fittings for the painted version come as KVP1000-12.
How it is made
Ventilek’s tip
The safety valve in the kit has its own flow capacity. The 1/2" valve from the fittings kit discharges 484 Nm³/h. For a compressor with a higher output, choose a valve with a larger flow capacity.
Additional parameters
| Category: | Pressure vessels and air receivers for compressed air |
|---|---|
| Version: | Standing with pedestals |
| Pressure: | 12 bar |
| Material: | Carbon steel |
| Medium: | Air |
| Surface treatment: | Lacquered RAL, Galvanized, ALM coating (food industry) |
| Container volume: | 1 000 l |
| Directive: | PED - 68/2014EU |
| Thread (1): | 2" |
| Thread (2): | 2" |
| Thread (3): | 2" |
| Thread (4): | 3/8" |
| Thread (5): | 3/8" |
| Thread (6): | 2" |
| Thread (7): | 2" |
| Thread (8): | - |
| In stock: | External warehouse |
