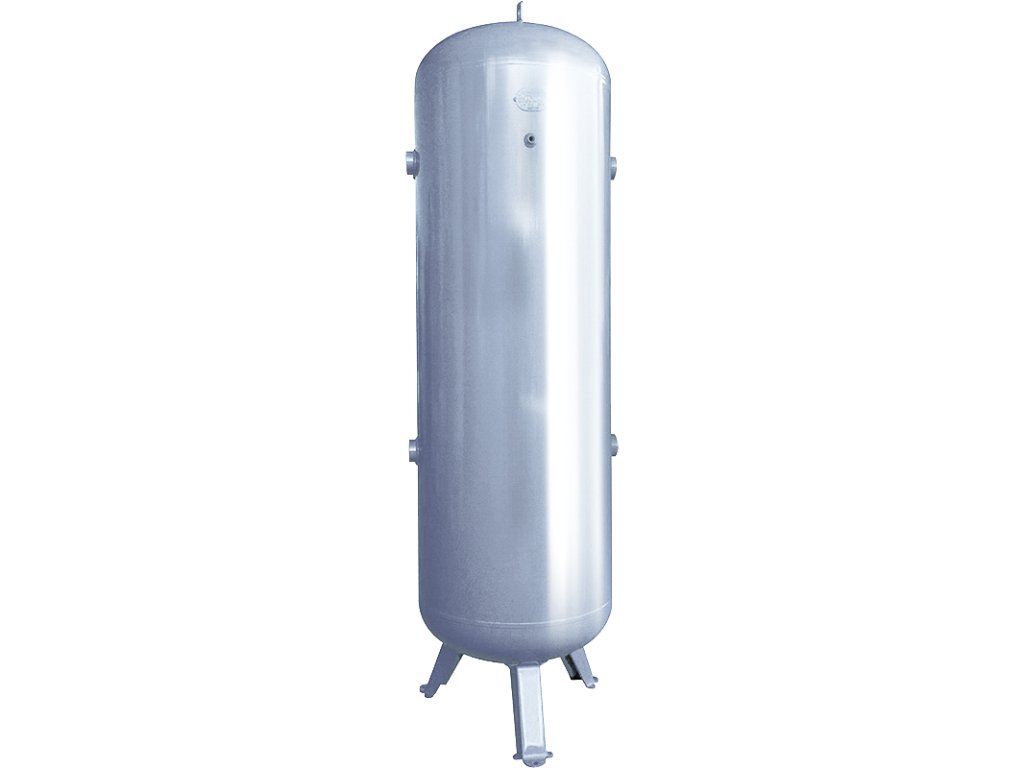

Vertical low-temperature pressure vessel for fluids 1000 l - 12 bar Ø 800 × 2350 mm · 210 kg · connections 2" and 3/8"
Code: VVP1000-12-G1 VVG1000-12-G1 VVA1000-12-G1 Choose variant
Related products
Product detailed description
The smallest vessel in the category: one thousand litres at 12 bar. Its footprint is a circle 800 mm in diameter, and it needs 2.35 metres of height.

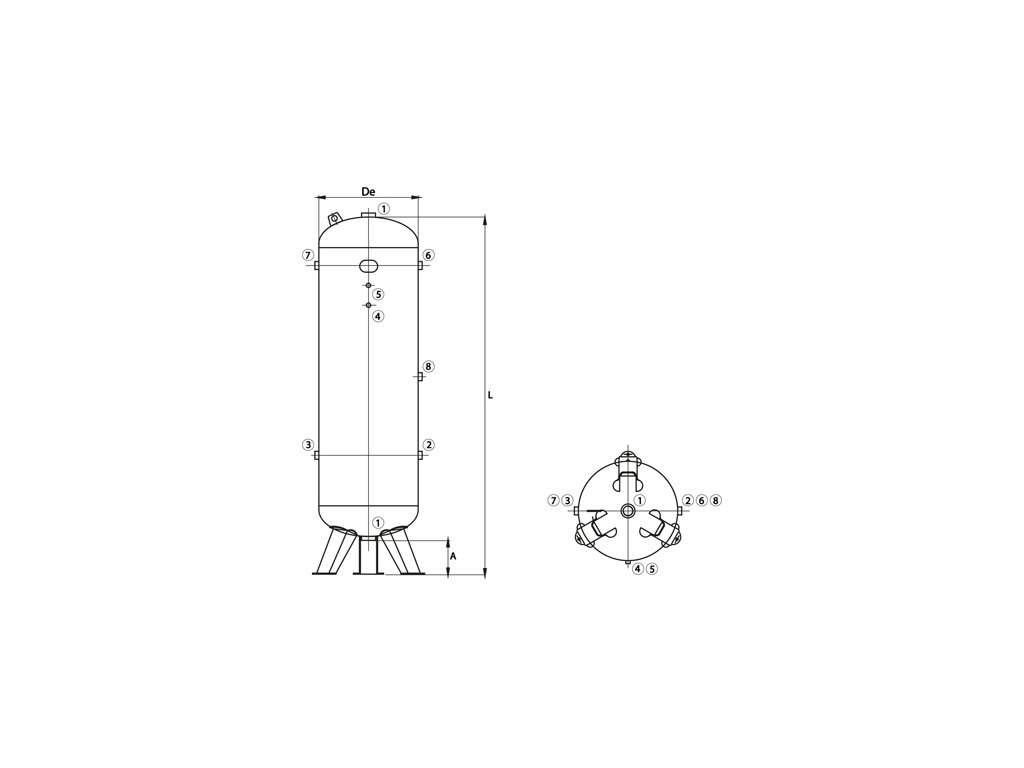

Dimensions and connections
| VVP1000-12-G1 — dimensions and connections | |
|---|---|
| Volume | 1000 l |
| Maximum working pressure | 12 bar |
| Working temperature | −20 to +80 °C |
| Diameter De | 800 mm |
| Height L | 2350 mm |
| Ground clearance A | 145 mm |
| Height of connections 2 and 3 (B) | 770 mm |
| Height of connections 6 and 7 (C) | 1720 mm |
| Weight | 210 kg |
| Transport | lying flat, 2400 × 800 × 1000 mm, 230 kg |
| Lifting lugs | 1 on the top end |
| Connection 1 | 2" (2×) |
| Connection 2 | 2" |
| Connection 3 | 2" |
| Connection 4 | 3/8" |
| Connection 5 | 3/8" |
| Connection 6 | 2" |
| Connection 7 | 2" |
| Material | carbon steel |
| Finish | external RAL 5015 powder coating |
| Directive | 2014/68/EU (PED) |
| Medium | compressed air, nitrogen, argon, helium, oil, oxygen (not hydrogen) |
Versions
| VVP1000-12-G1 — versions | |||
|---|---|---|---|
| Version | Order code | Weight | Difference from the painted version |
| painted RAL 5015 | VVP1000-12-G1 | 210 kg | – |
| galvanised | VVG1000-12-G1 | 214 kg | same dimensions and connections |
| with ALM internal coating | VVA1000-12-G1 | 210 kg | same dimensions and connections |
Typical uses
It serves as the main air receiver for a medium-sized screw compressor in a container, under a canopy or in a hall that is not heated in winter. Its 2" side connections, one low and one high on opposite sides, allow the air to be fed in through the lower one and drawn off through the upper one, so the condensate stays at the bottom.
A larger volume and 45 mm less height are offered by VVP1500-12-G1, and the 16-bar version with the same dimensions is VVP1000-16-G1. For a heated compressor room, you only need the standard VVP1000-12.
How it is made
Ventilek’s tip
Drain the condensate before it freezes. In frost, ice forms in the bottom connection and in the condensate drain. Outdoors, therefore, drain the condensate more often than you would indoors.
Additional parameters
| Category: | Pressure vessels and air receivers for compressed air |
|---|---|
| Version: | Standing with pedestals |
| Pressure: | 12 bar |
| Material: | Carbon steel |
| Medium: | Air, Oil, Nitrogen, Oxygen, Argon, Helium |
| Surface treatment: | Lacquered RAL, Galvanized, ALM coating (food industry) |
| Container volume: | 1 000 l |
| Directive: | PED - 68/2014EU |
| Thread (1): | 2" |
| Thread (2): | 2" |
| Thread (3): | 2" |
| Thread (4): | 3/8" |
| Thread (5): | 3/8" |
| Thread (6): | 2" |
| Thread (7): | 2" |
| Thread (8): | - |
