Vertical low-temperature pressure vessel for fluids 1500 l - 12 bar Ø 1000 × 2305 mm · 320 kg · connections 2" and 1/2"
Code: VVP1500-12-G1 VVG1500-12-G1 VVA1500-12-G1 Choose variant
Related products
Product detailed description
Half a cubic metre more than the 1000-litre vessel, and yet 45 mm lower. It gains its volume from a larger diameter of 1000 mm.

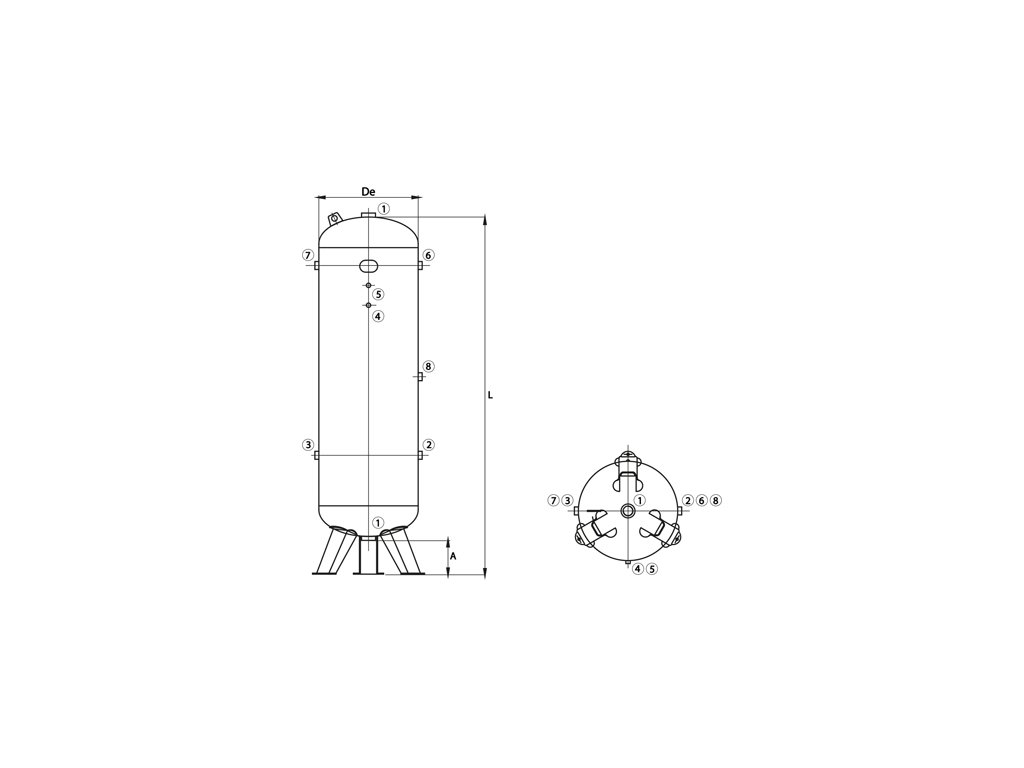

Dimensions and connections
| VVP1500-12-G1 — dimensions and connections | |
|---|---|
| Volume | 1500 l |
| Maximum working pressure | 12 bar |
| Working temperature | −20 to +80 °C |
| Diameter De | 1000 mm |
| Height L | 2305 mm |
| Ground clearance A | 170 mm |
| Height of connections 2 and 3 (B) | 680 mm |
| Height of connections 6 and 7 (C) | 1780 mm |
| Weight | 320 kg |
| Transport | lying flat, 2500 × 1200 × 1200 mm, 340 kg |
| Lifting lugs | 1 on the top end |
| Connection 1 | 2" (2×) |
| Connection 2 | 2" |
| Connection 3 | 2" |
| Connection 4 | 1/2" |
| Connection 5 | 1/2" |
| Connection 6 | 2" |
| Connection 7 | 2" |
| Material | carbon steel |
| Finish | external RAL 5015 powder coating |
| Directive | 2014/68/EU (PED) |
| Medium | compressed air, nitrogen, argon, helium, oil, oxygen (not hydrogen) |
Versions
| VVP1500-12-G1 — versions | |||
|---|---|---|---|
| Version | Order code | Weight | Difference from the painted version |
| painted RAL 5015 | VVP1500-12-G1 | 320 kg | – |
| galvanised | VVG1500-12-G1 | 325 kg | same dimensions and connections |
| with ALM internal coating | VVA1500-12-G1 | 320 kg | same dimensions and connections |
Typical uses
It is suitable where 1000 litres is not enough and the ceiling or canopy does not allow a taller vessel. The large reserve lengthens the pauses between compressor starts and covers peaks in demand, even in winter operation.
A smaller option is VVP1000-12-G1, and a larger one is VVP2000-12-G1. The 16-bar version with the same dimensions is VVP1500-16-G1.
How it is made
Ventilek’s tip
Under a canopy, allow for space at the top. The fittings are mounted on the top end, and the operator must be able to reach them. Leave free space above the vessel for work during inspections as well.
Additional parameters
| Category: | Pressure vessels and air receivers for compressed air |
|---|---|
| Version: | Standing with pedestals |
| Pressure: | 12 bar |
| Material: | Carbon steel |
| Medium: | Air, Oil, Nitrogen, Oxygen, Argon, Helium |
| Surface treatment: | Lacquered RAL, Galvanized, ALM coating (food industry) |
| Container volume: | 1 500 l |
| Directive: | PED - 68/2014EU |
| Thread (1): | 2" |
| Thread (2): | 2" |
| Thread (3): | 2" |
| Thread (4): | 1/2" |
| Thread (5): | 1/2" |
| Thread (6): | 2" |
| Thread (7): | 2" |
| Thread (8): | - |
