    Home / Hoses / Connecting hoses / Crimped connecting hose 1" - 2 m Working pressure 20 bar · −40 to +100 °C · 2 adaptors supplied

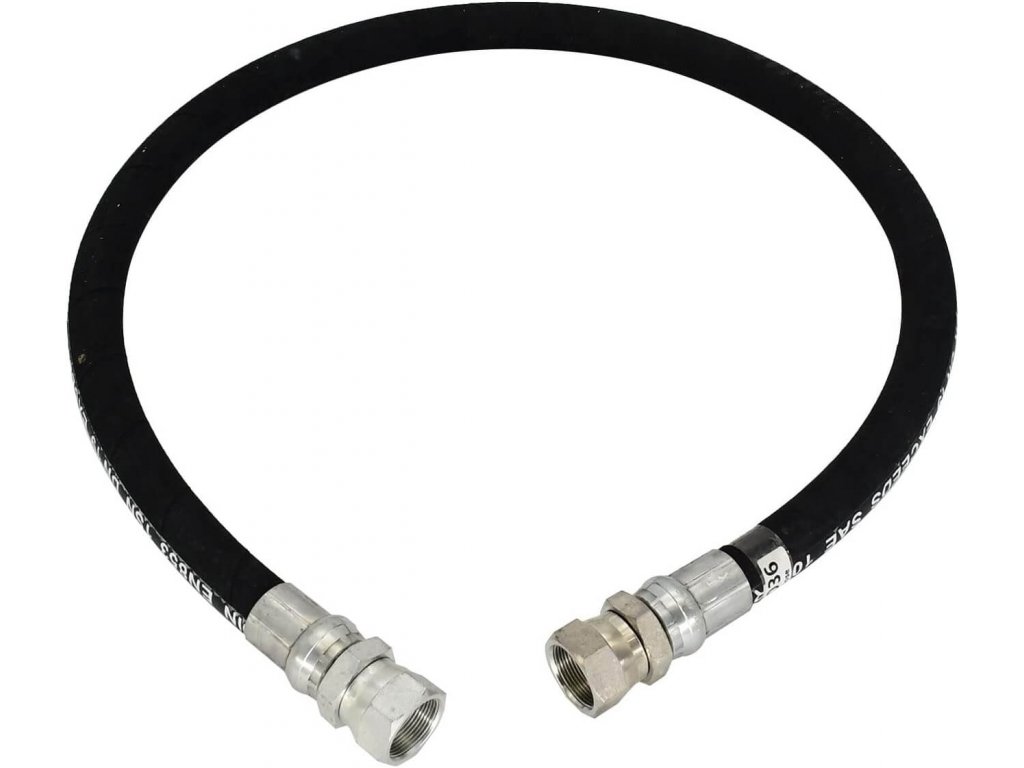

    Crimped connecting hose 1" - 2 m Working pressure 20 bar · −40 to +100 °C · 2 adaptors supplied

    Code: FP10-2-0
    Not rated Rating details
    €81,82 –3 %
    Pryžová spojovací hadice s přímými koncovkami a adaptérem s vnějším závitem
    €81,82 –3 % €79,36 / pcs €65,59 excl. VAT Measure price:
    Stock (2 pcs)
    Delivery to:
    29.10.2026
    Delivery options

    A two-metre 1" rubber hose with straight ends for a compressor station. It connects the compressor, air receiver and dryer, withstands 20 bar and comes with two adaptors.

    Detailed information

    Free shipping
    Free shipping
    For purchases over 5,000 CZK
    We guarantee
    We guarantee
    Extended warranty and service
    Discount voucher
    Discount voucher
    For every purchase
    Return of goods within 30 days
    Return of goods within 30 days
    Completely at our expense

    Related products

    Díly sady armatur KVG1500-12: manometr, pojistný ventil, kulový kohout, koleno, záslepka a redukce
    €297,51 –3 %
    Kit for galvanized pressure vessel KVG1500-12 For vessel VVG1500-12 · safety valve 3/4", 1024 Nm³/h · ball valves 1 1/2"
    up to 14 days
    €238,50 excl. VAT
    €288,59

    Fittings for a galvanised vertical 1500 l vessel: a high-flow safety valve set to 10.5 bar, a pressure gauge with a test cock, two ball valves, a condensate drain valve and...

    Code: KVG1500-12
    Nerezová tlaková nádoba ležatá 100 l - 11 bar
    New
    FREEFREE from €2 662,13 –3 %
    Horizontal stainless steel pressure vessel 100 l - 11 bar Ø 370 × 966 mm · 32 kg · connections 1/2" and 3/8"
    up to 20 days
    from €2 134,11 excl. VAT
    from €2 582,27

    A horizontal stainless steel pressure vessel, 100 l at 11 bar, in AISI304 or AISI316L. Three connections on top of the shell, pickled and passivated.

    Code: VHS100-11
    Vystrojená stojatá tlaková nádoba lakovaná modrou RAL 5015 s kohouty a manometrem (ilustrační obrázek, sestava 270 l se stejnými armaturami)
    Tip
    FREEFREE from €987,22 –3 %
    Vertical pressure vessel with fittings 100 l - 11 bar Ø 370 × 1289 mm · 32 kg · ball valves 3/4"
    up to 14 days
    from €791,41 excl. VAT
    from €957,61

    A TÜV-certified 100 l vertical air receiver with ball valves, a pressure gauge and a safety valve set to 10.5 bar already mounted. It works well as an additional reservoir for a...

    Code: VVP2-100-11A
    Tlaková nádoba stojatá 100 l - 11 bar
    FREEFREE from €348,56 –3 %
    Vertical pressure vessel 100 l - 11 bar Ø 370 × 1213 mm · 31 kg · connections 3/4", 1/2" and 3/8"
    up to 20 days
    from €279,43 excl. VAT
    from €338,11

    A vertical air receiver that fits next to the compressor or into a narrow corner. It works well as the main vessel for a piston compressor or as a second air reserve at a remote...

    Code: VVP2-100-11
    Vakuová nádoba stojatá 500 l, podtlak do −1 bar
    FREEFREE €1 342,99 –3 %
    Vertical vacuum vessel 500 l, vacuum down to −1 bar Ø 600 × 2050 mm · 145 kg · connections 2" and 3/8"
    up to 20 days
    €1 076,61 excl. VAT
    €1 302,70

    A vertical vacuum vessel for vacuum systems with a higher demand or with several vacuum pumps. Vacuum down to −1 bar, blue RAL 5015 paint.

    Code: VVP500-V
    Tlaková nádoba stojatá 3 000 l - 42 bar
    New REQUEST
    FREEFREE
    Vertical pressure vessel 3000 l - 42 bar Ø 1200 × 2990 mm · 1950 kg · connections 2" and 1/2"
    up to 20 days
    €0,04 excl. VAT
    €0,05

    A vertical high-pressure vessel, 3000 l at 42 bar, for compressed air, nitrogen and oxygen, painted in RAL 5015 or galvanised. A large air reserve for pressures up to 40 bar.

    Code: VVP3000-42
    Tlaková nádoba stojatá 1 000 l - 32 bar
    New REQUEST
    FREEFREE
    Vertical pressure vessel 1000 l - 32 bar Ø 800 × 2350 mm · 470 kg · connections 2" and 3/8"
    up to 20 days
    €0,04 excl. VAT
    €0,05

    A vertical high-pressure vessel, 1000 l at 32 bar, for compressed air, nitrogen and oxygen, painted in RAL 5015 or galvanised. It fits into the space of a standard 1000-litre...

    Code: VVP1000-32
    vhp 50 tlakova nadoba vzdusnik lakovana lezata
    €200,66 –3 %
    Horizontal pressure vessel 15 l with feet - 11 bar Ø 196 × 522 mm · 9 kg · connections 1/2" and 3/8"
    Stock (11 pcs)
    €160,86 excl. VAT
    €194,64

    A horizontal air receiver for places where length is limited but a slightly wider vessel is no problem. Compared with the 10-litre version, it holds 50% more air at almost the...

    Code: VHP15-11
    Tlaková nádoba ležatá 1 000 l - 16 bar
    FREEFREE €2 429,13 –3 %
    Horizontal pressure vessel 1000 l - 16 bar Ø 800 × 2158 mm · 253 kg · connections 2", 1", 3/4" and 1/2"
    up to 20 days
    €1 947,31 excl. VAT
    €2 356,25

    A 16-bar horizontal air receiver for compressors that cut out at 13 or 15 bar. Its dimensions match those of the 12-bar version, and it comes in the painted version.

    Code: VHP1000-16
    Tlaková nádoba stojatá pro nízké teploty a tekutiny 10 000 l - 12 bar
    REQUEST
    FREEFREE from €5 669,27 –100 %
    Vertical low-temperature pressure vessel for fluids 10000 l - 12 bar Ø 1650 × 5118 mm · 2015 kg · connections 3", 2", 3/4" and 3/8"
    up to 30 days
    €0,04 excl. VAT
    €0,05

    The largest 12-bar vertical air receiver, for the central reserve of an entire production plant or for large gas reserves at sites with frost down to −20 °C. It comes painted,...

    Code: VVP10000-12
    Nerezová tlaková nádoba ležatá 500 l - 11 bar
    New REQUEST
    FREEFREE
    Horizontal stainless steel pressure vessel 500 l - 11 bar Ø 600 × 1864 mm · 125 kg · connections 1", 1/2" and 3/8"
    up to 20 days
    €0,04 excl. VAT
    €0,05

    A horizontal stainless steel pressure vessel, 500 l at 11 bar, in AISI304 or AISI316L. Pickled and passivated, it stands on two saddle feet.

    Code: VHS500-11
    vlp 50 tlakova nadoba vzdusnik lakovana lezata
    FREEFREE €147,85 –3 %
    Horizontal pressure vessel 5 l without feet - 11 bar Ø 150 × 370 mm · 5.5 kg · connections 1/2" and 1/4"
    Stock (8 pcs)
    €118,53 excl. VAT
    €143,42

    The smallest air receiver for built-in use, a smooth cylinder without feet. You mount it with clamps in a frame, a cabinet or a small pneumatic device.

    Code: VLP5-11
    Vystrojená stojatá tlaková nádoba lakovaná modrou RAL 5015 s kohouty a manometrem
    Tip
    FREEFREE from €1 850,73 –3 %
    Vertical pressure vessel with fittings 500 l - 11 bar Ø 600 × 2064 mm · 117 kg · ball valves 1"
    up to 14 days
    from €1 483,64 excl. VAT
    from €1 795,21

    A TÜV-certified 500 l vertical air receiver with ball valves, a pressure gauge with a test cock and a safety valve set to 10.5 bar already mounted. The main air reserve...

    Code: VVP2-500-11A
    Tlaková nádoba stojatá 50 l - 11 bar
    €332,67 –3 %
    Vertical pressure vessel 50 l - 11 bar Ø 305 × 929 mm · 19 kg · connections 1/2" and 3/8"
    Stock (3 pcs)
    €266,69 excl. VAT
    €322,69

    A vertical air receiver with twice the air reserve of the 24-litre version, while still needing little floor space. The taller legs leave room under the bottom end for a...

    Code: VVP50-11
    Nerezová tlaková nádoba ležatá 1 000 l - 11 bar
    New REQUEST
    FREEFREE
    Horizontal stainless steel pressure vessel 1000 l - 11 bar Ø 800 × 2200 mm · 377 kg · connections 2", 1", 3/4" and 1/2"
    up to 20 days
    €0,04 excl. VAT
    €0,05

    The largest horizontal stainless steel pressure vessel, 1000 l at 11 bar, in AISI304 or AISI316L. Pickled and passivated, manufactured to the Pressure Equipment Directive (PED).

    Code: VHS1000-11
    Nerezová tlaková nádoba ležatá 270 l - 11 bar
    New
    FREEFREE from €6 113,18 –3 %
    Horizontal stainless steel pressure vessel 270 l - 11 bar Ø 500 × 1558 mm · 69 kg · connections 1", 1/2" and 3/8"
    up to 20 days
    from €4 900,65 excl. VAT
    from €5 929,79

    A horizontal stainless steel pressure vessel, 270 l at 11 bar, in AISI304 or AISI316L steel. Pickled and passivated, with a larger top connection for connecting the pipework.

    Code: VHS270-11
    Show all related products Previous product Next product

    Product detailed description

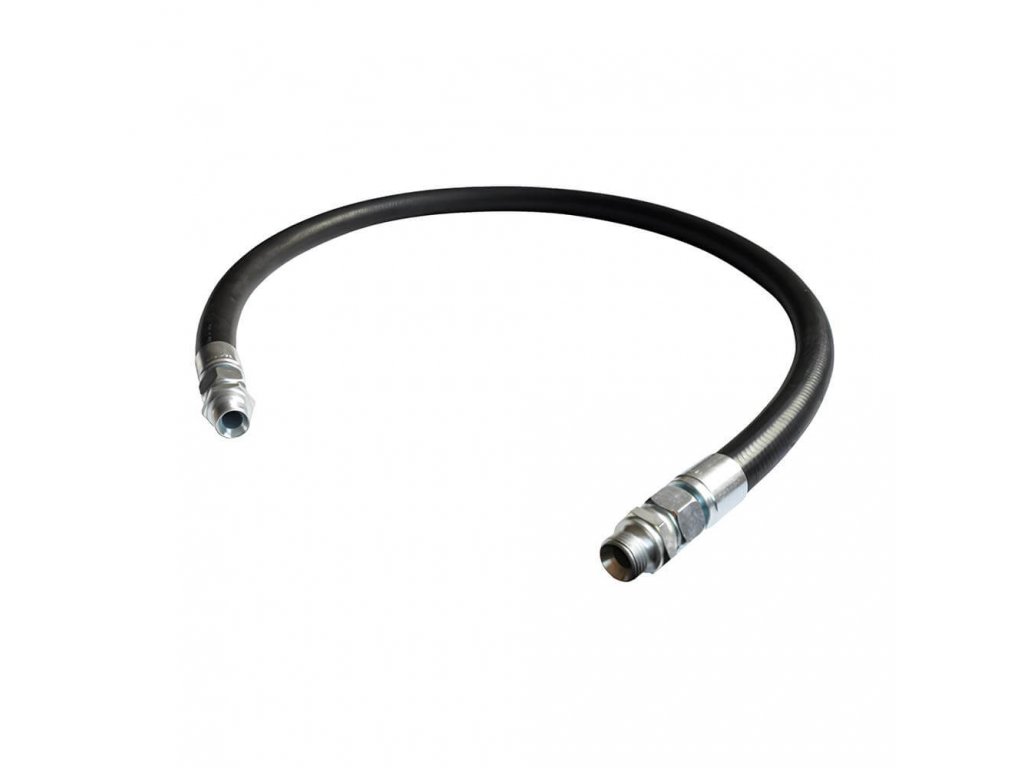

    Straight endsRubber connecting hose with straight ends and a male-thread adaptor

    A 1" hose with straight ends, 2 metres long. Long enough for a loose curve between the compressor and the vessel.

    1"thread
    DN 25nominal bore
    2 mlength
    20 barworking pressure

    Specifications

    FP10-2-0 — specifications
    ThreadG 1"
    Nominal boreDN 25
    Length2000 mm
    End fittingsboth straight, swivel nut with female thread
    Working pressure20 bar
    Working temperature−40 to +100 °C
    Hoserubber, crimped end fittings
    Resistant tocompressor oil, condensate
    Scope of supplyhose and 2 adaptors with G 1" male thread

    Typical uses

    A 1" hose suits screw compressors with a 1" outlet and the 500 and 720 l vessels, whose fittings kits have 1" ball valves. Straight ends are the right choice for a connection in a loose curve.

    The next length down is FP10-1-5, and the next length up is FP10-2-5. The version with a 90° elbow is FPL10-2-0.

    Ventilek’s tip

    A loose curve, no tension. A compressor on vibration dampers moves when it starts up. The hose must have some slack to take up that movement and must not be pulled taut between the connections.

    Additional parameters

    Category: Connecting hoses crimped including fittings
    Pressure: 20 bar
    Barva: Black
    End design: Straight endings
    Lightness: DN 25
    Temperature: -40/+100 °C
    Threads: 1"
