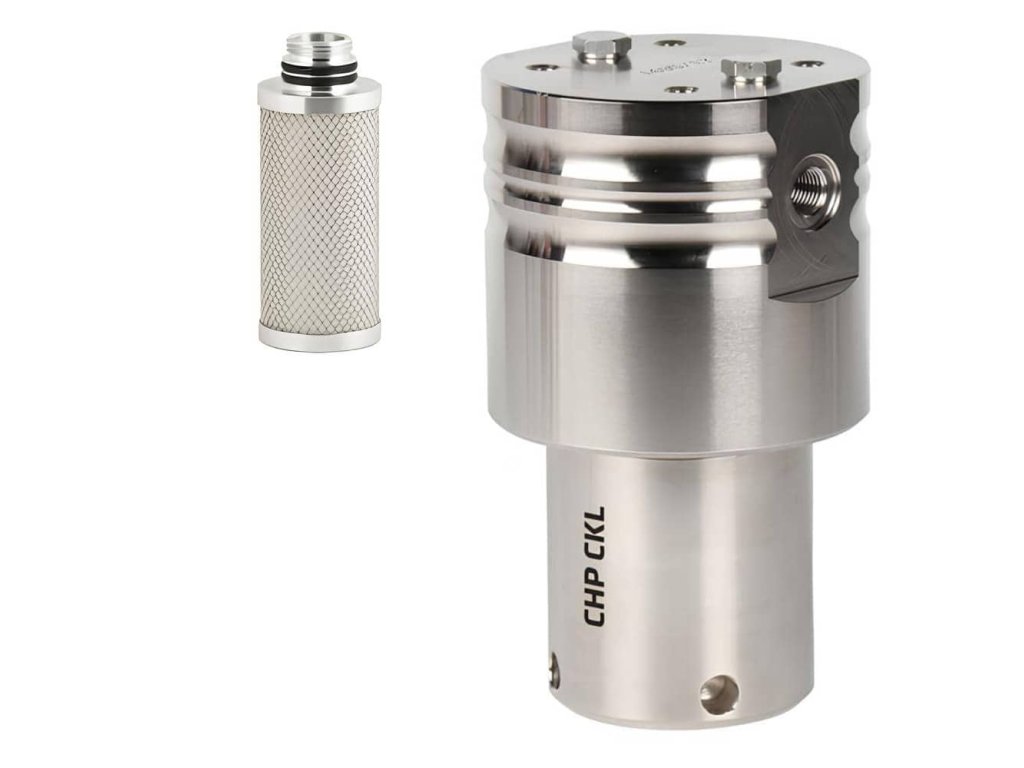

Stainless steel microfilter IHP1S-094 – 100 bar, G 2", 11,917 l/min 0.01 microns · class 1-x-1 · 100 bar
Code: IHP1S-094
Related products
Product detailed description
The IHP1S-094 stainless steel microfilter traps particles larger than 0.01 µm, water and oil; residual oil is below 0.01 mg/m³. It has a G 2" thread, a flow of 11,917 l/min at 7 bar and a working pressure of up to 100 bar.
It belongs to the range of IHP1 high-pressure filters, among the IHP1S microfilters: the housing is the same for all stages, only the element differs.
Specifications
| Parameter | Value |
|---|---|
| Connection | G 2" (female pipe thread) |
| Flow at 7 bar | 11,917 l/min (715 Nm³/h) |
| Working pressure | 100 bar |
| Working temperature | +1.5 to +65 °C |
| Filtration rating | 0.01 µm |
| ISO 8573-1 class | 1-x-1 |
| Residual oil | < 0.01 mg/m³ |
| Element replacement | at a pressure drop of 350 mbar, at least once every 12 months |
| Element | IHPS-094V |
| Element material | borosilicate microfibres |
| Housing | stainless steel 1.4301, 1.4404 on request |
| Height A | 460 mm |
| Head width B | 195 mm |
| Maximum width C | 216 mm |
| From the top edge D | 65 mm |
| Weight | 73.5 kg |
| Condensate drain | ordered separately |
| Condensate outlet | G 1/4" opening in the bottom |
Housing and dimensions
The housing is made of stainless steel 1.4301, or 1.4404 on request. The air is connected through female pipe threads in the filter head; the condensate leaves through a G 1/4" opening in the bottom.
According to the manufacturer: height A 460 mm, head width B 195 mm, maximum width C 216 mm and from the top edge D 65 mm. Weight 73.5 kg.
Flow by pressure
The flow applies to a pressure of 7 bar and a temperature of +20 °C. At a higher pressure, it is multiplied by the correction factor; from 100 bar it is 12:
| Pressure (bar) | 7 | 25 | 40 | 64 | 100 |
|---|---|---|---|---|---|
| Flow (l/min) | 11,917 | 35,751 | 59,585 | 95,336 | 143,004 |
Element and accessories
| For this filter: | |
|---|---|
| Spare element | IHPS-094V |
| Condensate drain (ordered separately) | TD420M-230VAC, TD420M-24VDC |
| Water separator before the filter | IHP cyclone separators |
Where to place it
It goes after the IHP1M fine pre-filter, which protects it. It is mandatory before the IHP1A activated carbon filter.
You will find other sizes among the filters of the same stage.
Additional parameters
| Category: | Stainless steel air microfilters IHP1S up to 100 bar |
|---|---|
| Version: | Microfilter |
| Pressure: | 100 bar |
| Connecting: | 2" |
| Dimensions: | 460 × 195 × 216 mm |
| Filtration: | 0.01 µm |
| Filter insert: | IHPS-094V |
| Material: | Stainless steel |
| Condensate discharge: | Without drain |
| Working temperature: | +1.5 / +65°C |
| Flow: | 11,917 l/min |
| Residual oil: | <0,01 mg/m³ |
| Quality class - oils: | 1 |
| Quality class - solid impurities: | 1 |
