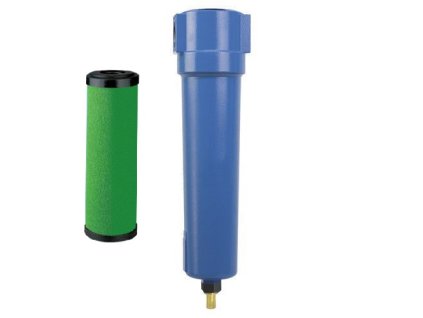

    AAFM compressed air pre-filters

    Předfiltry stlačeného vzduchu AAFM
    • coalescing microfilters 0.1 µm
    • use as a fine filter for solid dirt, water and oil
    • filtration according to ISO 8573-1 class 2-x-2
    • Filter material: borosilicate microfibers
    • condensate drainage from the vessel by float drain AOK16B
    • operating temperature +1.5 to +65 °C
    • working pressure 16 bar
    • reference flow conditions: ambient temperature +20 °C, inlet air temperature +35 °C, working pressure 7 bar; for other conditions a correction factor must be used for the calculation - please contact us

    Compressed air prefilters AAFM filters - 0,1 um
    Ordering
    number    		 Flow Pressure Thread Dimensions mm Weight Filtration
    liner
    l/min m³/h bar " and b C d kg
    AAFM-25 417 25 16 1/4" 145 73 18 50 0,42 AAFM-25V
    AAFM-30 500 30 16 3/8" 145 73 18 50 0,42
    AAFM-35 583 35 16 1/4" 189 88 21 60 0,72 AAFM-35V
    AAFM-60 1 000 60 16 3/8" 189 88 21 60 0,60
    AAFM-78 1 300 78 16 1/2" 189 88 21 80 0,60 AAFM-78V
    AAFM-120 2 000 120 16 3/4" 257 88 21 150 0,70 AAFM-120V
    AAFM-198 3 300 198 16 1" 261 125 37 160 1,20 AAFM-198V
    AAFM-335 5 583 335 16 1" 361 125 37 250 1,60 AAFM-335V
    AAFM-510 8 500 510 16 1 1/2" 461 125 37 350 1,90 AAFM-510V
    AAFM-780 13 000 780 16 1 1/2" 641 125 37 530 2,60 AAFM-780V
    AAFM-1000 16 667 1 000 16 2" 696 164 50 520 5,70 AAFM-1000V
    AAFM-1500 25 000 1 500 16 2" 943 164 50 770 7,60 AAFM-1500V
    AAFM-1680 28 000 1 680 16 2 1/2" 943 164 50 770 7,30
    AAFM-2160 36 000 2 160 16 3" 801 242 60 630 16,70 AAFM-2160V
    AAFM-2760 46 000 2 760 16 3" 998 242 60 780 21,30 AAFM-2760V
    Reference flow conditions: temperature +20 °C, working pressure 7 bar; for other conditions a correction factor must be used for the calculation.

    Correction factor - Working pressure
    Working pressure bar 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
    Correction factor 0,38 0,50 0,63 0,75 0,88 1,00 1,13 1,25 1,38 1,50 1,63 1,75 1,88 2,00 2,13

    #ShowMore#

    Filtrační stupně stlačeného vzduchu ISO 8573-1

    Jednotlivé filtrační vložky filtrů stlačeného vzduchu AAF OMEGA AIR

    Schéma filtru stlačeného vzduchu od kompresoru AAF

    Bestsellers

    AAFM pre-filter - 3/4" - 2,000 l/min
    Stock (8 pcs)
    Code: AAFM-120
    Was: €219,10  (–3 %)
    €212,53
    (€175,64 excl. VAT)
    Replacement filter cartridge for pre-filter - AAFM-2760V
    Stock (4 pcs)
    Code: AAFM-2760V
    Was: €419,54  (–3 %)
    €406,95
    (€336,32 excl. VAT)
    Replacement filter insert for pre-filter - AAFM-2160V
    up to 14 days
    Code: AAFM-2160V
    Was: €362,04  (–3 %)
    €351,18
    (€290,23 excl. VAT)

    Product sorting

    27 items total

    List of products

    aaf t
    Tip
    €328,35 –3 %
    AAFM pre-filter - 1" - 5,583 l/min
    Stock (5 pcs)
    €263,22 excl. VAT
    €318,50 / pcs

    AAFM 1" pre-filter for the removal of fine impurities up to 0.1 um from compressed air according to ISO 8573-1 class 2. Body with easily removable container and designed for a...

    Code: AAFM-335
    aaf t
    Tip
    €161,51 –3 %
    AAFM pre-filter - 1/4" - 417 l/min
    Stock (2 pcs)
    €129,47 excl. VAT
    €156,66 / pcs

    AAFM pre-filter in 1/4" design for removal of fine impurities up to 0.1 um from compressed air according to ISO 8573-1 class 2. Body with easily removable container and designed...

    Code: AAFM-25
    aaf t
    Tip
    €164,02 –3 %
    AAFM pre-filter - 3/8" - 500 l/min
    Stock (4 pcs)
    €131,49 excl. VAT
    €159,10 / pcs

    AAFM pre-filter in 3/8" design for removal of fine impurities up to 0.1 um from compressed air according to ISO 8573-1 class 2. Body with easily removable container and designed...

    Code: AAFM-30
    aaf t
    Tip
    €169,69 –3 %
    AAFM pre-filter - 3/8" - 1,000 l/min
    Stock (1 pcs)
    €136,03 excl. VAT
    €164,60 / pcs

    AAFM pre-filter in 3/8" design for removal of fine impurities up to 0.1 um from compressed air according to ISO 8573-1 class 2. Body with easily removable container and designed...

    Code: AAFM-60
    aaf t
    Tip
    €382,17 –3 %
    AAFM pre-filter - 1 1/2" - 8,500 l/min
    Stock (2 pcs)
    €306,37 excl. VAT
    €370,71 / pcs

    AAFM 1 1/2" pre-filter for removing fine impurities up to 0.1 um from compressed air according to ISO 8573-1 class 2. Body with easily removable container and designed for a...

    Code: AAFM-510
    aaf t
    Tip
    €1 220,38 –3 %
    AAFM pre-filter - 2 1/2" - 28,000 l/min
    Stock (1 pcs)
    €978,32 excl. VAT
    €1 183,77 / pcs

    AAFM pre-filter in 2 1/2" design to remove fine impurities up to 0.1 um from compressed air according to ISO 8573-1 class 2. Body with easily removable container and designed...

    Code: AAFM-1680
    aaf t
    Tip
    €707,60 –3 %
    AAFM pre-filter - 2" - 16,667 l/min
    Stock (10 pcs)
    €567,25 excl. VAT
    €686,37 / pcs

    AAFM pre-filter in 2" design for removal of fine impurities up to 0.1 um from compressed air according to ISO 8573-1 class 2. Body with easily removable container and designed...

    Code: AAFM-1000
    aaf t
    Tip
    €849,72 –3 %
    AAFM pre-filter - 2" - 25,000 l/min
    Stock (1 pcs)
    €681,18 excl. VAT
    €824,23 / pcs

    AAFM pre-filter in 2" design for removal of fine impurities up to 0.1 um from compressed air according to ISO 8573-1 class 2. Body with easily removable container and designed...

    Code: AAFM-1500
    vlozka aafm
    Original parts
    €36,17 –3 %

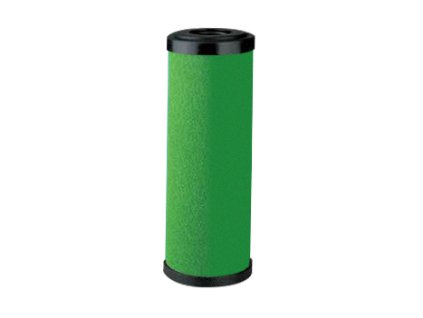

    Replacement filter insert for pre-filter - AAFM-25V
    Stock (5 pcs)
    €28,99 excl. VAT
    €35,08 / pcs

    Replacement fine filter cartridge with 0.1 µm filtration capacity for OMEGA AIR AAFM-25 and AAFM-30 pre-filters. Recommended replacement 12 months or every 4,000 MH and when...

    Code: AAFM-25V
    vlozka aafm
    Original parts
    €37,43 –2 %

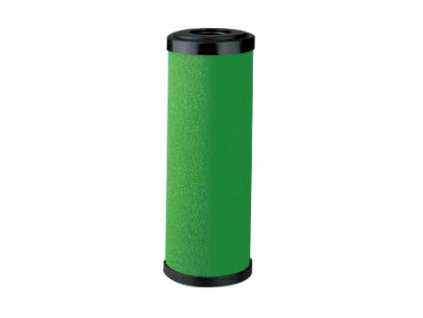

    Replacement filter insert for pre-filter - AAFM-35V
    Stock (3 pcs)
    €30,01 excl. VAT
    €36,31 / pcs

    Replacement fine filter cartridge with 0.1 µm filtration capacity for OMEGA AIR AAFM-35 and AAFM-60 pre-filters. Recommended replacement 12 months or every 4,000 MH and when...

    Code: AAFM-35V
    vlozka aafm
    Original parts
    €105,90 –2 %
    Replacement filter cartridge for pre-filter - AAFM-335V
    Stock (4 pcs)
    €84,90 excl. VAT
    €102,73 / pcs

    Replacement fine filter cartridge with 0.1 µm filtration capacity for OMEGA AIR AAFM-335 pre-filter. Recommended replacement 12 months or every 4,000 MH and when clogging of the...

    Code: AAFM-335V
    vlozka aafm
    Original parts
    €75,04 –3 %
    Replacement filter insert for pre-filter - AAFM-198V
    Stock (5 pcs)
    €60,16 excl. VAT
    €72,79 / pcs

    Replacement fine filter insert with filtration capacity of 0.1 µm for OMEGA AIR pre-filter AAFM-198. Recommended replacement 12 months or every 4,000 MH and when clogging of the...

    Code: AAFM-198V
    vlozka aafm
    Original parts
    €128,10 –3 %
    Replacement filter insert for pre-filter - AAFM-510V
    Stock (8 pcs)
    €102,69 excl. VAT
    €124,26 / pcs

    Replacement fine filter cartridge with 0.1 µm filtration capacity for OMEGA AIR AAFM-510 pre-filter. Recommended replacement 12 months or every 4,000 MH and when clogging of the...

    Code: AAFM-510V
    aaf t
    Tip
    €219,10 –3 %
    AAFM pre-filter - 3/4" - 2,000 l/min
    Stock (8 pcs)
    €175,64 excl. VAT
    €212,53 / pcs

    AAFM pre-filter in 3/4" design for removal of fine impurities up to 0.1 um from compressed air according to ISO 8573-1 class 2. Body with easily removable container and designed...

    Code: AAFM-120
    vlozka aafm
    Original parts
    €419,54 –3 %
    Replacement filter cartridge for pre-filter - AAFM-2760V
    Stock (4 pcs)
    €336,32 excl. VAT
    €406,95 / pcs

    Replacement fine filter cartridge with 0.1 µm filtration capacity for OMEGA AIR AAFM-2760 pre-filter. Recommended replacement 12 months or every 4,000 MH and when clogging of...

    Code: AAFM-2760V
    vlozka aafm
    Original parts
    €233,94 –3 %
    Replacement filter insert for pre-filter - AAFM-1000V
    Stock (6 pcs)
    €187,54 excl. VAT
    €226,92 / pcs

    Replacement fine filter cartridge with 0.1 µm filtration capacity for OMEGA AIR AAFM-1000 pre-filter. Recommended replacement 12 months or every 4,000 MH and when clogging of...

    Code: AAFM-1000V
    vlozka aafm
    Original parts
    €284,90 –3 %
    Replacement filter insert for pre-filter - AAFM-1500V
    Stock (6 pcs)
    €228,40 excl. VAT
    €276,36 / pcs

    Replacement fine filter cartridge with 0.1 µm filtration capacity for OMEGA AIR AAFM-1500 and AAFM-1680 pre-filters. Recommended replacement 12 months or every 4,000 MH and when...

    Code: AAFM-1500V
    aaf t
    Tip
    €168,81 –3 %
    AAFM pre-filter - 1/4" - 583 l/min
    up to 14 days
    €135,33 excl. VAT
    €163,75 / pcs

    AAFM pre-filter in 1/4" design for removal of fine impurities up to 0.1 um from compressed air according to ISO 8573-1 class 2. Body with easily removable container and designed...

    Code: AAFM-35
    aaf t
    Tip
    €1 790,11 –3 %
    AAFM pre-filter - 3" - 46,000 l/min
    up to 14 days
    €1 435,05 excl. VAT
    €1 736,41 / pcs

    AAFM pre-filter in 3" design for removal of fine impurities up to 0.1 um from compressed air according to ISO 8573-1 class 2. Body with easily removable container and designed...

    Code: AAFM-2760
    vlozka aafm
    Original parts
    €46,31 –3 %
    Replacement filter insert for pre-filter - AAFM-78V
    up to 14 days
    €37,12 excl. VAT
    €44,92 / pcs

    Replacement fine filter cartridge with 0.1 µm filtration capacity for OMEGA AIR AAFM-78 pre-filter. Recommended replacement 12 months or every 4,000 MH and when clogging of the...

    Code: AAFM-78V
    aaf t
    Tip
    €456,95 –3 %
    AAFM pre-filter - 1 1/2" - 13,000 l/min
    up to 14 days
    €366,31 excl. VAT
    €443,24 / pcs

    AAFM 1 1/2" pre-filter for removing fine impurities up to 0.1 um from compressed air according to ISO 8573-1 class 2. Body with easily removable container and designed for a...

    Code: AAFM-780
    vlozka aafm
    Original parts
    €59,59 –2 %
    Replacement filter insert for pre-filter - AAFM-120V
    up to 14 days
    €47,78 excl. VAT
    €57,81 / pcs

    Replacement fine filter cartridge with 0.1 µm filtration capacity for OMEGA AIR AAFM-120 pre-filter. Recommended replacement 12 months or every 4,000 MH and when clogging of the...

    Code: AAFM-120V
    vlozka aafm
    Original parts
    €163,37 –3 %
    Replacement filter insert for pre-filter - AAFM-780V
    up to 14 days
    €130,97 excl. VAT
    €158,47 / pcs

    Replacement fine filter cartridge with 0.1 µm filtration capacity for OMEGA AIR AAFM-780 pre-filter. Recommended replacement 12 months or every 4,000 MH and when clogging of the...

    Code: AAFM-780V
    aaf t
    Tip
    €284,03 –3 %
    AAFM pre-filter - 1" - 3,300 l/min
    up to 14 days
    €227,69 excl. VAT
    €275,51 / pcs

    AAFM 1" pre-filter for the removal of fine impurities up to 0.1 um from compressed air according to ISO 8573-1 class 2. Body with easily removable container and designed for a...

    Code: AAFM-198
    aaf t
    Tip
    €188,98 –3 %
    AAFM pre-filter - 1/2" - 1,300 l/min
    up to 14 days
    €151,50 excl. VAT
    €183,31 / pcs

    AAFM 1/2" pre-filter for removing fine impurities up to 0.1 um from compressed air according to ISO 8573-1 class 2. Body with easily removable container and designed for a flow...

    Code: AAFM-78
    aaf t
    Tip
    €1 479,35 –3 %
    AAFM pre-filter - 3" - 36,000 l/min
    up to 14 days
    €1 185,93 excl. VAT
    €1 434,97 / pcs

    AAFM pre-filter in 3" design for removal of fine impurities up to 0.1 um from compressed air according to ISO 8573-1 class 2. Body with easily removable container and designed...

    Code: AAFM-2160
    vlozka aafm
    Original parts
    €362,04 –3 %
    Replacement filter insert for pre-filter - AAFM-2160V
    up to 14 days
    €290,23 excl. VAT
    €351,18 / pcs

    Replacement fine filter cartridge with 0.1 µm filtration capacity for OMEGA AIR AAFM-2160 pre-filter. Recommended replacement 12 months or every 4,000 MH and when clogging of...

    Code: AAFM-2160V
