Stainless steel coarse filter IHP1N25-010 – 100 bar, G 3/4", 3,250 l/min 25 micron stainless steel mesh · 100 bar
Code: IHP1N25-010
Related products
Product detailed description
The IHP1N25-010 stainless steel coarse mesh filter traps coarse solid contaminants larger than 25 µm and protects the finer stages after it. It has a G 3/4" thread, a flow of 3,250 l/min at 7 bar and a working pressure of up to 100 bar.
It belongs to the range of IHP1 high-pressure filters, among the IHP1N25 coarse filters: the housing is the same for all stages, only the element differs.
Specifications
| Parameter | Value |
|---|---|
| Connection | G 3/4" (female pipe thread) |
| Flow at 7 bar | 3,250 l/min (195 Nm³/h) |
| Working pressure | 100 bar |
| Working temperature | +1.5 to +65 °C |
| Filtration rating | 25 µm |
| Element replacement | at least once every 12 months |

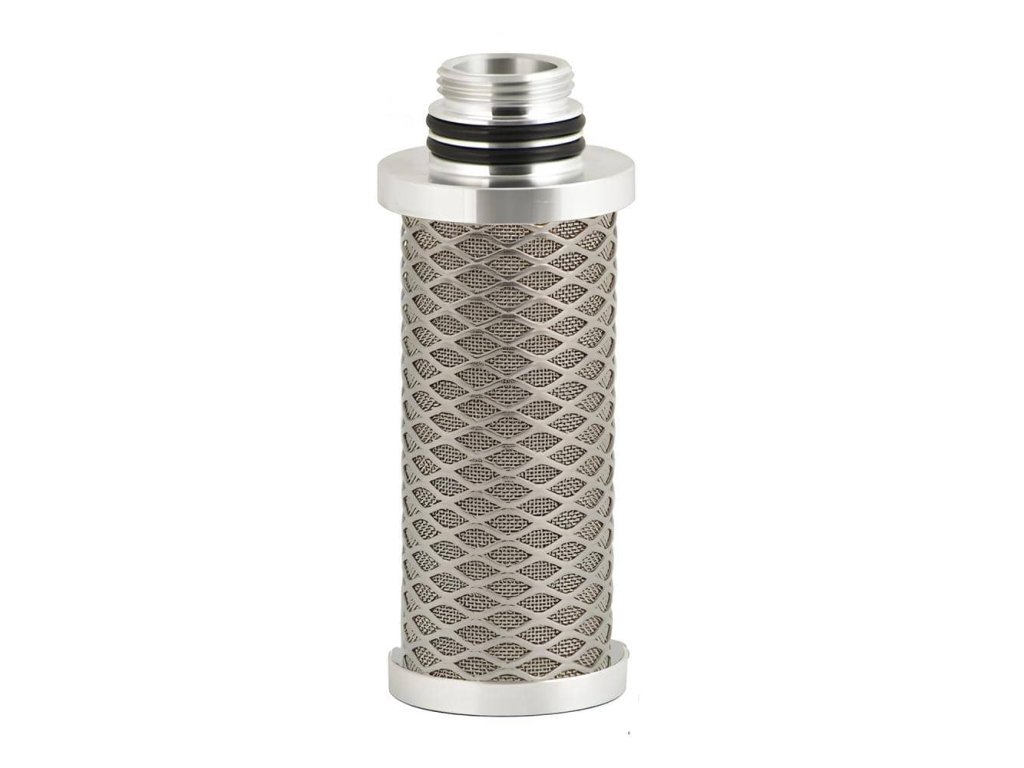

| Element | IHPN25-010V |
| Element material | stainless steel mesh 1.4301 |
| Housing | stainless steel 1.4301, 1.4404 on request |
| Height A | 254 mm |
| Head width B | 118 mm |
| Maximum width C | 129 mm |
| From the top edge D | 36 mm |
| Weight | 16.6 kg |
| Condensate drain | ordered separately |
| Condensate outlet | G 1/4" opening in the bottom |
Housing and dimensions

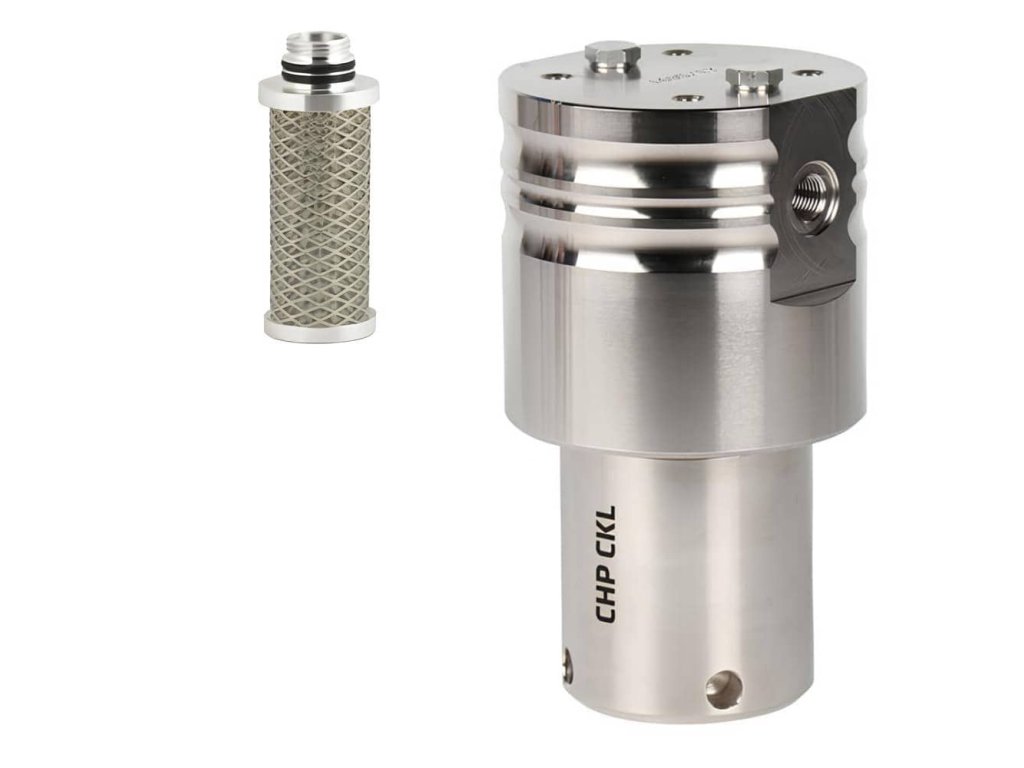

The housing is made of stainless steel 1.4301, or 1.4404 on request. The air is connected through female pipe threads in the filter head; the condensate leaves through a G 1/4" opening in the bottom.
According to the manufacturer: height A 254 mm, head width B 118 mm, maximum width C 129 mm and from the top edge D 36 mm. Weight 16.6 kg.
Flow by pressure
The flow applies to a pressure of 7 bar and a temperature of +20 °C. At a higher pressure, it is multiplied by the correction factor; from 100 bar it is 12:
| Pressure (bar) | 7 | 25 | 40 | 64 | 100 |
|---|---|---|---|---|---|
| Flow (l/min) | 3,250 | 9,750 | 16,250 | 26,000 | 39,000 |
Element and accessories
| For this filter: | |
|---|---|
| Spare element | IHPN25-010V |
| Condensate drain (ordered separately) | TD420M-230VAC, TD420M-24VDC |
| Wall bracket | CHP-WM |
| Water separator before the filter | IHP cyclone separators |
Where to place it
It goes at the start of the filtration, before the IHP1N5 basic filter or IHP1R dust filter.
You will find other sizes among the filters of the same stage.
Additional parameters
| Category: | IHP1N25 stainless high-pressure coarse mesh filters up to 100 bar |
|---|---|
| Version: | Coarse filter |
| Pressure: | 100 bar |
| Connecting: | 3/4" |
| Dimensions: | 254 × 118 × 129 mm |
| Filtration: | 25 µm |
| Filter insert: | IHPN25-010V |
| Material: | Stainless steel |
| Condensate discharge: | Without drain |
| Working temperature: | +1.5 / +65°C |
| Flow: | 3,250 l/min |
| Version: | Coarse filter |
| Pressure: | 100 bar |
| Connecting: | 3/4" |
| Dimensions: | 210 x 105 x 85 mm |
| Filtration: | 25 um |
| Filter insert: | IHPN-010V |
| Material: | Stainless steel |
| Condensate discharge: | Without release |
| Working temperature: | +1.5 / +65°C |
| Flow: | 3,250 l/min |
| Quality class - solid impurities: | 7 |
