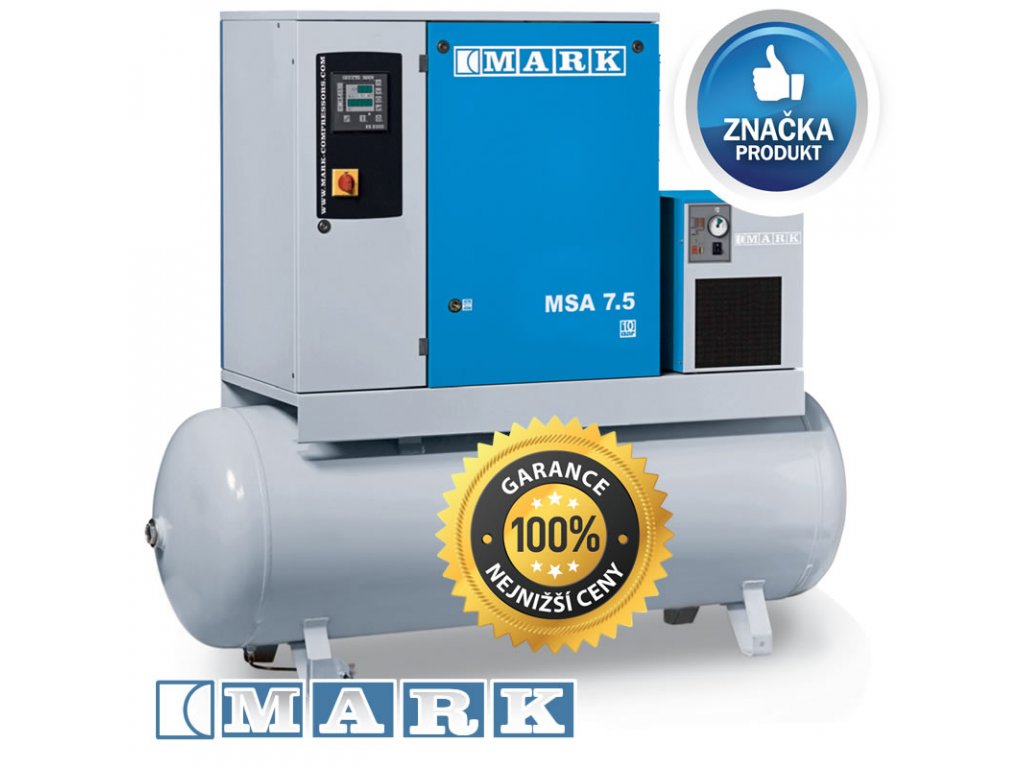

Screw compressor MSA - MSA15/13-500D
Code: MSA15/13-500D
Product detailed description
Screw compressors MSA (4-15 kW)
- Small oil-lubricated screw compressors with superior electronic control and perfect performance
- Designed for medium and large craft workshops, small production facilities and all applications with the need for a continuous supply of high quality compressed air with an emphasis on high machine performance
- Pressure versions with a delivery pressure of 8 - 10 - 13 bar
- Electric motors with power inputs 4 - 5.5 - 7.5 - 11 - 15 kW with standard electrical voltage 400V/50Hz with increased efficiency IE2 (formerly EFF1) according to EN 60034-30
- Traditional transmission between engine and screw block using V-belts
- Running control with the intelligent ES3000 electronic control unit equipped with programs for idling elimination and energy saving; display of many alarms and warnings via LEDs; the ES3000 unit is also equipped with two digital displays and a pleasant menu control via buttons; many values can be displayed on the display, e.g. number of motor hours, pressure, temperature and other necessary data
- The ES3000 also allows control of a series of up to 6 compressors with master-slave control (with the purchase of a network card for one of the machines)
- On-off or IVR operation with variable speed control via frequency converter
- Fan cooling and combined oil-air cooler for low outlet temperature ensuring high quality compressed air delivery
- Lateral air intake through a filter mat located in the wire housing
- Clear design for easy and quick maintenance, practical service kits, easy oil level reading thanks to external oil gauge
- Warranty period of 2 years from commissioning by an authorized service, possibility of extending the warranty for 3 and 5 years upon signing a service contract
Additional parameters
| Category: | Compressors for all applications - hobby and industrial |
|---|---|
| Version: | Screw compressor |
| Pressure: | 13 bar |
| Displacement: | 1,480 l/min |
| Pressure vessel volume: | 500 L |
| Design of pressure vessel: | Lying down |
| Connecting: | 3/4" |
| Motor power: | 15 kW |
| Mains voltage: | 400/50 V/Hz |
| Lubrication: | Oily |
| Dimensions: | 1 935 x 655 x 1 680 mm |
| Weight: | 430 kg |
| Warranty: | 2 years (Extension up to 5 years) |
| Gift: | Voucher worth 1000 CZK |
| The item has been sold out… | |
Be the first who will post an article to this item!
Be the first who will post an article to this item!
Export from Italy to the whole worldAmong the leading manufacturers of compressors and various products for compressed air treatment is the company with Italian roots MARK. A world-renowned company that surpasses even its older competitors with its wide portfolio of products. Today, MARK has one of the largest distribution programs worldwide and thanks to a sophisticated network of sister companies and more than 40 partners, people can meet the products produced in northern Italy literally all over the world. In addition, the company has been a member of the Atlas Copco Group, the largest compressor manufacturer ever, since 1998. |
 |
 |
Cooperation with the largest manufacturer of compressorsIt is thanks to the cooperation with the Alas Copco Group that the product range has been able to be expanded by hundreds and hundreds of new products, while the existing products have been extensively modernised. As a result, MARK now offers more than 300 models of reciprocating compressors, screw compressors with motors from 2.2 to 160 kW, Ecolife and WIS oil-free compressors and thousands of other air treatment products. All this with ISO 9001:2000 and ISO 14001 quality certificates. You can rely on the MARK brand and with proper use their products will serve you for many years. |
The MARK range can be found below.
