Vertical low-temperature pressure vessel for fluids 10000 l - 8 bar Ø 1650 × 5118 mm · 1730 kg · connections 3", 2", 3/4" and 3/8"
Code: VVP10000-8 VVG10000-8 Choose variant
Product detailed description
Ten cubic metres at 8 bar, the largest volume in the category. With a diameter of 1650 mm, it stands over five metres tall.

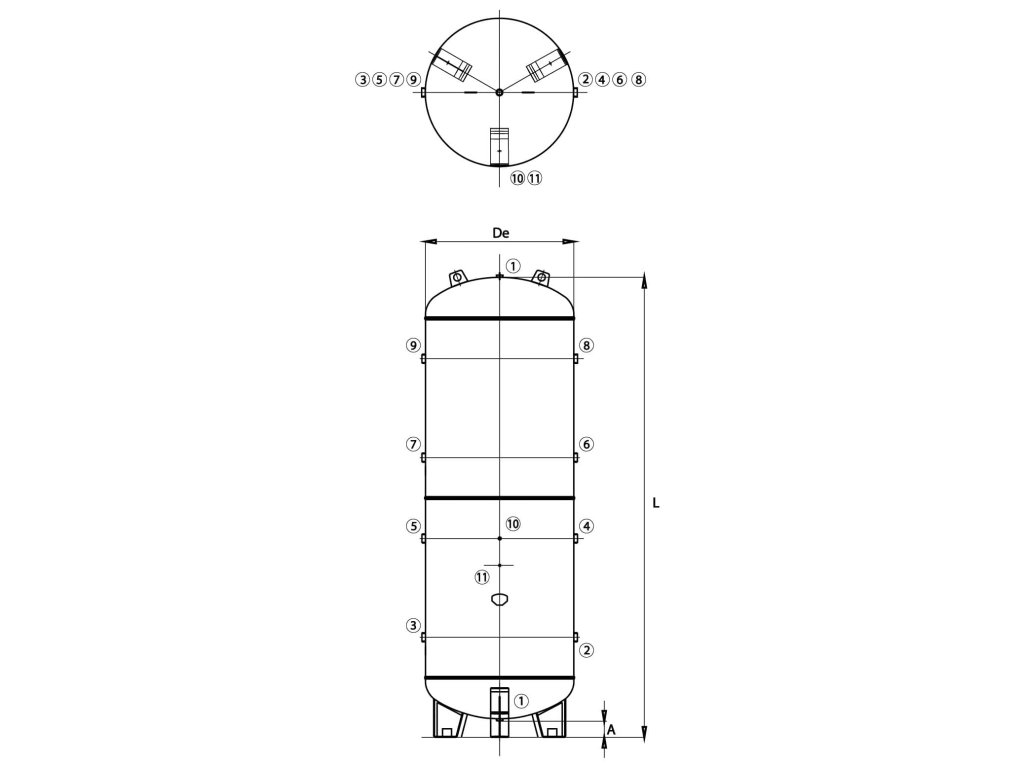

Dimensions and connections
| VVP10000-8 — dimensions and connections | |
|---|---|
| Volume | 10000 l |
| Maximum working pressure | 8 bar |
| Working temperature | −20 to +80 °C |
| Diameter De | 1650 mm |
| Height L | 5118 mm |
| Ground clearance A | 175 mm |
| Height of connections 2 and 3 (B) | 1150 mm |
| Height of connections 4 and 5 (C) | 2200 mm |
| Height of connections 6 and 7 (D) | 3150 mm |
| Height of connections 8 and 9 (E) | 4250 mm |
| Height of connection 11 (F) | 1950 mm |
| Weight | 1730 kg |
| Transport | lying flat, 5500 × 1700 × 1850 mm, 1750 kg |
| Lifting lugs | 2 on the top end |
| Connection 1 | 2" (2×) |
| Connection 2 | 3" |
| Connection 3 | 3" |
| Connection 4 | 3" |
| Connection 5 | 3" |
| Connection 6 | 3" |
| Connection 7 | 3" |
| Connection 8 | 3" |
| Connection 9 | 3" |
| Connection 10 | 3/4" |
| Connection 11 | 3/8" |
| Material | carbon steel |
| Finish | external RAL 5015 powder coating |
| Directive | 2014/68/EU (PED) |
| Medium | compressed air, nitrogen, argon, helium, oil, oxygen (not hydrogen) |
Versions
| VVP10000-8 — versions | |||
|---|---|---|---|
| Version | Order code | Weight | Difference from the painted version |
| painted RAL 5015 | VVP10000-8 | 1730 kg | – |
| galvanised | VVG10000-8 | 1730 kg | same dimensions and connections |
Typical uses
It suits large low-pressure systems, or serves as a nitrogen or oxygen reservoir downstream of a high-output generator. The large reserve can cover even a draw-off that lasts longer than the source can keep up with.
A smaller 8-bar vessel is VVP8000-8. Vessels of the same size are VVP10000-12 and VVP10000-16.
How it is made
Ventilek’s tip
Large volume, lots of condensate. Ten cubic metres collect a lot of it. An automatic condensate drain on the bottom connection discharges it by itself, even at night and at weekends.
Additional parameters
| Category: | Pressure vessels and air receivers for compressed air |
|---|---|
| Version: | Standing with pedestals |
| Pressure: | 8 bar |
| Material: | Carbon steel |
| Medium: | Air, Oil, Nitrogen, Oxygen, Argon, Helium |
| Surface treatment: | Lacquered RAL, Galvanized |
| Container volume: | 10 000 l |
| Directive: | PED - 68/2014EU |
| Thread (1): | 2" |
| Thread (2): | 3" |
| Thread (3): | 3" |
| Thread (4): | 3" |
| Thread (5): | 3" |
| Thread (6): | 3" |
| Thread (7): | 3" |
| Thread (8): | 3" |
| Thread (10): | 3/4" |
| Thread (11): | 3/8" |
| Thread (9): | 3" |
