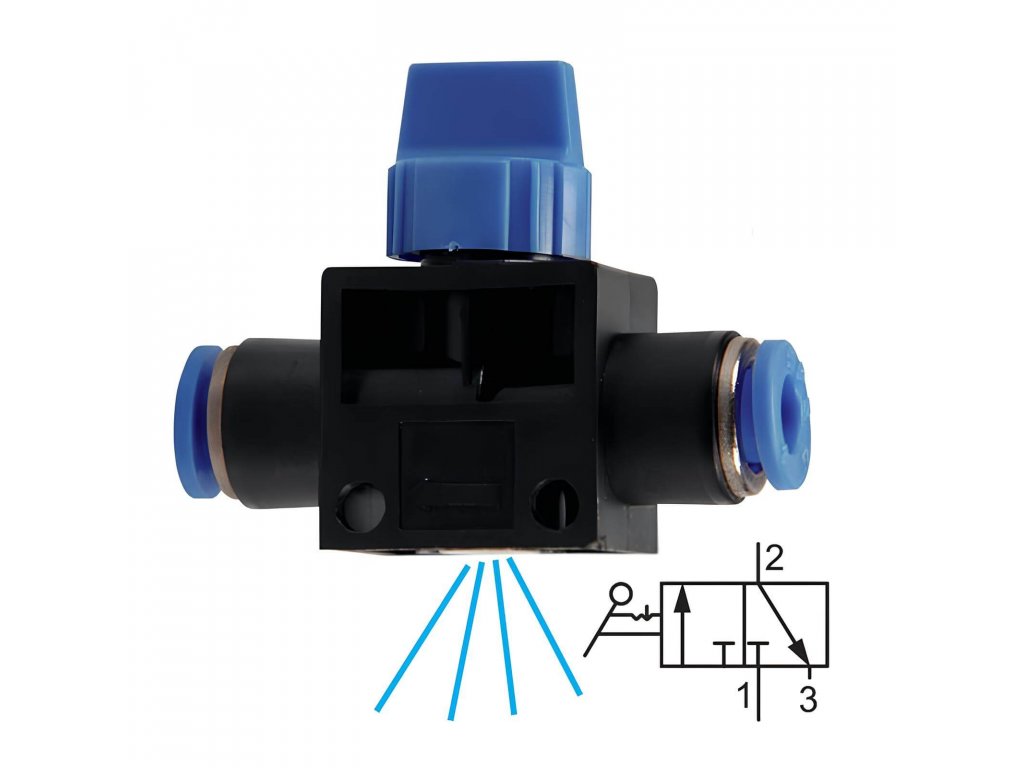

Shut-off valve with ventilation 6
Code: HVFF-6Product detailed description
Compressed air shut-off valve with 4 mm vent
- Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
- Materials used : nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
- Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.
Additional parameters
Category: | Shut-off socket plastic valve with vent |
---|---|
EAN: | 8594200212407 |
Pressure: | 10 bars |
A tube: | 6 mm |
Material: | Brass, PU |
Medium: | Compressed air |
Working temperature: | -10 / +60 °C |
Width: | 40 mm |
Connection system: | Plug-in system |

Designed for G 1/8" thread. The inner diameter is 10.1 mm and the outer diameter is 14.7 mm. Basic sealant for sealing threaded joints in pneumatic equipment.
