ADRY-150 desiccant dryer – G 1", 2,500 l/min
Code: ADRY-150
Related products
Product detailed description

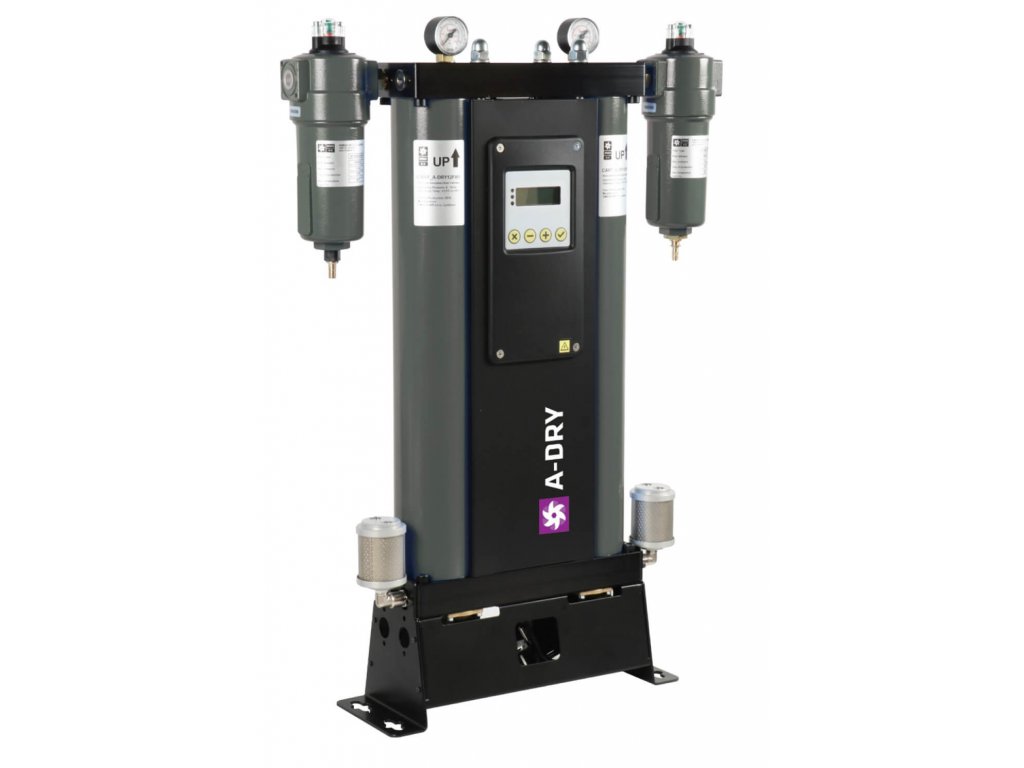

The Omega Air ADRY-150 desiccant dryer dries 150 Nm³/h (2,500 l/min) of compressed air to a pressure dew point of −40 °C. 118 Nm³/h remains at the outlet, the rest is used to regenerate the second column.
It belongs to the ADRY desiccant dryer range, where you will find all sizes and an explanation of how the dryer works.
Technical data
| Parameter | Value |
|---|---|
| Inlet flow | 150 Nm³/h (2,500 l/min) |
| Outlet flow | 118 Nm³/h |
| Connection | G 1" |
| Working pressure | 4 to 16 bar |
| Pressure dew point | −40 °C, −25 °C or −70 °C on request |
| Operating temperature | +1.5 to +50 °C |
| Power supply | 230 V, 50/60 Hz |
| Power consumption | less than 35 W |
| Protection rating | IP 65 |
| Control unit | basic version 6 LEDs, with energy-saving dew point control a display |
| Dimensions A × B × C | 1345 × 440 × 198 mm |
| Dimensions with filters A* × B* × C* | 1440 × 725 × 240 mm |
| Foot spacing D | 570 mm |
| Weight | 170.5 kg |
| Inlet filter | AFS 0.01 µm microfilter |
| Outlet filter | AFR 1 µm dust filter |

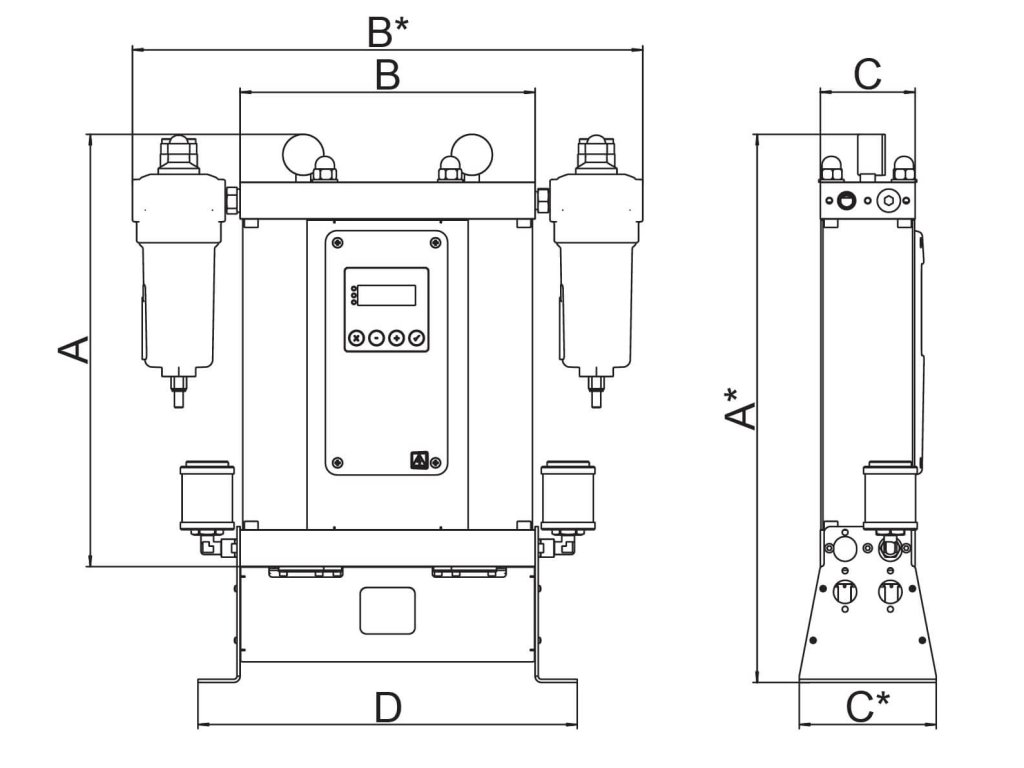

Dimensions
Height 1345 mm (1440 mm with filters), width 440 mm (725 mm with filters), depth 198 mm (240 mm with filters), weight 170.5 kg.
Flow under other conditions
The nominal flow applies to 7 bar, an inlet temperature of +35 °C and a dew point of −40 °C. Under other conditions, multiply it by the factors: for example at 10 bar and +40 °C the ADRY-150 handles 3,346 l/min (2,500 × 1.38 × 0.97).
Factor F1 – working pressure
| Pressure bar | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Factor | 0.63 | 0.75 | 0.88 | 1.00 | 1.13 | 1.25 | 1.38 | 1.50 | 1.63 | 1.75 | 1.88 | 2.00 | 2.13 |
Factor F2 – inlet air temperature
| Temperature °C | 25 | 30 | 35 | 40 | 45 | 50 |
|---|---|---|---|---|---|---|
| Factor | 1.00 | 1.00 | 1.00 | 0.97 | 0.87 | 0.80 |
Factor F3 – pressure dew point
| Dew point °C | −25 | −40 | −70 |
|---|---|---|---|
| Factor | 1.10 | 1.00 | 0.70 |
Energy-saving operation
In the fixed cycle the dryer uses 15 to 20% of the air for regeneration on average. With the ADRY-OSCB or ADRY-OS dew point sensor and the ADRY-MK measuring chamber it runs in a variable cycle and, according to the manufacturer, consumption falls even below 3%. The basic version of ADRY dryers shows its status with six LEDs, dryers with energy-saving dew point control have a control unit with a display.
Service kits for this dryer
| Interval | Kit | Contents |
|---|---|---|
| After 1 year | ADRY-150-1R | filter elements, silencers |
| After 2 years | ADRY-150-2R | filter elements, silencers, non-return valve, seals |
| After 4 years | ADRY-150-4R | filter elements, silencers, valve set, desiccant, seals |
How it works

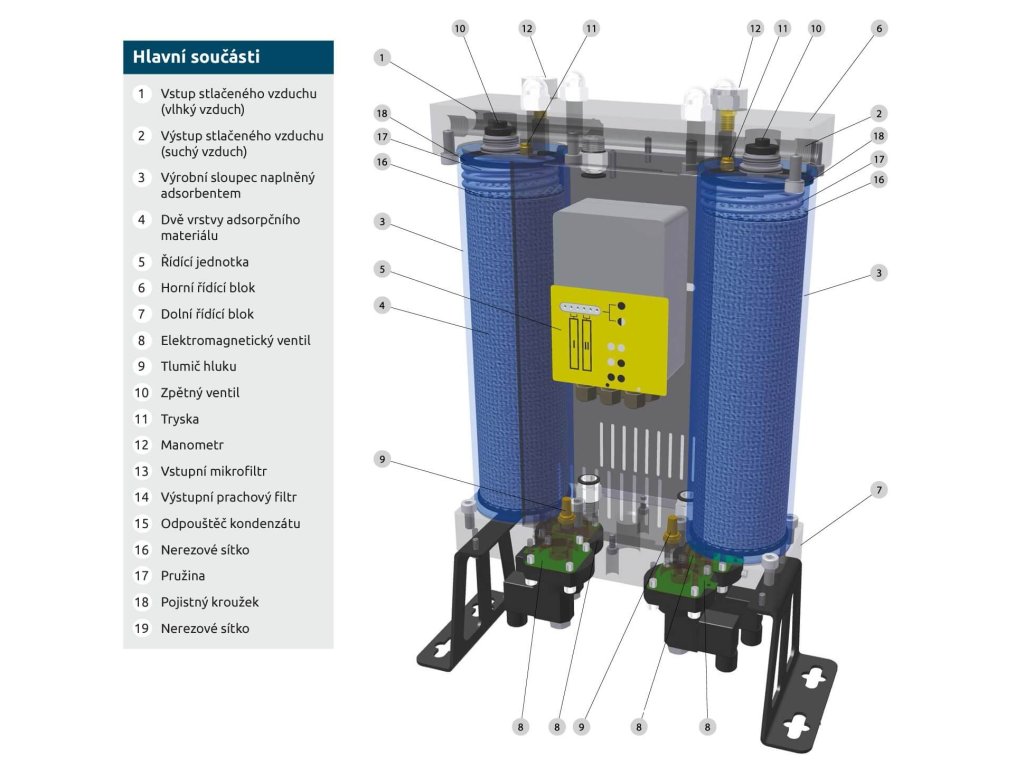

Two desiccant columns alternate every 10 minutes: one dries while the other is regenerated with part of the dry air. Switchover is controlled by four separately operated valves, so no pressure peaks occur. A signal from the compressor can be connected to the stand-by contact.
Where to install the dryer
The dryer is installed after the compressor and the air receiver. The inlet microfilter protects it against oil and particles, the outlet dust filter captures dust from the desiccant. An overview of filters can be found under industrial filtration according to ISO 8573-1.
Service kits and accessories are in the service kits and accessories for ADRY dryers category.
The version with an activated carbon tower is in the ADRY TAC dryers category, the version for breathing air in the ADRY BM dryers category.
Additional parameters
| Category: | Compressed air dryers for compressors |
|---|---|
| Pressure: | 16 bar |
| Connecting: | 1" |
| Motor power: | 35 W |
| Mains voltage: | 230/50 V/Hz |
| Dimensions: | 725 × 240 × 1440 mm |
| Weight: | 170.5 kg |
| Flow: | 2,500 l/min |
| Service interval: | Každé 2 roky |
| ISO class: | x/2/x - ISO 8573.1 |
| Equipment: | Control unit LED display, Filtration |
| Pressure dew point: | -70°C, -40 °C, -25 °C |
| Dryer type: | Adsorption dryer |
| In stock: | External warehouse |
| Pressure: | 16 bar |
| Connecting: | 1" |
| Motor power: | 35 W |
| Mains voltage: | 230/50 V/Hz |
| Dimensions: | 725 x 240 x 1440 mm |
| Flow: | 2,500 l/min |
| Service interval: | Every 2 years |
| Equipment:: | Filtration |
| Pressure dew point: | -25 °C |
| Dryer type: | Adsorption dryer |
