Microfilter AAFS-25 – G 1/4", 417 l/min 0.01 microns · class 1-x-1 · 16 bar
Code: AAFS-25
Related products
Product detailed description
The AAFS-25 coalescing microfilter traps particles larger than 0.01 µm, water and oil; residual oil is below 0.01 mg/m³. It has a G 1/4" thread and a flow of 417 l/min at 7 bar, working pressure up to 16 bar.
It belongs to the range of Omega Air AAF filters: the housing is the same for all stages, only the element differs.
Specifications
| Parameter | Value |
|---|---|
| Connection | G 1/4" |
| Flow at 7 bar | 417 l/min (25 Nm³/h) |
| Working pressure | 16 bar |
| Working temperature | +1.5 to +65 °C |
| Filtration rating | 0.01 µm |
| ISO 8573-1 class | 1-x-1 |
| Residual oil | < 0.01 mg/m³ |
| Pressure drop of a new element | 80 mbar |
| Element replacement | at a pressure drop of 350 mbar, at the latest every 12 months or 4,000 operating hours |
| Condensate drain | AOK16B float drain (automatic) |
| Filter material | borosilicate microfibres |
| Housing | aluminium, cataphoretic coating, X2-COAT protection, AVELOCK element locking |
| Dimensions A × B × C × D | 145 × 73 × 18 × 50 mm |
| Weight | 0.42 kg |
| Spare element | AAFS-25V |
Dimensions
Dimensions A × B × C × D: 145 × 73 × 18 × 50 mm, weight 0.42 kg.
Flow by pressure
The flow applies to a pressure of 7 bar, an ambient temperature of +20 °C and an air inlet temperature of +35 °C. At a different pressure, it changes according to the correction factor:
| Pressure (bar) | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Flow (l/min) | 158 | 209 | 263 | 313 | 367 | 417 | 471 | 521 | 575 | 626 | 680 | 730 | 784 | 834 | 888 |
Spare element and accessories
| For this filter: | |
|---|---|
| Spare element | AAFS-25V |

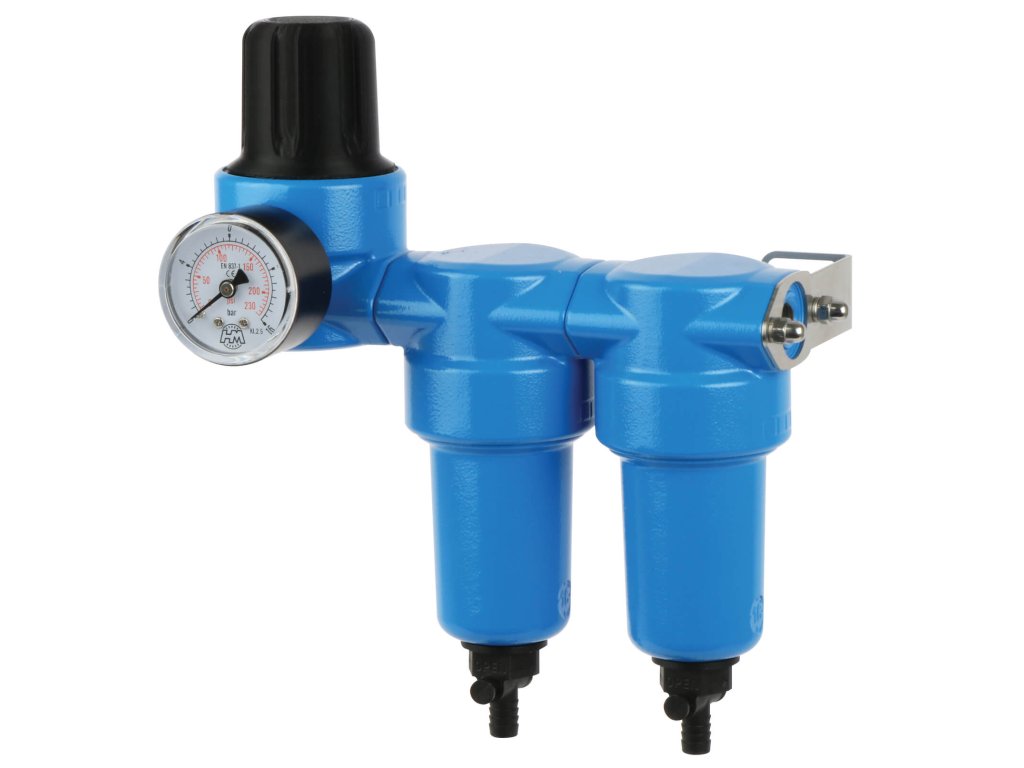

| Connection kits (2 and 3 filters) | AAF-2M, AAF-3M |
| Kits with wall brackets | AAF-W1M, AAF-W2M, AAF-W3M |

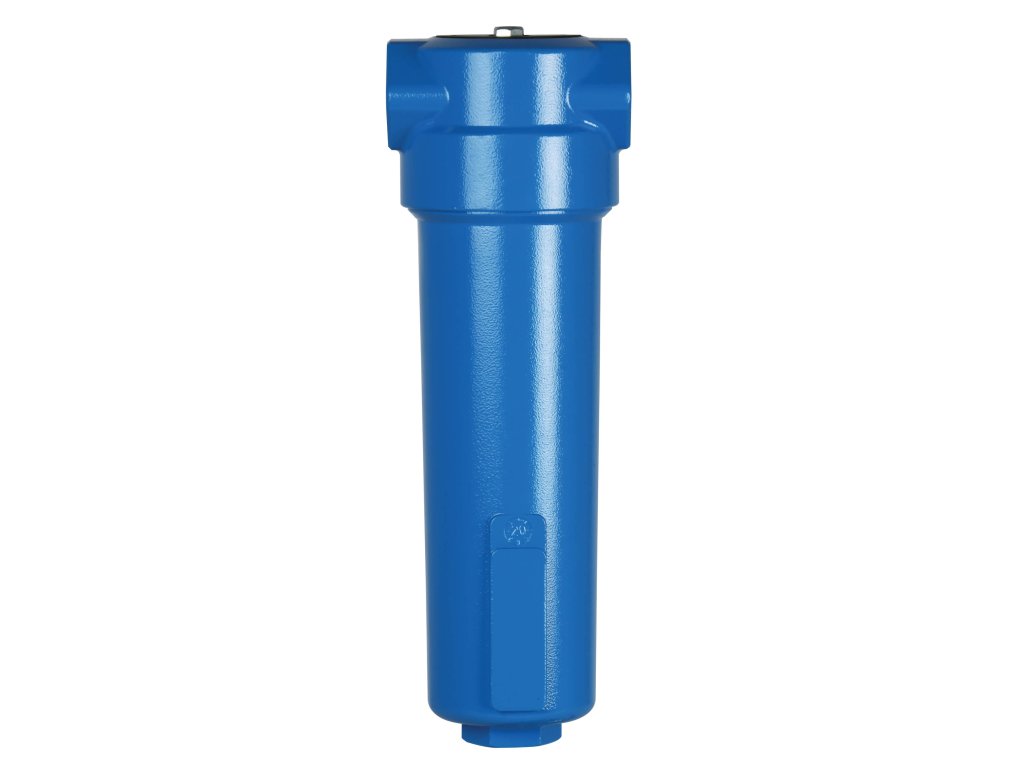

| Housing without element | AAF-25T |
| Another condensate drain | drains for filters |
| Clogging indication | indicators and differential pressure gauges |
Where to place it
It goes after the AAFM fine pre-filter. Before activated carbon and other adsorption stages, it is mandatory.
You will find other sizes among the filters of the same stage.
Additional parameters
| Category: | AAFS compressed air microfilters, class 1-x-1 |
|---|---|
| Version: | Microfilter |
| Pressure: | 16 bar |
| Connecting: | 1/4" |
| Dimensions: | (A)145 x (B)73 x (C)18 x (D)50 mm |
| Certification: | CE-PED-H, ISO 8573-1 (IUTA) |
| Filtration: | 0.01 µm |
| Filter insert: | AAFS-25V |
| Material: | Aluminium |
| Condensate discharge: | Automatic |
| Working temperature: | +1.5 / +65°C |
| Flow: | 417 l/min |
| Residual oil: | <0,01 mg/m³ |
| Quality class - oils: | 1 |
| Quality class - solid impurities: | 1 |
| In stock: | External warehouse |
