Fine pre-filter WFITM-010 – 14 bar, G 1/2", 2,500 l/min 0.1 microns · class 2-x-2 · 14 bar
Code: WFITM-010
Related products
Product detailed description

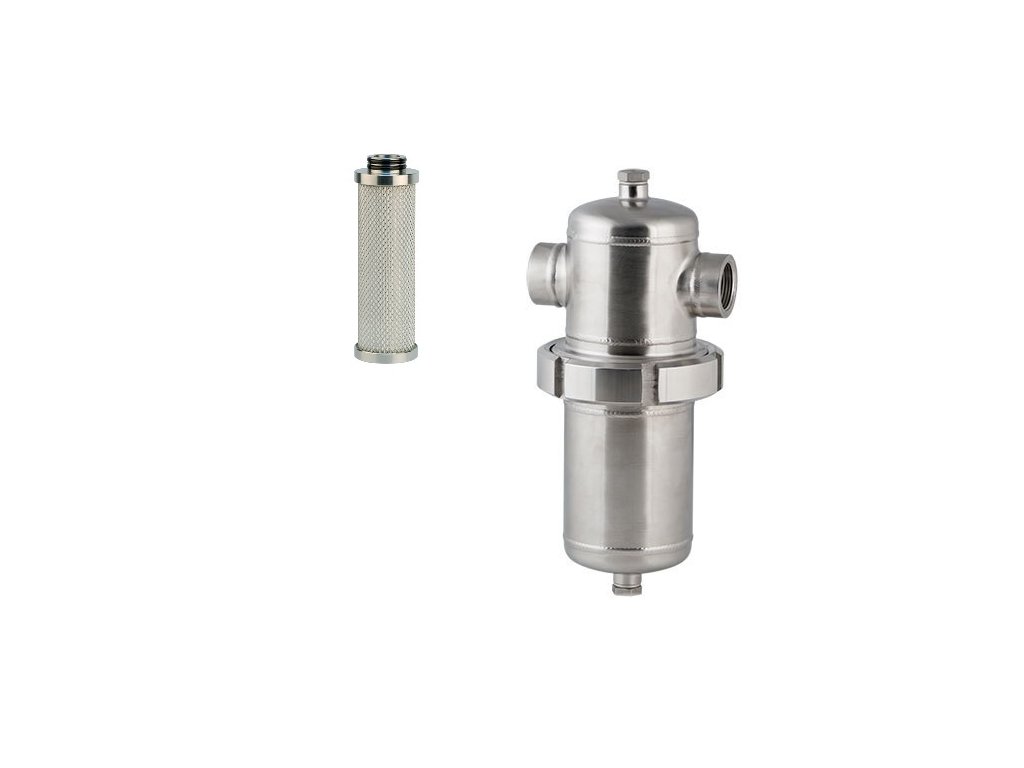

The WFITM-010 fine process pre-filter traps fine solid particles larger than 0.1 µm, water and oil aerosol; residual oil is below 0.1 mg/m³. It has a G 1/2" connection (female pipe thread), a flow of 2,500 l/min at 7 bar and a working pressure of up to 14 bar.
It belongs to the WFIT process filters, among the WFITM fine pre-filters: the housing is the same for all stages, only the element differs.
Specifications
| Parameter | Value |
|---|---|
| Connection | G 1/2" (female pipe thread) |
| Flow at 7 bar | 2,500 l/min (150 Nm³/h) |
| Working pressure | 14 bar |
| Element temperature | +1.5 to +120 °C |
| Filtration rating | 0.1 µm |
| ISO 8573-1 class | 2-x-2 |
| Residual oil | < 0.1 mg/m³ |
| Element replacement | at least once every 12 months |
| Element | PFM-010V |
| Element material | borosilicate microfibres |
| Element design | pleated |
| Housing | welded stainless steel 1.4404 |
| Height A | 239 mm |
| Width across the connections B | 121 mm |
| Housing diameter C | 76.1 mm |
| Weight | 2.2 kg |
| Condensate drain outlet E | G 1/2" thread in the bottom |
| Condensate drain | ordered separately |
Housing and dimensions
The welded housing is made of stainless steel 1.4404, or 1.4301 on request, with FKM seals (EPDM or silicone on request) and female pipe threads. It withstands −20 to +150 °C; the actual limit depends on the seals and the element.
According to the manufacturer: height A 239 mm, width across the connections B 121 mm, housing diameter C 76.1 mm. Weight 2.2 kg.
Flow by pressure
The flow applies to a pressure of 7 bar and a temperature of +20 °C. At a different pressure, it is multiplied by the correction factor; at 14 bar it is 1.88:
| Pressure (bar) | 4 | 7 | 10 | 14 |
|---|---|---|---|---|
| Flow (l/min) | 1,575 | 2,500 | 3,450 | 4,700 |
Element and accessories
Where to place it
It goes after the WFITI1 sintered pre-filter or a mesh; it is the finest stage of the WFIT range.
You will find other sizes among the filters of the same stage.
Additional parameters
| Category: | WFITM stainless fine pre-filters for particles and oil up to 14 bar |
|---|---|
| Version: | Prefilter |
| Pressure: | 14 bar |
| Connecting: | 1/2" |
| Dimensions: | 239 × 121 × 76.1 mm |
| Filtration: | 0.1 µm |
| Filter insert: | PFM-010V |
| Material: | Stainless steel |
| Condensate discharge: | Without drain |
| Number of inserts: | 1 |
| Working temperature: | +1.5 / +120 °C |
| Flow: | 2,500 l/min |
| Residual oil: | <0,1 mg/m³ |
| Quality class - oils: | 2 |
| Quality class - solid impurities: | 2 |
