HPFI20 sintered stainless steel pre-filters up to 50 bar

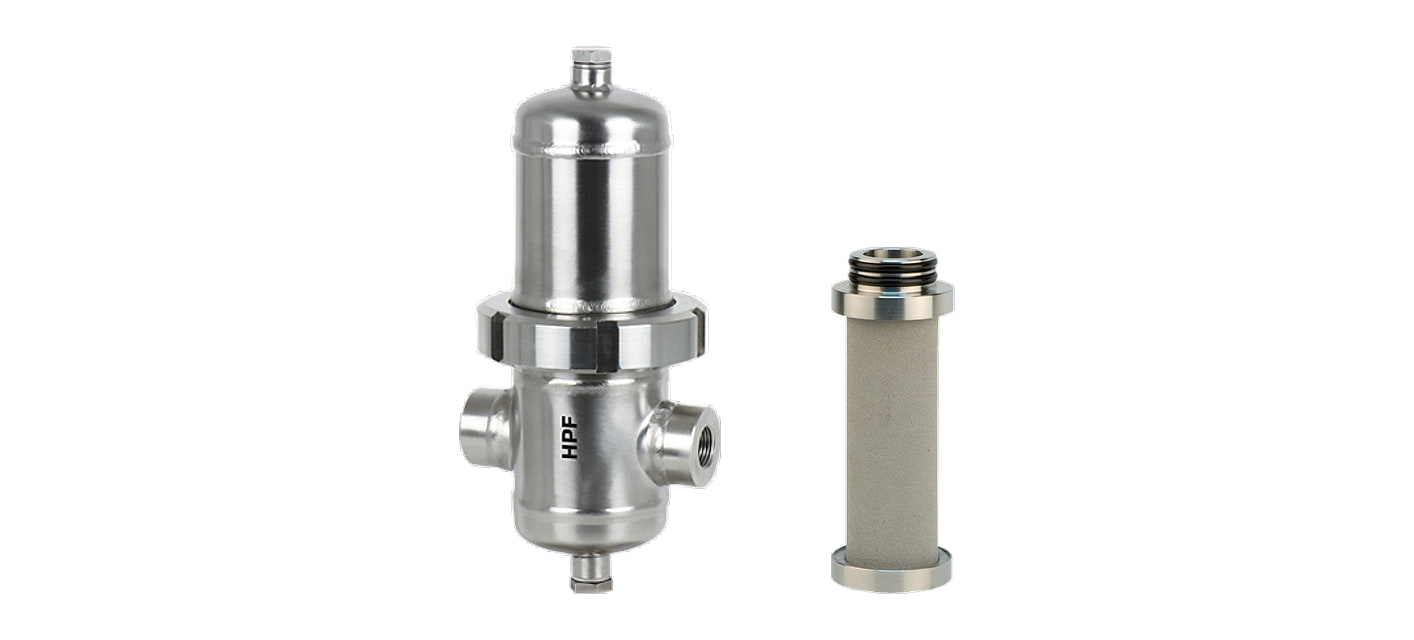

The HPFI20 sintered pre-filter has an element made of sintered stainless steel 1.4404 and traps solid particles larger than 20 µm. It is the first stage of the HPF range: it protects the finer stages after it.
The HPFI20 filter comes in 8 sizes (G 1/2" to 3") with flows of 2,500 to 40,000 l/min at 7 bar; working pressure up to 50 bar. It is one of the stages of the HPF filters — the housing is the same for all stages, only the element differs.
HPFI20 filters by size
The size determines the connection and the flow. Each size has its own PF range spare element.
| HPFI20 filters and spare elements by size | ||||||
|---|---|---|---|---|---|---|
| Filter | Connection | l/min at 7 bar | Nm³/h at 7 bar | Height A × diameter C | Weight | Spare element |
| HPFI20-010 | G 1/2" | 2,500 | 150 | 243 × 76.1 mm | 2.5 kg | PFI20-010V |
| HPFI20-018 | G 3/4" | 3,750 | 225 | 267 × 76.1 mm | 2.7 kg | PFI20-018V |
| HPFI20-030 | G 1" | 5,250 | 315 | 286 × 88.9 mm | 3.4 kg | PFI20-030V |
| HPFI20-047 | G 1 1/4" | 7,000 | 420 | 355 × 88.9 mm | 3.9 kg | PFI20-047V |
| HPFI20-070 | G 1 1/2" | 10,000 | 600 | 400 × 114.3 mm | 5.6 kg | PFI20-070V |
| HPFI20-094 | G 2" | 15,000 | 900 | 481 × 114.3 mm | 9.2 kg | PFI20-094V |
| HPFI20-150 | G 2" | 21,000 | 1,260 | 607 × 114.3 mm | 10.9 kg | PFI20-150V |
| HPFI20-200 | G 3" | 40,000 | 2,400 | 1,018 × 139.7 mm | 11.5 kg | PFI20-200V |
The flows apply to a pressure of 7 bar and a temperature of +20 °C. Dimensions and weights according to the manufacturer’s technical data sheet; you will find further data on the product page of each filter.
#showmore#
When to use it
The 20 µm sintered pre-filter is suitable at the start of the filtration. The element is made entirely of stainless steel and, like the housing, withstands up to +150 °C. It does not trap oil; the manufacturer does not state an ISO 8573-1 class for it.
Where to place it

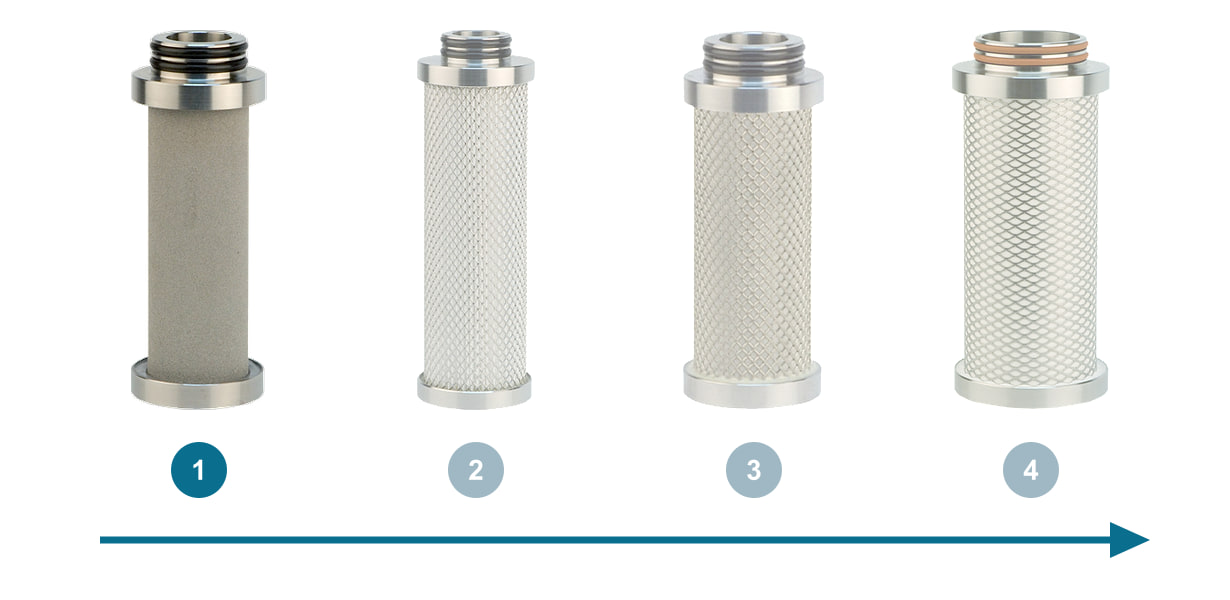

At the start of the filtration, before the HPFM fine pre-filter.
Flow by pressure
The catalogue flows apply to a pressure of 7 bar and a temperature of +20 °C. At a higher pressure the filter passes more air — 6.38 times as much at 50 bar.
| HPFI20 filter flow in l/min by pressure | ||||
|---|---|---|---|---|
| Size (connection) | 7 bar | 16 bar | 30 bar | 50 bar |
| 010 (G 1/2") | 2,500 | 5,325 | 9,700 | 15,950 |
| 018 (G 3/4") | 3,750 | 7,988 | 14,550 | 23,925 |
| 030 (G 1") | 5,250 | 11,183 | 20,370 | 33,495 |
| 047 (G 1 1/4") | 7,000 | 14,910 | 27,160 | 44,660 |
| 070 (G 1 1/2") | 10,000 | 21,300 | 38,800 | 63,800 |
| 094 (G 2") | 15,000 | 31,950 | 58,200 | 95,700 |
| 150 (G 2") | 21,000 | 44,730 | 81,480 | 133,980 |
| 200 (G 3") | 40,000 | 85,200 | 155,200 | 255,200 |
Element, condensate drainage and maintenance

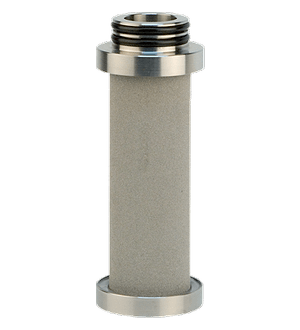

A PF range element is fitted in the housing — for example, the PFI20-010V for the HPFI20-010. Element working temperature +1.5 to +150 °C.
The filter is supplied with an element, without a condensate drain. For HPF filters, the manufacturer offers the AOK50SS stainless steel float drain up to 50 bar, recommended from 10 bar, or the TD420M timed drain with a G 1/4" thread. The drain outlet in the bottom has a G 1/4" thread.
Replace the element at least once every 12 months. Once a year, also check the housing for visible damage.
Accessories for HPFI20 filters
The same stage in other ranges
Only the HPF range has stage I20. You will find the other stages among the HPF filters.
Ventilek’s tip
Coarse contaminants first. The sintered pre-filter I20 traps larger particles before they reach the fine pre-filter, whose element then lasts longer.
- What filtration rating does the HPFI20 pre-filter have?
- The element traps particles larger than 20 µm. The manufacturer does not state an ISO 8573-1 class for it.
- Does it also trap oil?
- No. Oil aerosol is handled by the fine pre-filter M.
- When should the element be replaced?
- At least once every 12 months.
