Dust filter Hankison F12-B-PF – G 2", 11,350 l/min 1 micron · oil 2 mg/m³ · class 2-x-4 · 16 bar
Code: F12-B-PF
Related products
Product detailed description
The Hankison NGF F12-B-PF dust filter and pre-filter traps solid particles larger than 1 µm with an efficiency of 99.999%, as well as large amounts of liquid; residual oil is 2 mg/m³. It has a G 2" thread, a flow of 11,350 l/min (681 Nm³/h) at 7 bar and a working pressure of up to 16 bar.
It belongs to the range of Hankison NGF filters: the housing is the same for all five stages, and the stage is determined by the element with its coloured end cap.
Specifications
| Parameter | Value |
|---|---|
| Connection | G 2" (female thread) |
| Flow at 7 bar | 11,350 l/min (681 Nm³/h) |
| Working pressure | 16 bar |
| Inlet air temperature | +2 to +66 °C |
| Particle retention | 1 µm |
| Residual oil | < 2 mg/m³ |
| ISO 8573-1 class | 2-x-4 |
| Particle removal efficiency | 99.999+ % |
| Oil removal efficiency | 80 % |
| Maximum inlet liquid load | 2 g/m³ |
| Pressure drop of a new element (dry / wet) | 40 mbar / 100 mbar |
| Element replacement | after 6,000 operating hours, within 12 months at the latest, or at a pressure drop of 400 mbar |
| Element end cap colour | white |
| Spare element | PF-12 |
| Clogging indication | differential pressure gauge on the head |
| Condensate drain | automatic float drain |
| Housing | die-cast aluminium, chromated, powder-coated |
| Width A | 200 mm |
| Height B | 566 mm |
| Connection axis to bottom edge C | 505.4 mm |
| Clearance below the filter D | 178 mm |
| Weight | 5.3 kg |
Housing and dimensions
The housing is die-cast aluminium, chromated and protected by a polyester epoxy powder coating. The inlet and outlet are shaped as flanges with a female thread; the bowl has internal ribs along which the condensate runs down.
Dimensions according to the manufacturer: width A 200 mm, height B 566 mm, connection axis to bottom edge C 505.4 mm, and a clearance D of 178 mm is needed below the filter so that the bowl can be removed. Weight 5.3 kg.
Standard equipment

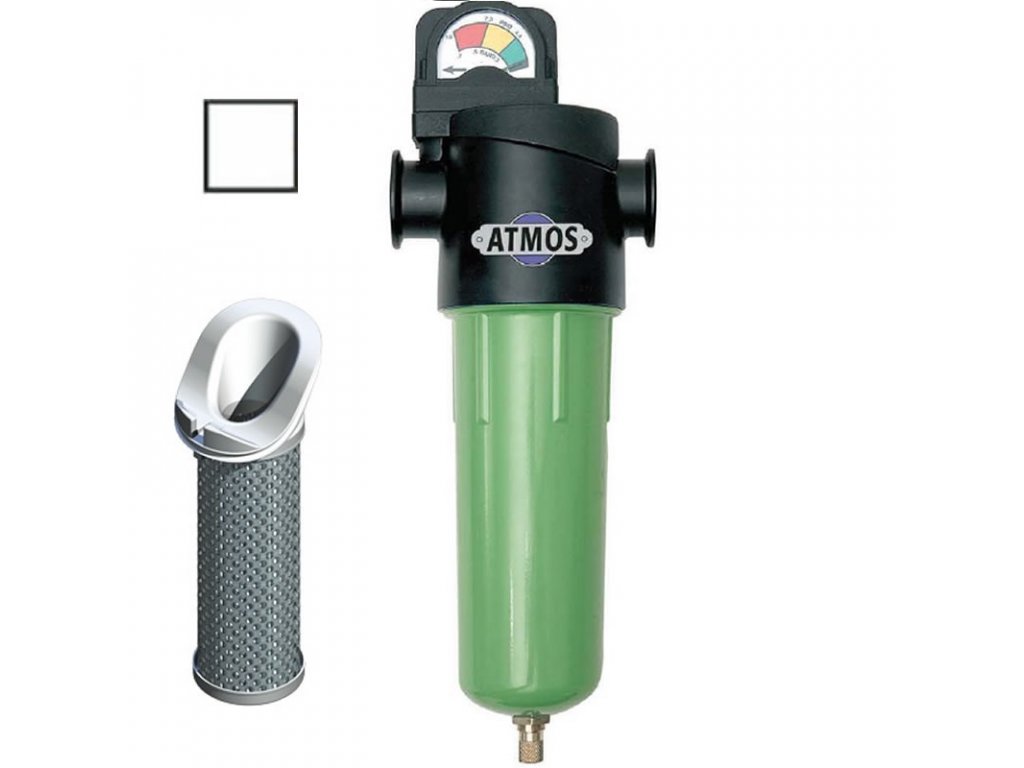

The filter is supplied with the PF-12 element, a differential pressure gauge on the head and an automatic float condensate drain.
The indicator on the head monitors the pressure drop of the element: as the element clogs, the pressure drop rises. However, also replace the element by time, even if the indicator does not yet signal it.
Flow by pressure
The flow applies to a pressure of 7 bar and a temperature of +20 °C. At a different pressure, it changes according to the correction factor; this filter works up to 16 bar:
| Pressure (bar) | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 |
|---|---|---|---|---|---|---|---|---|---|
| Flow (l/min) | 7,150 | 8,512 | 9,988 | 11,350 | 12,825 | 15,662 | 18,727 | 21,224 | 24,175 |
When to use it
It serves as a general workshop air filter, as a pre-filter before HF and UF microfilters and as a dust filter after an adsorption dryer.
Where to place it
It goes after the basic filter or at the start of the filtration, as a pre-filter before the HF microfilter or UF microfilter.
Element and maintenance
Replace the PF-12 element (white end cap) after 6,000 operating hours, within 12 months at the latest, or at a pressure drop of 400 mbar.
Filter medium
The element has the patented Venturi-Wave shape, through which air enters the element without turbulence, and a deep pleated filter medium with a large area — air passes through it with a lower pressure drop.
You will find other sizes among the filters of the same stage, and spare elements in the NGF accessories.
Additional parameters
| Category: | Hankison NGF PF dust filters and pre-filters |
|---|---|
| Version: | Dust filter |
| Pressure: | 16 bar |
| Connecting: | 2" |
| Dimensions: | 200 × 566 mm |
| Certification: | ISO 8573-1 (IUTA) |
| Filtration: | 1 µm |
| Filter insert: | PF-12 |
| Material: | Aluminium |
| Condensate discharge: | Automatic |
| Working temperature: | +2 / +66 °C |
| Flow: | 11,350 l/min |
| Residual oil: | <2 mg/m³ |
| Quality class - oils: | 4 |
| Quality class - solid impurities: | 2 |
Product rating
Be the first who will post an article to this item!
