Microfilter Hankison F07-B-HF – G 3/4", 2,916 l/min 0.01 microns · oil below 0.01 mg/m³ · class 1-x-1 · 16 bar
Code: F07-B-HF
Related products
Product detailed description
The Hankison NGF F07-B-HF coalescing microfilter traps solid and liquid particles larger than 0.01 µm and removes over 99.9% of oil aerosol; residual oil is below 0.01 mg/m³. It has a G 3/4" thread, a flow of 2,916 l/min (175 Nm³/h) at 7 bar and a working pressure of up to 16 bar.
It belongs to the range of Hankison NGF filters: the housing is the same for all five stages, and the stage is determined by the element with its coloured end cap.
Specifications
| Parameter | Value |
|---|---|
| Connection | G 3/4" (female thread) |
| Flow at 7 bar | 2,916 l/min (175 Nm³/h) |
| Working pressure | 16 bar |
| Inlet air temperature | +2 to +66 °C |
| Particle retention | 0.01 µm |
| Residual oil | < 0.01 mg/m³ |
| ISO 8573-1 class | 1-x-1 |
| Particle removal efficiency | 99.999+ % |
| Oil removal efficiency | 99.9+ % |
| Maximum inlet liquid load | 1 g/m³ |
| Pressure drop of a new element (dry / wet) | 40 mbar / 120 mbar |
| Element replacement | after 3,000 operating hours, within 12 months at the latest, or at a pressure drop of 400 mbar |
| Element end cap colour | green |
| Spare element | HF-07 |
| Clogging indication | pressure drop indicator on the head |
| Condensate drain | automatic float drain |
| Housing | die-cast aluminium, chromated, powder-coated |
| Width A | 132 mm |
| Height B | 262.1 mm |
| Connection axis to bottom edge C | 219.8 mm |
| Clearance below the filter D | 127 mm |
| Weight | 1.4 kg |
Housing and dimensions

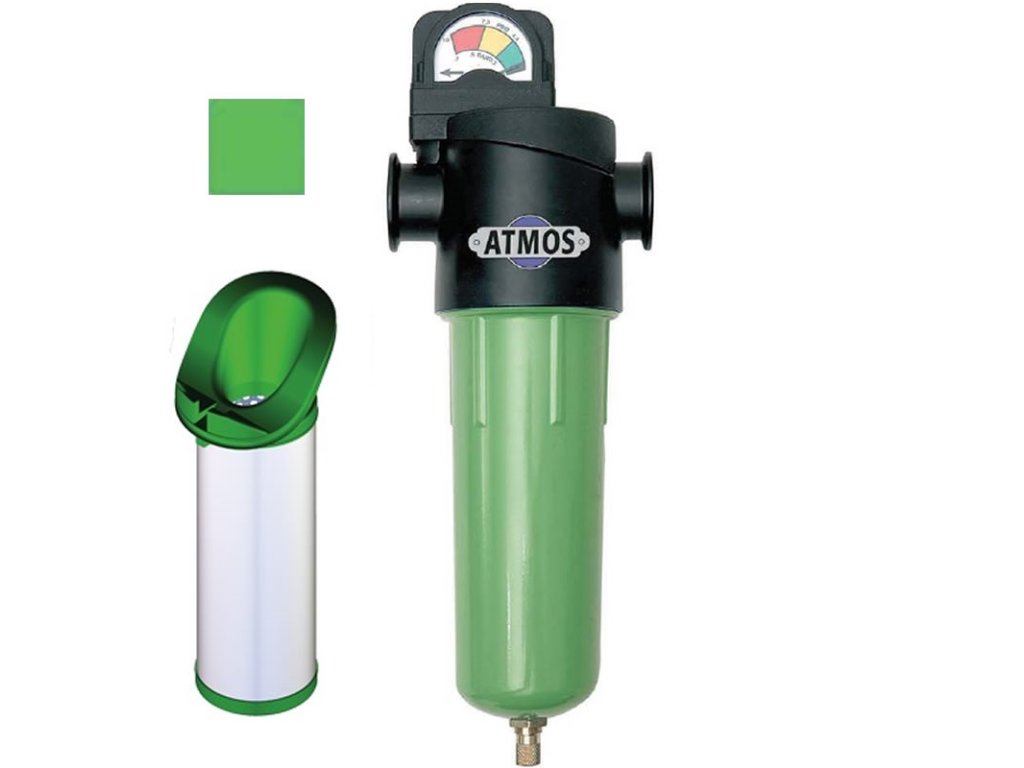

The housing is die-cast aluminium, chromated and protected by a polyester epoxy powder coating. The inlet and outlet are shaped as flanges with a female thread; the bowl has internal ribs along which the condensate runs down.
Dimensions according to the manufacturer: width A 132 mm, height B 262.1 mm, connection axis to bottom edge C 219.8 mm, and a clearance D of 127 mm is needed below the filter so that the bowl can be removed. Weight 1.4 kg.
Standard equipment
The filter is supplied with the HF-07 element, a pressure drop indicator on the head and an automatic float condensate drain.
The indicator on the head monitors the pressure drop of the element: as the element clogs, the pressure drop rises. However, also replace the element by time, even if the indicator does not yet signal it.
Flow by pressure
The flow applies to a pressure of 7 bar and a temperature of +20 °C. At a different pressure, it changes according to the correction factor; this filter works up to 16 bar:
| Pressure (bar) | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 |
|---|---|---|---|---|---|---|---|---|---|
| Flow (l/min) | 1,837 | 2,187 | 2,566 | 2,916 | 3,295 | 4,024 | 4,811 | 5,452 | 6,211 |
When to use it
It suits the end of the air line before the point of use, as an oil coalescing filter and as a pre-filter for a membrane or adsorption dryer.
Where to place it
It goes after the PF dust filter, which protects it, and before CF activated carbon or a dryer.
Element and maintenance
Replace the HF-07 element (green end cap) after 3,000 operating hours, within 12 months at the latest, or at a pressure drop of 400 mbar.
Filter medium
The element has the patented Venturi-Wave shape, through which air enters the element without turbulence, and a deep pleated filter medium with a large area — air passes through it with a lower pressure drop.
You will find other sizes among the filters of the same stage, and spare elements in the NGF accessories.
Additional parameters
| Category: | Hankison NGF HF microfilters for particles and oil |
|---|---|
| Version: | Microfilter |
| Pressure: | 16 bar |
| Connecting: | 3/4" |
| Dimensions: | 132 × 262 mm |
| Certification: | ISO 8573-1 (IUTA) |
| Filtration: | 0.01 µm |
| Filter insert: | HF-07 |
| Material: | Aluminium |
| Condensate discharge: | Automatic |
| Working temperature: | +2 / +66 °C |
| Flow: | 2,916 l/min |
| Residual oil: | <0,01 mg/m³ |
| Quality class - oils: | 1 |
| Quality class - solid impurities: | 1 |
| In stock: | External warehouse |
