Proportional pressure regulator 1/4", 0-10 bar, 0-10 V
Code: DRPE14-10I
Related products
Product detailed description

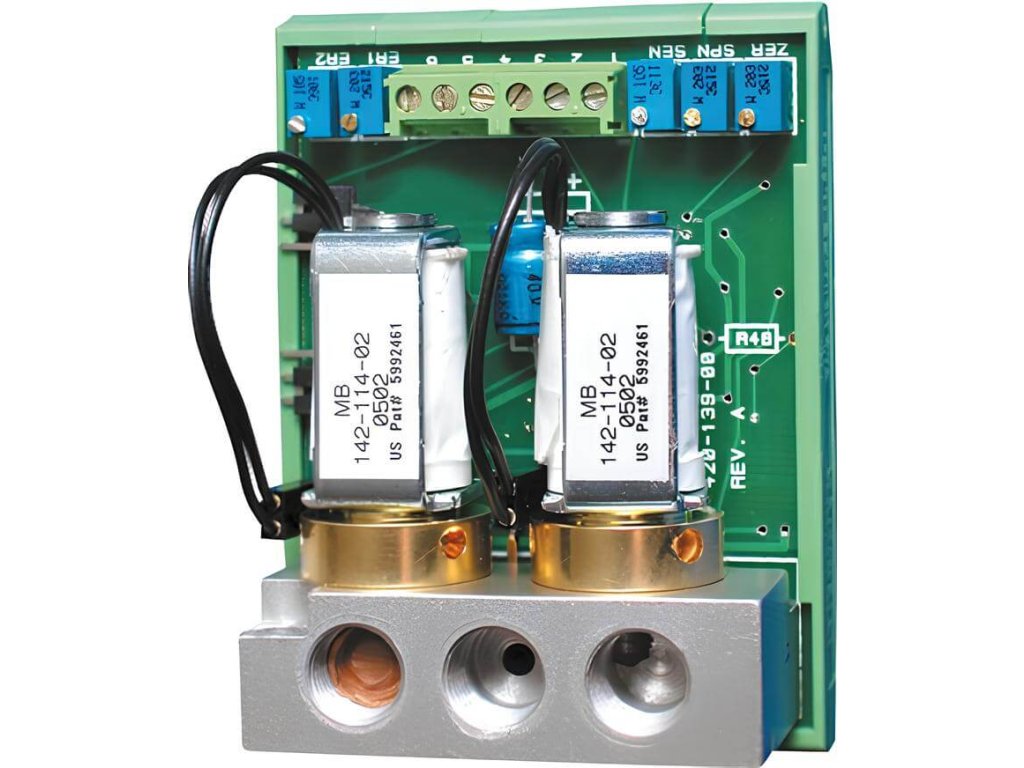

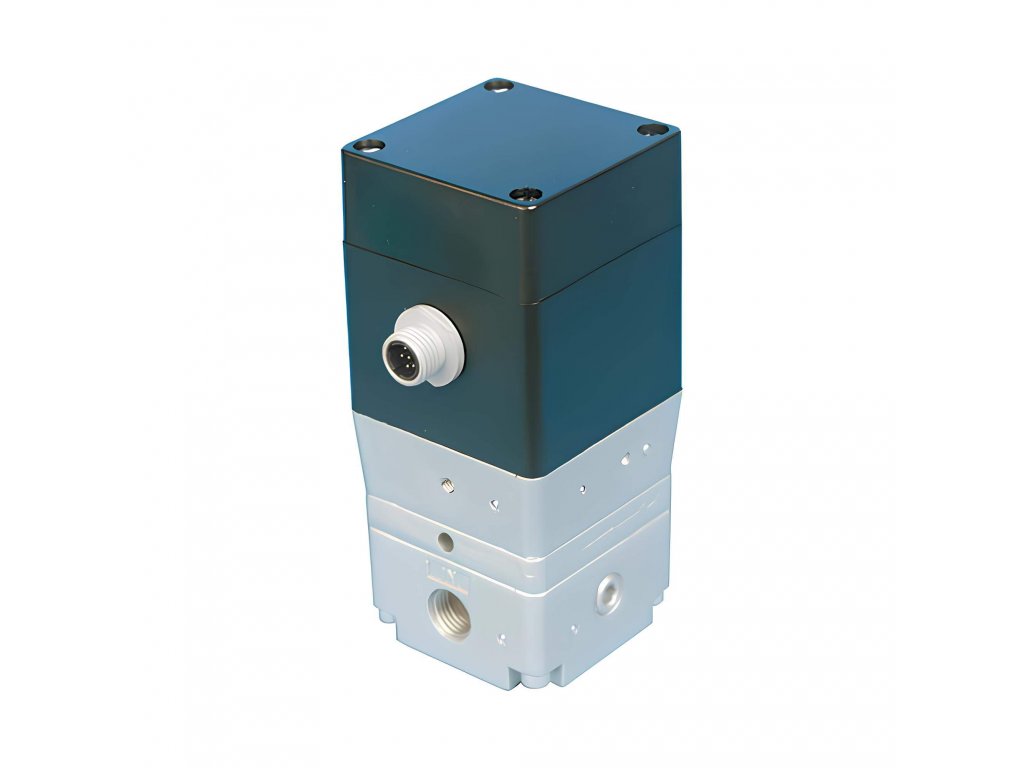

The DRPE14-10I proportional regulator sets the pressure of compressed air from 0 to 10 bar according to a 0–10 V electrical signal: 0 V means 0 bar, 10 V the upper limit of 10 bar. You can thus change the pressure from the control system, during operation and remotely. A pressure sensor at the outlet constantly monitors and corrects the pressure.
The same regulator for a 4–20 mA signal: DRPE14-10A. You will find all ranges and cables in the category DRPE proportional pressure regulators.
Specifications
| Parameter | Value |
|---|---|
| Code | DRPE14-10I |
| Series | DRPE |
| Control signal | 0–10 V |
| Output signal | 0–10 V |
| Control range | 0–10 bar |
| Inlet pressure | at least the pressure being set, max. 13.8 bar |
| Flow rate | 425 l/min |
| Venting | 198 l/min |
| Linearity | ± 0.2 % of full scale |
| Repeatability | ± 0.2 % of full scale |
| Hysteresis | 1 % of full scale |
| Accuracy | ± 0.5 % of full scale |
| Power supply | 15–24 V DC, current consumption max. 325 mA |
| Electrical connection | M12 connector, A-coded, 4 pins |
| Protection rating | IP 65 |
| Connection | G 1/4" |
| Pressure gauge connection | G 1/8" (pressure gauge not included) |
| Operating temperature | −10 to +60 °C |
| Medium | finely filtered compressed air (3 µm), oil-free, neutral gases |
| Material | aluminium, brass and plastic, NBR seals |
| Dimensions (W × D × H) | 57 × 57 × 127 mm |
| Weight | 0.8 kg |
| Included | mounting bracket |

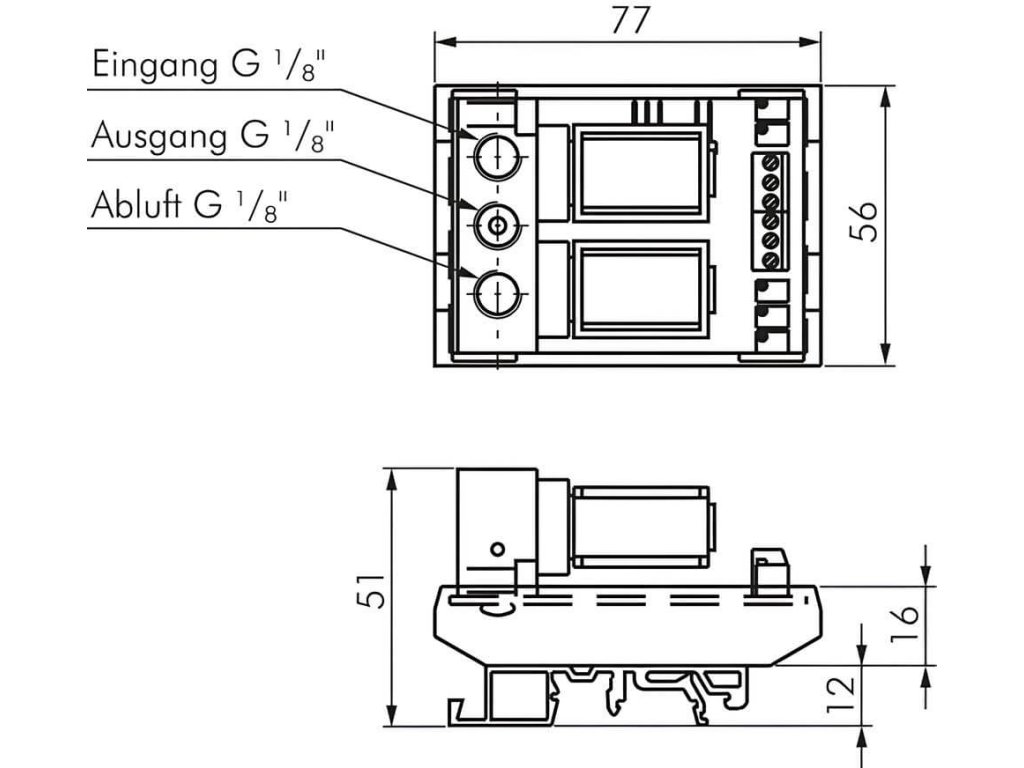

Dimensions and characteristic
The outlet pressure rises evenly with the signal: for DRPE14-10I, 5 V corresponds to a pressure of 5 bar and 10 V to a pressure of 10 bar.
Electrical connection and installation
- power supply 15–24 V DC, current consumption max. 325 mA
- 4-pin M12 connector (A-coded) on the side of the regulator
- control signal 0–10 V (codes ending in I) or 4–20 mA (codes ending in A)
- 0–10 V output signal for checking the actual pressure
- protection rating IP 65
- the 5 m connecting cable with M12 connector is ordered separately – with a straight connector DRSE-C5 or an angled one DRSE-CW5
- install a fine compressed air filter upstream of the regulator – the air must be finely filtered (3 µm) and oil-free
- the mounting bracket is included – you can fix the regulator to pipework, a wall or in a control cabinet
- the inlet pressure must not exceed the value for the given range; for the 0–1 bar range (max. 2.1 bar at the inlet), install a standard pressure regulator upstream
- you can connect a pressure gauge via the G 1/8" thread; it is not included
- operating temperature −10 to +60 °C
For a higher flow rate, connect the regulator as a pilot regulator for remote-controlled DRI regulators.
