Basic filter PFN5-600 – 10 bar, DN100, 112,000 l/min 5 micron stainless steel mesh · 10 bar
Code: PFN5-600
Related products
Product detailed description
The PFN5-600 basic mesh process filter traps solid contaminants larger than 5 µm. It has a DN100 flange, a flow of 112,000 l/min at 7 bar and a working pressure of up to 10 bar. It contains 3 PFN5-200V elements.

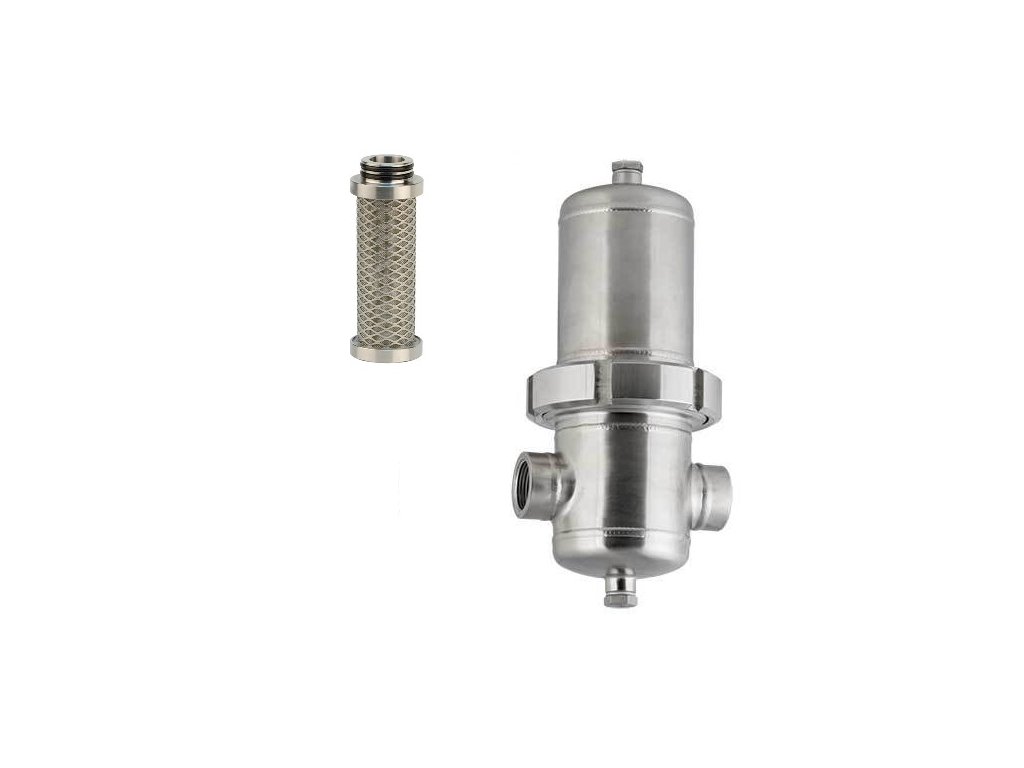

It belongs to the PF process filters, among the PFN5 basic filters: the housing is the same for all stages, only the element differs. The photo shows a PF range filter with a threaded connection.
Specifications
| Parameter | Value |
|---|---|
| Connection | DN100 flange |
| Flow at 7 bar | 112,000 l/min (6,720 Nm³/h) |
| Working pressure | 10 bar |
| Element temperature | +1.5 to +150 °C |
| Filtration rating | 5 µm |
| Element replacement | at least once every 12 months |
| Element | 3× PFN5-200V |
| Element material | stainless steel mesh 1.4301 |
| Element design | wrapped |
| Housing | stainless steel 1.4404 |
| Height A | 1,240 mm |
| Length across the flanges B | 410 mm |
| Housing diameter C | 219.1 mm |
| Weight | 60 kg |
| Condensate drain outlet E | G 1" thread in the bottom |
| Condensate drain | ordered separately |
Housing and dimensions
The housing is made of stainless steel 1.4404, or 1.4301 on request, with the outer surface polished to Ra 1.6 and EPDM seals (FKM or silicone on request). It withstands −20 to +150 °C; the actual limit depends on the seals and the element.
Dimensions according to the manufacturer: height A 1,240 mm, length across the flanges B 410 mm, housing diameter C 219.1 mm. Weight 60 kg.
Flow by pressure
The flow applies to a pressure of 7 bar and a temperature of +20 °C. At a different pressure, it is multiplied by the correction factor; at 14 bar it is 1.88:
| Pressure (bar) | 4 | 7 | 10 |
|---|---|---|---|
| Flow (l/min) | 70,560 | 112,000 | 154,560 |
Element and accessories
Where to place it
It goes after the coarse mesh or at the start of the filtration, before the PFP fibre pre-filter, the PFI1 sintered pre-filter or the PFM fine pre-filter.
You will find other sizes among the filters of the same stage.
Additional parameters
| Category: | PFN5 stainless steel basic mesh filters up to 14 bar |
|---|---|
| Pressure: | 10 bars |
| Connecting: | DN100 |
| Dimensions: | 1,240 × 410 × 219.1 mm |
| Filtration: | 5 µm |
| Filter insert: | PFN5-200V |
| Material: | Stainless steel |
| Condensate discharge: | Without drain |
| Number of inserts: | 3 |
| Working temperature: | +1.5 / +150 °C |
| Flow: | 112,000 l/min |
| Product type: | Complete filter |
| Filtration stage: | Basic filter 3–5 µm |
| Connection type: | Flange |
Product rating
Be the first who will post an article to this item!
Omega Air is a Slovenian manufacturer of compressed air treatment equipment based in Ljubljana. Founded in 1988, the company now has 370 employees and exports to more than 80 countries. It has its own development team and patents and carries out almost all production in its own facilities.
We mainly offer industrial filters up to 420 bar with replacement elements, stainless steel process and sterile filters, refrigeration, desiccant and membrane dryers, activated carbon columns, oil-water separators and condensate drains. They are used in workshops and large plants, in food, pharmaceuticals, chemicals and paint shops.
Slovenian manufacturerOmega Air filters, dryers and separators
Industrial filters up to 50 bar
Filters for standard air lines. AAF and BF ranges up to 16 bar, BFHP up to 25 bar and HF up to 50 bar. The element sets the filtration grade.
- from coarse filter to activated carbon
- G 1/8" to 3" thread or DN80 to DN300 flanges
- AAFHT for hot air up to +120 °C
CHP and IHP high-pressure filters
For 100, 250 and 420 bar. CHP housings are nickel-plated carbon steel, IHP housings stainless steel.
- 8 sizes with G 1/4" to 2" thread
- flow 667 to 11,917 l/min at 7 bar
- six grades up to activated carbon
Stainless steel process filters
1.4404 stainless steel for food and pharma. Six ranges up to 14 and 50 bar with thread, flanges or welding ends.
- 12 filtration grades in each range
- sterile element in the PF and HPF ranges
- flow 1,250 to 352,000 l/min at 7 bar
RDS refrigeration dryers
Dew point +3 °C for most plants. The air cools down in the dryer, water condenses and the drain removes it without losing air.
- 18 sizes, 333 to 31,667 l/min
- working pressure up to 16 bar
- controller shows the dew point
ADRY desiccant dryers
Very dry air, dew point −40 °C. Moisture is captured by desiccant in two alternating columns.
- 9 sizes, 6 to 200 Nm³/h
- dew point −25 or −70 °C on request
- inlet and outlet filter included
MADRY membrane dryers
They dry without electricity. Water vapour passes through the wall of hollow fibres, dry air stays inside.
- 12 sizes, 50 to 3,000 l/min
- dew point down to −40 °C, up to 12 bar
- fine pre-filter and microfilter included
TAC activated carbon columns
They capture oil vapours that filters let through. The air flows through a bed of granular activated carbon.
- outlet oil below 0.003 mg/m³
- 19 sizes, 6 to 1,200 Nm³/h
- up to 16 bar, high-pressure TACHP up to 420 bar
WOS oil-water separators
They separate oil from condensate. Oil stays in the polypropylene fibre and activated carbon fills, water flows out.
- residual oil below 10 ppm
- 4 sizes for compressors up to 35.5 m³/min
- fills are replaced once a year
Not sure which filtration grades you need? The calculator in industrial filtration puts them together by application, pressure and flow, including condensate drainage.
Filtration calculatorOmega Air range side by side
| Group, series, rating and use | |||
|---|---|---|---|
| Group | Series | Rating | Use |
| Industrial filters | AAF, AAFHT, BF, BFHP, HF | up to 16, 25 and 50 bar | compressed air lines, hot air up to +120 °C |
| High-pressure filters | CHP, IHP | 100, 250 and 420 bar | high-pressure lines |
| Stainless steel process filters | PF, HPF, WFIT, WFIF, WFIW, WHFIT | up to 14 and 50 bar | food, pharmaceuticals, chemicals |
| Sterile filters | SF, SPF | up to 10 and 14 bar | sterile air, they also retain bacteria |
| Filters for special applications | AAFS, PPA, B-AIR, AAFO2, HFO2, P-VAC, M-VAC | up to 16 and 50 bar, vacuum from 20 mbar | paint shops, breathing air, oxygen, vacuum pumps |
| Cyclone separators | AAFC, HFC, CHP, IHP, CS, SFH | up to 16, 50 and 420 bar | liquid water and oil right after the compressor |
| Refrigeration dryers | RDS, RDL | up to 16 and 13 bar | dew point +3 and +5 °C |
| Desiccant dryers | ADRY, B-DRY, F-DRY | 4 to 16 bar | dew point −40 °C, −25 or −70 °C on request |
| Membrane dryers | MADRY | up to 12 bar | dew point down to −40 °C without electricity |
| Activated carbon columns | TACM, TAC, TACF, TACHP | up to 16 bar, TACHP up to 420 bar | oil vapours, oil below 0.003 mg/m³ |
| Oil-water separators | WOS, WOSM | compressors up to 35.5 m³/min | oil from condensate below 10 and 20 ppm |
| Condensate drains | MCD, AOK, TD, AD20 | up to 420 bar | manual, float, timed and electronic |
The manufacturer states filter and dryer flows at 7 bar. All sizes and grades are on the page of each group.
How to put compressed air treatment together
1. Define the quality
Choose the ISO 8573-1 purity class for the application: three numbers for solid particles, water and oil. A workshop needs 3:4:4, painting 1:4:1 and food in direct contact 1:2:1.
2. Order the grades
A separator or basic filter goes right after the compressor, followed by the dryer and the finer grades. Always place the 0.1 µm fine pre-filter before the 0.01 µm microfilter and activated carbon only after the microfilter.
3. Choose the size
Select the filter and dryer by compressor flow and line pressure. Flows are given at 7 bar; at lower pressure a filter passes less air.
4. Maintain
Replace elements once a year, sooner if the pressure drop rises. Remove condensate with a drain and replace the WOS separator fills once a year.
Frequently asked questions
- What is the difference between a fine pre-filter and a microfilter?
- A fine pre-filter captures particles down to 0.1 µm and oil to 0.1 mg/m³, a microfilter down to 0.01 µm and 0.01 mg/m³. The pre-filter always goes before the microfilter to protect its element.
- How do I find a replacement element for an Omega Air filter?
- The element has the same code as the filter with the letter V at the end: the AAFP-78 filter takes the AAFP-78V element. Most elements are replaced once a year, sooner if the indicator shows a higher pressure drop.
- Which Omega Air dryer should I choose?
- For workshops and most plants an RDS refrigeration dryer with a +3 °C dew point is enough. Very dry air or lines exposed to frost need an ADRY desiccant dryer with a −40 °C dew point. The MADRY membrane dryer needs no electricity and suits small flows right at the machine.
- Where does an activated carbon column go?
- After the dryer and a 0.01 µm microfilter, which captures oil droplets and aerosol. The column then removes oil vapours below 0.003 mg/m³. A 1 µm dust filter goes after it to catch dust from the carbon.
- What is an oil-water separator for?
- Condensate from an oil-lubricated compressor contains oil and must not go into the sewer untreated. The WOS separator captures the oil in its fills and water flows out with less than 10 ppm residual oil. The discharge limit is set by the local sewer regulations.
- Which condensate drains does Omega Air make?
- Manual MCD drains, float AOK drains that work without electricity, timed TD drains up to 420 bar and the electronic AD20. It senses the level with a capacitive sensor and drains condensate without losing air.
